Littelfuse MCC56-14io1B Thyristor Module | Robust and Reliable AC Power Control

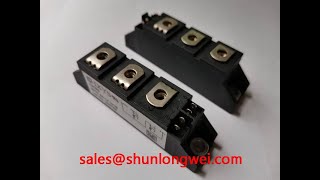

The Littelfuse MCC56-14io1B is a high-reliability dual SCR (thyristor) module engineered for demanding AC power control applications. Housed in an industry-standard TO-240AA package, this module provides a robust and thermally efficient solution for controlling AC loads in motor starters, industrial heating, and static switching systems. Its design prioritizes operational longevity and straightforward integration, making the MCC56-14io1B a go-to component for engineers seeking dependable line-frequency power regulation.
Technical Deep Dive: Engineered for Durability and Precision
The performance of the MCC56-14io1B is rooted in its fundamental design choices, which translate directly into system-level benefits for your application.
- Glass Passivated Junctions: The core of this thyristor module features glass passivated junctions. This process creates a hermetic seal around the silicon die, providing exceptional high-voltage stability and minimizing leakage currents. For the end-user, this means superior long-term reliability and predictable performance, even when operating in environments with fluctuating temperatures or humidity.
- Direct Copper Bonded (DCB) Ceramic Substrate: The module utilizes a DCB substrate, which offers low thermal resistance and excellent electrical isolation. This construction ensures efficient heat transfer from the silicon chips to the heatsink, preventing thermal runaway and extending the power cycling capability of the device. This is crucial for applications with frequent on/off cycles, such as soft starters or industrial process controls.
Multi-Dimensional Application Scenarios
The MCC56-14io1B thyristor module delivers tangible value across a spectrum of industrial power control scenarios, addressing specific industry pain points.
- Motor Soft Starters: In AC induction motor applications, this module enables precise phase angle control. By gradually ramping up the voltage during startup, it significantly reduces mechanical shock on gearboxes and couplings and limits high inrush currents that can stress the electrical supply. This extends the lifespan of the entire motor system.
- Industrial Heater and Lighting Control: For large-scale resistive loads like industrial furnaces or theater lighting, the MCC56-14io1B provides smooth, continuous power regulation. This allows for precise temperature management or dimming control, leading to improved process quality and significant energy savings compared to rudimentary on/off control methods.
- AC Static Switches: As a solid-state replacement for mechanical contactors, this module offers a wear-free solution. It eliminates the problems of contact arcing, bouncing, and acoustic noise. This translates to vastly improved reliability and reduced maintenance in applications requiring high switching frequency, such as welding power supplies or fast-acting static VAR compensators.
Key Technical Specifications
The following parameters highlight the capabilities of the Littelfuse MCC56-14io1B. For comprehensive details, please consult the official datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1400 V |
| Average On-State Current (IT(AV)) @ TC=85°C | 55 A |
| RMS On-State Current (IT(RMS)) | 86 A |
| Peak Gate Current (IGM) | 0.8 A |
| Isolation Voltage (VISOL) | 3000 V~ |
For complete electrical and thermal characteristics, download the MCC56-14io1B Datasheet.
Selection Guidance: Thyristor vs. IGBT Modules
Engineers often choose between different power semiconductor technologies. The MCC56-14io1B, as a thyristor module, is optimized for line-frequency (50/60 Hz) phase control and switching. Its inherent ruggedness and low conduction losses make it superior for applications like AC voltage controllers and controlled rectifiers. In contrast, IGBT modules are designed for high-frequency operation (kHz range) and are the preferred choice for sophisticated applications like Variable Frequency Drives (VFDs), solar inverters, and modern switch-mode power supplies. Understanding this fundamental difference is key to selecting the most cost-effective and reliable component for your project.
Choosing the right power module is critical for the performance and reliability of your system. If your design involves AC power regulation at line frequencies, the robust and proven architecture of the MCC56-14io1B offers an excellent solution. For more complex, high-frequency inverter designs, exploring our range of IGBTs may be more suitable. Should you require assistance in making this decision, please do not hesitate to contact our technical support team for expert guidance.
