MDS130-16 Three-Phase Bridge Rectifier Module: Engineering-Grade Analysis
MDS130-16: A Comprehensive Technical Overview for Power System Design
Content last revised on October 14, 2025.
System-Level Benefits in Industrial Power Conversion

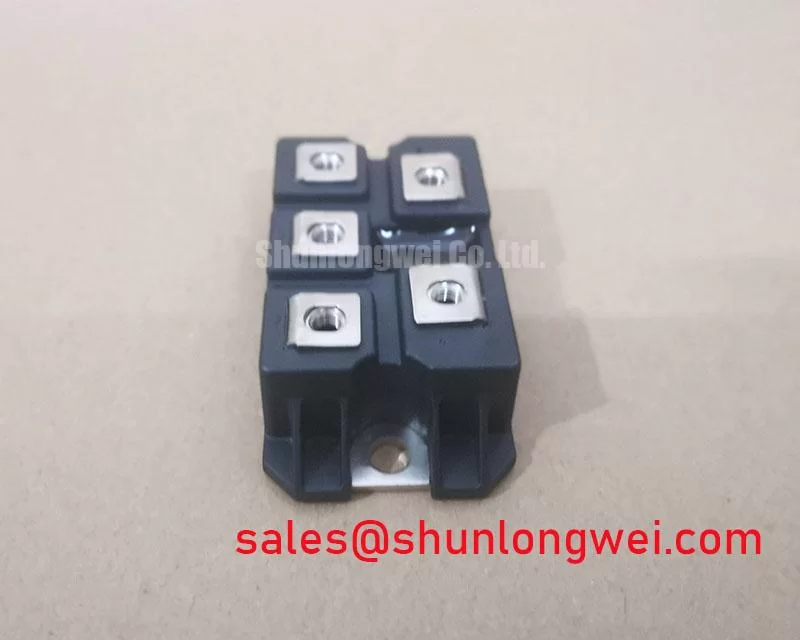

The MDS130-16 is an integrated three-phase diode bridge rectifier, engineered for robust performance in demanding industrial power applications. Its core value lies in delivering reliable AC-to-DC rectification through superior thermal management and a high-endurance design. Featuring key specifications of 1600V | 130A | 3000V Isolation, this module offers significant benefits including enhanced thermal efficiency and long-term operational reliability. It is specifically designed to address the engineering challenge of building compact and durable power supplies for harsh electrical environments, such as those found in variable frequency drives. For applications requiring higher current handling in a similar voltage class, the related MDS200A1600V provides an increased current rating.
Application Scenarios & Value
Optimizing Reliability in Motor Drives and Power Supplies
The MDS130-16 is best suited for deployment as the primary input rectifier in three-phase power systems where reliability and efficient thermal performance are critical. Its 1600V reverse voltage rating provides a substantial safety margin for systems connected to 400V, 480V, or even 575V AC lines, making it an excellent choice for industrial-grade Variable Frequency Drive (VFD) and DC motor field supplies.
A high-fidelity engineering scenario is its use in the front-end of a VFD for a conveyor system. Such systems experience fluctuating loads and potential line voltage transients. The MDS130-16's glass-passivated diode chips provide stable performance, while its excellent surge current capability (IFSM) of 1200A handles the inrush current during motor startup without degradation. Furthermore, its design, which utilizes a direct copper bonded (DCB) aluminum oxide ceramic baseplate, ensures efficient heat extraction. This directly translates to smaller heatsink requirements or higher power density within the control cabinet, a critical consideration in modern, compact power electronics automation systems.
Key Parameter Overview
Decoding the Specs for Thermal and Electrical Robustness
The technical specifications of the MDS130-16 are foundational to its performance in high-power applications. The parameters below have been selected to provide engineers with the critical data needed for system design, thermal modeling, and reliability assessment.
| Absolute Maximum Ratings (Tc=100°C unless otherwise noted) | ||
| Parameter | Symbol | Value |
| Repetitive Peak Reverse Voltage | VRRM | 1600 V |
| Average Forward Current | ID | 130 A |
| Peak Forward Surge Current (t=10ms) | IFSM | 1200 A |
| Isolation Voltage (AC, 50Hz, 1 min) | Visol | 3000 V |
| Thermal Characteristics | ||
| Thermal Resistance, Junction-to-Case | Rth(j-c) | 0.9 °C/W (Per Diode) |
| Operating Junction Temperature | Tvj | -40 to 150 °C |
Disclaimer: The parameters listed above are for reference purposes. As a distributor, we do not guarantee the specifications. Please refer to the official manufacturer's documentation for the most accurate and complete data.
Download the MSD130-16 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
What is the primary benefit of the module's ceramic isolated metal baseplate design?The primary benefit is superior thermal performance and high electrical isolation. The aluminum oxide ceramic baseplate offers low thermal resistance, allowing heat to transfer efficiently from the diode junctions to the heatsink, while its high dielectric strength ensures robust 3000V isolation between the live terminals and the mounting surface.
How does the 1600V VRRM rating impact system design for industrial applications?A 1600V Repetitive Peak Reverse Voltage (VRRM) rating provides a crucial safety margin for applications running on 480V or 575V three-phase AC lines. This high breakdown voltage protects the rectifier from transient overvoltages common in industrial environments, enhancing the long-term reliability of the power conversion stage and preventing catastrophic failure.
Design and Integration Support
Ensuring Robust and Reliable Operation
Proper integration of the MDS130-16 is key to leveraging its full capabilities. For optimal thermal performance, ensure a flat, clean mounting surface and apply a uniform layer of thermal grease to minimize the case-to-heatsink thermal resistance (Rth(c-s)). Adhering to the recommended mounting torque of 5 Nm (±15%) for the M6 heatsink bolts is critical to prevent mechanical stress on the ceramic substrate. Electrical connections to the M6 screw terminals should also be torqued to the specified 5 Nm (±15%) to ensure a low-resistance, secure connection that prevents localized overheating under full load conditions. These steps are vital for maximizing the operational lifespan and reliability of the end system, whether it is an industrial battery charger or an uninterruptible power supply (UPS).
For inquiries regarding this component or to discuss your specific application needs, please contact our technical sales team for engineering-level support.
