LTM190M2-L31: Your 19-Inch SXGA Display for Legacy System Continuity
The Challenge of Modern Replacements for Legacy Systems
System upgrades often present a critical dilemma: a machine's core computing and mechanical housing are perfectly functional, yet its display has failed. Sourcing a modern widescreen 16:9 panel seems easy, but it quickly leads to significant engineering costs. Software GUIs become distorted, custom bezels no longer fit, and the entire system may require expensive re-certification. This is the friction that disrupts operational continuity and inflates total cost of ownership. The Samsung LTM190M2-L31 directly addresses this challenge. It is not simply a display; it is a strategic component engineered to preserve the integrity of established systems with its native 1280x1024 SXGA resolution and classic 5:4 aspect ratio. This panel offers a direct, form-fit-function replacement path, safeguarding your initial investment and eliminating the risks associated with forced modernization.
Strategic Value in Sustaining Proven Platforms
In industries like medical imaging, air traffic control, and industrial automation, system validation is a long and expensive process. The LTM190M2-L31 provides a crucial bridge, allowing organizations to extend the life of these certified systems. The adoption of a panel with a 5:4 aspect ratio is a strategic decision to manage lifecycle costs. It circumvents the need for retraining operators on a new interface or undertaking complex software modifications. This approach aligns with a total cost of ownership model, where the initial price of a component is less important than the long-term savings in engineering, testing, and regulatory compliance. For a deeper understanding of why specialized panels outperform consumer-grade alternatives in these environments, explore our guide on Industrial vs. Consumer Displays.
Frequently Asked Questions for System Integrators
- What is the primary advantage of the LTM190M2-L31's CCFL backlight in a replacement scenario?The CCFL backlight provides a known spectral output and brightness characteristic that often matches the original display the system was designed and certified with. This ensures visual consistency for operators and avoids potential color matching issues in critical applications like medical diagnostics, preventing the need for system-wide recalibration.

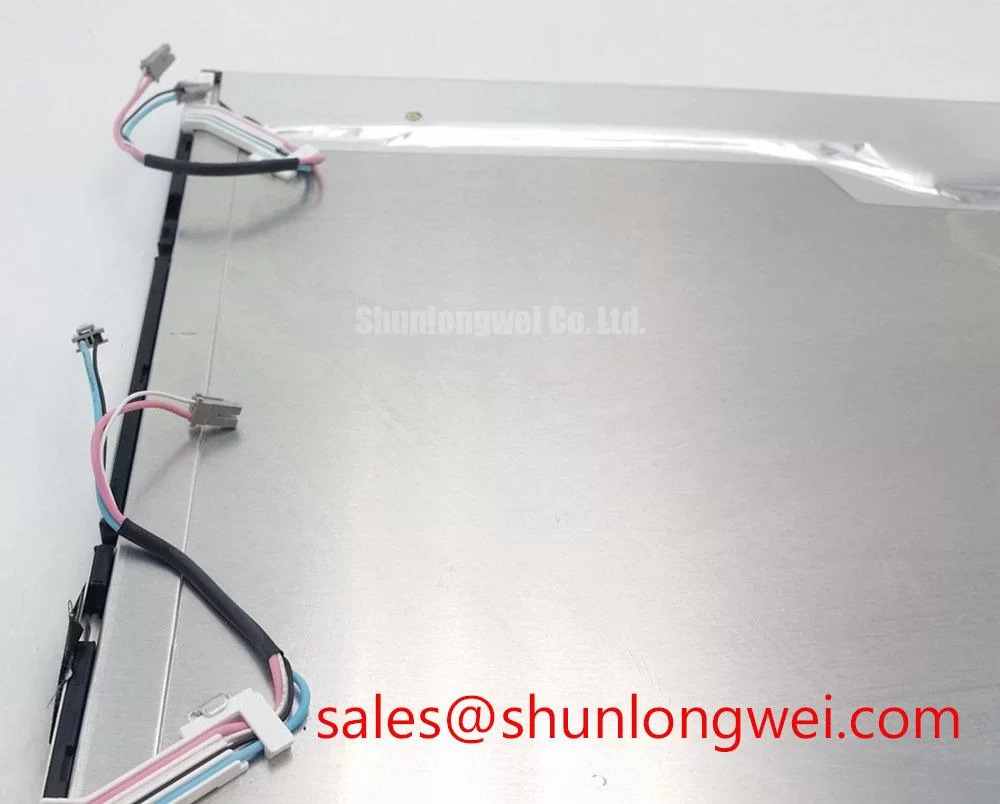

- Is an inverter board required for this display module?Yes, as a CCFL-based panel, the LTM190M2-L31 requires an external high-voltage inverter to power its four backlight lamps. This is a critical consideration for procurement to ensure a complete and functional replacement kit is sourced.
- How does the 5ms response time impact its use in industrial monitoring?A 5ms gray-to-gray response time is quite fast for this class of display. It minimizes motion blur and ghosting, which is essential for applications displaying rapidly changing data, such as process control readouts, machine vision feedback, or sonar/radar displays. Clear motion ensures operators can make accurate decisions quickly.
- What does the LVDS interface entail for system design?The 2-channel, 8-bit LVDS (Low-Voltage Differential Signaling) interface is a standard for industrial panels, offering high-speed data transmission with low electromagnetic interference (EMI). This robust signaling is vital for maintaining signal integrity in electrically noisy factory environments. You can learn more about this interface from authoritative sources like Texas Instruments' application notes on LVDS.
Core Performance Specifications at a Glance
The following metrics highlight the LTM190M2-L31's suitability for clear, reliable performance in established professional applications. For complete details, please refer to the official product datasheet.
| Parameter | Value |
|---|---|
| Screen Size | 19.0 inch |
| Resolution | 1280(RGB)×1024 [SXGA] |
| Aspect Ratio | 5:4 (Width:Height) |
| Contrast Ratio | 1000:1 (Typ.) |
| Luminance | 300 cd/m² (Typ.) |
| Response Time | 5 ms (Typ.) (G to G) |
Where the 5:4 Aspect Ratio Preserves System Integrity
The LTM190M2-L31 is purpose-built for environments where maintaining the original system footprint is paramount. Its engineering value is most apparent in applications where equipment longevity and stability are prioritized over adopting the latest display trends.
- Legacy Industrial HMI Panels: A direct drop-in replacement for aging control consoles in manufacturing facilities, ensuring that the existing SCADA or HMI software renders correctly without distortion or cropping.
- Medical Diagnostic Stations: Used in older ultrasound machines, PACS workstations, and patient monitoring systems where the user interface was specifically designed for a 5:4 screen, ensuring that critical diagnostic information is displayed as originally intended.
- Air Traffic Control & Marine Displays: In many auxiliary ATC and marine radar systems, the 5:4 format is a long-standing standard. This panel allows for cost-effective servicing and upgrades without overhauling the entire console.
- Specialized Test and Measurement Equipment: High-value lab or field equipment with integrated displays can be kept in service longer by replacing failed panels with the Samsung LTM190M2-L31, protecting significant capital investment.
Field-Proven Reliability: A Deployment Snapshot
A European-based process automation provider faced a critical challenge: a fleet of their factory-floor controllers, deployed over a decade ago, was experiencing display failures. The original 19-inch 5:4 panels were no longer available from the OEM. A proposed switch to modern widescreen displays would have required a complete front-bezel redesign and a costly software patch to adjust the UI for over 500 deployed units. By selecting the LTM190M2-L31, their field service team was able to perform on-site replacements in under an hour per unit. This maintained the equipment's original physical and software footprint, resulting in an estimated 80% cost saving compared to the proposed redesign and recertification project.
Anatomy of a Legacy Workhorse: a-Si TFT and LVDS Interface
The Samsung LTM190M2-L31 is built upon a foundation of proven a-Si (Amorphous Silicon) TFT technology. This mature liquid crystal display technology is known for its reliability and cost-effective production, making it a staple in the industrial sector for years. The panel's visual performance is defined by its strong 1000:1 contrast ratio. Think of contrast ratio like the clarity of a traffic signal in dense fog; a higher ratio means the distinction between "on" (white) and "off" (black) pixels is much sharper. This translates directly to superior readability of fine text and complex diagrams, reducing operator error. The data is delivered via a 2-channel, 8-bit LVDS interface, an industry standard engineered for excellent noise immunity—a crucial trait for ensuring stable imaging in the electromagnetically charged environments of factories and medical facilities. For those looking for a modern LED-backlit alternative in a similar size, the G190ETN01.4 offers a potential upgrade path with different integration requirements.
Comparative Analysis: The Value of a Form-Fit Replacement
When selecting a replacement display, engineers must weigh the specifications against the integration cost. While modern LED-backlit IPS panels may offer wider viewing angles or higher brightness on paper, their value diminishes if they require extensive re-engineering. The key advantage of the LTM190M2-L31 is its role as a "key that fits the original lock." Its 5:4 SXGA format, CCFL backlight power requirements, and physical dimensions are designed to match a large installed base of legacy equipment. The alternative—a modern 16:9 display—forces a cascade of changes from mechanical mounting to software scaling. For systems where operational certification is critical, the LTM190M2-L31 is not just the path of least resistance; it is the most economically sound and technically prudent choice for long-term sustainability. The fundamental principles of this technology are well-covered in The Ultimate Guide to TFT-LCD.
Sustaining Your Technology Investment
The LTM190M2-L31 represents a commitment to long-term operational stability. By providing a reliable, form-fit-function solution for legacy systems, it empowers engineers and asset managers to maximize the ROI of their existing high-value equipment. Integrating this display is a strategic move to defer massive capital expenditures and maintain the proven, certified performance of your installed base for years to come. Contact our technical specialists to discuss how the LTM190M2-L31 can secure the future of your essential systems.
