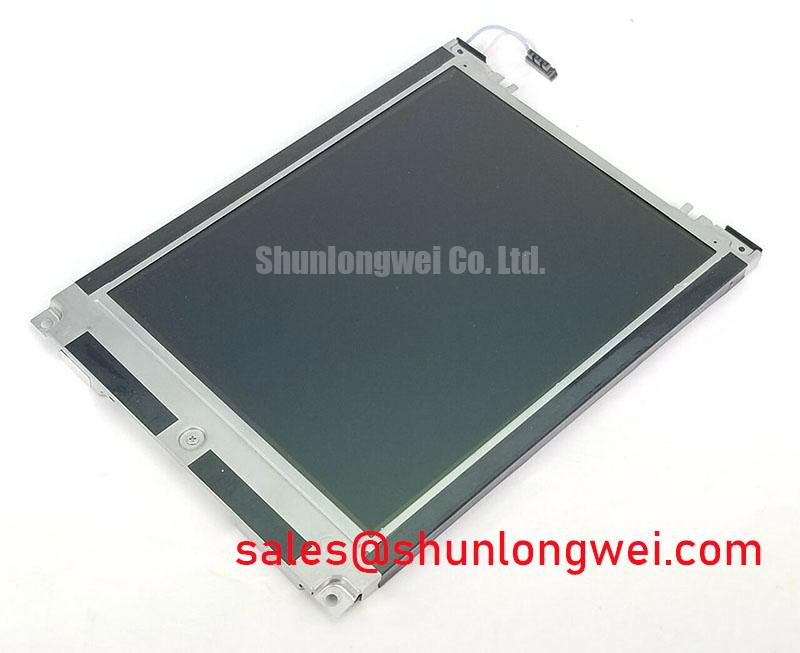

Sharp LM8V302R | High-Contrast VGA FSTN Display for Legacy Industrial Systems
The Sharp LM8V302R is an engineering workhorse, a 7.7-inch FSTN (Film-compensated Super-Twisted Nematic) monochrome LCD module designed for exceptional clarity and long-term reliability. For system designers maintaining or developing equipment with a need for clear, unambiguous graphical or text-based user interfaces, this VGA-resolution display offers a proven and cost-effective solution. It is particularly engineered for applications where high contrast and stable performance are more critical than color capabilities, making it a cornerstone component for legacy and specialized industrial equipment.
- Display Technology: 7.7" Monochrome FSTN LCD
- Resolution: 640 x 480 (VGA) for sharp text and graphics
- Key Feature: High-contrast black-and-white display mode ensures maximum readability
- Backlight: Integrated Cold Cathode Fluorescent Lamp (CCFL) for bright, uniform illumination
- Primary Applications: Industrial control panels, test and measurement instruments, medical devices, and POS systems
Key Technical Specifications
The following parameters define the core performance and integration characteristics of the Sharp LM8V302R. For complete electrical and mechanical details, engineers are encouraged to review the official datasheet.
| Parameter | Value |
|---|---|
| Display Type | FSTN (Film-compensated STN), Monochrome |
| Screen Size | 7.7 inches (19.5 cm) |
| Resolution | 640 x 480 Dots (VGA) |
| Active Area | 157.4 (W) x 118.04 (H) mm |
| Contrast Ratio | 18:1 (Typical) |
| Backlight System | 1x CCFL (Cold Cathode Fluorescent Lamp) |
| Interface | 4-bit Parallel Data |
| Operating Temperature | 0°C to +45°C |
For detailed schematics and timing diagrams, you can Download the Datasheet here.
Technical Deep Dive: Engineering for Clarity and Reliability
The enduring relevance of the Sharp LM8V302R stems from two key design choices: its FSTN panel technology and its robust CCFL backlighting system. Understanding these provides insight into its ideal use cases.
First, FSTN technology represents a significant advancement over standard STN displays. By incorporating a retardation film layer, it corrects the inherent color shift (typically blue or yellow) of STN panels. The result is a true, high-contrast black-and-white display. This is not merely an aesthetic improvement; in an industrial setting, it translates directly to reduced operator eye strain and faster, more accurate data interpretation—critical when monitoring processes or reading precise measurements. This focus on a high Contrast Ratio is a deliberate engineering trade-off that prioritizes legibility above all else.
Second, the CCFL backlight, while a more traditional technology, provides excellent brightness and uniformity across the entire display surface. CCFLs are known for their stable output and long operational lifespan, a requirement for equipment expected to run for years in the field. System integration requires an external inverter to power the lamp, a standard design practice for equipment of this class that gives engineers control over brightness levels.
Application Scenarios & Value Proposition
The LM8V302R is not a general-purpose display; it is a specialist component optimized for environments where clarity and reliability are paramount.
- Industrial Control Panels & HMIs: In manufacturing automation, the VGA resolution is perfect for displaying system schematics, status indicators, and text-based menus. Its immunity to the complexities of color interfaces makes it a robust choice for durable industrial Human-Machine Interfaces (HMIs).
- Test & Measurement Equipment: For oscilloscopes, spectrum analyzers, and network testers, the sharp, monochrome display provides unambiguous rendering of waveforms, charts, and numerical data, allowing engineers and technicians to make precise readings without color distraction.
- Medical Diagnostic Devices: In legacy patient monitoring systems or lab equipment, the high contrast ensures that vital statistics and results are clearly legible from various angles and under typical indoor lighting conditions.
Engineer's FAQ for the LM8V302R
1. Is the LM8V302R suitable for new designs or primarily for replacement?While it can be used in new designs with specific monochrome requirements, the Sharp LM8V302R is an industry-standard component invaluable for MRO (Maintenance, Repair, and Operations). Its 640x480 resolution and parallel interface make it a direct or near-direct replacement for aging displays in a vast range of field-deployed industrial and medical equipment, extending the life of capital-intensive assets.
2. What are the main considerations when designing the CCFL inverter circuit?The primary consideration is providing a stable, high-voltage AC source as specified in the datasheet. Engineers must ensure the chosen inverter matches the lamp's voltage and frequency requirements (typically around 30-50 kHz). Careful board layout is also necessary to isolate the high-voltage traces from sensitive logic signals to prevent noise and ensure system stability. While CCFL was a dominant technology, modern designs often leverage the benefits of LED, a topic we explore in our guide on the energy efficiency of LED backlights.
If you are planning a system upgrade or require a reliable source for maintaining existing equipment, the Sharp LM8V302R offers a powerful combination of performance and value. For specific integration questions or to discuss sourcing, please contact our technical team.
