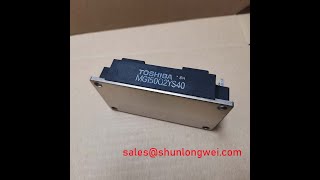

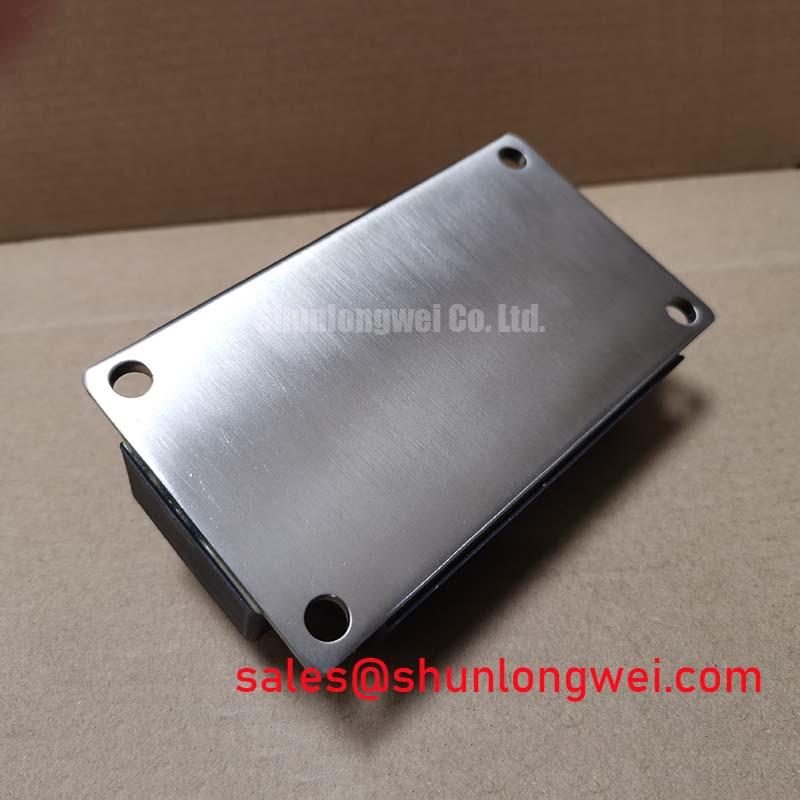

Toshiba MG150Q2YS40 | Robust 1200V Dual IGBT Module for High-Power Industrial Applications
The Toshiba MG150Q2YS40 is not just a component; it's a proven workhorse in the world of high-power electronics. For engineers designing systems that demand unwavering reliability under heavy loads, this 1200V, 150A dual IGBT module offers a balanced and robust solution. It represents a class of power modules engineered for longevity and predictable performance in the most demanding industrial environments.
- High Voltage & Current Handling: With a 1200V collector-emitter voltage (V_CES) and 150A continuous collector current (I_C), it's ideally suited for inverters and converters operating on 400V and 480V AC lines.
- Integrated Half-Bridge Topology: The dual IGBT (2-in-1) configuration simplifies the design of inverter legs, reducing component count, minimizing stray inductance, and streamlining assembly for systems like motor drives and UPS.
- Proven Field Reliability: Built with Toshiba's established N-Channel enhancement-mode technology, the MG150Q2YS40 has a long track record of performance in applications where downtime is not an option.
- Optimized for Inductive Loads: Each IGBT is paired with a co-packaged, fast-recovery freewheeling diode (FWD), essential for safely managing the energy in inductive loads and ensuring stable operation.
Application Scenarios & Value Realization
From a system design perspective, the specifications of the MG150Q2YS40 translate directly into tangible performance benefits across several key industrial sectors.
- Industrial Motor Drives: In Variable Frequency Drives (VFDs), this module provides the raw power switching capability needed to control three-phase AC induction motors up to ~55 kW. Its thermal stability ensures consistent torque output and speed control, even under fluctuating load conditions found in manufacturing plants and processing facilities.
- Uninterruptible Power Supplies (UPS): The 1200V rating offers a substantial safety margin for the DC-AC inverter stage in large-scale UPS systems. The integrated half-bridge configuration is a natural fit for the H-bridge topologies used to generate a clean sine wave, ensuring protected loads receive reliable, high-quality power.
- Welding and Induction Heating: These applications involve high-current pulses and significant thermal cycling. The MG150Q2YS40's robust construction and reliable thermal interface allow it to withstand these stresses, delivering the precise and repeatable power pulses necessary for high-quality welds and efficient induction heating processes.
Technical Deep Dive: Engineered for Control and Durability
The core of the MG150Q2YS40 is its N-Channel enhancement-mode IGBT structure. This fundamental design choice means the device is normally-off, a crucial safety feature that prevents current flow without a positive gate-emitter voltage. This allows for straightforward and well-understood control schemes, which you can explore further in our guide on how an IGBT works. The module's performance, however, goes beyond the silicon itself. The strategic co-packaging of the freewheeling diode is paramount. During the IGBT's turn-off transition in an inductive circuit, this diode provides an immediate path for the load current, clamping the potentially destructive voltage spike across the IGBT and ensuring the module operates within its Reverse Bias Safe Operating Area (RBSOA).
Key Technical Specifications
The following table highlights the critical parameters for design engineers. For comprehensive data, including all characteristic curves and thermal information, please download the official MG150Q2YS40 datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200V |
| Collector Current (I_C) @ T_c=80°C | 150A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C=150A | 2.7V (typ.) |
| Gate-Emitter Threshold Voltage (V_GE(th)) | 5.0V to 8.0V |
| Total Power Dissipation (P_C) @ T_c=25°C | 830W |
| Turn-on Time (t_on) | 1.0 µs (typ.) |
| Turn-off Time (t_off) | 1.2 µs (typ.) |
| Diode Forward Voltage (V_F) @ I_F=150A | 2.4V (typ.) |
Engineer's FAQ for the MG150Q2YS40
What are the critical considerations for the gate drive circuit?
A robust gate drive is essential. For optimal performance, a +15V gate-emitter voltage (V_GE) is recommended for strong turn-on and minimum conduction losses. Critically, a negative V_GE of -5V to -10V should be used for turn-off. This provides a solid buffer against parasitic turn-on caused by the Miller effect, especially during the fast dV/dt transitions seen in half-bridge operation. For more details, review these practical tips for robust IGBT gate drive design.
How critical is thermal management for this module?
Extremely. The module's total power loss is a sum of its conduction and switching losses. This lost power manifests as heat that must be efficiently removed to keep the junction temperature (T_j) below its 150°C maximum. The key specification for your thermal design is the junction-to-case Thermal Resistance (R_th(j-c)), which is 0.15 °C/W for the IGBT. A properly selected heatsink and thermal interface material (TIM) are non-negotiable for ensuring long-term system reliability. For specific application calculations or selection support for our extensive range of IGBT modules, please contact our technical team.
```
