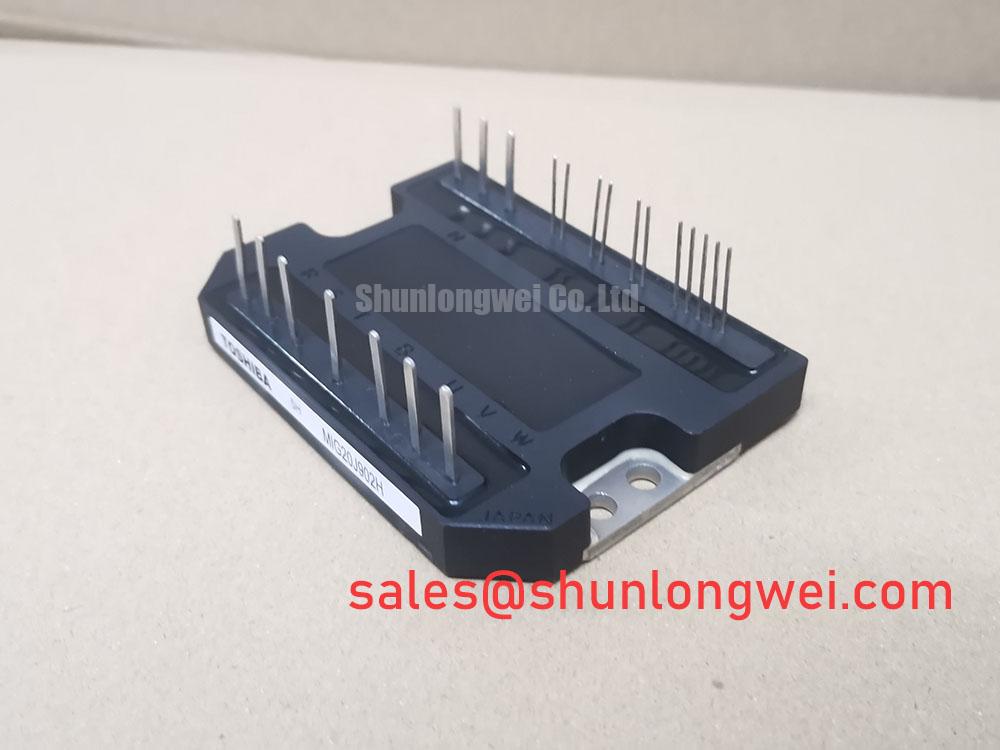

Toshiba MIG20J902H | Integrated Power Module for Compact Motor Drives
The Toshiba MIG20J902H is a high-integration Intelligent Power Module (IPM) engineered to streamline the design and enhance the reliability of low-to-medium power inverter applications. By co-packaging a three-phase IGBT bridge with dedicated gate drive and comprehensive protection circuits, this module offers a robust, single-component solution for variable frequency drives (VFDs), servo motors, and advanced appliance controls. Its 600V/20A rating makes it an ideal choice for engineers looking to accelerate time-to-market while reducing system complexity and footprint.
Technical Deep Dive: The Value of Integrated Intelligence
The core advantage of the Toshiba MIG20J902H lies in its "intelligent" design, which transforms a complex multi-stage design process into a single component integration. Unlike discrete solutions that require meticulous gate drive design, component matching, and complex PCB layouts, this IPM provides a pre-optimized and validated power stage.
- Integrated Gate Drivers: The module includes high-voltage ICs (HVICs) with built-in level shifting and bootstrap circuits for the high-side IGBTs. This eliminates the need for external optocouplers and isolated power supplies, dramatically simplifying the control interface and reducing board space.
- Comprehensive Protection Suite: Reliability is paramount in motor control. The MIG20J902H incorporates critical protection functions directly on-chip, including under-voltage lockout (UVLO) to prevent insufficient gate voltage, short-circuit protection (SCP), and over-temperature (OT) shutdown. These features provide a much faster and more reliable response than discrete implementations, safeguarding the IGBT modules from catastrophic failure.
- Optimized Switching Performance: By minimizing the distance between the driver and the IGBT gates, the internal layout of the MIG20J902H significantly reduces parasitic inductance. This leads to cleaner switching, lower voltage overshoots, and reduced electromagnetic interference (EMI), easing the burden of system-level EMC compliance.
Application Scenarios and Engineering Benefits
The integrated nature of the Toshiba MIG20J902H delivers tangible benefits across several demanding applications, directly addressing common engineering pain points.
- AC Servo Drives: In precision motion control, reliability and compact size are critical. The module’s integrated protection and small footprint allow for the design of smaller, more robust servo amplifiers that can be placed closer to the motor, improving response time and performance.
- Industrial Automation & Robotics: The simplified design cycle enabled by this IPM is a significant advantage in complex automation systems. Engineers can focus on control logic and system integration rather than power stage intricacies, accelerating development for robotic arms and small conveyor systems.
- HVAC and Appliance Motor Control: For applications like air conditioner compressors and washing machine motors, the MIG20J902H provides a cost-effective and highly reliable solution. Its built-in protections ensure long operational life in consumer-facing products where field failures are costly.
Key Parameter Overview
The following table outlines the essential performance characteristics of the MIG20J902H. For a complete overview of its operational limits and electrical characteristics, please download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600V |
| Collector Current (Ic) @ Tc=80°C | 20A |
| Peak Collector Current (Icp) | 40A |
| Isolation Voltage (Visol, AC 1 minute) | 2500V |
| Maximum Junction Temperature (Tj) | 150°C |
| Internal Configuration | 3-Phase Bridge IGBT with Gate Drive & Protection |
Selection Guidance: IPM vs. Discrete Solutions
Choosing between an IPM like the MIG20J902H and a design based on discrete components depends on project priorities. For applications below 3kW, the IPM approach offers a clear advantage in reliability, development speed, and overall system cost. While a discrete approach might offer a lower initial bill-of-materials (BOM), it comes with significantly higher R&D costs and risks associated with layout and component interaction.
For systems requiring higher current handling, a larger module such as the 7MBR25SA120-50, a 1200V/25A PIM, might be a more suitable choice. However, for its target power range, the MIG20J902H provides an optimal balance of integration and performance. A deeper understanding of these trade-offs can be found in our guide on IPM vs. Discrete IGBTs.
Frequently Asked Questions (FAQ)
1. What is the main advantage of the bootstrap circuit for the high-side drivers?The integrated bootstrap circuit uses a diode and capacitor to create a floating power supply for the high-side gate drivers. This elegant solution eliminates the need for three separate isolated power supplies, which reduces component count, cost, and PCB complexity, making it a cornerstone of modern IPM (Intelligent Power Module) design.
2. Can the protection features be customized?The protection thresholds, such as for over-current and over-temperature, are typically fixed and optimized internally by the manufacturer for the specific IGBTs used. This ensures the fastest and most reliable protection. External monitoring can always be added at the system level for additional, customized safeguards.
3. What are the key thermal management considerations for this module?Despite its high integration, proper Thermal Management is crucial. The module features an isolated metal baseplate designed for efficient heat transfer to a heatsink. It is essential to use a high-quality thermal interface material (TIM) and ensure a flat, clean mounting surface with the correct screw torque to minimize thermal resistance and maximize long-term reliability. For further assistance, please contact our technical team.
