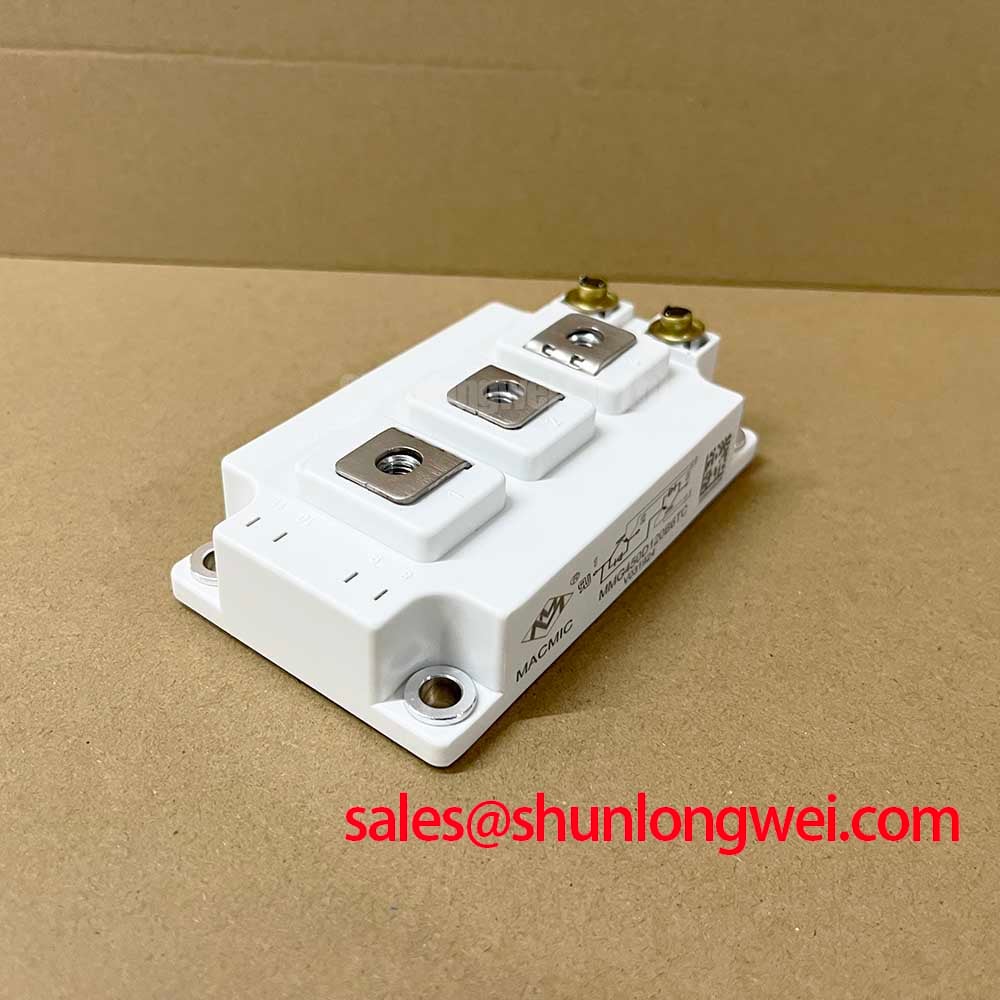

MacMic MMG450D120B6TC | Engineered for High-Frequency Power Conversion
The MacMic MMG450D120B6TC is a 1200V, 450A half-bridge IGBT module designed for engineers who require a robust, efficient, and thermally stable solution for high-power applications. This Power Integrated Module (PIM) leverages advanced silicon technology to deliver a superior balance of conduction and switching performance, making it a cornerstone component for next-generation inverters and power converters.
- High Power Density: Delivers a formidable 450A at 1200V in a compact, industry-standard package, enabling smaller system footprints.
- Optimized Efficiency: Features low Vce(sat) and minimal switching losses, directly reducing thermal load and increasing overall system efficiency.
- Integrated Thermal Sensing: Includes an onboard NTC thermistor for precise, real-time temperature monitoring, crucial for overload protection and system longevity.
- Enhanced Reliability: Built on a rugged Al2O3 DBC (Direct Bonded Copper) substrate, ensuring excellent thermal conductivity and high electrical isolation.
Key Parameter Overview
The following specifications highlight the performance capabilities of the MacMic MMG450D120B6TC. These values are critical for system-level simulation and thermal design. For a complete set of characteristics and performance curves, you can download the full datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic) @ Tc=80°C | 450 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) @ Ic=450A, Tj=25°C | 1.85 V (Typ.) |
| Total Switching Loss (Ets) @ Ic=450A, Tj=125°C | 36 mJ (Typ.) |
| Short-Circuit Withstand Time (tsc) | ≥ 10 µs |
| Maximum Junction Temperature (Tjmax) | 150 °C |
| Isolation Voltage (Visol) | 3000 V (AC, 1 minute) |
Technical Deep-Dive: Balancing Performance and Reliability
The engineering excellence of the MMG450D120B6TC is rooted in its silicon and packaging design. It employs an advanced Field-Stop Trench Gate IGBT structure. This technology introduces a "field-stop" layer that allows for a thinner N-drift region without compromising the 1200V blocking capability. The direct engineering benefit is a significantly lower collector-emitter saturation voltage (VCE(sat)), which is a primary source of conduction losses. For designers of motor drives or solar inverters, this translates directly to less heat generation and higher operating efficiency, especially under heavy, continuous loads.
Furthermore, the module is optimized for superior thermal management. The use of an Al2O3 DBC substrate provides a low thermal resistance path from the silicon die to the heatsink. This efficient heat extraction is critical for preventing the IGBTs from exceeding their maximum junction temperature, a common cause of premature failure. The integrated NTC thermistor acts as a vital safety feature, allowing the gate drive or control system to monitor the module's temperature in real-time and trigger thermal shutdown protocols, safeguarding the entire power system.
Application Scenarios & Engineering Value
The MacMic MMG450D120B6TC is not just a component; it's a problem-solver for demanding power electronics applications.
- Industrial Motor Drives: In high-power Variable Frequency Drives (VFDs), low Vce(sat) reduces heat dissipation in the inverter stage, improving reliability and potentially reducing heatsink size and cost. Its robust Short-Circuit Safe Operating Area (SCSOA) provides critical protection during motor stalls or phase-to-ground faults.
- Welding Power Supplies: The module's low total switching loss (Ets) is essential for high-frequency welding applications. Faster, cleaner switching reduces energy waste during transitions, enabling higher operating frequencies for better arc control and weld quality.
- Uninterruptible Power Supplies (UPS): For data centers and critical infrastructure, reliability is non-negotiable. The module's robust thermal design, high power cycling capability, and integrated NTC thermistor ensure dependable operation during power outages, making it a trusted choice for high-availability systems.
Engineer's FAQ
What are the key considerations for the gate drive circuit for this module?
To fully exploit the performance of the MMG450D120B6TC, a well-designed gate drive is essential. We recommend a drive voltage of +15V for turn-on and a negative voltage of -8V to -15V for turn-off. The negative turn-off voltage provides a strong buffer against parasitic turn-on induced by the Miller effect (dv/dt), especially in half-bridge configurations with fast switching speeds. Additionally, utilizing the auxiliary Kelvin emitter connection for the gate drive return path is crucial. This bypasses the voltage drop across the main emitter bond wires, ensuring a clean and stable gate signal for predictable switching behavior and reduced losses.
How does the half-bridge configuration of the MMG450D120B6TC benefit my design?
This module integrates two IGBTs and two freewheeling diodes into a single half-bridge (or "2-in-1") package. This Power Integrated Module (PIM) approach offers several distinct advantages over using discrete components. Firstly, it drastically simplifies assembly and reduces part count. Secondly, the internal layout is optimized to minimize stray inductance in the critical commutation loop, which helps reduce voltage overshoot during high-speed switching. This inherent optimization leads to higher power density, improved electrical performance, and greater system reliability compared to a discrete-based solution. For any questions about integrating this module into your specific design, please contact our technical team.
