Content last revised on June 18, 2025
Brand NEC
Diagonal Size 21.3 inch
Pixel Format 1600(RGB)×1200 [UXGA] 94PPI
Active Area 432(H)×324(V) mm
Bezel Area 438.2(H)×330.0(V) mm
Luminance 250 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Support Color 16.7M 72% NTSC
Weight 3.75/4.00Kgs (Typ./Max.)
Frame Rate 60Hz

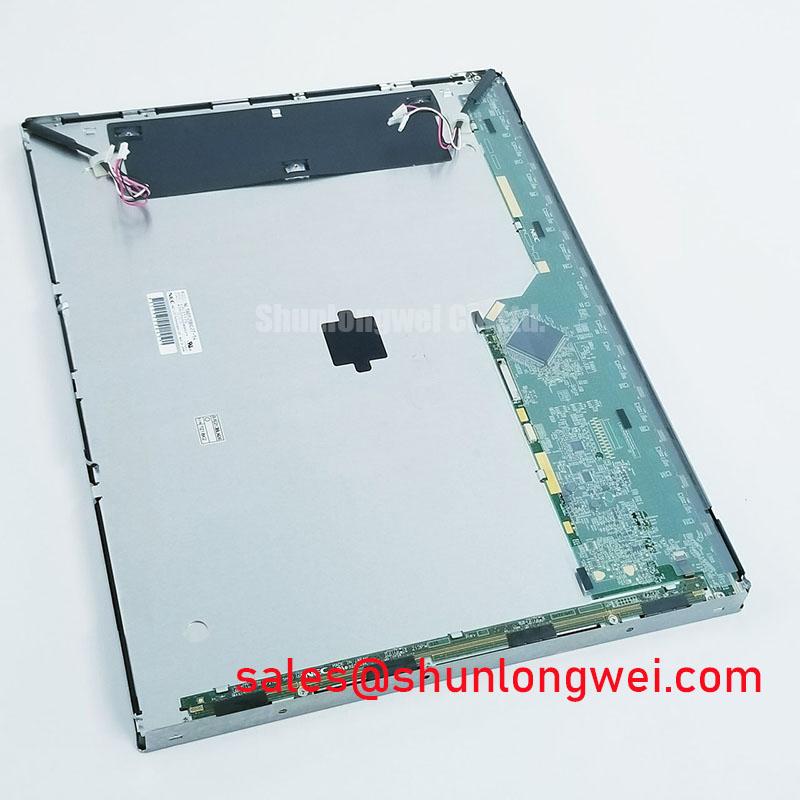

Model NL160120BC27-19
Type a-Si TFT-LCD , LCM
Configuration RGB Vertical Stripe
Outline Dim. 457(H)×350(V) ×25.3(D) mm
Treatment Antiglare, Hard coating (2H)
Contrast Ratio 550:1 (Typ.) (TM)
Response Time 11/9 (Typ.)(Tr/Td)
Operating Mode SA-SFT, Normally Black, Transmissive
Light Source CCFL [6 pcs] , W/O Driver
Designed For Industrial Medical Imaging
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) 40 pins Connector
Power Supply 12.0V (Typ.)
Environment Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -20 ~ 60 °C
