PHT308C vs. CM100RL-24NF: In-Depth Comparison of High-Performance IGBT and SCR Modules in Industrial Applications

1. What These Components Are and Their Industry Significance

In modern industrial power conversion, managing electrical energy requires robust semiconductor switches capable of handling hundreds of volts and tens to hundreds of amperes. Power conversion topologies rely heavily on two distinct classes of solid-state switches: line-commutated thyristors, commonly known as Silicon Controlled Rectifiers (SCRs), and fully controllable switching transistors, represented predominantly by Insulated Gate Bipolar Transistors (IGBTs). Understanding the technical boundaries, physical properties, and functional trade-offs between these two component families is critical for engineers designing motor drives, industrial heating controls, power supplies, and automation hardware.

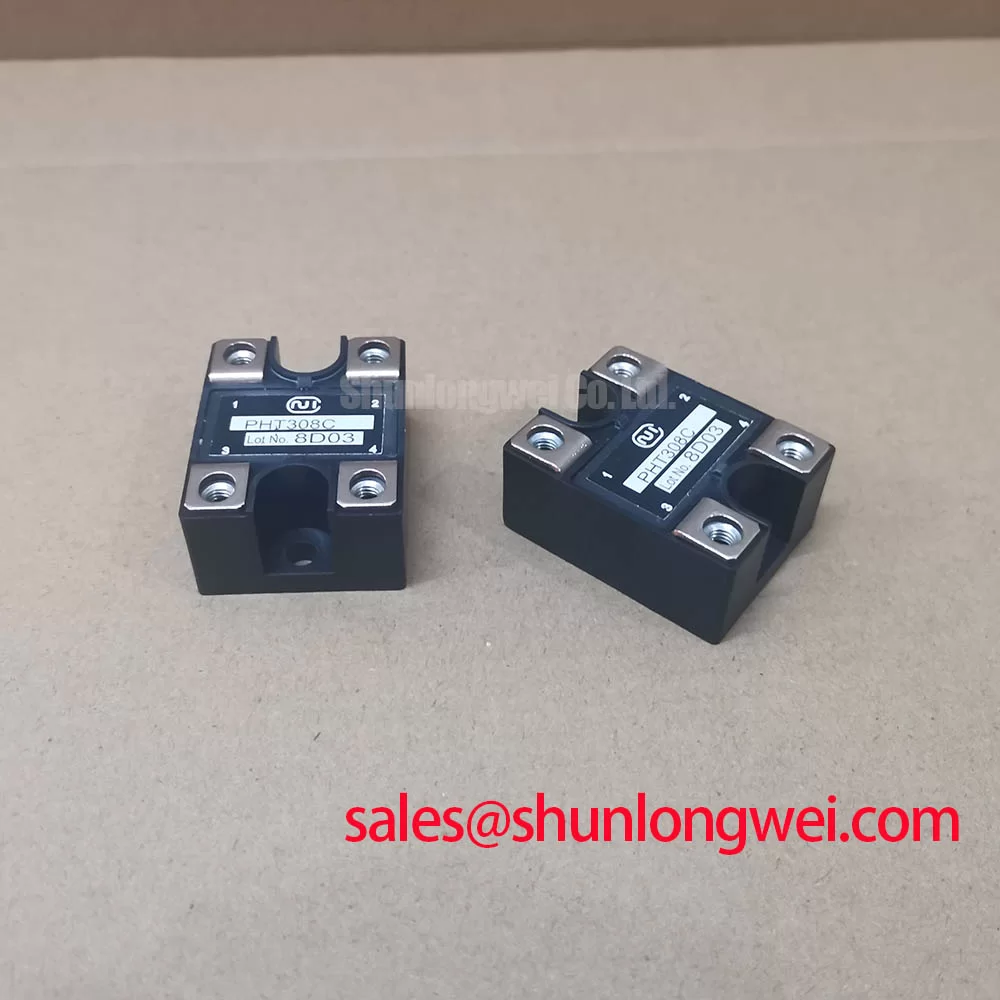

The PHT308C is a specialized, compact SCR power module manufactured by Kyocera (SanRex). It is engineered primarily for AC line-frequency power regulation, phase-angle control, and low-frequency AC-to-DC rectification. Operating at a repetitive peak off-state voltage of 800V and an on-state RMS current rating of 30A, the PHT308C solves the challenge of handling heavy inductive surges and resistive thermal loads directly connected to single-phase or three-phase utility grids without requiring complex auxiliary drive electronics.

Conversely, the CM100RL-24NF is a high-power, multi-switch IGBT module developed by Mitsubishi Electric. It integrates a six-pack inverter topology alongside an integrated dynamic braking circuit into a single isolated package. Rated at an absolute maximum collector-emitter voltage of 1200V and a continuous collector current of 100A, the CM100RL-24NF addresses the need for precision motion control, high-frequency Pulse Width Modulation (PWM), and bidirectional energy management in three-phase Variable Frequency Drives (VFDs) and uninterruptible power supplies (UPS).

Within the broader landscape of power electronics, these two devices illustrate the divide between passive line commutation and active forced commutation. An SCR such as the PHT308C behaves essentially as a bistable electronic latch: once triggered by a brief gate current pulse, it remains fully conductive until the external circuit forces the load current below its physical holding threshold. It is exceptionally resilient against transient overcurrent conditions, making it an ideal choice for soft-starters, industrial furnace heating, and input power rectifiers. In contrast, the CM100RL-24NF provides instantaneous on-and-off control via a voltage-driven gate. This allows engineers to synthesize clean sinusoidal currents at switching frequencies ranging from 2 kHz to over 15 kHz, thereby eliminating mechanical vibration and acoustic noise in modern industrial motor systems.

2. Working Principle and Physical Structure

The stark operational differences between the PHT308C and the CM100RL-24NF stem directly from their semiconductor fabrication, internal layer geometry, and carrier transport mechanisms. Although both devices utilize silicon substrates to govern electrical conduction, their internal charge dynamics represent fundamentally different engineering principles.

The Four-Layer PNPN Mechanism of the PHT308C SCR

The PHT308C is built on a four-layer, three-junction PNPN semiconductor structure. The three physical terminals are designated as the Anode (outer P-layer), Cathode (outer N-layer), and Gate (inner P-layer). Structurally, this architecture can be modeled as an intertwined pair of bipolar transistors: an NPN and a PNP transistor connected in a regenerative feedback loop, where the collector of each transistor drives the base of the other.

When the anode is biased positively relative to the cathode, the outer junctions (J1 and J3) are forward-biased, while the central junction (J2) remains reverse-biased, effectively blocking current flow. To initiate conduction, a small positive current pulse is injected into the gate terminal. This gate current turns on the internal NPN transistor, causing collector current to flow, which subsequently pulls base current from the internal PNP transistor. Once the total loop gain of the combined internal transistors exceeds unity, regenerative latching occurs. At this point, the inner junction J2 floods with injected minority carriers, and the device enters a state of deep saturation. Conduction becomes self-sustaining, rendering the gate terminal completely ineffective at turning the device off. The SCR can only return to its blocking state when external circuit dynamics reverse the voltage across the anode and cathode or reduce the forward current below the critical holding current (I_H).

The Trench-Gate Bipolar Mechanism of the CM100RL-24NF IGBT

The CM100RL-24NF relies on a modern Carrier Stored Trench-Gate Bipolar Transistor (CSTBT) architecture. Structurally, an IGBT fuses a voltage-controlled Metal-Oxide-Semiconductor (MOS) input stage with a wide-base bipolar junction transistor output stage. In the CM100RL-24NF, thousands of microscopic trench-gate cells are etched vertically into the silicon chip surface, significantly increasing channel density and lowering conduction resistance.

Operation is governed strictly by the gate-to-emitter voltage (V_GE). When V_GE is held below the threshold level (typically around 5.0V to 6.5V), no conductive channel exists, and the wide N-drift region withstands the applied collector-emitter voltage up to 1200V. When a positive potential of +15V is applied across the gate and emitter, an electric field forms an inversion layer (an N-channel) along the vertical trench sidewalls. Electrons flow from the emitter through this inversion layer directly into the N-drift region. This electron current forward-biases the deep P+ collector substrate junction, causing a dense flood of minority carrier holes to be injected back into the N-drift region. This physical phenomenon, known as conductivity modulation, dramatically reduces the dynamic on-state resistance of the drift region, permitting high currents (such as 100A continuous) with low on-state saturation voltage (V_CE(sat)).

Unlike an SCR, turning off the IGBT does not require external zero-crossing commutation. When the gate driver pulls V_GE down to zero or a negative bias (typically -5V to -15V), the MOS inversion channel immediately collapses, cutting off electron injection. The remaining injected holes in the drift layer recombine rapidly or are extracted, transitioning the module back to its high-impedance blocking state within fractions of a microsecond. In compact three-phase inverter assemblies, discrete modules or combined solutions such as the DP15H1200TO101982 follow this identical gated field-effect switching principle on a smaller physical scale.

3. Key Features, Advantages, and Technology Comparison

Evaluating the PHT308C against the CM100RL-24NF requires comparing performance metrics across several operational domains: switching frequency, conduction efficiency, thermal handling, gate drive complexity, and structural topology. Neither component is universally superior; each is optimized for specific electrical environments.

The PHT308C exhibits exceptional overload durability. Because an SCR in full conduction saturates across its entire cross-sectional silicon area, it lacks the vulnerable gate dielectric channels present in MOS-gated devices. Consequently, it exhibits very high non-repetitive surge peak current ratings (I_TSM), often exceeding 10 times its nominal continuous rating. This allows it to absorb immense inrush currents during motor start-ups or cold-filament lamp switching without experiencing thermal fatigue or breakdown. Furthermore, its control requirements are simple: a low-power isolated pulse transformer or opto-triac circuit capable of delivering a 50 mA gate pulse is sufficient to trigger the device.

The CM100RL-24NF provides dynamic high-frequency capability and integrated topology. In a single housing, it packages six independent IGBT switches arranged in a three-phase bridge, six anti-parallel ultra-fast recovery freewheeling diodes, and a seventh IGBT with a dedicated freewheeling diode allocated for dynamic braking (chopper circuit). This dense integration drastically simplifies system assembly, minimizes parasitic busbar inductances, and reduces overall enclosure dimensions. Operating with switching speeds down to a few hundred nanoseconds, the CM100RL-24NF operates smoothly at PWM carrier frequencies exceeding 15 kHz, well above the human audible range, ensuring smooth torque delivery in industrial servomotors.

For applications handling extreme primary DC currents, discrete high-power modules like the QM300HA-H represent high-capacity transistor designs, illustrating the broad scalability of transistor topologies relative to compact SCR arrays.

4. Real-World Applications and Operating Precautions

Because their core strengths target distinct electrical environments, the PHT308C and the CM100RL-24NF serve complementary roles across industrial control panels and power conversion cabinets.

Primary Application Scenarios

The PHT308C operates primarily in raw AC power regulation. Typical applications include:

• Industrial Heating and Furnaces: Utilizing proportional phase-angle firing or zero-crossing burst firing to maintain precise temperature setpoints in metal treatment or injection molding barrels.
• Solid-State Motor Starters (Soft Starters): Gradually ramping up voltage to three-phase induction motors to limit utility grid brownouts and mechanical gearbox wear during start-up.
• Line-Frequency AC Contactors: Replacing mechanical relays to eliminate electrical arcing, contact bounce, and physical wear in high-cycle switching environments.

The CM100RL-24NF is deployed in complex motor control and dynamic power processing applications, including:

• Variable Frequency Drives (VFDs): Supplying modulated three-phase power directly to the stator windings of 400V/480V industrial AC motors.
• Uninterruptible Power Supplies (UPS): Converting intermediate DC energy storage bus voltage into clean 50/60 Hz sinusoidal AC mains for mission-critical computing and medical equipment.
• Regenerative Braking Systems: Utilizing its integrated seventh IGBT to bleed excess regenerative mechanical energy across external braking resistors during rapid deceleration.

In many complete drive designs, an input rectifier module such as the SKD75GAL123D or an SCR bridge converts utility AC mains to a DC link bus, which is subsequently switched by an IGBT module like the CM100RL-24NF.

Crucial Operating Precautions and Thermal Management

Operating high-power semiconductors near their physical ratings requires strict adherence to thermal, mechanical, and electrical guidelines:

• Baseplate Mounting and Thermal Interface Material (TIM): Overheating is the primary failure mode for both SCR and IGBT modules. The mounting surface of the aluminum or copper heatsink must have a surface flatness within 50 µm over a 100 mm span, with a surface roughness of Rz ≤ 10 µm. Apply high-performance thermal grease evenly at a controlled thickness of 60 µm to 100 µm. Fasten mounting screws diagonally in a two-step sequence: first snug to one-third torque (approx. 1.0 N·m), followed by final tightening to the full manufacturer specification (typically 2.5 N·m to 3.5 N·m for M5 screws). Uneven tightening will bend the internal ceramic DCB (Direct Copper Bonded) substrate, cracking the isolation barrier.
• Gate Drive Layout and Stray Inductance: For the CM100RL-24NF, long gate traces introduce parasitic inductance, causing high-frequency gate oscillations that destroy the thin gate oxide layer. Always route gate and emitter return traces as tightly twisted pairs or directly adjacent PCB planes. For the PHT308C, provide an RC snubber network across the anode and cathode to prevent unplanned dV/dt triggering caused by high-voltage grid spikes.
• ESD Protection Protocols: The internal MOS structures of the CM100RL-24NF have an absolute maximum gate-to-emitter rating of ±20V. A static discharge from an ungrounded operator will puncture the sub-micron silicon dioxide dielectric, causing catastrophic short circuits. Technicians must always wear grounded wrist straps and maintain grounded work surfaces when handling bare modules.

5. Engineering Selection Guidelines and Field Diagnostics

Selecting between an SCR module and an IGBT module begins by defining the required switching frequency, control mode, and power characteristics of the application. For detailed semiconductor architecture analyses, engineers can consult educational summaries on Insulated-Gate Bipolar Transistor (IGBT) fundamentals or review manufacturer design guides on modern industrial power semiconductor solutions.

Selection Guidelines and Derating Methodology

Never operate a semiconductor module at its theoretical absolute maximum ratings. Reliable industrial design requires clear voltage and current derating rules:

• Voltage Derating: For 380V–480V RMS AC mains applications, grid transients, lightning impulses, and inductive flyback spikes regularly exceed nominal levels. A minimum safety factor of 2.0× to 2.5× must be applied. A 400V AC grid requires an IGBT rated for at least 1200V (such as the CM100RL-24NF). For the PHT308C (800V rating), applications should be constrained to 230V–240V single-phase supplies or low-voltage multi-phase systems to prevent transient overvoltage punch-through.
• Current Derating and Junction Temperature: Continuous current must be calculated based on the maximum heatsink operating temperature, not the 25°C ambient rating. Keep the maximum silicon junction temperature (T_j) below 125°C during worst-case ambient conditions, even if the silicon is rated up to 150°C. For the CM100RL-24NF, factor in switching losses (E_on and E_off), which scale directly with PWM frequency and can exceed static conduction losses at frequencies above 10 kHz.
• Safe Operating Area (SOA): Ensure the dynamic load line during turn-off remains within the Reverse Bias Safe Operating Area (RBSOA). In high-speed IGBT circuits, parasitic DC bus inductance creates an inductive turn-off spike given by:

  V_peak = V_DC + L_stray · (dI/dt)

  Snubber capacitors or laminated low-inductance busbars must be used to clamp this voltage below the 1200V rating.

Field Diagnostics and Troubleshooting Matrix

When an industrial system faults, a digital multimeter (DMM) can quickly determine the functional status of power modules before removing them from the chassis. Disconnect all primary power, discharge the DC bus capacitors completely, and isolate the module terminals before performing the following tests.

Through systematic verification of junction integrity and strict alignment with electrical operating limits, engineers can leverage either the high-surge resilience of the PHT308C or the precise high-frequency modulation of the CM100RL-24NF to construct reliable, efficient, and durable industrial systems.
