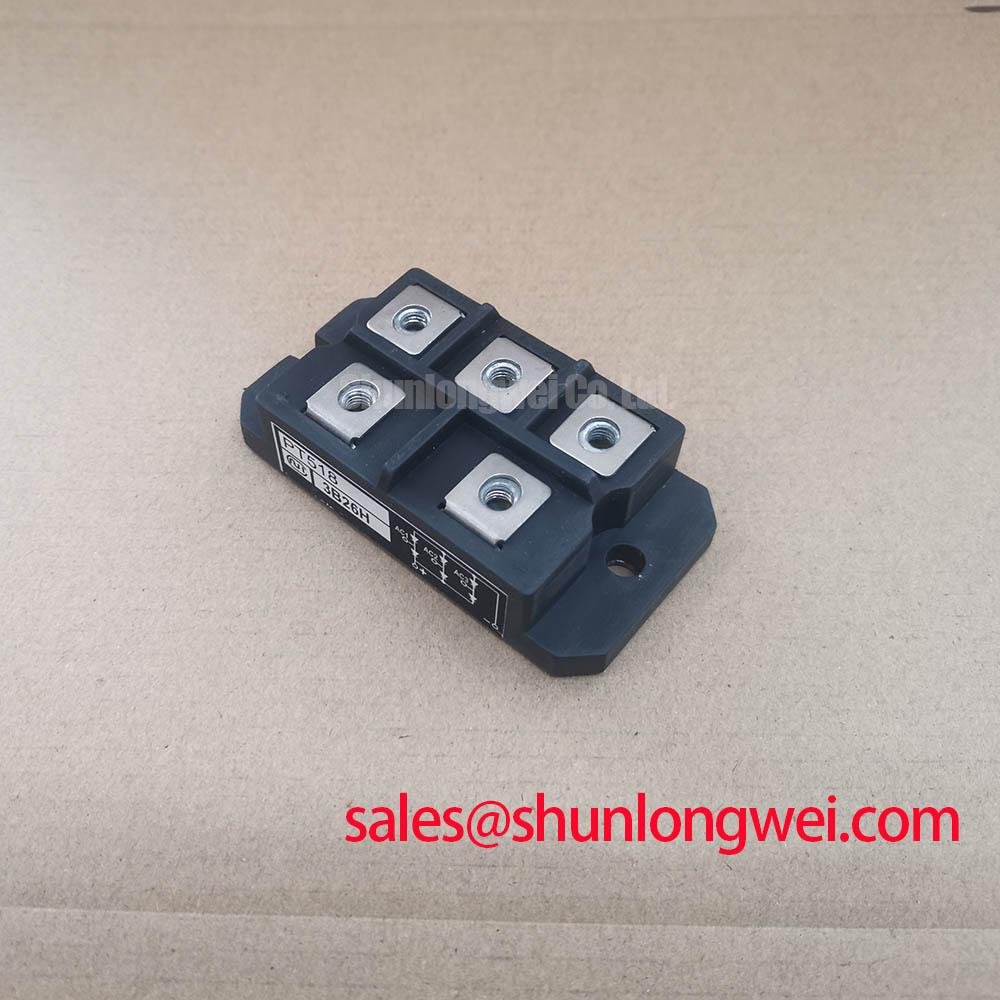

PT518 | Robust 600V, 50A Darlington Power Module for Industrial Control
The PT518 is an engineered solution for power control systems that demand ruggedness, simplicity, and reliable performance. While many modern designs gravitate towards IGBTs, this Darlington Power Transistor Module offers a compelling combination of high current gain, robust construction, and straightforward implementation, making it an ideal choice for specific industrial applications where these attributes are paramount.
Core Strengths of the PT518 Module
- High DC Current Gain (hFE): With a minimum hFE of 150 at its full 50A rating, the PT518 significantly reduces the current required from the driver stage. This simplifies the base drive circuitry, potentially lowering component count and system cost.
- Robust Voltage and Current Ratings: A 600V collector-emitter voltage (VCEO) and 50A continuous collector current (IC) provide ample headroom for demanding low-to-mid power industrial applications.
- Proven Reliability: The Darlington transistor architecture is a mature and inherently rugged technology, known for its stability and ability to withstand the harsh electrical environments found in factory automation and power conversion equipment.

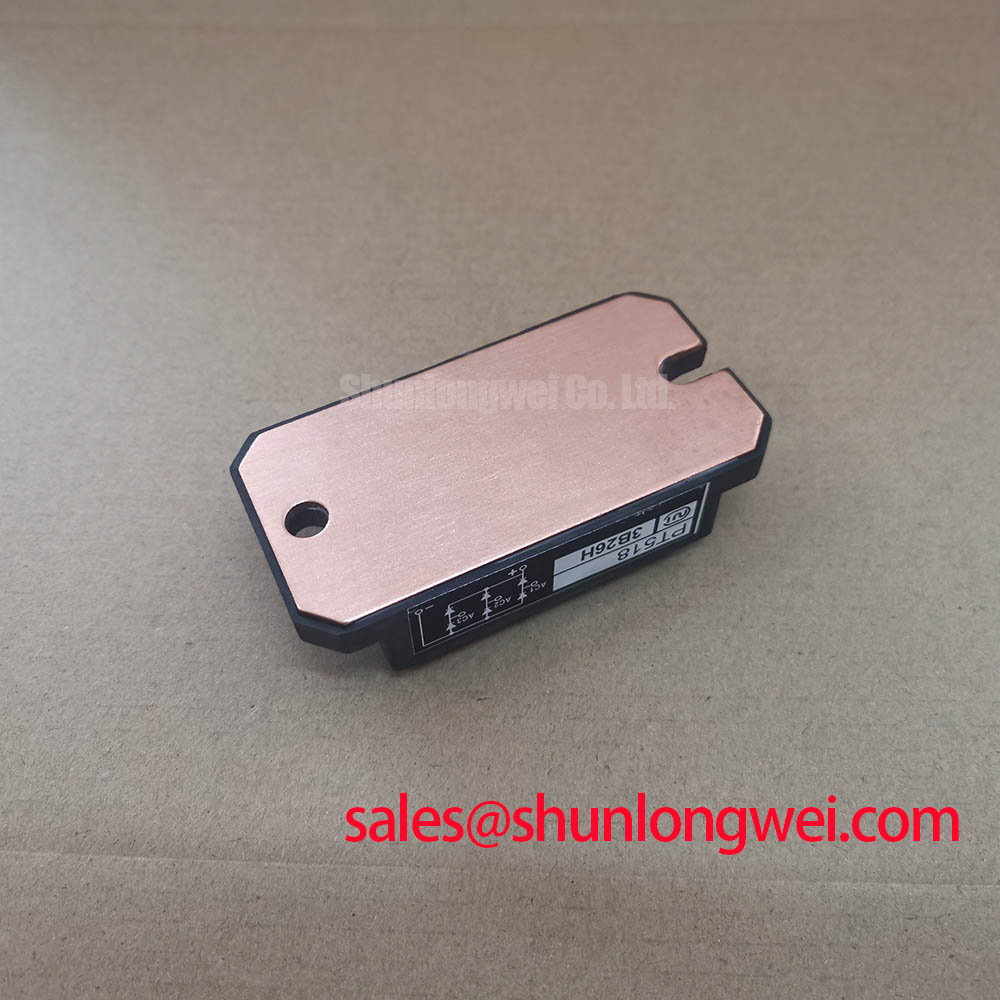

- Simplified Thermal Management: Housed in a standard industrial package with an isolated mounting base, the PT518 facilitates easy and effective heat sinking, crucial for ensuring long-term operational reliability.
Key Technical Specifications
The following parameters are critical for design engineers evaluating the PT518 for their power switching applications. For a comprehensive overview, you can download the official PT518 datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCEO) | 600V |
| Continuous Collector Current (IC) | 50A |
| Total Power Dissipation (PC) at Tc=25°C | 330W |
| DC Current Gain (hFE) (IC=50A, VCE=5V) | 150 (min) |
| Collector-Emitter Saturation Voltage (VCE(sat)) (IC=50A) | 2.5V (max) |
| Turn-On Time (ton) | 1.5 µs (typ) |
| Turn-Off Time (tstg + tf) | 5.8 µs (typ) |
Application Scenarios: Where the PT518 Excels
The PT518's specific characteristics make it a superior choice in applications where cutting-edge switching frequency is less critical than robustness and cost-effectiveness.
- Low-Frequency Motor Drives: For simple Variable Frequency Drives (VFDs) controlling pumps, fans, and conveyors, the PT518 provides the necessary power handling without the complexity of high-frequency IGBT gate drives. Its slower switching speed is perfectly acceptable for motor control frequencies typically under 5 kHz.
- Welding Power Supplies: The module's high current capability and ruggedness make it well-suited for the output stages of certain types of welding power supplies, which require robust control of high currents.
- High-Power Solenoid and Actuator Drivers: In applications that need to drive large industrial solenoids or DC actuators, the PT518's high gain and simple drive requirements translate into a reliable and easy-to-implement control solution.
Selection Guidance: PT518 Darlington vs. Modern IGBTs
Understanding the fundamental trade-offs between Darlington technology and modern Trench/Field-Stop IGBT modules is key to making the right design choice. The PT518 is not a direct replacement for a high-frequency IGBT, but rather an optimal tool for a different set of engineering problems.
Choose the **PT518** when your primary design considerations are:
- Cost-Effectiveness for Low-Frequency Systems: For applications operating well below 10 kHz, the overall system cost, including the simpler driver, can be more advantageous with the PT518.
- Driver Simplicity: The high hFE directly translates to lower base current needs, simplifying the design of the driver stage compared to the voltage-controlled, but often more sensitive, gate of an IGBT.
Consider a modern IGBT when your application demands high efficiency (lower VCE(sat)) or high switching frequencies (above 15-20 kHz) to reduce the size of magnetic components. For a deeper comparison of these technologies, our guide to power semiconductor selection provides further insight.
Frequently Asked Questions (FAQ)
1. Does the PT518 module contain an internal freewheeling diode?
No. The datasheet schematic confirms the PT518 is a single Darlington transistor. For applications with inductive loads, such as motor control or solenoid drivers, an external fast-recovery freewheeling diode must be connected in anti-parallel across the collector and emitter terminals to provide a path for the inductive current during turn-off.
2. What are the key considerations for the base drive circuit?
To ensure the PT518 switches efficiently and reaches its low saturation voltage, the base drive circuit must supply enough current (Ic / hFE) to fully saturate the transistor. For rapid turn-off and to minimize switching losses, it is crucial to implement a method to quickly remove the stored charge from the base region, typically by using a negative base voltage or a low-impedance path to ground during the off-state.
For detailed application support or to discuss volume pricing for the PT518, please contact our technical team.
