Assembly Integrity & Layout Architecture: Implementing Dynamic Power Loss Dissipation and Multi-R for QM30TF-HB

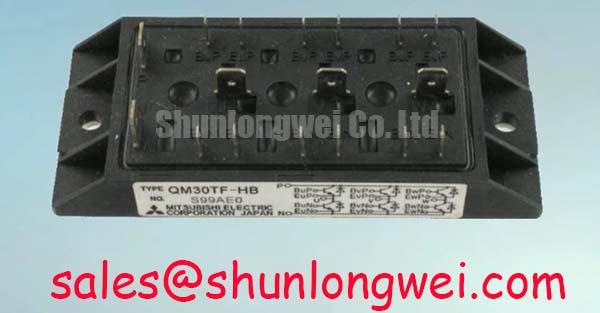

I would compare the heatsink contact pattern with the recorded load pulse before attributing a thermal trip to the QM30TF-HB itself. As a Design Consideration, uneven interface coverage, restricted cooling, and increased semiconductor losses require separate checks because each can produce similar case temperature readings. With the equipment isolated and its stored energy discharged, inspect the mounting surface, terminal connections, and surrounding clearance before disturbing the assembly.
For thermal assessment, synchronize case temperature measurements with collector current, collector-emitter voltage, and the operating pulse sequence. Design Consideration: conduction loss follows the voltage drop while current flows, while switching loss depends on the overlap of voltage and current during transitions. A case temperature reading taken after a short overload cannot establish the peak junction temperature reached during that event.
A multi-RC thermal model becomes useful when its coefficients represent the manufacturer's junction-to-case transient thermal response. Engineering Calculation: for an isolated rectangular loss pulse under the applicable thermal boundary conditions, the estimated junction temperature rise is the pulse power multiplied by transient thermal impedance at that pulse duration. Repeated or changing pulses require their thermal contributions to be accumulated against the preceding temperature history. Arbitrary resistance and capacitance values would give an unsupported temperature margin.
Check the electrical connections alongside the thermal path. The principle described in Joule heating explains why resistance at a loaded connection produces localized heat. As an Engineering Recommendation, compare terminal heating under equivalent operating conditions and investigate loose connections or damaged contact surfaces before changing the cooling arrangement. Keep temperature measurements clear of live conductors and use measurement equipment appropriate to the circuit.
Preventing Spurious Faults: High dv/dt Cross-Conduction Shoot-Through Guidelines for QM30TF-HB
Trace the base drive and turn-off current path before applying any gate-driver modification to this Darlington module. Design Consideration: bipolar Darlington switching depends on base current and stored charge, so MOSFET gate-charge sizing, an active Miller clamp, and a prescribed negative gate voltage do not establish a suitable drive arrangement for the QM30TF-HB. Start with the equipment schematic and the device terminal diagram.
When investigating suspected cross-conduction, compare the outgoing device's collector current decay with the incoming device's drive command. As an Engineering Recommendation, examine driver propagation delay, charge removal, and switching overlap together. A protection trip alone does not distinguish overlap current from a load fault, a disturbed current-sense signal, or a driver supply interruption. Capture the relevant signals with probes whose voltage ratings and common-mode performance suit the measurement.
High collector voltage slew can couple disturbance through device capacitance and nearby wiring. Design Consideration: shorten the base drive return path where the equipment layout permits, separate sensitive control wiring from commutation conductors, and assess any damping change against measured switching behavior. If the driver uses an optocoupler or digital isolator, compare its documented common-mode transient immunity with the disturbance at its isolation barrier.
For a floating drive supply, assess charge demand from the actual base current waveform, driver consumption, switching interval, and recharge opportunity. Engineering Recommendation: select any bootstrap storage arrangement from that complete charge budget and its allowable supply droop; an IGBT gate-charge value is not a substitute. The broader Industrial Applications discussion provides system context, while the device's bipolar drive requirements remain the basis for this repair.
QM30TF-HB Operational Boundaries: Evaluating Thermal Paste Degradation Prevention and M Limits
Inspect the removed thermal interface imprint for dry areas, contamination, and uneven contact before applying fresh material. Design Consideration: interface thickness should follow the approved material and assembly procedure, with enough coverage to fill surface irregularities without creating an unnecessarily resistive layer. Check heatsink flatness and module seating rather than attempting to compensate for mechanical distortion with additional paste.
Field Alert: Follow the approved tightening sequence and mounting torque, and never pull a rocking module flat by tightening its screws.
During replacement assessment, compare terminal assignments, circuit configuration, mounting dimensions, base drive requirements, and electrical limits. The QM120DX-H can be included in a documented comparison, but a direct replacement decision requires those interfaces and operating conditions to match. A related model designation alone does not establish compatibility.
When evaluating an industrial inverter welder or medium-frequency induction heating power stage, designers should verify the switching duty, cooling arrangement, and protection timing against the original assembly requirements. As an Engineering Recommendation, inspect interface coverage and seating again if temperature rises after reassembly, then compare case temperature and switching behavior under a controlled load. Correct the measured thermal or electrical deviation before restoring the equipment's normal operating duty.
