LQ10D36A vs TLX-5071-C3M: In-Depth Comparison of 10.4-Inch LCD Display Modules

What 10.4-Inch Industrial LCD Modules Are and Their Engineering Significance

In industrial automation, machine tool retrofits, medical instrumentation, and process control terminals, the 10.4-inch display form factor has served as a standard Human-Machine Interface (HMI) footprint for decades. Two prominent display modules representing pivotal phases in industrial visualization are the Sharp LQ10D36A and the Toshiba TLX-5071-C3M. While both units share an identical nominal diagonal screen size of 10.4 inches (26.4 cm) and target rugged operational environments, they are built on fundamentally different architectural generations of Liquid Crystal Display Technology.

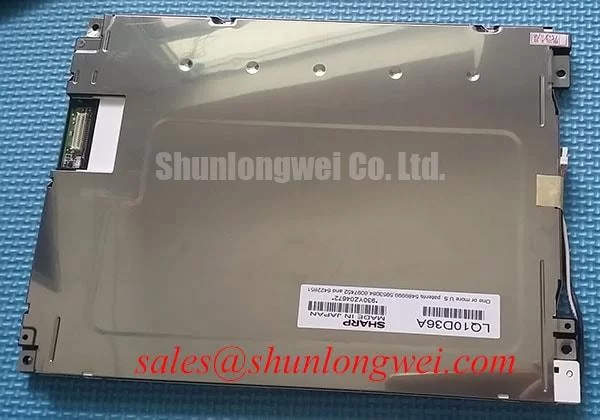

The Sharp LQ10D36A represents the mature implementation of active-matrix Thin-Film Transistor Liquid-Crystal Display (TFT LCD) engineering. It features standard Video Graphics Array (VGA) resolution (640 × 480 pixels), native 18-bit RGB color depth (262,144 colors), integrated timing control, and high-speed CMOS/TTL digital parallel interfacing. In contrast, the Toshiba TLX-5071-C3M represents an earlier generation of passive-matrix Super Twisted Nematic (STN / CSTN) technology, widely deployed in legacy industrial controllers, CNC operator consoles (such as legacy Fanuc, Mitsubishi, and Siemens panels), and diagnostic equipment. Similar retrofitting and engineering considerations apply across classic industrial display platforms, including platforms such as the NL6448BC26-27 and specialized flat panel arrays like the EL552-256-Q1.

The engineering significance of contrasting these two modules lies in legacy maintenance, obsolescence management, and direct drop-in replacement feasibility. Field maintenance engineers and system integrators frequently face situations where aging passive-matrix modules suffer from irreversible contrast degradation, slow optical response times, or failed backlight inverters. Understanding the electrical, optical, and mechanical differences between active-matrix TFTs like the LQ10D36A and passive modules like the TLX-5071-C3M is vital for avoiding interface driver burnout, ensuring signal integrity, and properly adapting logic supply rails.

Working Principle and Physical Architecture

To understand the operational distinctions between the LQ10D36A and TLX-5071-C3M, one must evaluate how each module controls light transmission through the liquid crystal layer and how electrical drive signals are routed across the display matrix.

The Sharp LQ10D36A utilizes an amorphous silicon (a-Si) active-matrix TFT structure. In this architecture, every individual sub-pixel (Red, Green, Blue) contains its own dedicated thin-film transistor and storage capacitor integrated directly onto the glass substrate. When a row line (gate) is activated, the transistor turns on, transferring the analog data voltage from the column line (source) directly to the liquid crystal capacitor. Once the gate line deactivates, the charge remains trapped across the storage capacitor for the entire frame period (typically 16.6 ms at 60 Hz). This ensures that the electric field orienting the nematic liquid crystal molecules remains constant throughout the refresh cycle, resulting in high optical contrast (typically 300:1), fast response times (t_r + t_d ≈ 35 ms to 50 ms), and elimination of cross-talk (ghosting) between adjacent pixels.

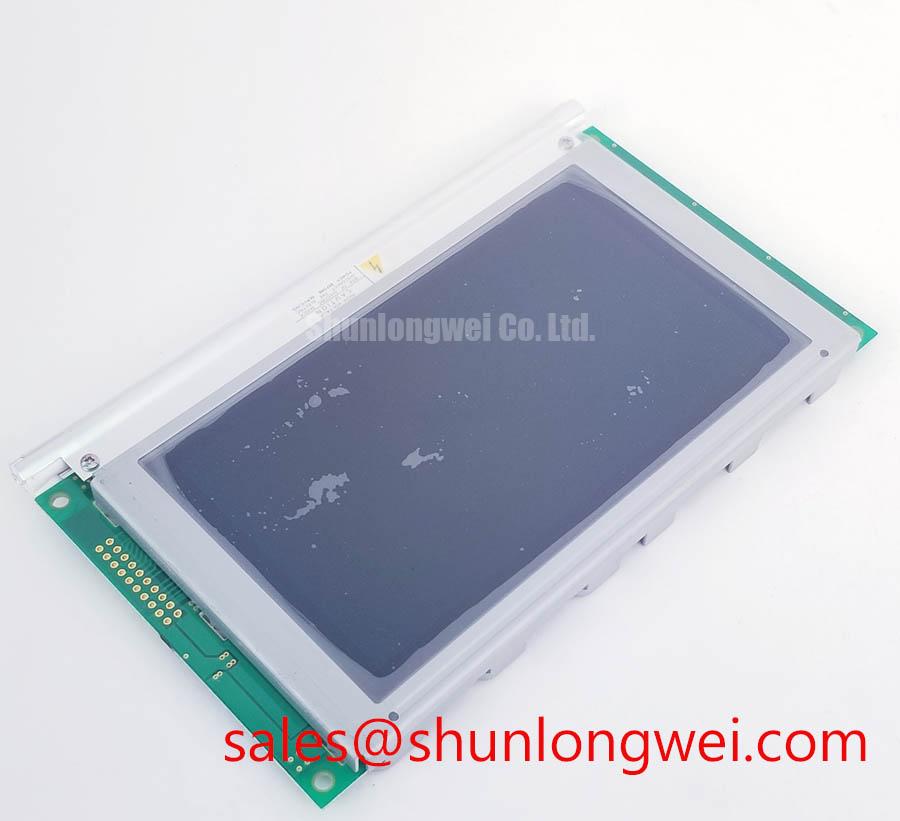

In contrast, the Toshiba TLX-5071-C3M operates on a passive-matrix multiplexed STN drive scheme. Instead of having an individual switching element at every pixel, the liquid crystal material is sandwiched between perpendicular row and column electrode stripes. Pixels are energized sequentially by applying periodic voltage pulses across intersecting rows and columns. Because there are no discrete storage capacitors at each pixel location, the optical state depends entirely on the root-mean-square (RMS) voltage applied over a full multiplex cycle. This multiplexing imposes strict physics-based trade-offs: as the number of multiplexed lines increases (e.g., 1/240 or 1/480 duty cycle), the voltage ratio between selected and non-selected pixels narrows significantly. Consequently, the TLX-5071-C3M exhibits lower inherent contrast (typically 15:1 to 40:1), a restricted viewing cone, and a sluggish optical response time (often 200 ms to 300 ms), making fast-moving graphical cursors or real-time diagnostic waveforms appear smeared.

Furthermore, the physical driving subsystems differ substantially in power requirements. While the LQ10D36A active TFT requires standard positive digital logic supplies (V_DD = 3.3V or 5.0V) and internally generates gate bias levels, passive STN panels like the TLX-5071-C3M depend on high negative liquid crystal bias voltages (V_EE or V_LCD, typically ranging from -18.0V to -24.0V) to achieve sufficient electro-optical threshold switching across the liquid crystal layer.

Key Features, Specification Analysis, and Technology Comparison

When comparing the LQ10D36A and TLX-5071-C3M, several critical parameters define their performance envelope, including optical clarity, interface protocol, timing demands, power supply requirements, and illumination mechanics. Modern industrial displays, such as the high-reliability TX20D208VM0BAA, demonstrate the evolution toward modern digital signaling, but contrasting the LQ10D36A and TLX-5071-C3M clarifies the legacy transition path.

The optical and electrical comparison highlights why the Sharp LQ10D36A became an industry benchmark. Its integrated row/column gate driver architecture handles sub-pixel charging internally, allowing standard microcontrollers or graphics controllers to stream parallel RGB data synchronized purely to a Pixel Clock (DCLK), Horizontal Sync (Hsync), Vertical Sync (Vsync), and Data Enable (ENAB) line. The TLX-5071-C3M, by contrast, places a heavy timing burden on the graphics chip, requiring continuous high-frequency line shifts (CP/LP), frame pulses (FLM), and external contrast potentiometer networks regulating V₀/V_EE.

Real-World Industrial Integration, Interfacing, and Operating Precautions

When integrating or replacing these 10.4-inch display panels in harsh industrial settings—such as CNC machining centers, textile automated looms, or marine navigation consoles—engineers must adhere to strict hardware interfacing rules, timing sequences, and thermal/electrical precautions.

1. Power-Up Sequencing and Logic Latch-Up Prevention

The logic power rail (V_DD) on the Sharp LQ10D36A must be carefully sequenced relative to the incoming digital control lines. As specified in high-reliability industrial display integration guidelines, V_DD must rise monotonically within a defined window (0.5 ms < t₁ < 10 ms). Digital input signals (DCLK, Hsync, Vsync, RGB data) must not be asserted before V_DD reaches at least 90% of its nominal operating threshold. Violating this sequence forces current through the internal ESD clamping diodes of the driver ICs, triggering a parasitic SCR latch-up condition that can permanently damage the glass-mounted source and gate drivers.

2. High-Voltage CCFL Inverter and Striking Considerations

Both the LQ10D36A and the TLX-5071-C3M utilize Cold Cathode Fluorescent Lamp (CCFL) backlighting units. Technicians must exercise extreme caution around the backlight inverter harness. The starting (ignition) strike voltage exceeds 1,000 V_RMS to 1,500 V_RMS for 1 to 5 ms, dropping to an operating voltage of approximately 450 V_RMS to 650 V_RMS at 5.0 mA to 6.5 mA with an operating frequency between 40 kHz and 65 kHz.

• Dielectric Clearance: Never route the high-voltage pink/white CCFL lead wires in parallel with low-voltage CMOS data lines; capacitive coupling will inject high-frequency switching noise into the RGB data bus, causing visual pixel jitter.
• Chassis Grounding: The metal chassis frame of the display panel must be directly bonded to the machine cabinet ground using a low-impedance copper braided strap to suppress electromagnetic interference (EMI).

3. Thermal Management and Environmental Precautions

Industrial display panels deployed in sealed IP65/NEMA 4 enclosures are susceptible to internal heat buildup. Operating ambient temperatures above +50 °C accelerate liquid crystal clearing (where the nematic fluid enters an isotropic state, turning the entire screen black) and rapidly degrade the half-life of CCFL lamps (dropping from 50,000 hours to under 15,000 hours). Ensure adequate conduction paths through the panel mounting brackets, avoid placing heat-generating power supplies directly behind the display assembly, and always install anti-static dissipative grounding when handling unhoused glass modules.

Field Diagnostics, Retrofitting Guidelines, and Troubleshooting

When performing field service, retrofitting an obsolete TLX-5071-C3M with an active-matrix LQ10D36A, or troubleshooting an unpopulated HMI screen, a methodical step-by-step diagnostic process prevents component damage and pinpoints failures quickly.

Step-by-Step Retrofit and Signal Conversion Workflow

1. Interface Bridge Verification: Because the TLX-5071-C3M uses a passive 4-bit/8-bit multiplexed bus while the LQ10D36A accepts 18-bit parallel RGB (6 bits per channel: R0-R5, G0-G5, B0-B oscilloscope/FPGA-based timing translation module), an intermediate scan-converter or FPGA timing controller board must be inserted to generate standard VGA dot clock and sync pulses.
2. Negative Voltage Rail Disconnection: Passive STN panels require a -18V to -24V V_EE rail. When swapping to the LQ10D36A, isolate and disconnect this negative bias line. Injecting negative voltages into any pin of the LQ10D36A will instantly destroy its logic interface circuitry.
3. Pixel Clock (DCLK) Measurement: For the LQ10D36A, verify with an oscilloscope that the pixel clock frequency is stable at approximately 25.175 MHz (nominal standard VGA 60 Hz refresh rate) with a 40% to 60% duty cycle. Ensure signal ringing does not exceed 0.3V above V_DD.

By understanding the critical structural and electrical distinctions between the active-matrix Sharp LQ10D36A and the passive-matrix Toshiba TLX-5071-C3M, system engineers and maintenance technicians can execute reliable drop-in replacements, troubleshoot field anomalies with precision, and extend the operating life of mission-critical industrial controls.
