SEMIKRON SK30GD128 | Robust PIM for Compact AC Motor Drive Applications

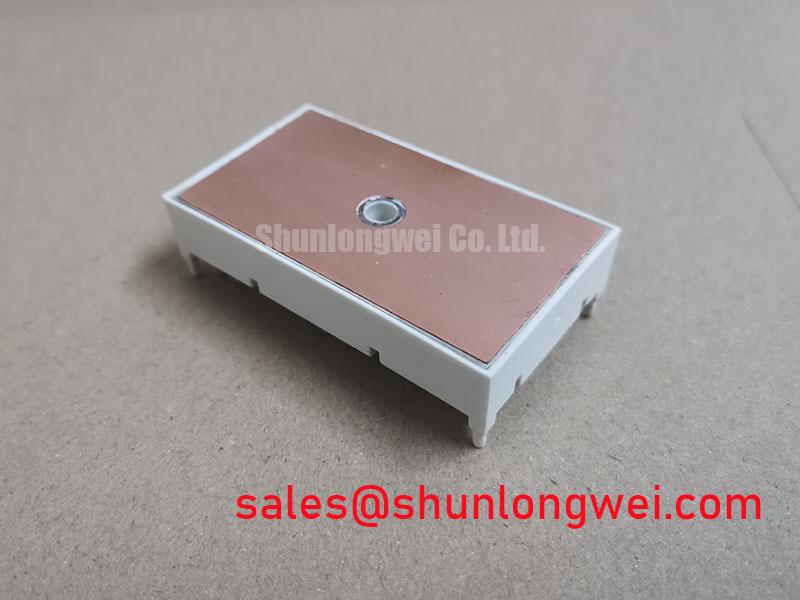

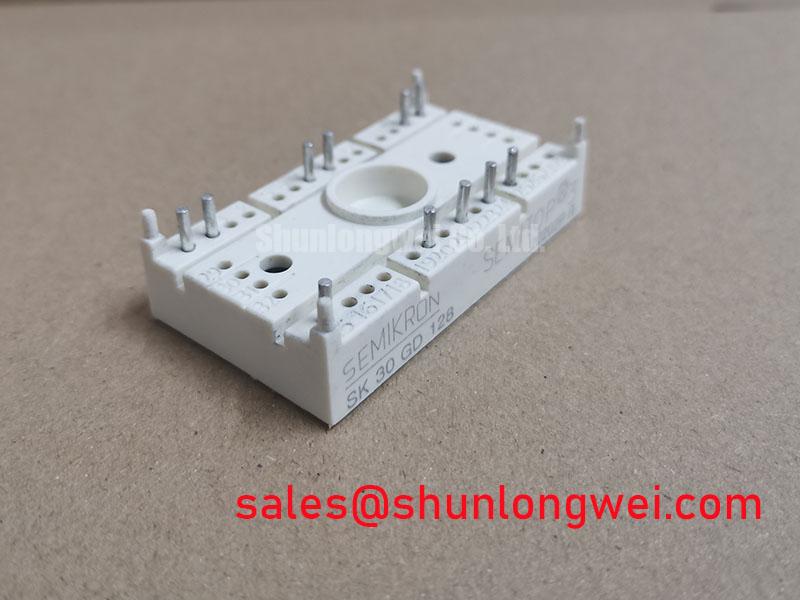

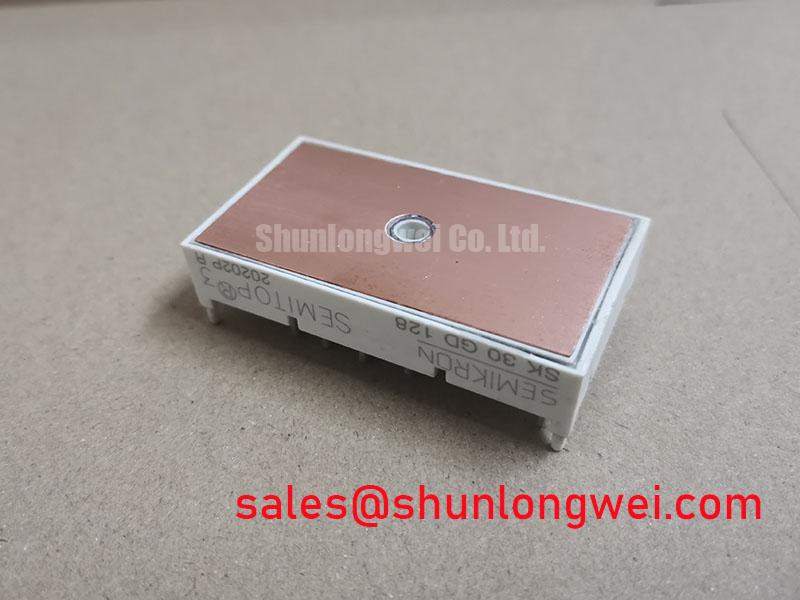

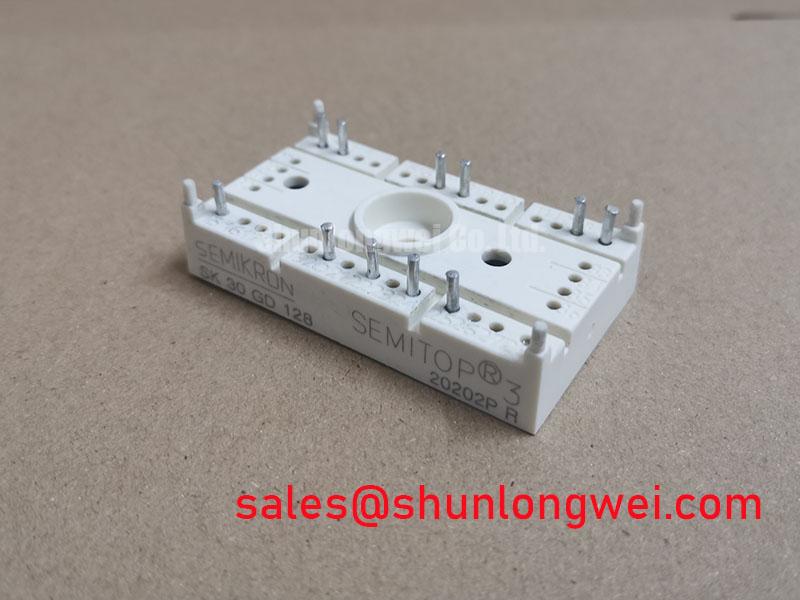

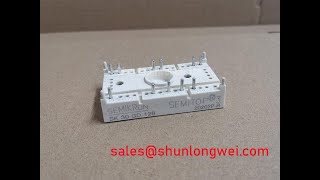

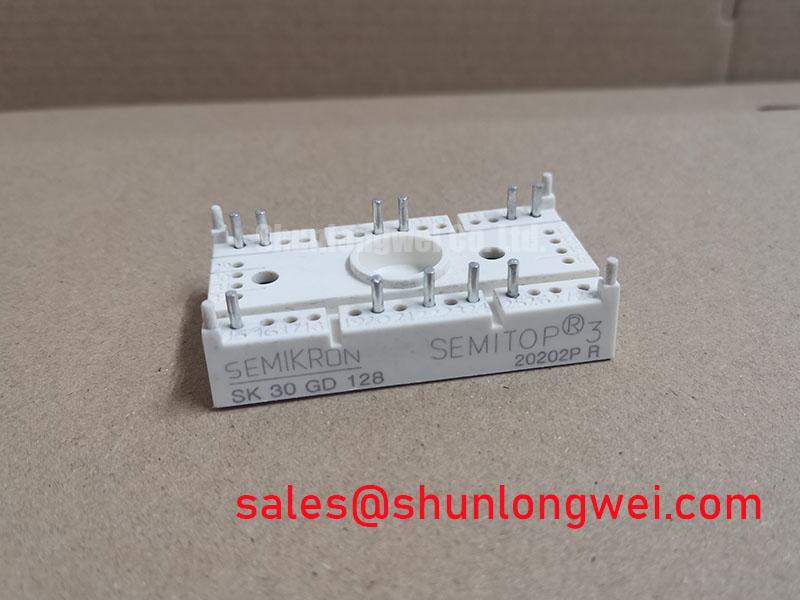

The SEMIKRON SK30GD128 is an engineered Power Integrated Module (PIM) that delivers reliability and simplifies system design for low-to-mid-power AC motor drives. By integrating a three-phase input rectifier bridge and a brake chopper into a single, isolated SEMIPONT® 2 package, this module provides a cornerstone component for creating compact and cost-effective frequency converters. It is specifically designed for engineers who prioritize ruggedness and streamlined manufacturing in their power conversion projects.
Technical Depth Profiling: The Engineering Behind the SK30GD128
The performance of the SEMIKRON SK30GD128 is rooted in a deliberate combination of mature, field-proven technologies. Understanding these elements is key to leveraging its full potential.
- Integrated PIM Topology: The module's primary advantage is its high level of integration. It incorporates a six-diode bridge for converting three-phase AC to a DC bus and a single IGBT with an anti-parallel freewheeling diode for the brake chopper circuit. This integration dramatically reduces component count, simplifies PCB layout, minimizes assembly time, and reduces potential points of failure compared to a discrete solution.
- NPT IGBT Technology: The brake chopper utilizes Non-Punch-Through (NPT) IGBT technology. While newer Trench-Field-Stop technologies offer lower conduction losses, NPT provides a wider Safe Operating Area (SOA) and superior ruggedness, particularly regarding short-circuit withstand capability. This makes the SK30GD128 exceptionally resilient in applications prone to load faults or grid instability.
- CAL Freewheeling Diode: The IGBT is paired with a Semikron CAL (Controlled Axial Lifetime) Diode. This specialized diode technology is engineered for a "soft" reverse recovery characteristic. The direct benefit for the design engineer is a significant reduction in voltage spikes and electromagnetic interference (EMI) during switching, which can simplify or even eliminate the need for external snubber circuits and reduce filtering requirements.
Key Parameter Overview for the SK30GD128
The following table outlines the critical electrical and thermal parameters that define the operational boundaries and performance of this PIM. For comprehensive data, including characteristic curves and package dimensions, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Max. Collector-Emitter Voltage (VCES) | 1200 V |
| Nominal Collector Current (ICnom) | 30 A |
| Collector-Emitter Saturation Voltage (VCE(sat), Tj=25 °C) | 2.5 V (Typ.) |
| Short Circuit Withstand Time (tsc) | 10 µs |
| Thermal Resistance, Junction to Case (Rth(j-c) per IGBT) | 1.1 °C/W |
For detailed specifications, download the SEMIKRON SK30GD128 datasheet.
Application Scenarios & Engineering Value
The SEMIKRON SK30GD128 is not a universal solution; it is a specialized tool for specific engineering challenges.
- Variable Frequency Drives (VFDs): This is the module's core application. In a standard motor drive, the integrated rectifier converts the mains input, while the brake chopper IGBT manages the regenerative energy from a decelerating motor, preventing DC bus overvoltage. This all-in-one design is ideal for compact drives powering motors up to approximately 7.5 kW.
- General-Purpose Inverters: For applications like uninterruptible power supplies (UPS) and welding systems, the module's robust NPT technology provides the necessary resilience to handle demanding load profiles and transient conditions, ensuring long-term operational reliability. More broadly, it is a workhorse for many IGBTs in inverter ACs.
Selection Guidance: NPT Ruggedness vs. Modern Efficiency
When selecting from the vast landscape of IGBT modules, it's crucial to match the technology to the application's priorities. The SK30GD128, with its NPT technology, represents a design choice focused on durability and cost-effectiveness.
- Choose the SK30GD128 if: Your primary concerns are system robustness, reliability under harsh load conditions, and BOM cost reduction. It excels in lower-frequency applications (typically < 8 kHz) where its higher conduction losses are manageable and its superior short-circuit ruggedness provides a critical safety margin.
- Consider a Trench-Stop IGBT Module if: Your application demands the absolute highest efficiency to meet standards like IE4/IE5, or requires high switching frequencies (> 15 kHz) to minimize the size of magnetic components. These modules offer lower VCE(sat) but may require more careful gate drive design and protection circuitry.
The SEMIKRON SK30GD128 remains a highly relevant component for engineers building reliable and economical power conversion systems. If its profile matches your design needs, or if you require assistance in selecting the optimal power module for your project, please contact our technical team for expert guidance.
```
