SKiiP 11NAB126V1: Integrated Power Stage for Compact Motor Drives
Introduction to the SKiiP 11NAB126V1 IGBT Module

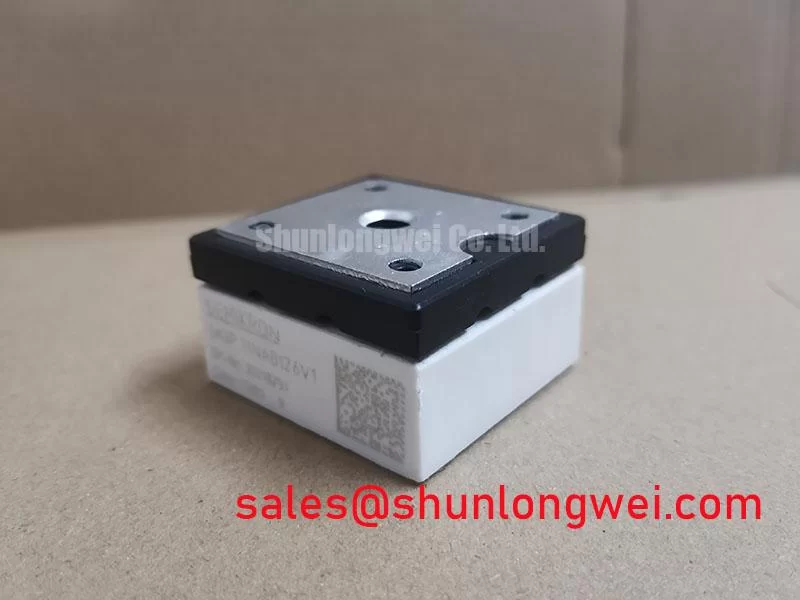

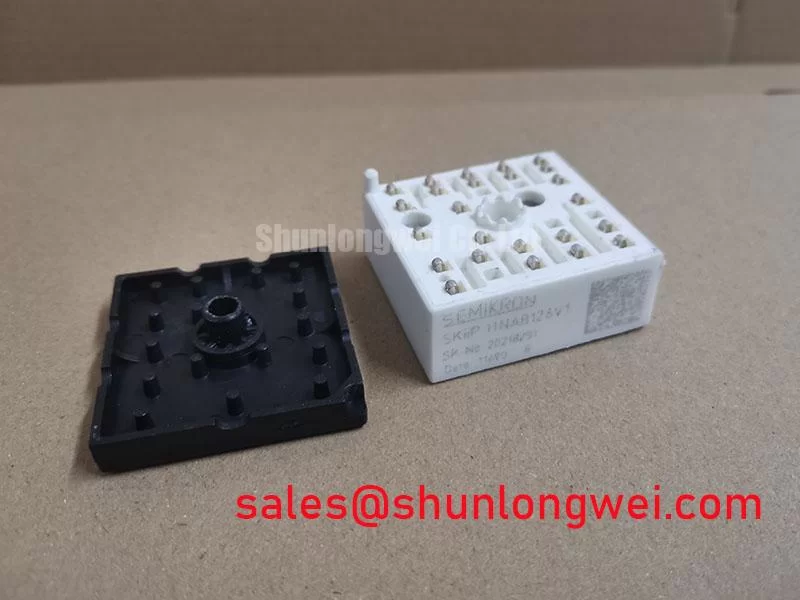

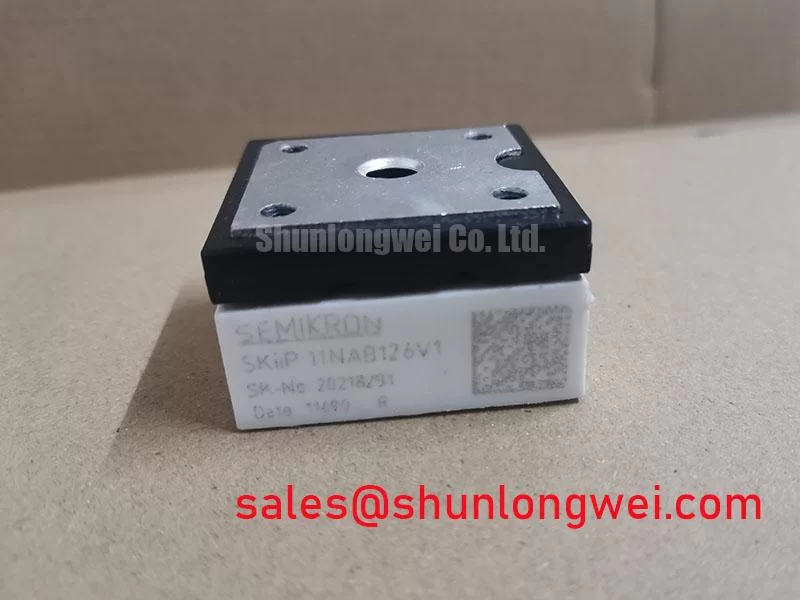

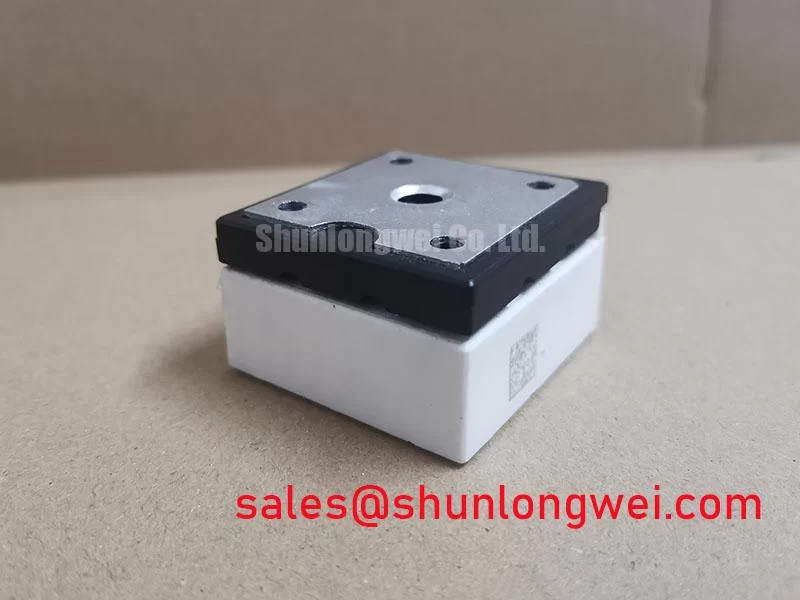

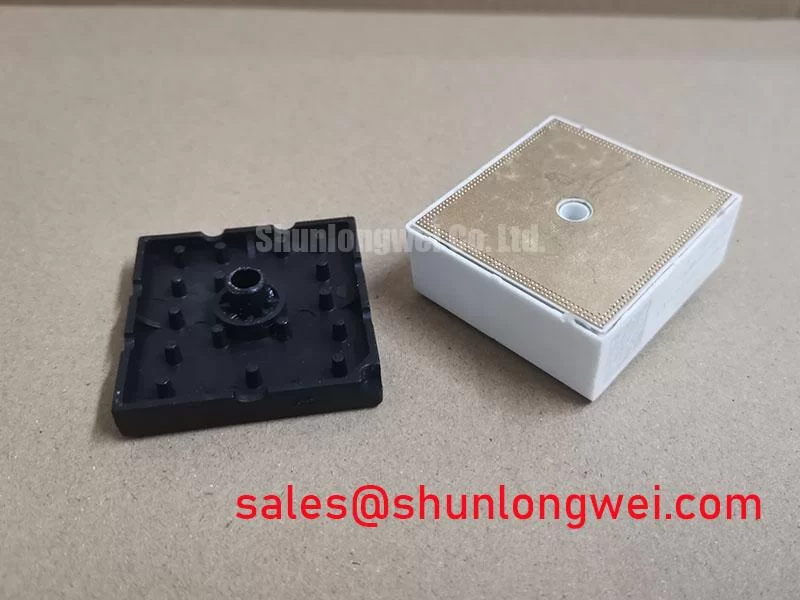

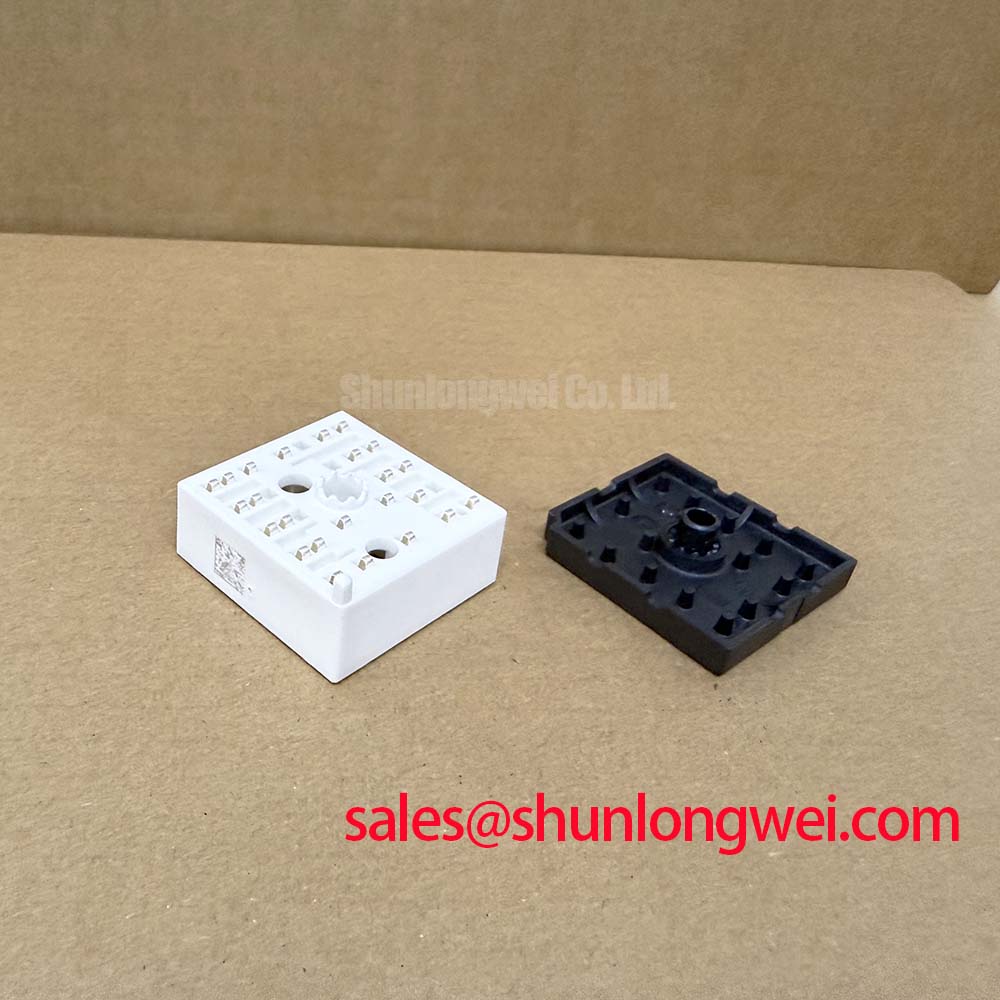

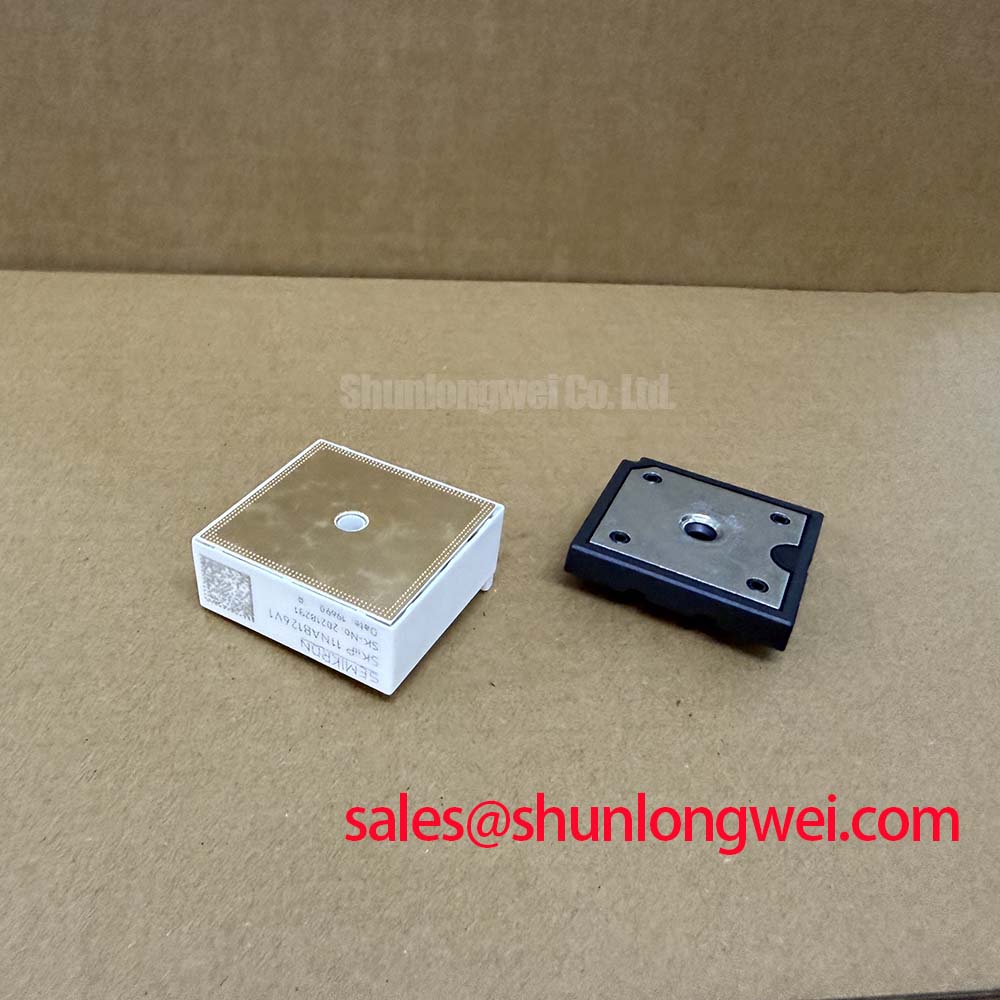

The SKiiP 11NAB126V1 from Semikron is an intelligent power module engineered to streamline the design of low-power motor drives and inverters. This module consolidates a three-phase rectifier, a brake chopper, and a three-phase inverter into a single, compact MiniSKiiP package. Key specifications include: 1200V Collector-Emitter Voltage | 15A Nominal Collector Current | Integrated NTC Thermistor. This high level of integration simplifies assembly and enhances thermal performance. For engineers designing compact variable frequency drives (VFDs) up to 4 kW, this module significantly reduces component count and simplifies the overall system layout. With its use of spring contacts instead of solder joints, the SKiiP 11NAB126V1 is the optimal choice for applications demanding high reliability and manufacturing efficiency.
Key Parameter Overview
Decoding the Specs for Simplified System Integration
The technical specifications of the SKiiP 11NAB126V1 are tailored for efficiency and reliability in compact power conversion systems. The parameters below highlight the module's all-in-one nature, which is a key factor in simplifying design and assembly processes for applications like small motor drives and UPS systems.
| SKiiP 11NAB126V1 Key Specifications | ||
|---|---|---|
| Parameter | Value | Significance |
| Inverter Stage (IGBT) | ||
| VCES (Collector-Emitter Voltage) | 1200 V | Provides substantial voltage margin for 400V AC line applications. |
| IC,nom (Nominal Collector Current) | 15 A | Suitable for typical motor power applications around 4 kW. |
| VCE(sat) (Collector-Emitter Saturation Voltage) | 1.85 V (typ) at 15 A, 125°C | Indicates low conduction losses, contributing to higher overall efficiency. |
| Rectifier Stage (Diode) | ||
| IF,AV (Average Forward Current) | 16 A (Ts = 80 °C) | Supports the full power requirements of the inverter stage. |
| Thermal & Mechanical | ||
| Rth(j-s) (Thermal Resistance, Junction-to-Sink) | ≤ 2.5 K/W (per IGBT) | Facilitates efficient heat transfer to the heatsink, crucial for reliability. |
| Housing | MiniSKiiP® 1 | Compact, single-screw mounting package with spring-loaded contacts. |
Download the SKiiP 11NAB126V1 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Compact Motion Control Systems
The SKiiP 11NAB126V1 is specifically designed for low-power inverter applications where space, assembly cost, and reliability are critical design constraints. Its high level of integration makes it an excellent fit for:
- Variable Frequency Drives (VFDs): In drives for pumps, fans, and conveyor belts with motor power up to 4 kW, the all-in-one CIB (Converter-Inverter-Brake) topology drastically simplifies the power stage design.
- Small Servo Drives: The module's fast Trench IGBTs and robust CAL freewheeling diodes provide the controlled, dynamic performance required for precision motion control systems.
- Uninterruptible Power Supplies (UPS): The integrated rectifier and inverter stages form the core of a compact and reliable online UPS system.
A key engineering challenge in these applications is minimizing manufacturing complexity and maximizing reliability. The SKiiP 11NAB126V1 directly addresses this with its spring-contact technology. Unlike traditional soldered modules, this design eliminates a major failure mode—solder fatigue from power cycling—and enables a much faster, single-screw mounting process. This is analogous to using a terminal block for wiring instead of soldering each wire individually; it's faster, more repeatable, and less prone to process-related defects. For systems requiring higher current handling within the same family, the SKiiP 35NAB126V1 offers increased capacity with the same integration benefits.
Frequently Asked Questions (FAQ)
What is the primary benefit of the spring-contact connection system used in the SKiiP 11NAB126V1?
The spring-contact system provides a solder-free connection between the module and the printed circuit board (PCB). This enhances long-term reliability by eliminating solder joint fatigue caused by thermal cycling and significantly simplifies the manufacturing and assembly process.
How does the integrated CIB (Converter-Inverter-Brake) topology benefit my design?
By integrating the input rectifier, brake chopper, and output inverter into a single module, the SKiiP 11NAB126V1 reduces the overall component count, minimizes the required PCB space, and simplifies the thermal management design. This leads to a smaller, more cost-effective, and more reliable end product.
Is the integrated NTC thermistor sufficient for over-temperature protection?
Yes, the built-in NTC thermistor is strategically placed to provide an accurate temperature reading close to the power chips. This allows the control system to monitor the module's operating temperature in real-time and trigger protective measures, such as reducing output current or shutting down the system, to prevent thermal damage.
A Closer Look at Solder-Free Assembly and Reliability
Design Considerations for Long-Term Performance
The defining feature of the MiniSKiiP family, including the SKiiP 11NAB126V1, is its reliance on SKiiP® Technology, which centers on spring-loaded contacts for all electrical connections. For a design engineer, this technology fundamentally changes the assembly and reliability calculus. The pressure-based contact system ensures a consistent and reliable connection to the gate driver board without the thermal stress of a soldering process. This is particularly crucial for power electronics, where repeated temperature fluctuations can cause microscopic cracks in solder joints, eventually leading to intermittent or complete failure. By eliminating this failure mechanism, the module offers a quantifiable improvement in the operational lifespan of the drive. Furthermore, this approach simplifies maintenance and repair, as the module can be replaced without complex desoldering procedures, directly reducing the total cost of ownership (TCO) over the product's life cycle.
Call to Action
For engineers developing compact and reliable motor drives, servo systems, or UPS solutions, the SKiiP 11NAB126V1 offers a compelling combination of integration, performance, and simplified manufacturing. Its proven spring-contact technology provides a distinct advantage in applications where long-term operational reliability is a primary concern. To further explore how to integrate this module into your next design, review the datasheet and consider how its features can streamline your power stage development process.
