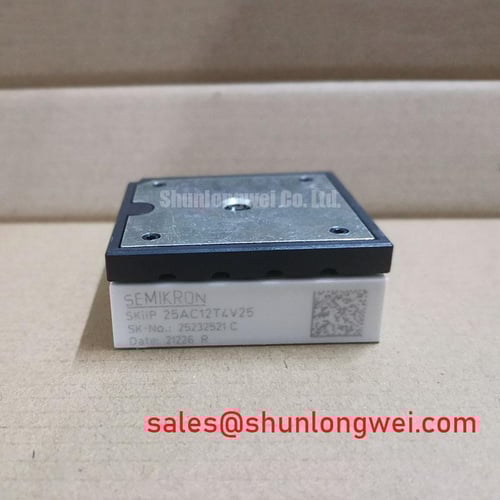

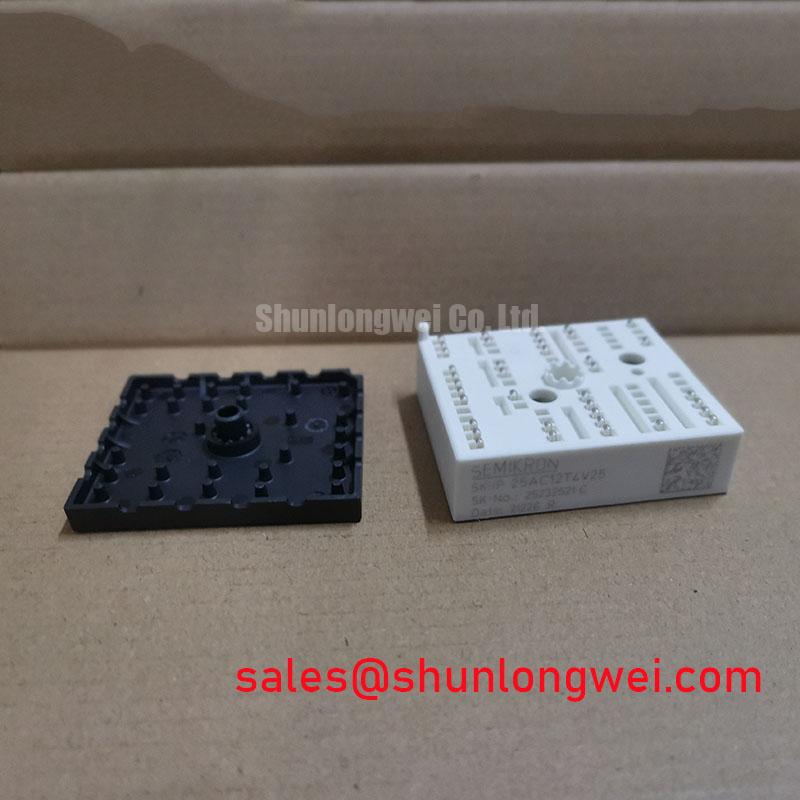

SEMIKRON Skiip 25AC12T4V25 | Fully Integrated CIB Power System for High-Reliability Drives
The SEMIKRON Skiip 25AC12T4V25 is an advanced intelligent power module (IPM) engineered to streamline the design of compact and highly reliable power conversion systems. By integrating a three-phase converter, a three-phase inverter, and a brake chopper (CIB) into a single, robust package, this module provides a complete power stage solution. It is specifically designed for applications where efficiency, power density, and long-term operational stability are paramount, leveraging SEMIKRON's proven Trench 4 IGBT technology and solder-free SKiiP pressure contact system.
Technical Deep Dive: SKiiP Technology and Trench 4 IGBTs
Two core technologies set the Skiip 25AC12T4V25 apart: the SKiiP integration platform and the underlying semiconductor performance. The Semikron SKiiP® Technology utilizes a sophisticated pressure contact system. This completely eliminates baseplate and terminal solder layers, which are common points of fatigue and failure in conventional IGBT modules. The direct pressure contact ensures a homogenous, low-resistance thermal path to the heatsink, significantly enhancing power cycling capability and extending the service life of the end application.
At the silicon level, the module employs SEMIKRON's Trench Gate Field-Stop IGBT4 (T4) chips. This generation of IGBTs is optimized for an excellent balance between low collector-emitter saturation voltage (VCE(sat)) and reduced switching losses. The low VCE(sat) minimizes conduction losses, which is critical for motor drive applications operating at nominal speeds. Simultaneously, the optimized switching characteristics ensure high efficiency at the typical PWM frequencies used in modern drive controllers, directly contributing to lower operating temperatures and reduced heatsink requirements.
Application Suitability and Engineering Advantages
The highly integrated and robust design of the SEMIKRON Skiip 25AC12T4V25 makes it an ideal solution for several demanding applications:
- Variable Frequency Drives (VFDs): The all-in-one CIB topology dramatically simplifies the power stage design, reducing component count, minimizing PCB complexity, and accelerating time-to-market. The integrated, pre-optimized gate driver with built-in protection ensures reliable and safe operation of the IGBTs.
- Servo Drives: In precision motion control, the module's fast-switching CAL 4F diodes enable rapid and controlled braking, while the high thermal performance of the SKiiP package ensures stability during repetitive high-torque cycles.
- Renewable Energy Inverters: For small to mid-power solar or wind power systems, the module’s proven reliability and high efficiency are crucial for maximizing energy harvest and ensuring long-term field operation with minimal maintenance.
For systems with slightly different power requirements, the SKiiP 25AC12T4V1 offers a related alternative within the same performance class, providing design flexibility.
Key Technical Parameters
The following table provides an overview of the critical electrical and thermal characteristics for the Skiip 25AC12T4V25. For comprehensive design data, including detailed SOA curves and application notes, please Download the Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic @ 25°C) | 50 A (Inverter) / 50 A (Rectifier) |
| Collector-Emitter Saturation Voltage (Vce(sat), typ. @ 25°C) | 1.75 V |
| Topology | CIB (Converter-Inverter-Brake) |
| IGBT Technology | Trench Gate Field-Stop IGBT4 |
| Isolation Voltage (Visol) | 4000 V |
Strategic Advantage: Integration for Reliability and Cost-Effectiveness
The industry trend towards higher power density and reduced system cost places immense pressure on engineering teams. The Skiip 25AC12T4V25 directly addresses this challenge. By adopting an integrated power system, designers bypass the complex and time-consuming tasks of selecting, qualifying, and optimizing discrete gate drivers, protection circuits, and multiple power stages. This not only shortens the development cycle but also enhances system reliability by utilizing a pre-validated subsystem from a single trusted manufacturer. This approach shifts the focus from component-level design to system-level innovation, a critical advantage in today's competitive market. To better understand this evolution, exploring the differences between an IPM vs. Discrete IGBTs provides valuable context.
Frequently Asked Questions (FAQ)
1. What is the primary benefit of the SKiiP pressure contact system?The main benefit is a dramatic increase in reliability and operational lifetime. By eliminating solder layers, the system avoids failures caused by solder fatigue during thermal cycling. This results in a module that can withstand more frequent and wider temperature swings, making it ideal for applications with intermittent or cyclical loads like servo drives and solar inverters.
2. Does the integrated driver include protection features?Yes, a key advantage of the Skiip 25AC12T4V25 is its intelligent, integrated gate driver. It includes essential protection functions such as Undervoltage Lockout (UVLO) for both the primary and secondary side, short-circuit protection for the inverter IGBTs, and an over-temperature warning and shutdown mechanism. This integration simplifies safety certifications and protects the power stage from catastrophic failure.
For any further technical questions or to discuss your specific design requirements, please contact our technical team for expert support.
