Fuji 2MBI600VN-120-50 | High-Power V-Series IGBT for Demanding Inverter Applications

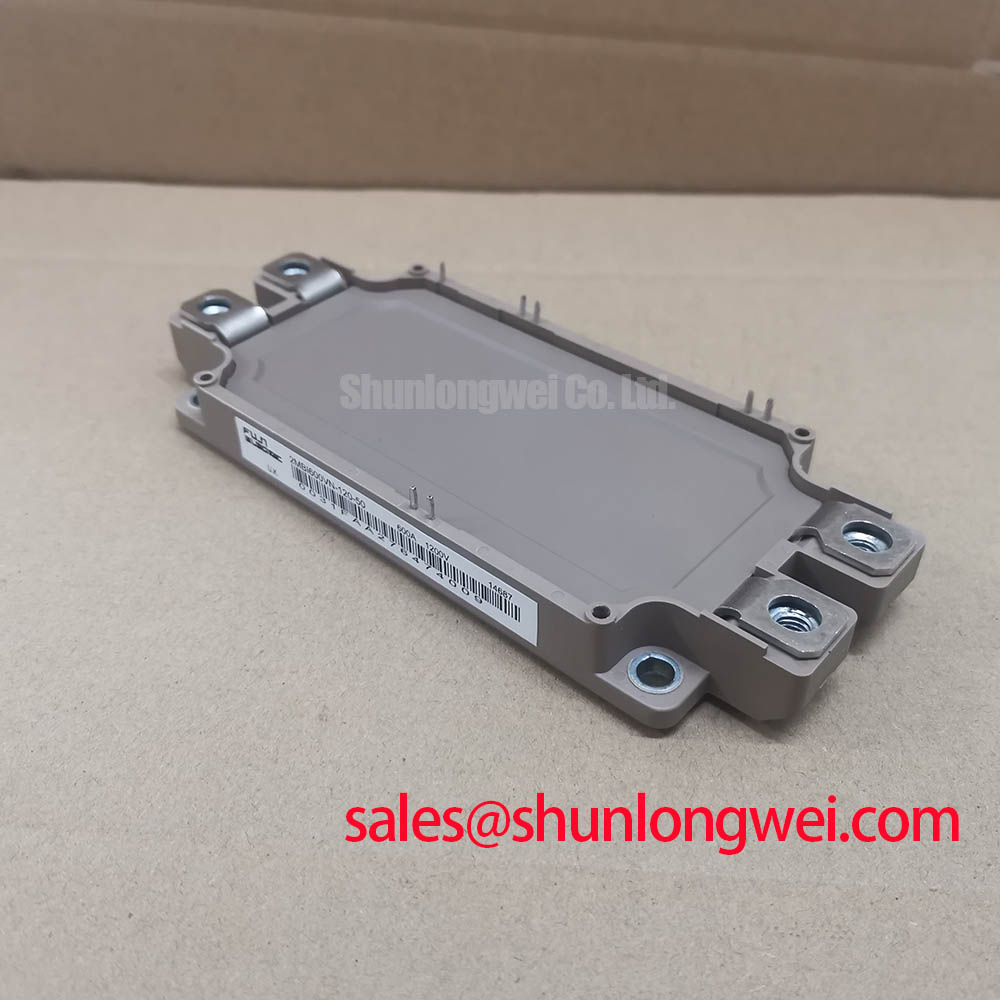

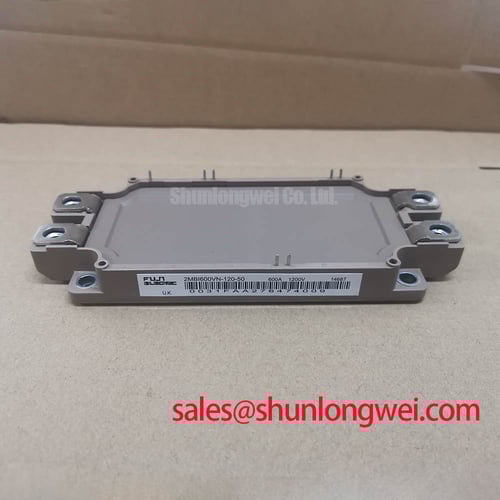

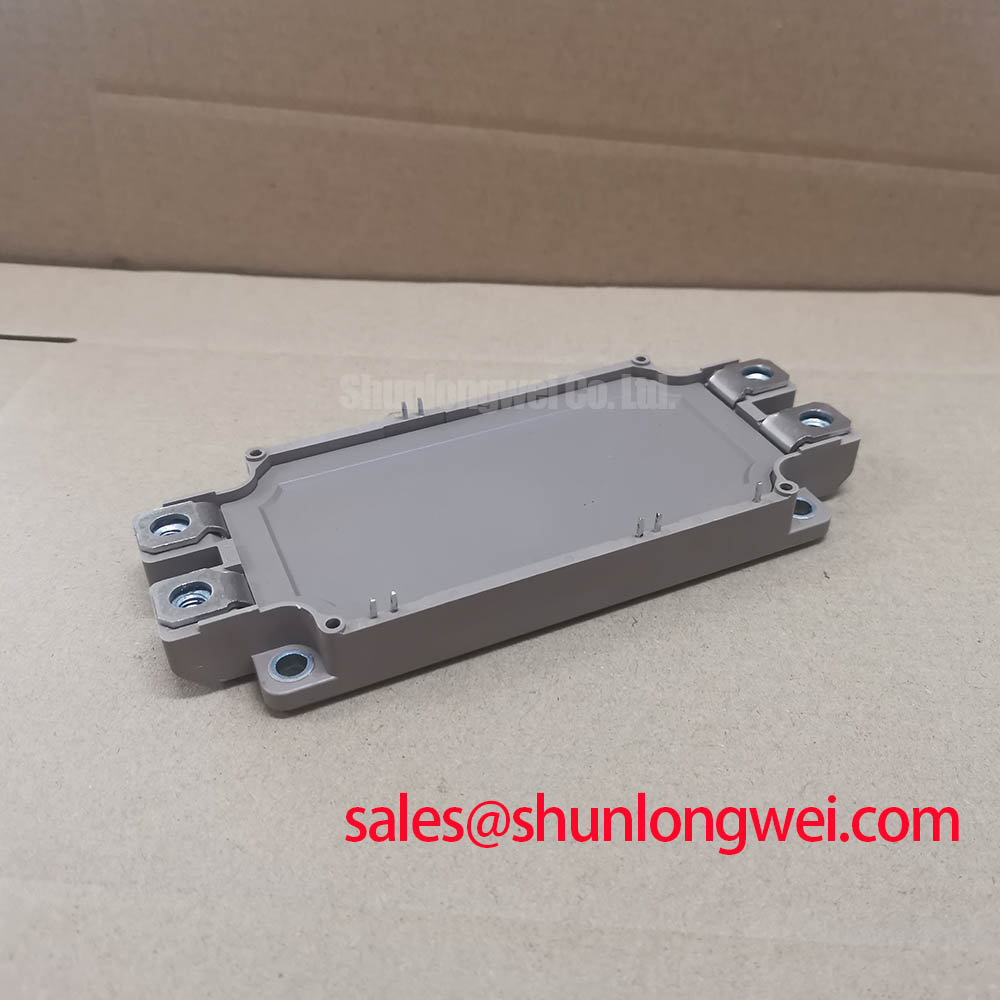

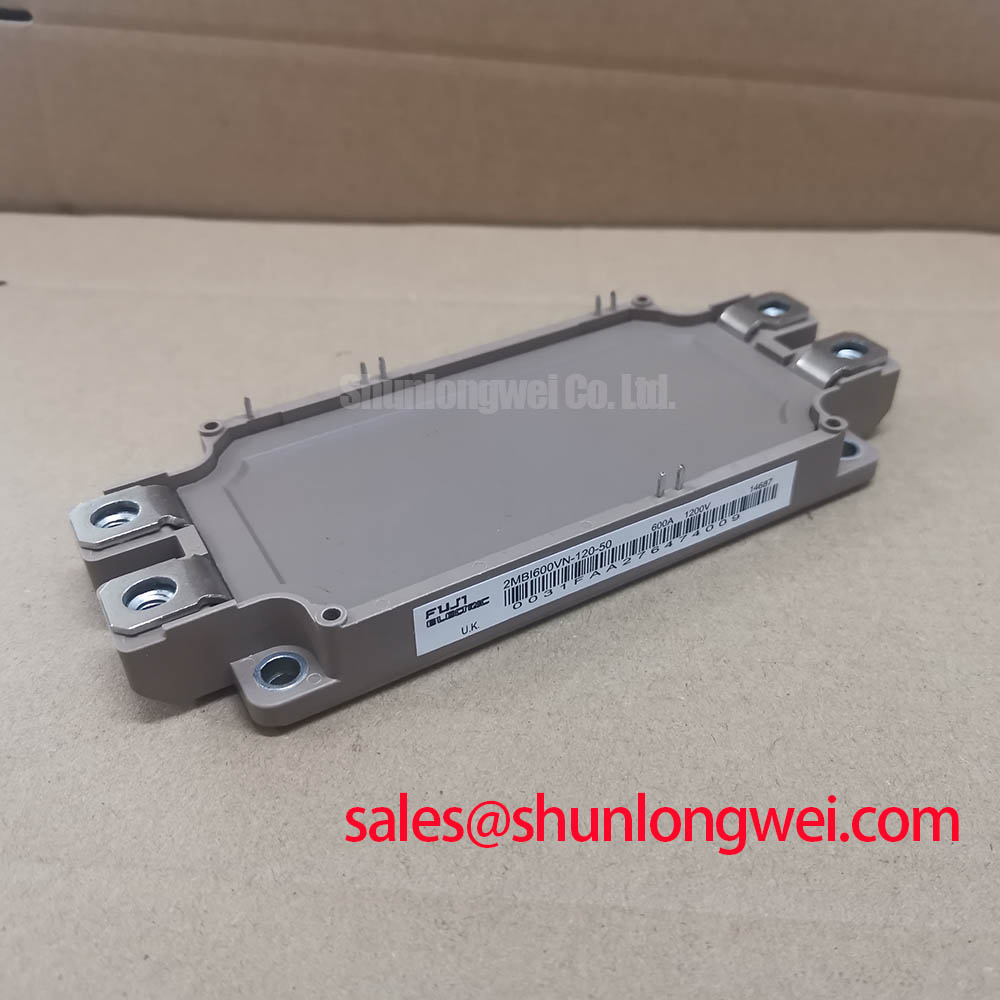

The Fuji Electric 2MBI600VN-120-50 is a 1200V, 600A dual IGBT module engineered for high-reliability power conversion systems. As a cornerstone of Fuji's renowned V-Series, this module encapsulates advanced semiconductor technology to deliver an optimal balance of low power loss, high-speed switching, and exceptional durability. It is specifically designed for engineers developing next-generation inverters and power supplies where efficiency and robust performance are non-negotiable.
Product Highlights at a Glance
For the system designer, the 2MBI600VN-120-50 offers a compelling value proposition built on tangible performance metrics:
- Optimized Power Efficiency: Integrates Fuji's V-Series Trench Gate Field Stop technology to significantly reduce both conduction loss (low VCE(sat)) and switching loss (Eon/Eoff).
- High Power Density: The 600A rating within a standard M239 package allows for the design of more compact and powerful inverter stages.
- Enhanced System Reliability: Features a built-in fast recovery diode (FWD) co-packaged with the IGBT, ensuring robust performance under inductive loads and a wide Safe Operating Area (SOA).
- Superior Thermal Management: The module's construction provides a low thermal resistance path, simplifying heatsink design and ensuring stable operation at high power levels.
Technical Depth Analysis
The performance of the Fuji 2MBI600VN-120-50 is rooted in its sophisticated chip technology. Understanding these features reveals why it excels in demanding environments.
Fuji Electric’s V-Series Trench Gate Field Stop Technology
At the core of this module lies Fuji's V-Series silicon. Unlike older planar gate designs, the trench gate structure increases the density of the conduction channel on the chip surface. This directly results in a lower on-state voltage drop, or VCE(sat). Simultaneously, a refined Field Stop (FS) layer allows for a thinner silicon drift region. This not only further reduces VCE(sat) but also minimizes the "tail current" during turn-off, drastically cutting switching losses (Eoff). For an engineer, this translates to higher inverter efficiency, reduced waste heat, and smaller, less expensive cooling systems.
Application Scenarios & Value Proposition
The technical advantages of the 2MBI600VN-120-50 create direct value in several high-power applications:
- High-Power Motor Drives: In large industrial motor controls and Variable Frequency Drives (VFDs), the module's low conduction losses at high currents lead to significant energy savings over the equipment's lifecycle. Its fast switching capability enables higher PWM frequencies for smoother motor operation and reduced audible noise.
- Renewable Energy Inverters: For large-scale solar and wind power conversion systems, maximizing efficiency is paramount. The module's combination of low VCE(sat) and low Esw ensures that a greater percentage of generated power reaches the grid, improving the levelized cost of energy (LCOE).
- Uninterruptible Power Supplies (UPS): In mission-critical data centers and industrial UPS, reliability is key. The module's robust design and excellent thermal stability ensure continuous, dependable operation, protecting sensitive loads from power disturbances.
Key Parameter Overview
The following table provides a snapshot of the critical electrical and thermal characteristics for the Fuji 2MBI600VN-120-50. For complete specifications, it is essential to consult the official product documentation.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200V |
| Continuous Collector Current (Ic) @ Tc=80°C | 600A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ Ic=600A, Vge=15V | 1.8V (Typ.) |
| Total Power Dissipation (Pc) per IGBT | 3470W |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.036 °C/W |
| Short-Circuit Withstand Time (tsc) | ≥ 10µs |
For a comprehensive list of parameters and operating curves, you can download the Fuji 2MBI600VN-120-50 datasheet here.
Frequently Asked Questions (FAQ)
What are the critical gate drive considerations for the 2MBI600VN-120-50?
To achieve optimal performance and prevent damage, a robust gate drive circuit is crucial. We recommend a gate voltage of +15V for turn-on and a negative voltage of -8V to -15V for turn-off. The negative voltage provides a strong buffer against dv/dt-induced turn-on, especially in half-bridge configurations. Additionally, a low-inductance layout and proper use of a gate resistor close to the module are essential to control ringing and ensure reliable switching. For more in-depth information, review our guide on practical tips for robust gate drive design.
Can these modules be paralleled for applications exceeding 600A?
Yes, the 2MBI600VN-120-50 is well-suited for paralleling, thanks to its positive temperature coefficient of VCE(sat). This characteristic promotes natural current sharing between modules. However, successful paralleling requires careful engineering. This includes ensuring a symmetrical layout for power and gate drive paths to minimize stray inductance mismatches, and potentially binning modules by VCE(sat) for high-precision applications. It's critical to ensure balanced thermal management across all paralleled devices.
For detailed application support or to discuss how the Fuji 2MBI600VN-120-50 can enhance your next project, please contact our technical team for expert consultation.
