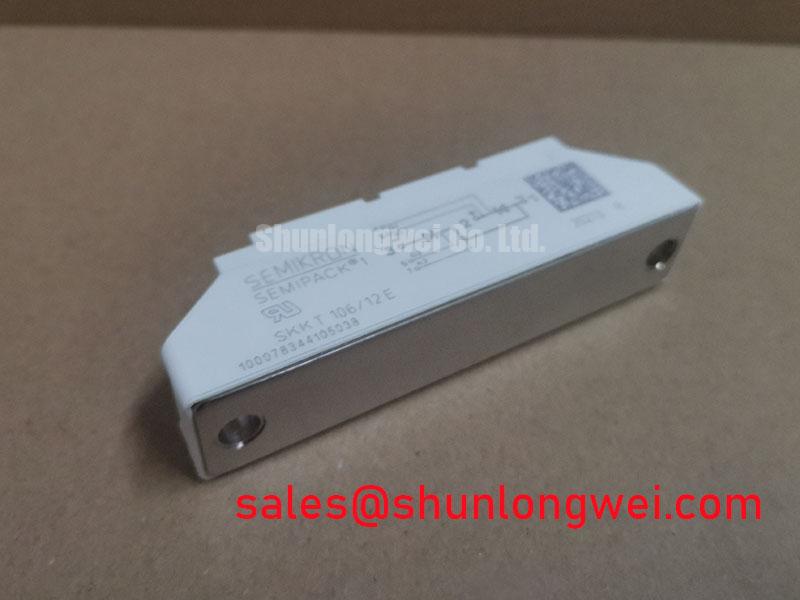

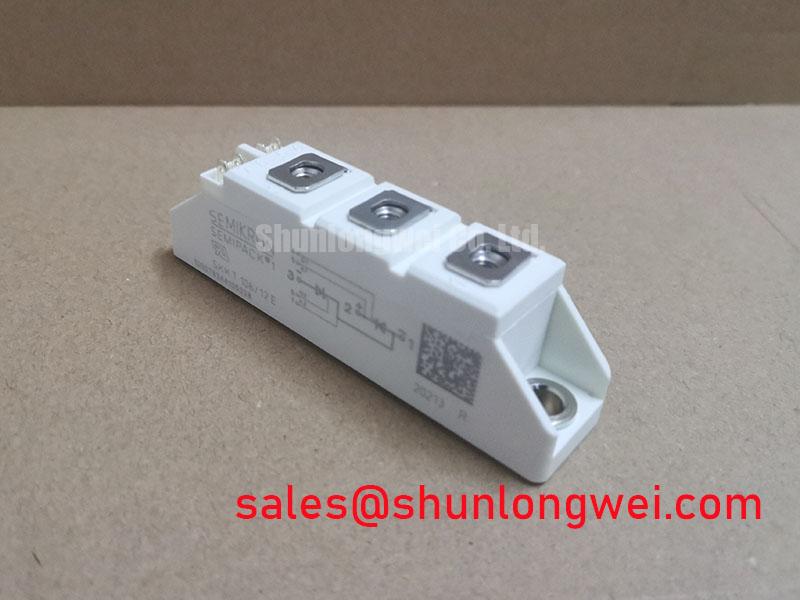

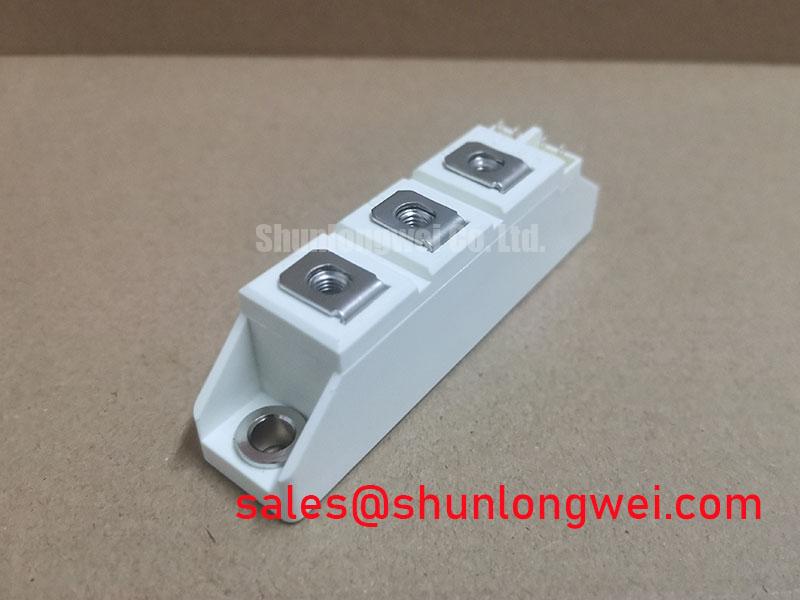

Semikron SKKT106/12E Thyristor/Diode Module | Robust Power Control for Demanding Applications
The Semikron SKKT106/12E is a high-reliability thyristor and diode module designed for robust power control in demanding industrial environments. Engineered by Semikron, a leader in power electronics, this module integrates two SCRs and two diodes in a half-bridge configuration, offering a versatile and efficient solution for phase control and rectification. Its proven SEMIPACK® 2 package ensures excellent thermal performance and electrical isolation, making the SKKT106/12E a go-to component for systems requiring precise and durable power management.
Technical Deep Dive: The Foundation of Reliability
The exceptional performance of the SKKT106/12E is rooted in its core design principles. Two features, in particular, guarantee its operational longevity and stability:
- Glass Passivated Thyristor Chips: At the heart of the module are thyristor chips protected by glass passivation. This process involves applying a hermetic layer of glass over the sensitive PN junctions. For the engineer, this translates directly to superior long-term stability and prevents degradation from environmental factors like humidity and contaminants. It ensures the module maintains its high blocking voltage capability (1200V) reliably throughout its service life, a critical factor in preventing field failures.
- Electrically Isolated Copper Baseplate: The module utilizes a standard industrial package featuring a copper baseplate bonded to an Aluminium Oxide (Al2O3) ceramic substrate. This construction provides very high electrical isolation (3000 V~), allowing the module to be mounted directly onto a grounded heatsink without needing additional, costly insulating materials. This simplifies the mechanical design, reduces assembly time, and improves thermal transfer efficiency, ultimately leading to a more compact and reliable system.
Application Scenarios: Where the SKKT106/12E Excels
The SKKT106/12E is not just a component; it's a problem-solver for specific industrial challenges. Its architecture is ideally suited for line-frequency applications where ruggedness is paramount.
- DC Motor Speed Control: In applications like conveyors, mixers, or pumps, this module can form the core of a controlled rectifier to manage the speed of DC motors. Its ability to handle high inrush currents and its robust thermal design ensure dependable operation even under strenuous start-stop cycles.
- AC Soft Starters: By using two modules in a back-to-back SCR topology, the SKKT106/12E can create a three-phase AC voltage controller. This enables smooth, controlled ramp-up of motor voltage, significantly reducing mechanical shock on gearboxes and electrical stress on the power grid.
- High-Power Lighting and Temperature Control: For large-scale stage lighting, industrial ovens, or heating elements, the module's phase-angle control capability allows for precise power regulation. This leads to significant energy savings and stable temperature management, improving process quality and consistency.
- Controlled AC/DC Rectifiers: The half-controlled bridge configuration is perfect for building cost-effective and reliable power supplies for applications like battery charging systems and electroplating, where a controllable DC output from an AC source is required.
Key Technical Specifications
The following table provides a snapshot of the essential electrical and thermal parameters for the Semikron SKKT106/12E. For complete details, please refer to the official datasheet.
[SKKT106/12E Datasheet]
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1200 V |
| Average On-State Current (ITAVM) | 105 A (at Tcase = 85°C) |
| RMS On-State Current (ITRMS) | 165 A |
| Threshold Voltage (VT0) | 0.85 V |
| On-State Slope Resistance (rt) | 2.5 mΩ |
| Isolation Voltage (Visol) | 3000 V (AC, 50 Hz, 1 min) |
Selection Guidance: Thyristor vs. IGBT Modules
Engineers often weigh the choice between a thyristor module like the SKKT106/12E and a fully-controlled solution. While IGBTs offer high-frequency switching capabilities ideal for inverters and advanced motor drives, thyristors hold a distinct advantage in line-frequency (50/60 Hz) power control. The SKKT106/12E provides superior ruggedness, higher surge current capability, and a simpler gate drive requirement. For applications like phase control, soft starters, and basic rectifiers, this module offers a more robust and cost-effective solution. For high-frequency needs, you may want to explore our range of IGBT modules.
Frequently Asked Questions (FAQ)
- What type of gate driver is required for the SKKT106/12E?
Thyristors in this module require a simple, low-power pulse to turn on. Unlike IGBTs that need a continuous gate voltage and more complex drive circuits, the SKKT106/12E can be triggered by a straightforward pulse transformer or optocoupler circuit, simplifying the overall system design.
- Can these modules be connected in parallel for higher current?
Yes, paralleling is possible. However, to ensure proper current sharing, it is crucial to match the on-state characteristics (VT0 and rt) of the modules or use external balancing components like small series resistors. Mismatched modules can lead to one device carrying a disproportionate share of the current, potentially causing thermal runaway.
For detailed application support or to request a quote for the Semikron SKKT106/12E, please contact our technical team for expert guidance.
