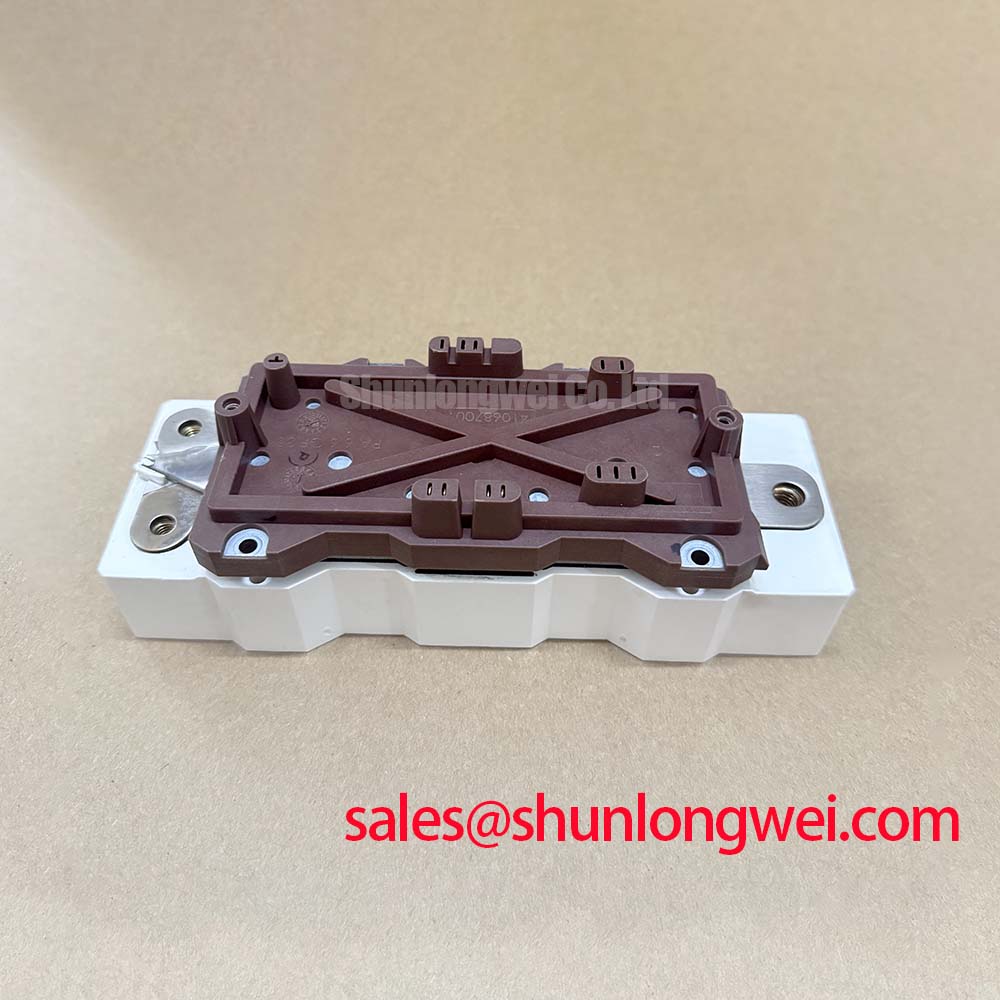

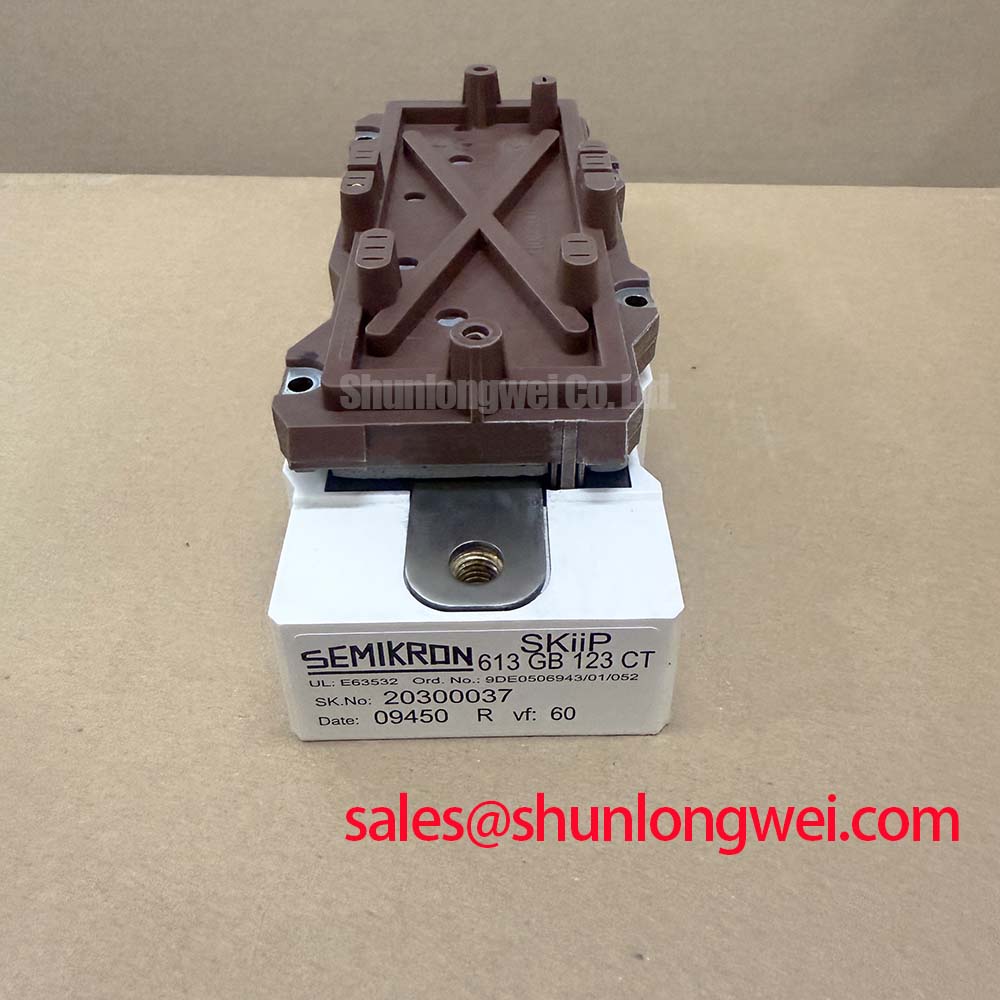

SKIIP613GB123CT: An Integrated 1200V SKiiP 3 IPM
Streamlining Power System Design with an All-in-One Solution
The SEMIKRON SKIIP613GB123CT is an intelligent power module (IPM) engineered to simplify the development of high-power converters and inverters. By integrating the gate driver, protection circuits, and thermal management into a single package, it offers a streamlined path to robust and efficient system design. This module provides key specifications of 1200V | 600A | VCE(sat) 1.9V, delivering significant benefits in simplified assembly and enhanced operational reliability. For engineers asking how to accelerate the design cycle for variable frequency drives, the SKIIP613GB123CT provides a direct answer by consolidating multiple complex subsystems into one pre-validated component, reducing both component count and integration risks.
Technical Deep Dive: The Architecture of Integration
The SKIIP613GB123CT is built upon SEMIKRON's SKiiP platform, which stands for Semikron integrated intelligent Power. The core of its design philosophy is the functional integration of key power stage components. This is not simply a collection of discrete parts in one box; it is a co-designed system where the IGBTs, freewheeling diodes, gate driver, and sensors are optimized to work together seamlessly. This module incorporates Trench IGBTs and CAL (Controlled Axial Lifetime) diodes, a combination selected for its ability to balance low conduction losses—evidenced by the typical 1.9V VCE(sat)—with robust switching performance. What is the primary benefit of its pressure-contact design? Enhanced long-term reliability by eliminating solder fatigue failures common in high-power cycling applications. The integrated digital signal processor (DSP) interface further simplifies system control, allowing direct communication with the master controller for parameter setting and diagnostic feedback, turning the power module into a communicant subsystem rather than a passive component block.
Data-Centric Comparison for System Architects
When evaluating power modules, engineers must weigh multiple performance vectors. The SKIIP613GB123CT distinguishes itself through its high level of integration. To provide a clear data framework for your decision-making, consider the following comparison points against standard non-integrated IGBT modules.
| Parameter | SEMIKRON SKIIP613GB123CT | Typical Discrete IGBT Module | Engineering Implication |
|---|---|---|---|
| Core Components | IGBTs, Diodes, Gate Driver, Sensors, Heat Sink | IGBTs, Diodes | Reduces BOM complexity and procurement overhead. |
| Gate Drive Circuit | Integrated & Optimized | External & User-Designed | Eliminates complex gate drive design, testing, and potential EMI issues. |
| Current & Temp. Sensing | Integrated | External Sensors Required | Provides pre-calibrated, real-time feedback for control loops and protection. |
| VCE(sat) (typ.) | 1.9V @ 600A, 125°C | Varies (e.g., 1.7V - 2.2V) | A competitive value indicating efficient conduction performance. |
For systems where development speed and verified subsystem performance are critical, the integrated approach of the SKIIP613GB123CT presents a compelling case. A related device, the SKiiP39AC126V20, offers a similar integrated approach for lower power requirements.
Optimized Applications for Integrated Power Modules
The all-in-one architecture of the SKIIP613GB123CT makes it exceptionally well-suited for applications where reliability, power density, and a shortened time-to-market are primary project drivers. The pre-integrated and factory-tested nature of the module mitigates many common failure points associated with external gate drives and sensor wiring, making it a robust choice for industrial environments. For demanding motor control systems prioritizing smooth torque delivery, the integrated current sensors provide the high-fidelity feedback essential for sophisticated vector control algorithms. The module's design inherently reduces stray inductance, a critical factor in minimizing voltage overshoot during high-speed switching, thereby enhancing the reliability of the entire power stage. To understand the foundational principles behind such components, exploring a guide on IGBT module analysis can provide valuable context.
Primary deployment areas include:
- Industrial Motor Drives: The module's robust construction and integrated protection are ideal for high-power Variable Frequency Drives (VFDs) used in manufacturing, processing, and conveyance.
- Renewable Energy Inverters: Suitable for the power conversion stage in wind turbines and large-scale solar installations where long-term operational uptime is paramount.
- Commercial & Industrial UPS: The high power handling and reliability are critical for uninterruptible power supplies protecting data centers and other essential facilities.
- Elevator and Traction Systems: Delivers the controlled power necessary for smooth and reliable operation in transportation applications.
Best Fit Scenario: For industrial drive systems from 250 kW to 400 kW requiring accelerated development, the SKIIP613GB123CT's integrated design offers a distinct advantage over multi-component discrete solutions.
Core Technical Specifications
The following parameters highlight the key performance characteristics of the SKIIP613GB123CT, based on the reference datasheet for the SKiiP 3 family. These values are crucial for system-level thermal and electrical design simulations.
| Key Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic @ 25°C) | 750 A |
| Nominal Collector Current (Ic nom) | 600 A |
| Collector-Emitter Saturation Voltage (Vce(sat), typ. @ 600A) | 1.9 V |
| Total Power Dissipation per IGBT (Ptot) | 2800 W |
| Operating Junction Temperature (Tj op) | -40 to +150 °C |
For complete operational details and application notes, it is recommended to consult the official manufacturer documentation.
Strategic Advantage in Modern Power Conversion
The trend in power electronics is clear: greater functional density, higher reliability, and reduced system complexity. The SKIIP613GB123CT directly addresses these strategic imperatives. By abstracting the complexities of gate drive design, current sensing, and thermal interfacing, it allows engineering teams to focus their resources on higher-level system control and application-specific software. This shift from component-level to system-level design is a powerful enabler of innovation. As industries from renewable energy to industrial automation push for higher efficiency and greater power density, integrated platforms like the SKiiP® Technology represent the future of power module design. Adopting such a platform is not merely a component choice but a strategic decision to de-risk projects, shorten design timelines, and build more reliable, compact, and serviceable end products.
A Vision for Simplified, Resilient Power Design
Looking forward, the trajectory of power system design will increasingly favor solutions that embed intelligence and functionality directly into the power hardware. The SKIIP613GB123CT exemplifies this evolution. For design leaders and system architects, this module offers more than just electrical specifications; it presents an opportunity to rethink the entire design and manufacturing workflow. By leveraging a pre-certified power core, engineering teams can achieve greater agility, reduce costly redesigns, and deliver more dependable products to market faster. This approach, centered on high-level integration, paves the way for the next generation of powerful, intelligent, and resilient energy conversion systems, a topic further explored in our analysis of IPMs versus discrete IGBTs.
