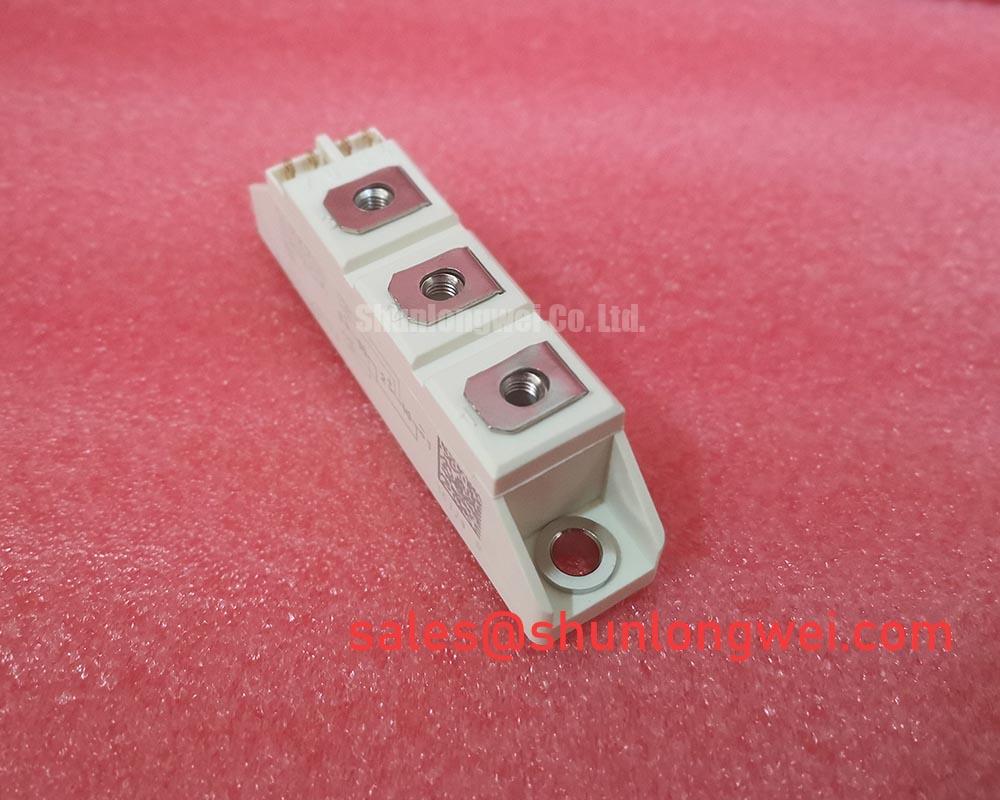

SEMIKRON SKKT27B12E | Robust Thyristor Module for Phase Control & Rectification
The SEMIKRON SKKT27B12E is a high-reliability thyristor module engineered for demanding power control applications. Housed in the industry-standard SEMITOP® package, this module integrates two series-connected thyristors (SCRs), offering a streamlined and robust solution for AC voltage control and controlled rectification. It is specifically designed for engineers seeking to build durable and efficient power circuits for motor starters, industrial heating, and DC power supplies without the complexity of high-frequency switching designs.
Technical Deep Dive: Engineering for Reliability and Control
- Glass Passivated Thyristor Chips: At the heart of the SKKT27B12E are glass passivated thyristor chips. This manufacturing technique involves applying a layer of specialized glass over the sensitive PN junctions. This hermetically seals the die, protecting it from moisture and contaminants that can cause premature failure. The practical benefit for your design is superior long-term stability, lower leakage currents, and consistent high-voltage blocking performance (up to 1200V) even in challenging industrial environments. For more on this critical process, see this overview on glass passivation.
- Isolated Copper Baseplate: The module features a copper baseplate that is electrically isolated from the semiconductor elements. This design delivers two key advantages: excellent thermal performance due to copper's high conductivity, and simplified mechanical assembly. You can mount multiple modules onto a single, non-isolated heatsink, reducing assembly complexity, cost, and improving overall system safety.
Multi-Dimensional Application Scenarios
The SKKT27B12E is not a one-size-fits-all component; it is a specialist tool for line-frequency power control. Here’s how its features translate to real-world value:
- AC Voltage Controllers: In applications like industrial furnace control or large-scale lighting dimmers, the module's back-to-back SCR topology enables precise phase-angle control of the AC waveform. This allows for smooth, continuous power regulation, leading to improved energy efficiency and finer process control compared to rudimentary on-off contactors.
- Controlled Rectifiers for DC Drives: When used in a single or three-phase bridge configuration, the SKKT27B12E forms the core of a highly reliable controlled rectifier. This is ideal for regulating the armature voltage of DC motors or for building robust battery charging systems where durability and fault tolerance are paramount.
- Motor Soft Starters: For medium-sized AC induction motors, this module can be used to build a soft starter that gradually ramps up the voltage. This mitigates high inrush currents, reducing mechanical stress on gears and belts and minimizing electrical stress on the power grid during motor startup.
Key Technical Parameters Overview
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1200 V |
| Average On-State Current (IT(AV)) @ Tcase=85°C | 27 A |
| RMS On-State Current (IT(RMS)) | 45 A |
| Surge Current (ITSM) @ 50Hz, 10ms | 550 A |
| Isolation Voltage (Visol) | 2500 V (AC, 1 min.) |
| Package | SEMITOP® 1 |
For a comprehensive list of specifications, please refer to the SKKT27B12E Datasheet.
Choosing the Right Tool: Thyristor vs. IGBT
Engineers often weigh different power semiconductor options. Understanding the fundamental differences is key to a successful design.
- Choose the SKKT27B12E (Thyristor) when: Your primary goal is controlling power at line frequency (50/60 Hz). Thyristors excel in high-current, high-voltage applications where switching speed is not a priority. They are exceptionally robust and offer a cost-effective solution for phase control, AC switching, and simple rectification.
- Consider an IGBT when: Your application requires high-frequency switching (in the kHz range). This is essential for modern PWM-based motor drives, solar inverters, and uninterruptible power supplies (UPS) where synthesized AC waveforms are needed. Explore More IGBT Modules to see solutions tailored for these high-frequency applications.
Frequently Asked Questions (FAQ)
- Can I parallel these modules for higher current?
Yes, but careful design is required. To ensure proper current sharing, SCRs should be matched for their on-state voltage characteristics (VT0 and rT), and the gate drive signals must be simultaneous. Careful layout to balance stray inductance is also crucial.
- What is the purpose of the common cathode connection?
The SKKT27B12E has two thyristors connected in series with a common cathode terminal. This configuration is specifically designed for creating a single-phase AC controller with a minimal component count, simplifying the gate drive and power circuit layout.
For applications demanding rugged, reliable, and straightforward power control, the SEMIKRON SKKT27B12E thyristor module provides a proven and effective solution. To discuss your specific design requirements or to obtain a sample, please Contact Us for a Quote and our engineering team will be happy to assist.
