SKKT56/14E SEMIKRON 1400V 55A Thyristor/Diode Module for Reliable Power Control
Introduction and Key Highlights
Defining Robustness in Line-Frequency Applications
The SEMIKRON SKKT56/14E is a Thyristor/Diode Module engineered for robust and predictable performance in demanding line-frequency power control applications. It combines proven technology with an industry-standard footprint to deliver exceptional reliability. Key specifications include a blocking voltage of 1400V, an average forward current of 55A (at Tc=80°C), and a high surge capability signified by its 8000 A²s I²t rating. The primary engineering benefits are excellent overload survivability and a simplified thermal management design. What is the primary benefit of its standard package? Its industry-standard SEMIPACK 1 housing makes it a direct, form-fit replacement for many existing thyristor modules, streamlining maintenance and system upgrades.
Application Scenarios & Value
System-Level Benefits in Industrial Power Control
For systems requiring dependable control of AC power, such as industrial motor drives and heating systems, the SKKT56/14E is an optimal choice. Its design is particularly advantageous in applications prone to significant inrush currents, like the startup phase of a three-phase induction motor in a Soft Starter. The module's robust I²t rating of 8000 A²s is not just a number; it is the engineering specification that ensures the device can absorb the immense energy of a motor's starting surge without degradation or failure. Think of this rating as the device's ability to absorb a sudden punch of current without breaking. A higher number means it can take a much harder hit, ensuring it survives the demanding startup sequence day after day. This directly translates to higher equipment uptime and reduced field failures.

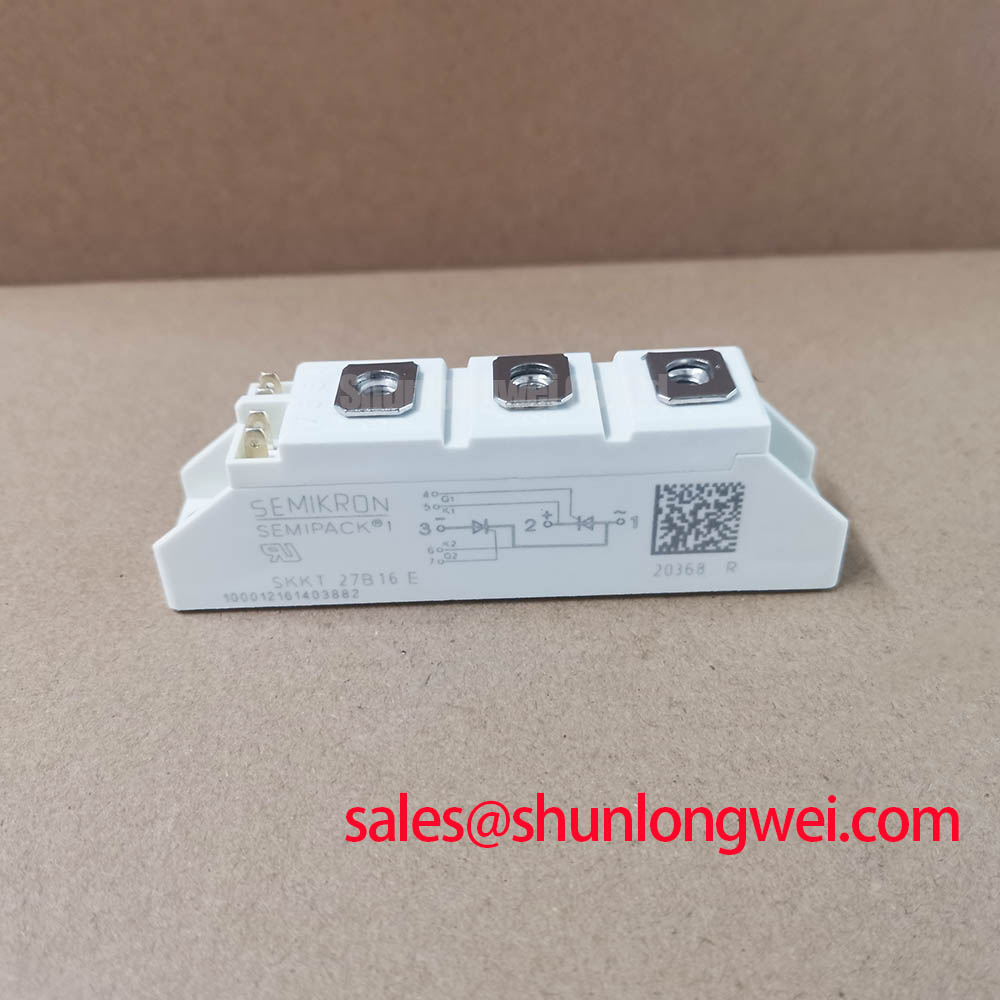

In AC voltage controllers and static switches, the two thyristors in a common cathode configuration allow for efficient Phase Control of each half of the AC waveform, making it a cornerstone component for temperature regulation in large industrial ovens or lighting control systems. For systems designed for lower power requirements, the related SKKT27B16E offers a similar voltage class with a lower current rating.
Key Parameter Overview
Decoding the Specs for Thermal Design and Overload Resilience
The technical specifications of the SKKT56/14E are foundational to its performance in real-world industrial environments. The parameters below have been selected to highlight the module's capabilities in terms of voltage headroom, current handling under specific thermal conditions, and its ability to withstand fault conditions.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM) / Repetitive Peak Reverse Voltage (VRRM) | 1400V | Provides a substantial safety margin for applications on 400V and 480V AC lines, protecting against transient voltage spikes. |
| Average On-State Current (ITAV) | 55A (Tc = 80°C) / 60A (Tc = 74°C) | Directly links current capacity to case temperature, providing a critical data point for heatsink design and thermal simulation. |
| RMS On-State Current (ITRMS) | 95A | Defines the maximum continuous RMS current under specified conditions, essential for sizing conductors and protection devices. |
| I²t value (for fusing) | 8000 A²s (Tvj=125°C, t=10ms) | Indicates exceptional robustness against non-repetitive surge currents, simplifying fuse coordination and enhancing system survivability. |
| Max. Junction Temperature (Tvj max) | 125°C | Sets the absolute thermal limit for the semiconductor, a key constraint in all thermal management calculations. |
| Package | SEMIPACK 1 | Industry-standard housing ensures mechanical compatibility for new designs and straightforward drop-in replacements. |
Download the SKKT56/14E datasheet for detailed specifications and performance curves.
Technical Deep Dive
Analyzing the SEMIPACK® 1 Design for Reliability and Integration
The SKKT56/14E is built within the SEMIPACK 1 module, a housing that has become a benchmark for reliability in industrial power electronics. This module utilizes a soldered construction, where the silicon die is soldered to a Direct Bonded Copper (DBC) substrate. This DBC, which consists of a ceramic insulator (typically Aluminium Oxide) with copper clad on both sides, provides excellent electrical isolation while facilitating heat transfer. The entire assembly is then soldered to a solid metal baseplate.
The primary path for heat dissipation flows from the active thyristor junction, through the silicon, the solder layers, the DBC substrate, the baseplate, and finally into an external heatsink. The efficiency of this path is quantified by the thermal resistance, Rth(j-c) (junction-to-case). Understanding this value is crucial; it acts like the thickness of insulation on a water pipe. A lower Rth(j-c) value is like having thinner, more conductive insulation, allowing heat to escape quickly from the hot "junction" to the cooler "case," which is critical for keeping the device from overheating. While pressure-contact modules offer advantages in very high power cycling applications, the soldered construction of the SEMIPACK 1 provides a highly reliable and cost-effective solution perfectly matched to the demands of line-frequency applications like AC Regulators and rectifiers, where it has a long history of proven field performance.
Frequently Asked Questions
Engineering Insights for the SKKT56/14E
How does the SKKT56/14E's industry-standard SEMIPACK 1 package benefit system maintenance?
The SEMIPACK 1's standardized footprint and terminal layout mean it can often serve as a drop-in replacement for failed modules from various manufacturers, minimizing downtime and simplifying inventory management for maintenance teams.
What is the practical implication of the 8000 A²s I²t rating in a motor drive application?
This high I²t rating provides a high degree of immunity to damage from the large, non-repetitive inrush currents experienced during motor startup. It allows the system to survive these predictable stress events without requiring an oversized module, leading to a more cost-effective and reliable design. What does this prevent? It helps prevent catastrophic failure from overcurrent conditions during system startup.
The datasheet specifies an ITAV of 55A at a case temperature of 80°C. What does this mean for heatsink selection?
This specification is a direct instruction for thermal design. To operate the module at a continuous average current of 55A, the selected heatsink, in conjunction with the ambient airflow, must be efficient enough to keep the module's case temperature at or below 80°C.
Is the 1400V rating sufficient for 480V three-phase AC line applications?
Yes. A 480V RMS AC line has a peak voltage of approximately 679V (480 * √2). The 1400V VDRM rating provides a safety factor of more than 2x, which is a robust engineering practice to account for transient overvoltages and ensure long-term reliability in industrial environments.
For strategic procurement and long-term system planning, leveraging components with a proven track record of reliability and a stable supply chain, such as the SKKT56/14E, is a sound engineering decision. It mitigates risks associated with unproven technologies while ensuring performance in the core industrial applications it was designed for.
