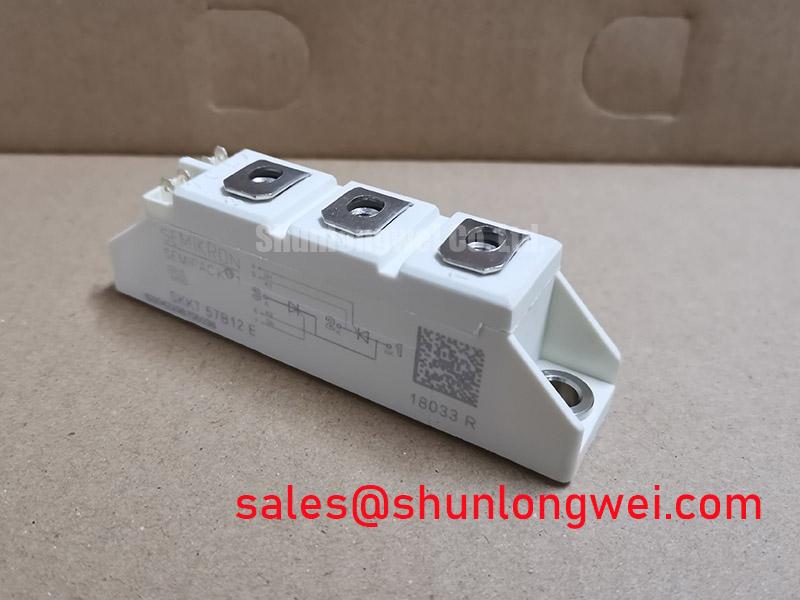

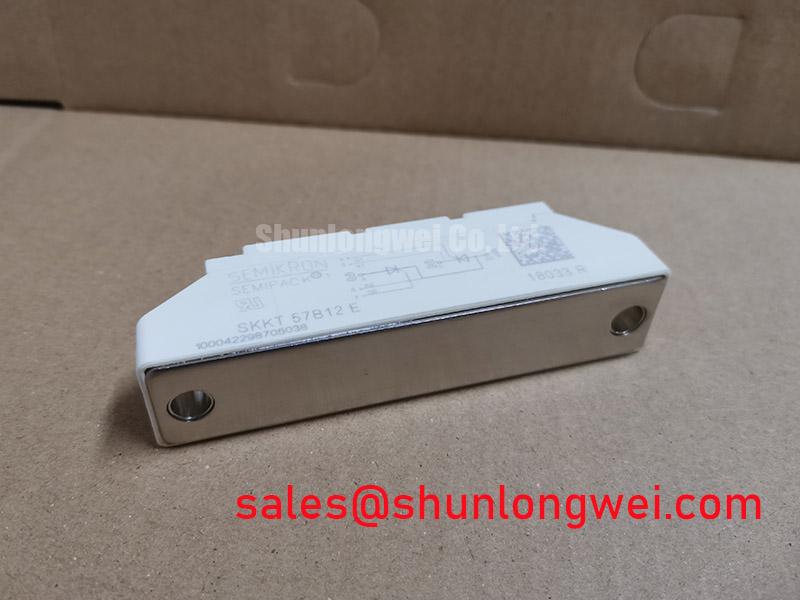

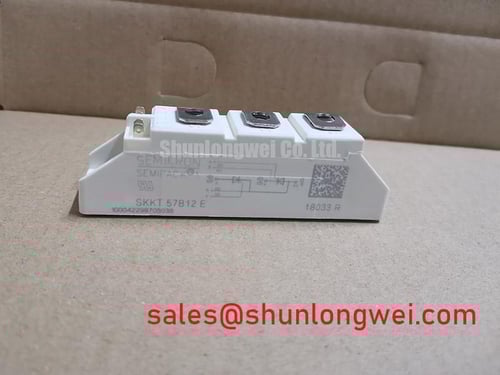

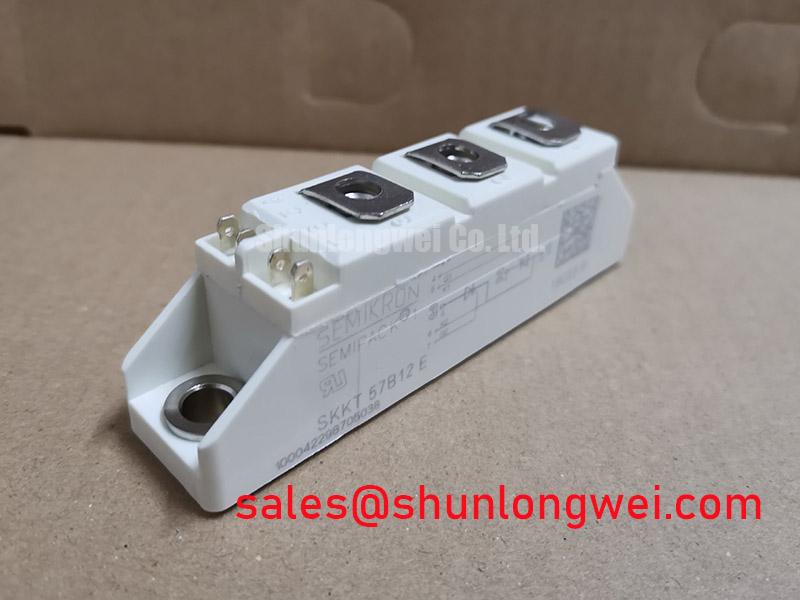

SEMIKRON SKKT57B12E Thyristor/Diode Module | Robust Power Control for Demanding Applications
The SEMIKRON SKKT57B12E is a high-reliability thyristor/diode module engineered for precision and durability in industrial power conversion systems. Housed in the industry-proven SEMIPACK® 1 package, this module provides a robust solution for phase control applications, combining a 57A thyristor and diode in a half-bridge configuration. It is the component of choice for designers building resilient soft starters, controlled rectifiers, and AC power controllers that must perform flawlessly in challenging operational environments.
Technical Excellence Under the Hood
The superior performance of the SKKT57B12E stems from SEMIKRON's commitment to advanced manufacturing and material science. Two key technologies set this module apart:
- Pressure Contact Technology: Unlike conventional soldered modules, the SKKT57B12E utilizes solder-free pressure contacts. This design eliminates the primary failure point associated with thermal fatigue—solder joint cracking. Application Value: For systems with frequent on/off cycles or significant load variations, such as motor soft starters, this technology dramatically enhances operational lifespan and reduces field failures, minimizing maintenance costs and system downtime.
- Glass Passivated Thyristor Chips: The silicon junctions are protected by a hermetic glass passivation layer. This technique prevents surface contamination and ensures stable blocking voltage characteristics over the module's entire life. Application Value: In dusty, humid, or chemically aggressive industrial settings, glass passivation provides an impenetrable barrier, guaranteeing consistent and reliable power control and preventing gradual performance degradation.
Versatile Application Scenarios & Tangible Benefits
The unique features of the SEMIKRON SKKT57B12E translate directly into tangible advantages across various industrial applications:
- Soft Starters for AC Motors: The module's exceptional thermal cycling capability is critical here. It reliably manages the inrush current during motor startup, reducing mechanical stress on gears and belts and extending the life of the entire drive system.
- Controlled Bridge Rectifiers: When used in rectifier circuits for DC power supplies or battery charging, the SKKT57B12E's stable performance ensures a precise and adjustable DC output. Its robust electrical isolation simplifies thermal management and enhances overall system safety.
- Industrial Heating and Lighting Control: For applications requiring precise power regulation, such as large-scale industrial ovens or theatre lighting rigs, this module delivers accurate phase angle control. Its ruggedness ensures consistent heat output or light intensity, critical for process quality and consistency.
- AC Power Controllers: In static AC switches and power controllers, the SKKT57B12E provides dependable and efficient power regulation, forming the backbone of many industrial automation and process control systems.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1200 V |
| Average On-State Current (IT(AV)) | 57 A (at Tcase = 85°C) |
| Surge On-State Current (ITSM) | 950 A (10 ms, 50 Hz) |
| Isolation Voltage (Visol) | 3000 V (AC, 1 minute) |
| Package | SEMIPACK® 1 |
Frequently Asked Questions (FAQ)
- How does the SKKT57B12E differ from an IGBT module?The SKKT57B12E is a thyristor (or SCR) based module designed for line-frequency (50/60 Hz) phase control applications like dimmers and soft starters. IGBTs are high-frequency switching devices used in inverters and switched-mode power supplies (SMPS). While both control power, they are not interchangeable due to fundamental differences in switching speed and control mechanism.
- What is the primary benefit of the insulated baseplate?The integrated Al2O3 ceramic baseplate provides excellent electrical isolation between the power terminals and the mounting heatsink. This simplifies system assembly, eliminates the need for separate insulating foils, and improves thermal transfer, leading to a more compact and reliable thermal design.
By integrating proven technologies for enhanced durability and reliability, the SEMIKRON SKKT57B12E module stands as a premier choice for engineers who cannot compromise on performance. If you are developing a new power control system or looking to upgrade the reliability of an existing design, this module delivers a clear engineering advantage. For pricing and availability, or to explore our comprehensive portfolio of power semiconductors, please contact our technical sales team today.
