SKKT71/16D: A Robust Thyristor/Diode Module for Reliable Power Control
Engineering High-Reliability AC Control and Rectification
Content last revised on October 10, 2025.

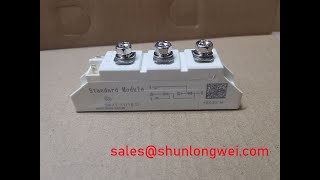

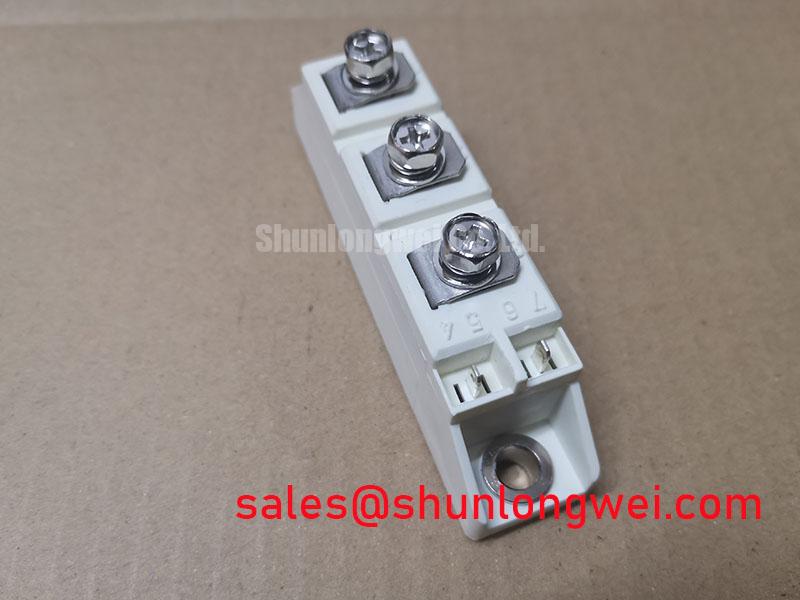

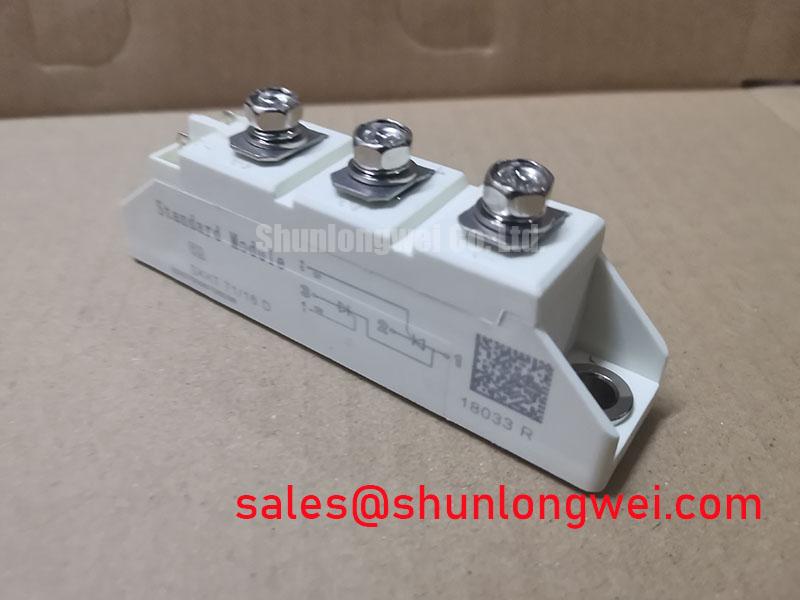

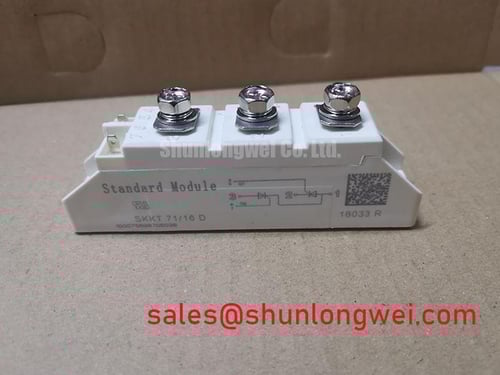

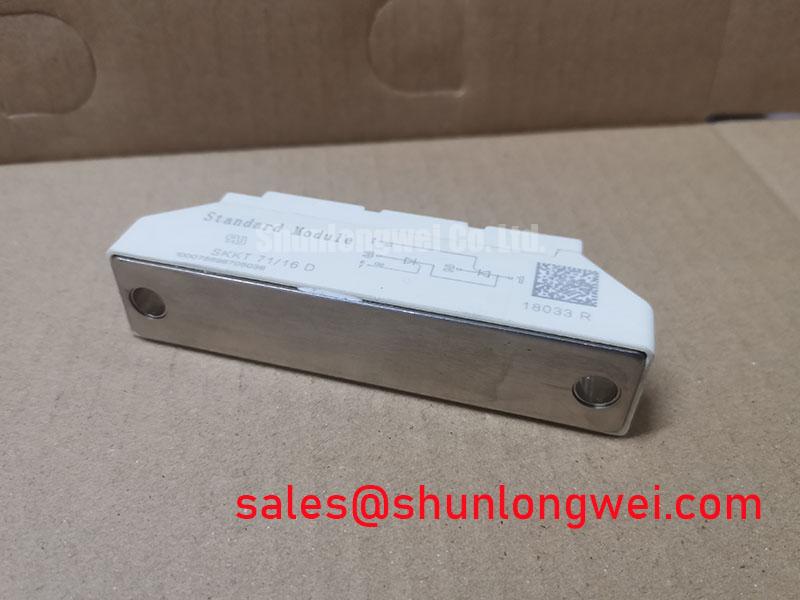

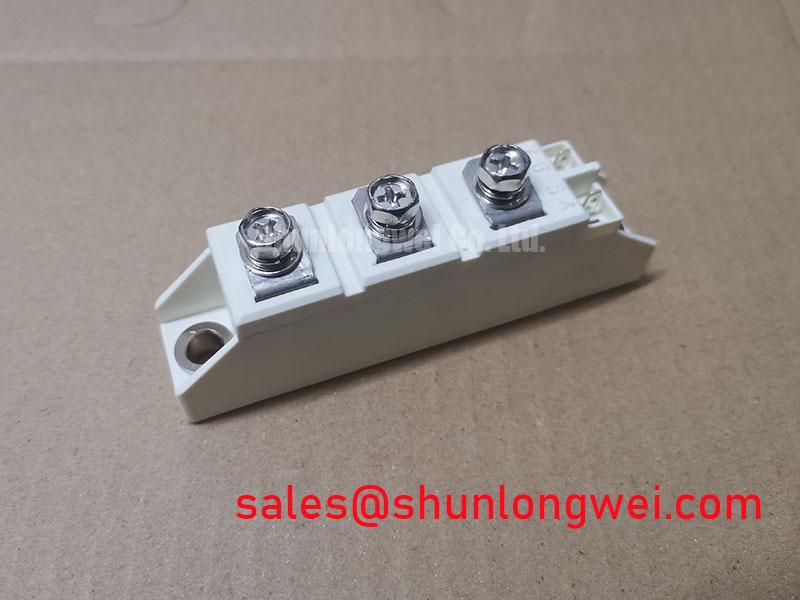

The SKKT71/16D, a SEMIPACK® 1 series Thyristor/Diode Module from Semikron, provides a robust and efficient solution for medium-power AC control and rectification. This module integrates a thyristor and a diode in a series configuration, optimized for applications demanding precise and reliable power management. With its specifications of 1600V | 80A | I²t of 13,000 A²s, it delivers dependable performance under demanding load conditions. Key engineering benefits include exceptional thermal efficiency through a ceramic isolated baseplate and high operational longevity due to hard-soldered joints. The SKKT71/16D directly addresses the need for robust fault current handling in industrial AC motor controllers and power supplies. For systems requiring control of both halves of the AC wave, the related SKKH106/16E offers a dual thyristor configuration.
Key Parameter Overview
Decoding Specifications for Thermal Stability and Overload Resilience
The SKKT71/16D is defined by parameters that ensure stable operation and a high tolerance for system-level stresses. The thermal resistance and surge current ratings are particularly critical for designers focusing on long-term reliability in industrial environments.
| Parameter | Value | Engineering Insight |
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1600 V | Provides substantial safety margin for applications on 400V and 690V AC lines, protecting against transient voltage spikes common in industrial grids. |
| Average On-State Current (ITAV) | 80 A (at Tcase = 78°C) | This current rating under a defined thermal condition is a direct indicator of its capability to manage continuous loads in applications like controlled rectifiers or soft starters. |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.35 °C/W (per thyristor) | A low thermal resistance is analogous to a wider pipe for heat to escape. This value signifies efficient heat transfer from the semiconductor junction to the heatsink, which is crucial for preventing overheating and extending the module's operational life. |
| I²t Value (I²t) | 13,000 A²s (at Tvj = 25°C) | Represents the module’s ability to withstand a single, non-repetitive surge current event without failure. This high value is critical for coordinating with fuses and protecting the device during unexpected short-circuit or inrush current conditions. |
| Isolation Voltage (Visol) | 3000 V~ (1 min) | Ensures robust electrical isolation between the power circuit and the mounting baseplate, enhancing system safety and simplifying compliance with industry standards like those for Variable Frequency Drive (VFD) systems. |
Download the SKKT71/16D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Power Conversion and Control
The SKKT71/16D is engineered for environments where precise control of AC power and robust rectification are paramount. Its design provides significant value in applications that experience fluctuating loads and potential fault conditions.
- AC Motor Soft Starters: The primary challenge in motor starting is managing the high inrush current, which can be 5 to 8 times the normal running current. The SKKT71/16D's phase control capability allows for a gradual voltage ramp-up, limiting this inrush current. Its high I²t rating of 13,000 A²s provides a crucial safety net, ensuring the module can survive unexpected stalls or prolonged start cycles without damage, a common issue in conveyor or pump systems.
- Controlled Rectifiers for Power Supplies: In industrial DC power supplies, particularly for welding or electroplating, maintaining a stable output under varying loads is essential. By controlling the firing angle of the thyristor, this module can regulate the DC output voltage efficiently. The excellent thermal transfer via its aluminum oxide ceramic baseplate ensures consistent performance even when delivering continuous high currents.
- Light Dimming and Temperature Control: For high-power professional lighting in theaters or large-scale heating element control in industrial ovens, the module's ability to handle up to 1600V provides the necessary headroom for direct operation on high-voltage lines. Its robust construction ensures reliability over millions of switching cycles, a key requirement for these process-critical applications.
While the SKKT71/16D is ideal for single-phase control, systems requiring full three-phase bridge rectification may utilize modules like the SKKD162/16, which offers a higher current rating in a dedicated rectifier topology.
Frequently Asked Questions (FAQ)
What is the primary advantage of the module's construction featuring an aluminium oxide ceramic isolated baseplate?
The key advantage is superior thermal performance and high electrical isolation. The ceramic baseplate efficiently transfers heat away from the semiconductor chips to the heatsink while ensuring robust electrical insulation (3000V), which enhances both reliability and safety in compact industrial designs.
How does the 1600V VDRM rating benefit my design?
This high voltage rating provides a significant safety margin for operation on industrial voltage networks, such as 400V or 690V AC systems. It ensures the device can withstand the voltage spikes and line transients that are common in industrial environments, preventing component failure and improving overall system robustness.
What does the I²t rating of 13,000 A²s mean for system protection?
This value represents the module's thermal capacity to handle a massive, short-duration current surge. It's a critical parameter for fuse coordination, ensuring that in a fault scenario, the protective fuse will blow before the thyristor is destroyed, thus protecting more expensive downstream equipment and simplifying maintenance.
Is this module suitable for high-frequency switching applications?
No, the SKKT71/16D is a line-frequency device. Thyristors are designed for phase-angle control applications operating at mains frequencies (50/60 Hz), such as motor soft starters and controlled rectifiers. They are not suitable for high-frequency applications like switch-mode power supplies, which require faster switching devices like IGBTs or MOSFETs.
What is the function of the diode in the SKKT71/16D configuration?
In this series (common cathode) configuration, the module acts as a half-controlled bridge leg. The thyristor provides controlled switching for one half of the AC cycle, while the diode acts as a freewheeling or return path, simplifying the design of circuits like single-phase AC controllers or half-controlled rectifiers.
Technical Deep Dive
A Closer Look at Hard Soldered Joints and Thermal Management
A critical, yet often overlooked, feature of the SKKT71/16D is its use of hard-soldered joints. In power modules, the connections between the semiconductor die and the terminals are frequent points of failure, especially under thermal cycling. As the module heats and cools during operation, different materials expand and contract at different rates, putting stress on these connections. Standard soft solders can fatigue and crack over thousands of cycles, leading to increased electrical resistance and eventual failure. Think of it like repeatedly bending a paperclip; it eventually weakens and breaks.
By using hard solders, which have a much higher melting point and greater mechanical strength, Semikron creates a far more durable bond. This approach significantly enhances the module's power cycling capability, making it exceptionally well-suited for applications with frequent on/off cycles or fluctuating loads, such as motor starters or process heaters. This robust internal construction, combined with the efficient heat dissipation path provided by the ceramic baseplate, forms the foundation of the module’s long-term operational reliability.
The Engineer's Perspective on Application
From an engineering standpoint, the SKKT71/16D is a workhorse component designed for predictability and resilience, not cutting-edge speed. Its value lies in its simplicity and robustness for line-frequency power control. When designing a soft starter, the high surge current and I²t ratings provide confidence that the module can handle the locked-rotor conditions of a motor without catastrophic failure. For power supply designers, the well-defined thermal characteristics and isolated baseplate simplify thermal management and mechanical assembly, reducing both design time and potential points of failure in the field. This module is a prime example of applying proven technology to solve common industrial challenges with a focus on durability and safety.
