SKD210/16 | 1600V 210A Three-Phase Rectifier for High-Reliability Industrial Drives
An Engineering Perspective on the SKD210/16 Power Bridge Rectifier
Content last revised on October 15, 2025.

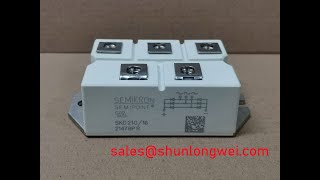

The SEMIKRON SKD210/16 is a high-survivability power module engineered for exceptional electrical ruggedness in demanding industrial front-end rectification. Featuring core specifications of 1600V | 210A | I_FSM 2500A, this device provides two primary engineering benefits: superior surge current survivability and simplified, robust chassis mounting. It is specifically designed to handle the high inrush currents typical when charging large DC bus capacitors in motor drives and power supplies, ensuring reliable system startup and operation. For industrial drives on 600V/690V lines requiring high inrush current immunity, the SKD210/16 is the definitive choice for front-end rectification.
Application Scenarios & Value
System-Level Benefits in Industrial Power Rectification
The SKD210/16 is optimized for the input stage of high-power AC-DC conversion systems where reliability is paramount. Its robust design makes it a cornerstone component in a variety of demanding industrial applications.
- Variable Frequency Drives (VFDs): In industrial motor control, the primary challenge during power-up is the immense inrush current from charging the DC bus capacitors. The SKD210/16's peak forward surge current (I_FSM) rating of 2500A provides the necessary headroom to withstand this stress repeatedly, preventing premature failure and enhancing the drive's overall lifespan.
- Uninterruptible Power Supplies (UPS): The module serves as a dependable front-end rectifier, ensuring a stable DC supply for the battery charging and inverter stages. Its high blocking voltage of 1600V offers a significant safety margin against line transients, critical for maintaining power quality and protecting downstream components.
- Welding Power Supplies: In welding applications, the power source must endure significant load variations and potential short-circuit conditions. The SKD210/16's rugged electrical characteristics provide the durability needed for the main power rectification stage.
- Industrial Battery Chargers: For large-scale battery charging systems, this module delivers efficient and reliable AC-to-DC power conversion, forming the core of the power train.
What is the key advantage of the SKD210/16? Its high surge current rating ensures reliability. While this module provides uncontrolled rectification ideal for standard VFD inputs, systems requiring phase control or soft-start capabilities might utilize thyristor/diode modules like the SKKD162/16. For applications demanding higher continuous output current, the related SKD160/16 offers a 270A capability in a similar package.
Key Parameter Overview
Decoding Key Specifications for Electrical Ruggedness
The specifications of the SKD210/16 are tailored for high-stress industrial environments. The parameters below highlight its capacity for robust and reliable performance.
| Output & Surge Characteristics (T_case = 80 °C unless otherwise specified) | |
|---|---|
| DC Output Current (I_d) | 210 A |
| Forward Voltage (V_F), max per diode @ 600A, 25°C | 1.5 V |
| Peak Forward Surge Current (I_FSM), 10ms, 25°C | 2500 A |
| I²t Value, 10ms, 25°C | 31250 A²s |
| Blocking & Isolation Characteristics | |
| Repetitive Peak Reverse Voltage (V_RRM) | 1600 V |
| Isolation Test Voltage (V_isol), 1 min. | 3000 V |
| Thermal & Mechanical Specifications | |
| Operating Junction Temperature (T_vj) | -40 to +150 °C |
| Thermal Resistance, Junction to Case (R_th(j-c)), per diode | 0.17 °C/W |
| Package | SEMIPONT® 4 |
Download the SKD210/16 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at Surge Current Survivability and Fuse Coordination
Two of the most critical parameters for a front-end rectifier are its surge current (I_FSM) and I²t ratings. The SKD210/16 excels in both, which is fundamental to its long-term reliability. The 2500A I_FSM rating defines the module's ability to survive a massive, short-duration current pulse, such as the initial charging of a VFD's DC link. However, the I²t rating of 31250 A²s provides an even deeper engineering insight into system protection.
Think of the I²t rating as the module's "energy absorption budget" during a fault. For robust system protection, any upstream fuse must have a total let-through energy (also measured in I²t) that is lower than this budget. The SKD210/16's substantial I²t value gives engineers greater flexibility in selecting appropriate high-speed fuses. This ensures that in an overcurrent event, the fuse will open safely, protecting the more valuable power module and preventing catastrophic failure. This capability is a cornerstone of designing resilient systems and is a key factor in preventing overcurrent damage in the power conversion chain.
Frequently Asked Questions
How does the SKD210/16's high I²t rating of 31250 A²s benefit system protection design?
A high I²t rating is crucial for effective fuse coordination. It signifies that the rectifier can withstand a large amount of thermal energy before failing. This allows designers to select upstream fuses with a lower I²t value, guaranteeing that the fuse will open and interrupt a fault current before the rectifier bridge is damaged, thereby enhancing overall system safety and serviceability.
Is the SKD210/16 suitable for use on a 690V AC line?
Yes, absolutely. For a 690V AC line, the peak voltage can reach approximately 975V (690V * √2). A rectifier with a 1600V repetitive peak reverse voltage (V_RRM) rating, like the SKD210/16, provides a substantial safety margin. This margin is essential to accommodate voltage spikes and transients common in industrial environments, contributing significantly to the long-term power module reliability.
