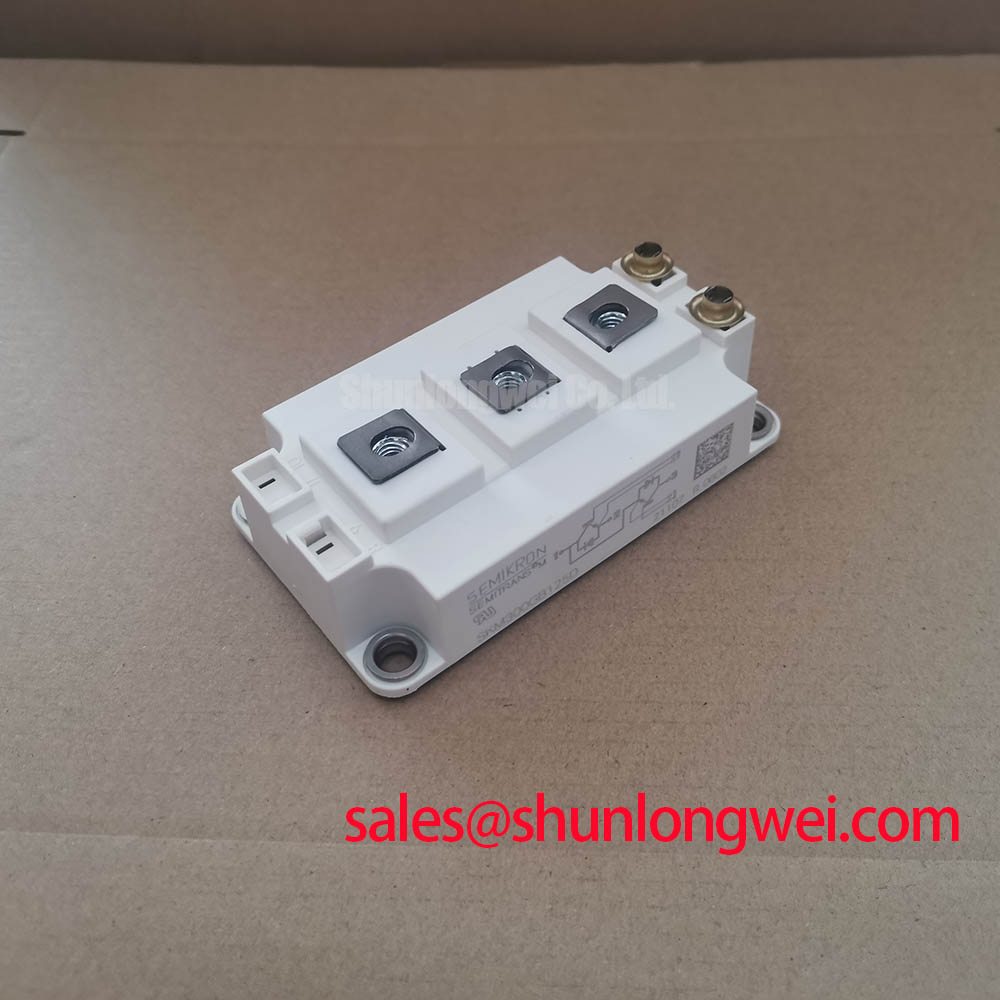

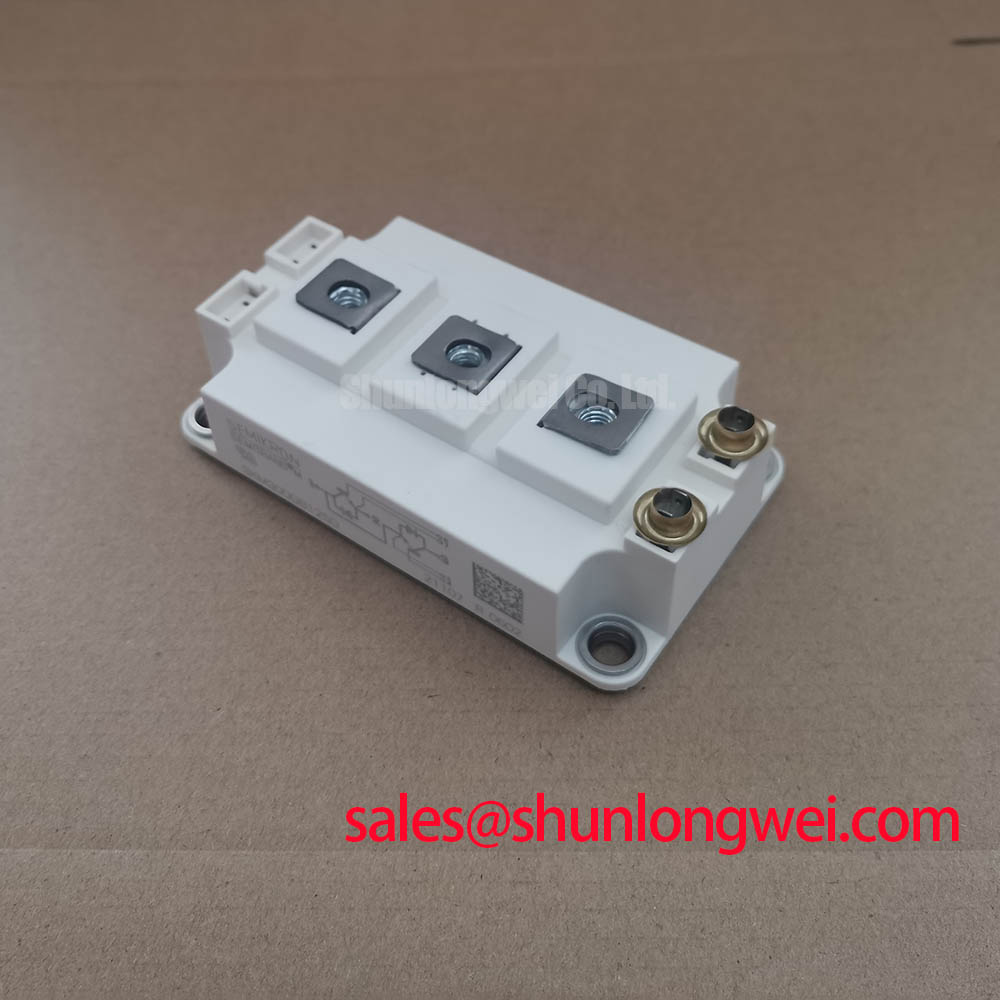

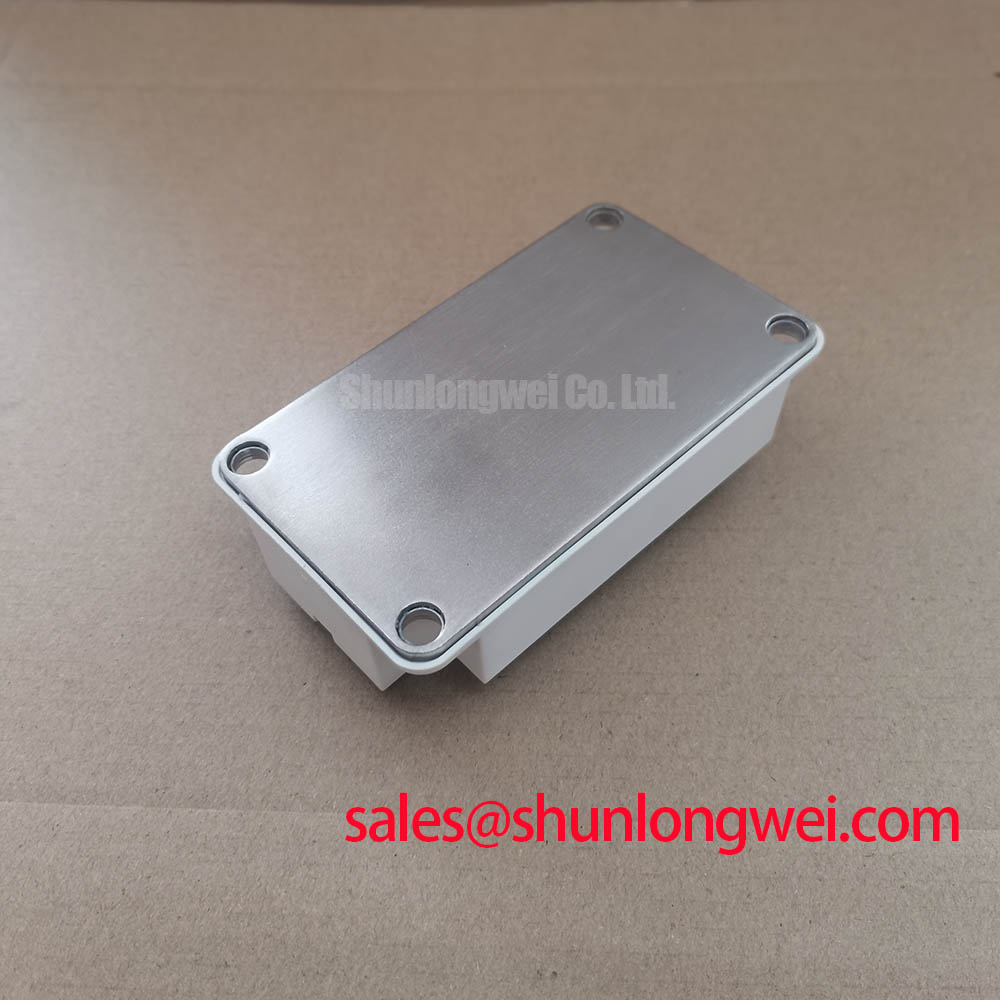

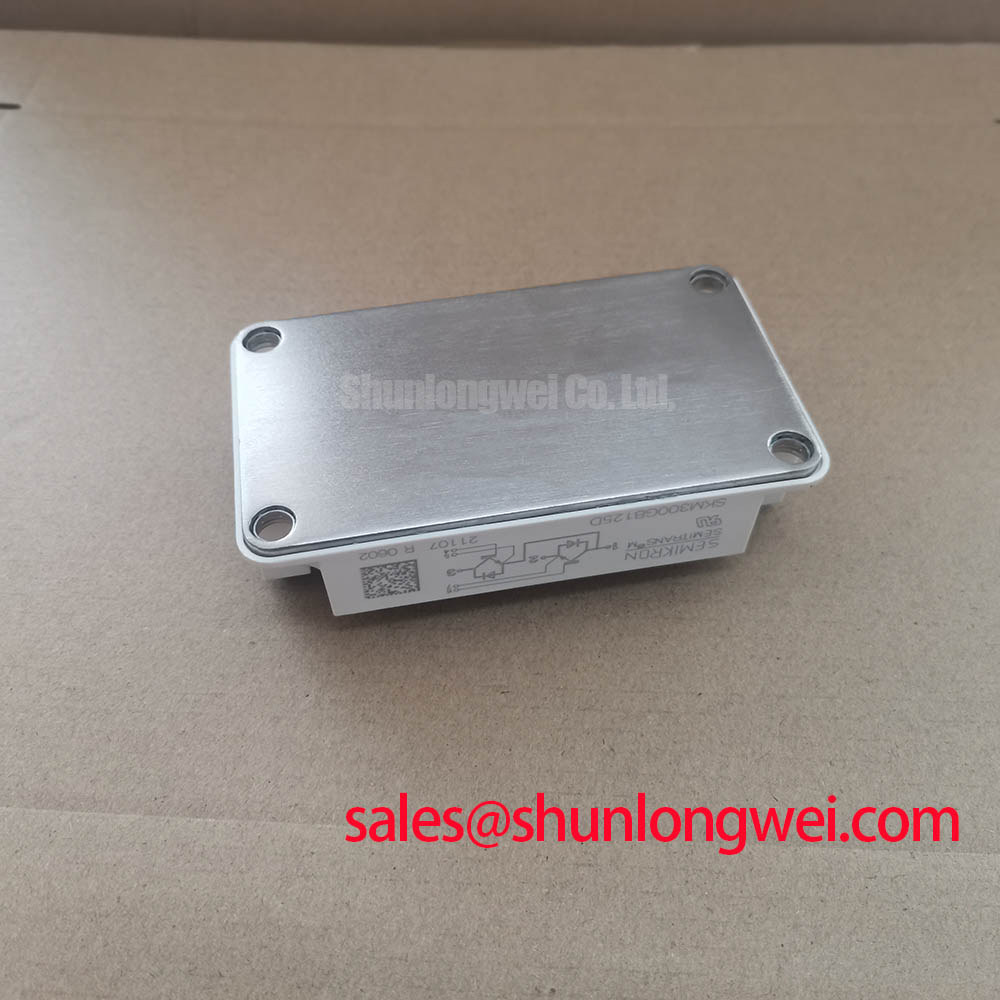

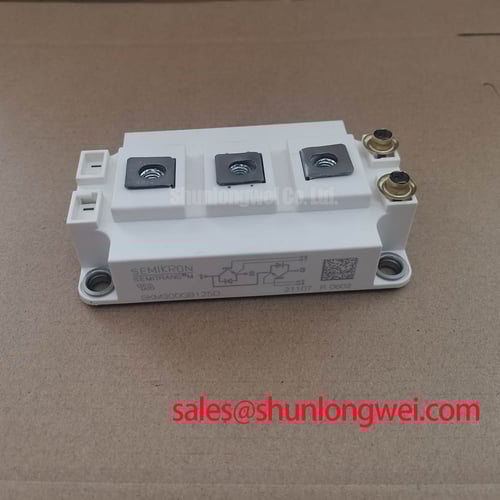

Semikron SKM100GB125D IGBT Module | 1200V Half-Bridge for High-Frequency Power Conversion
The Semikron SKM100GB125D is a high-performance half-bridge IGBT module designed for reliability and efficiency in demanding power electronics systems. As part of the proven SEMITRANS® 2 family, this 1200V, 100A module provides a robust foundation for developing advanced industrial applications, including high-frequency motor drives, solar inverters, and uninterruptible power supplies (UPS).
In-Depth Analysis of Core Product Features
The SKM100GB125D distinguishes itself through a combination of advanced silicon technology and thoughtful integration, delivering tangible performance gains in real-world scenarios.
Advanced IGBT4 Trench Field-Stop Technology
This module leverages Semikron’s fourth-generation Trench Field-Stop IGBT technology. The "Trench" gate architecture significantly lowers the on-state voltage drop (Vce(sat)), directly reducing conduction losses when the device is active. Concurrently, the "Field-Stop" layer curtails the tail current during turn-off, minimizing switching losses. For system designers, this dual benefit translates into superior thermal performance, allowing for more compact heatsinks or operation at higher ambient temperatures. Furthermore, the ability to switch efficiently at higher frequencies enables the use of smaller, lighter, and more cost-effective magnetic components, optimizing the overall system's power density and cost for power conversion tasks.
Integrated CAL4F Soft Recovery Diode
The SKM100GB125D incorporates a CAL4F (Controlled Axial Lifetime) free-wheeling diode, engineered for exceptionally soft switching characteristics. This specialized diode technology ensures a smooth turn-off with low reverse recovery peaks and reduced voltage oscillations. The practical advantage is a significant reduction in electromagnetic interference (EMI). This allows engineers to simplify or even eliminate complex and expensive snubber circuits and filters, accelerating the design cycle and lowering the bill of materials. The gentle switching behavior also reduces voltage stress on the IGBTs, enhancing the long-term reliability of the entire power stage, a critical factor in industrial automation.
Typical Applications and Innovative Value
The specific features of the SKM100GB125D deliver unique value across several key industrial sectors.
Industrial Motor Drives and Servo Systems
In variable frequency drives (VFDs), the module's low Vce(sat) improves overall system efficiency, reducing energy consumption and operational costs. For high-precision servo drives, its fast and clean switching capabilities, enabled by the IGBT4 and CAL4F diode combination, facilitate precise torque and speed regulation, leading to enhanced accuracy in robotics and CNC machinery.
Solar Inverters and UPS Systems
The high efficiency of the SKM100GB125D is crucial for maximizing energy yield in solar power conversion systems. In UPS applications, this efficiency translates into reduced heat waste, which lowers cooling requirements and extends battery life during power outages, ensuring critical systems remain operational for longer.
Welding and Induction Heating Equipment
These applications subject components to high-current, high-frequency stress. The module's robust SEMITRANS® 2 package provides excellent thermal cycling capability, while the soft-switching diode minimizes EMI, ensuring stable and reliable performance. This results in cleaner power delivery for higher-quality welds and more consistent, controllable induction heating processes.
Key Technical Parameters Overview
- Collector-Emitter Voltage (Vces): 1200 V
- Continuous Collector Current (Ic @ 80°C): 75 A
- Total Power Dissipation (Ptot @ 25°C): 520 W
- Collector-Emitter Saturation Voltage (Vce(sat), typ. @ 75A): 1.7 V
- Gate-Emitter Voltage (VGES): ±20 V
- Topology: Half-Bridge (2-in-1 Module)
- Datasheet: Download SKM100GB125D Datasheet
Comparative Analysis and Selection Advice
When evaluating options for a 1200V, 100A half-bridge design, engineers might also consider a module like the Infineon FF100R12KS4. Both are high-quality components, but they differ in their internal technology. The SKM100GB125D's key differentiator is its CAL4F diode, which is specifically optimized for the softest possible switching, making it an ideal choice for applications highly sensitive to EMI or where minimizing voltage overshoot is a primary design goal.
The SKM100GB125D is recommended for engineers building modular three-phase inverters (using three separate modules) who require maximum layout flexibility or are targeting applications like high-end servo drives or low-noise medical equipment. For more standard applications, the choice may depend on specific efficiency targets at your operating frequency. Explore our full range of IGBT modules to find the perfect fit, or contact us for a quote and expert consultation on your project.
