SKM300GAL063D SEMIKRON 600V 300A IGBT Module Low-Side Chopper

Content last revised on February 25, 2026

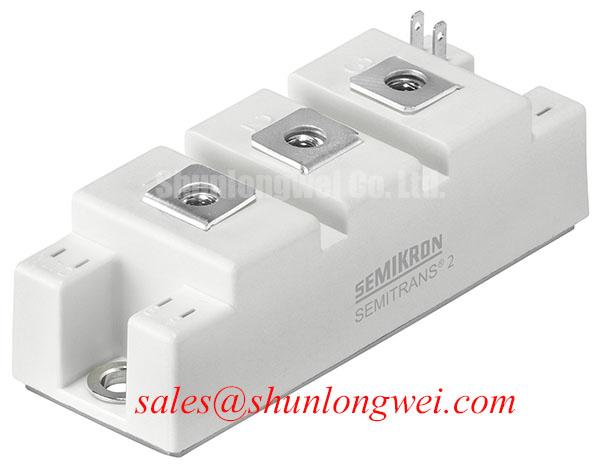

SKM300GAL063D SEMIKRON 600V 300A IGBT Module SEMITRANS 3

High-Efficiency Low-Side Chopper Performance for Optimized 600V Power Systems

The SKM300GAL063D is a high-performance IGBT Module designed by SEMIKRON, specifically engineered for low-side chopper (GAL) topologies. Combining advanced Trench IGBT technology with high-speed CAL (Controlled Axial Lifetime) diodes, this module delivers exceptional power density and reduced switching losses. With a collector-emitter voltage of 600V and a continuous collector current of 300A (at Tc=25°C), it serves as a critical building block for engineers seeking to maximize efficiency in industrial DC-DC conversion and renewable energy interfaces. The SEMITRANS 3 package ensures robust thermal management and mechanical longevity in harsh environments. Best fit: For 600V DC-link applications requiring a low-side chopper configuration to optimize boost stage efficiency, the SKM300GAL063D offers the highest reliability-to-footprint ratio in its class.

Top Specs: 600V | 300A | VCE(sat) 1.45V (typical)

• Low Switching Losses: Optimized trench technology significantly reduces Eon and Eoff energy dissipation.
• Superior Thermal Cycling: Isolated copper baseplate provides elite heat dissipation and long-term mechanical stability.

How does the SKM300GAL063D compare to standard 1200V modules? In systems with a 300V-400V DC bus, using a 600V rated module like the SKM300GAL063D provides a much lower VCE(sat) and higher switching frequency capability compared to over-specified 1200V alternatives, directly increasing the overall system efficiency and reducing heatsink requirements.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Understanding the electrical boundaries of the SKM300GAL063D is essential for ensuring the Safe Operating Area (SOA) is maintained during transient loads. The following parameters are derived from the official SEMIKRON technical documentation.

Download the SKM300GAL063D datasheet for detailed specifications and performance curves from official technical resources.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

The SKM300GAL063D is a specialized tool for the "Low-side Chopper" or "GAL" topology. Engineers often face the challenge of managing high-frequency ripple and thermal spikes in boost converters. In a Solar Inverter string optimization scenario, the SKM300GAL063D handles the high-frequency switching required to maintain Maximum Power Point Tracking (MPPT). Because of its 300A current rating and low VCE(sat), it can resolve the challenge of excessive heat generation during peak irradiation periods, where a smaller or less efficient module would trigger thermal throttling.

For systems that require even higher voltage tolerances, such as those interfacing with 690V industrial grids, the related SKM400GAL176D offers a VCES of 1700V. Conversely, if your design requires a standard half-bridge configuration rather than a chopper, the SKM300GA123D provides a 1200V alternative in a similar footprint.

This module is also highly effective in Variable Frequency Drive (VFD) braking stages. When a large motor decelerates, the SKM300GAL063D acts as the low-side switch to shunt excess energy into a braking resistor, protecting the DC link from overvoltage. Its integrated CAL diode is particularly adept at handling the inductive kickback during these rapid switching events, ensuring the module remains within its RBSOA (Reverse Bias Safe Operating Area). This robustness makes it an essential component in UPS (Uninterruptible Power Supply) systems and high-current DC-DC Converters.

Technical Deep Dive

A Closer Look at Trench Technology and CAL Diode Integration

The internal architecture of the SKM300GAL063D leverages the Trench IGBT structure. Unlike older planar technologies, the trench design creates a vertical channel that significantly reduces the distance current must travel through the silicon. This is analogous to replacing a winding suburban road with a multi-lane direct highway; it inherently reduces the "congestion" or electrical resistance, leading to the remarkably low VCE(sat) of 1.45V. For a system architect, this means lower conduction losses, allowing for a smaller Thermal Management solution or increased power throughput without exceeding temperature limits.

Furthermore, the CAL (Controlled Axial Lifetime) freewheeling diode integrated into the GAL topology is a masterpiece of semiconductor engineering. In high-speed switching, the "reverse recovery" of a diode can be a major source of electromagnetic interference (EMI) and power loss. The CAL diode is like a sophisticated hydraulic dampener on a high-speed train; it ensures that when the "switch" opens, the current flow is snubbed softly rather than abruptly. This "soft recovery" characteristic reduces voltage overshoots and high-frequency oscillations, which simplifies the design of Gate Drive circuits and reduces the need for heavy EMI filtering. For a deep dive into how these structures impact efficiency, refer to this guide on deconstructing the IGBT structure.

FAQ

How does the Rth(j-c) of 0.13 K/W directly impact heatsink selection and overall system power density?
A lower Thermal Resistance (Rth) means the module is highly efficient at moving heat away from the silicon junction to the case. At 0.13 K/W, the SKM300GAL063D allows for a higher power density because you can push more current through the module while maintaining a safe junction temperature ($T_j$). This often allows engineers to use smaller heatsinks or reduce forced-air cooling requirements, lowering the total cost of ownership (TCO) of the system.

What are the specific advantages of the GAL topology over a standard half-bridge module in boost applications?
The GAL (Low-side Chopper) topology is purpose-built for boost conversion. It contains one IGBT and one inverse diode, plus a second diode in a specific arrangement. This reduces the component count and parasitic inductance compared to using a full half-bridge module where one IGBT would remain permanently inactive. This specialized layout in the SEMITRANS 3 package optimizes the current path for the boost stage, improving efficiency in solar and battery-backup systems.

Is the SKM300GAL063D suitable for high-frequency switching above 20kHz?
Yes, the Trench IGBT technology used in this module is designed to minimize switching energy ($E_{on}$ and $E_{off}$). While IGBT Modules are generally slower than MOSFETs, the optimized gate charge and low-loss diode of the SKM300GAL063D make it highly effective for switching frequencies in the 15kHz to 25kHz range, which is standard for industrial VFD and Solar Inverter applications. To learn more about testing these parameters, see how to test an IGBT module.

For engineering teams prioritizing high-current efficiency in 600V environments, the SKM300GAL063D provides a fact-based solution for thermal and electrical challenges. To explore further technical comparisons, we invite you to review our analysis of Semikron vs. Infineon technologies or contact us for detailed availability data.
