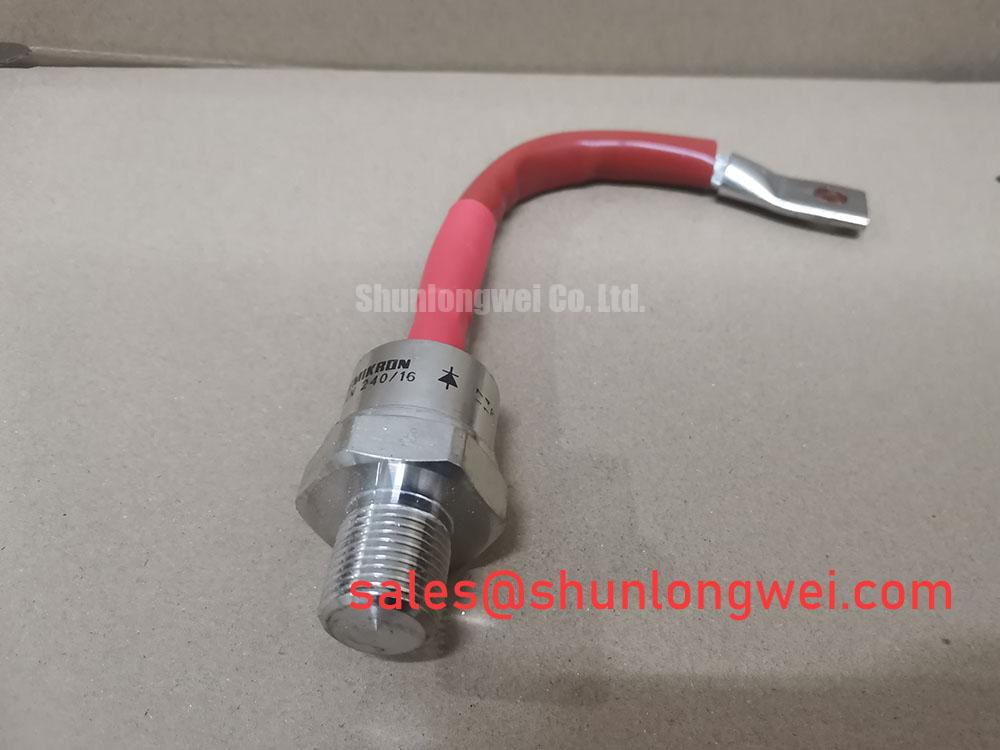

SKN 320/12: A High-Reliability Rectifier Diode for Demanding Industrial Power Systems
Engineered for Longevity and Fault Tolerance
The SKN 320/12 is a high-power rectifier diode engineered for exceptional operational longevity and fault tolerance in high-stress industrial applications. It leverages a robust, hard-soldered internal construction and superior surge current handling to ensure ultimate system reliability. Key specifications include: 1200V | 320A | I²t = 281,250 A²s. The core engineering benefits are enhanced durability under thermal cycling and predictable performance during fault conditions. This component is specifically designed to provide a stable and reliable rectification stage in systems operating on industrial voltage lines. For industrial rectifier circuits on 400V/480V lines requiring high fault tolerance, the SKN 320/12's 1200V rating and robust surge capability present a highly reliable solution.
Application Scenarios & Value
Enhancing System Uptime in Demanding Rectifier Applications
The SKN 320/12 excels in applications where reliability is not negotiable. Consider its role in a high-power battery charging system for a fleet of electric forklifts. A primary engineering challenge in this scenario is managing the massive inrush current when connecting the charger to a deeply discharged battery bank. The SKN 320/12's exceptional forward surge current rating (IFSM) of 7500A (for 10ms) is critical to withstanding this initial electrical stress without degradation or failure. This robust surge handling capability, a direct result of its internal design, prevents component failure that would lead to charger downtime and operational disruption. By incorporating the SKN 320/12 into the front-end three-phase rectifier bridge, designers can ensure the charging station remains operational, contributing directly to higher fleet availability and lower maintenance overhead. This focus on surviving real-world electrical events makes it an ideal choice for Uninterruptible Power Supplies (UPS), welding power supplies, and the input stages of Variable Frequency Drives (VFDs).
Key Parameter Overview
Critical Specifications for Robust and Reliable Power Conversion
The following parameters are essential for system designers evaluating the SKN 320/12 for high-reliability power conversion applications. The specifications are based on a case temperature of 100°C unless otherwise noted.
| Parameter | Symbol | Value | Unit | Conditions |
|---|---|---|---|---|
| Electrical Characteristics | ||||
| Repetitive Peak Reverse Voltage | VRRM | 1200 | V | |
| Average Forward Current | IFAV | 320 | A | Sinusoidal 180°, Tcase = 100 °C |
| RMS Forward Current | IFRMS | 500 | A | Tcase = 100 °C |
| Forward Surge Current | IFSM | 7500 | A | 10 ms, Tvj = 25 °C |
| I²t Value | I²t | 281250 | A²s | 10 ms, Tvj = 25 °C |
| Forward Voltage | VF | 1.55 | V | Tvj = 150 °C, IF = 1000 A |
| Thermal and Mechanical Characteristics | ||||
| Thermal Resistance, Junction to Case | Rth(j-c) | 0.09 | K/W | DC |
| Operating Junction Temperature | Tvj | -40 to +150 | °C | |
| Weight (Typical) | 230 | g | ||
| Mounting Torque | 5 ± 15% | Nm | M6 Threads | |
Download the SKN 320/12 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Inside the SKN 320/12: A Focus on Hard-Soldered Joints and Thermal Integrity
A key factor distinguishing the SKN 320/12 is its internal use of hard-soldered joints. This design choice is fundamental to the device's long-term reliability, particularly in applications with significant load variations. Unlike conventional soft-soldered modules, which can be susceptible to solder fatigue and joint cracking after thousands of temperature cycles, hard soldering creates a much more durable and resilient bond between the silicon die and the direct bonded copper (DBC) substrate. Think of it as the difference between a glued joint and a welded one in a mechanical structure undergoing constant stress. The welded joint (hard solder) offers superior integrity and a longer service life. This enhanced robustness is complemented by the insulated metal baseplate, which utilizes an Aluminium Oxide (Al2O3) ceramic layer to provide high electrical isolation while ensuring efficient heat transfer to the heatsink. This combination of advanced Semikron technology directly contributes to a lower thermal resistance and a higher power cycling capability, which are critical metrics for building power systems that are designed to last.
FAQ
Engineering Questions on the SKN 320/12's Performance and Integration
How does the SKN 320/12's high I²t rating benefit my system design?
The high I²t rating of 281,250 A²s significantly simplifies fuse coordination. It provides a substantial margin for selecting protective fuses, ensuring that the fuse will blow to protect the system during a genuine fault condition without nuisance tripping during normal inrush current events, thereby enhancing overall system reliability and uptime.
What is the primary benefit of its pressure-contact design?
Enhanced long-term reliability by eliminating solder fatigue.
What makes this diode suitable for high-power industrial rectifiers?
Its combination of a 1200V rating, 320A current handling, and superior surge capability.
For inquiries regarding the SKN 320/12 and its suitability for your specific power application, please contact our technical sales team for further information and component evaluation support.
