SKT240-12E Benchtop Checks and Thermal Contact

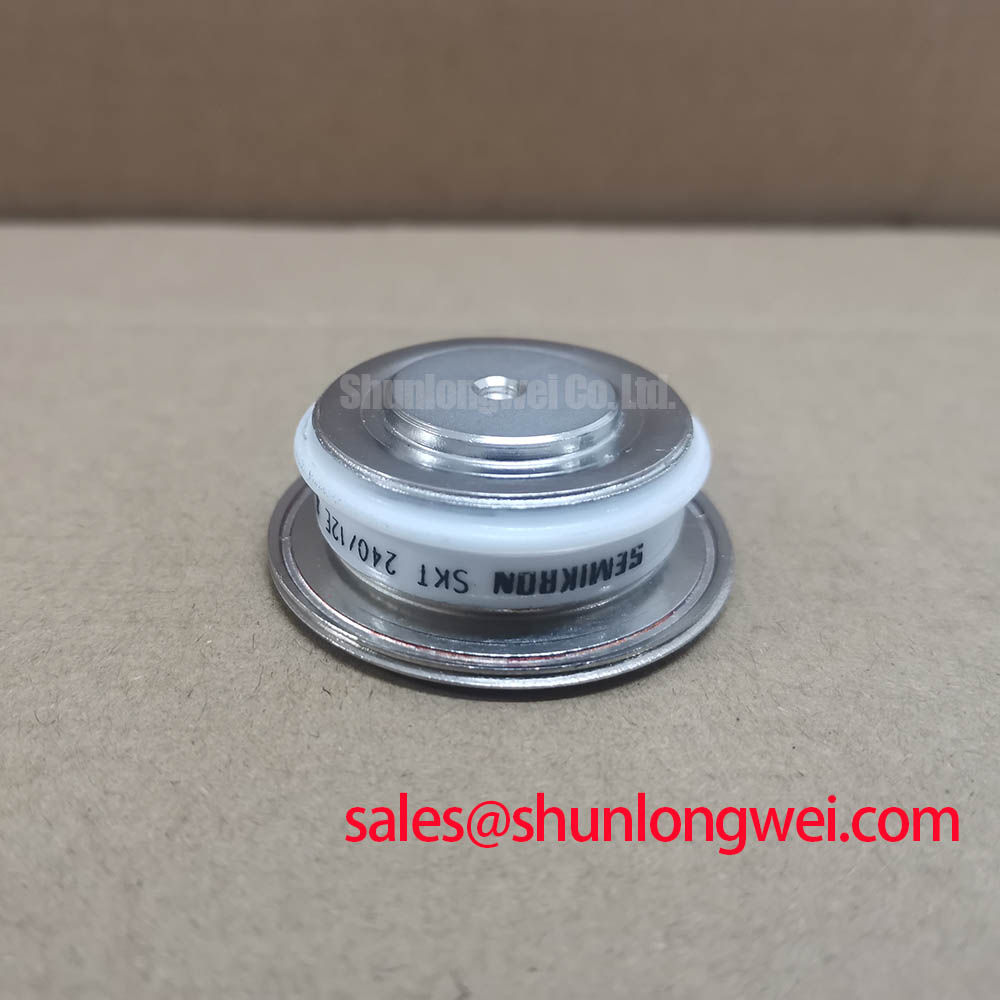

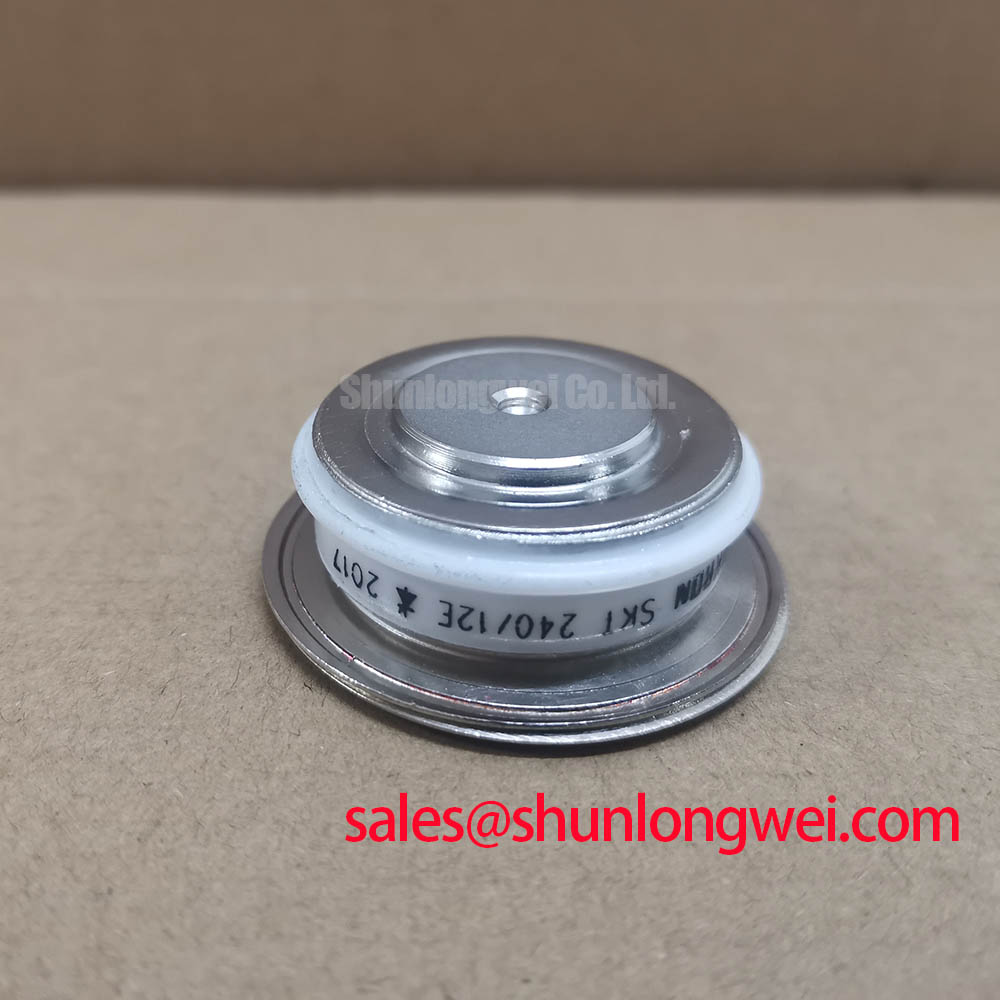

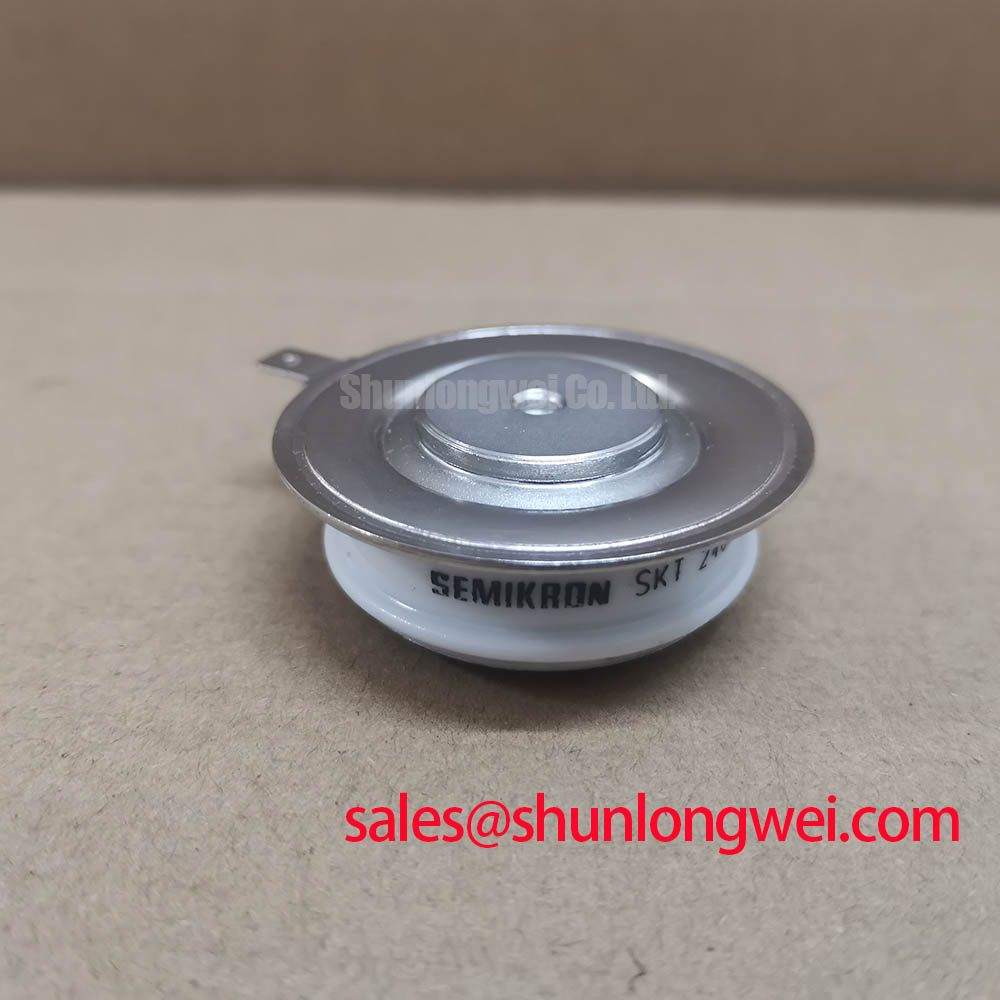

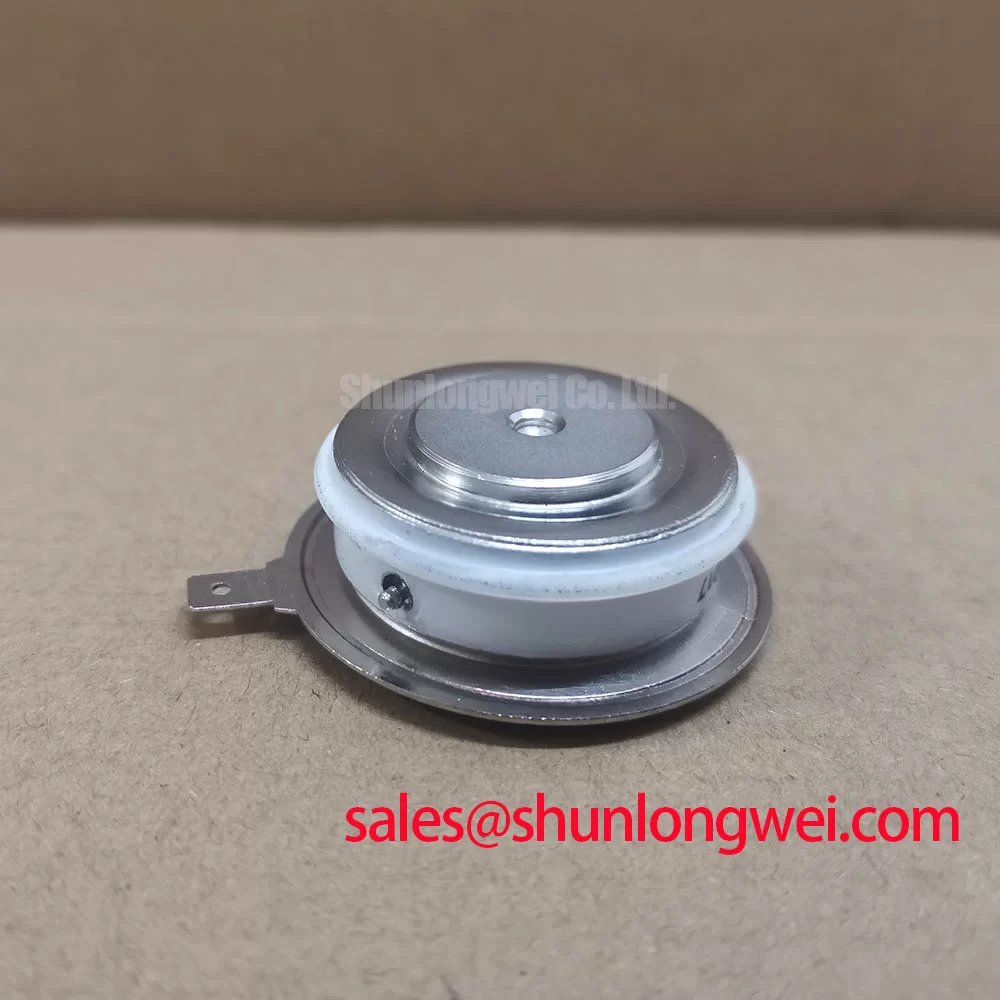

SKT240-12E | Manufacturer: Semikron | Category: Thyristor | Package description: Stud thyristor | Rated voltage: 1200 V (Official Specification) | Rated current: 240 A (Official Specification)
Measure resistance between the main terminals of the disconnected SKT240-12E, then compare the cold reading with a known-good unit using the same meter range and lead orientation. A handheld meter cannot establish the device’s blocking capability at its 1200 V rating, but a markedly different reading can flag a unit for controlled bench testing. Identify anode, cathode and gate from the package markings and equipment wiring diagram before moving the probes; a gate-to-cathode measurement is not a substitute for a controlled firing test.
💡 Bench Tip: Discharge the equipment and isolate the gate-drive wiring before recording cold terminal readings.
Inspect both mating heat-transfer surfaces for burrs, residue and uneven contact marks. Design Consideration: A continuous, appropriately applied thermal interface layer can reduce contact voids, while excess material or uneven clamping can compromise the joint. Do not infer a copper baseplate, a thermal resistance value or a mounting torque from the package description alone. Select the installation method and tightening specification from the applicable Semikron documentation and the equipment’s mechanical design, then examine the contact pattern after assembly. The Semikron-Danfoss Power Electronics and Modules hub provides a manufacturer starting point for locating device-specific technical material.
SKT240-12E Operational Boundaries and Fuse Coordination
Inspect the fuse record and fault waveform when a protected branch has opened; compare the recorded current pulse with the protection limits documented for the installed thyristor. The 240 A current rating (Official Specification) is not a short-circuit withstand rating, and the 1200 V voltage rating (Official Specification) does not describe permissible surge current. A short-circuit assessment needs the applicable surge-current and thyristor I²t limits, including their stated pulse and starting-temperature conditions.
Engineering Calculation: Fuse coordination compares the fuse’s total clearing I²t at the relevant fault level with the thyristor’s allowable I²t under matching conditions. No device I²t figure or fuse clearing table is established here, so neither a coordinated fuse size nor damage-free clearing can be claimed. After a fault, allow the assembly to cool under the equipment procedure, then check main-terminal resistance, gate-path continuity and surrounding connections before any controlled re-energization. A single cold meter reading cannot establish that the junction remains serviceable.
For replacement assessment, compare the original circuit arrangement and mechanical interface as well as electrical limits. The SKKH162-14E is a separate device to evaluate against those requirements, not a drop-in replacement inferred from its part number.
Field Diagnostics: Gate Firing in SKT240-12E Circuits
Probe the gate-to-cathode pulse at the device terminals when firing is intermittent, and compare its timing with anode-to-cathode voltage and load current on an isolated, suitably rated test setup. A pulse observed at the controller output may differ from the pulse delivered through the installed wiring. Check terminal identification and connection integrity first; then examine whether each commanded pulse reaches the gate during the intended conduction interval.
Design Consideration: Gate-pulse rise, duration and any repeated firing pulses should be assessed against the device’s gate limits and the circuit’s load-current buildup. Do not apply a generic pulse slew rate or back-porch current to SKT240-12E without its specified gate data. In a candidate grid-tied static var compensator or thyristor-switched capacitor circuit, the integrator should also verify firing synchronization, capacitor-branch conditions and protective interlocks at system level. The Precision Gate Drive Design resource provides broader gate-drive context; it does not replace device-specific limits or commissioning measurements.
Assembly Integrity and Commutation Layout
Capture the voltage across the installed thyristor during commutation if turn-off overshoot is suspected, and compare the peak with the circuit voltage and the device’s 1200 V rating (Official Specification). Check the main-terminal joints, return-current path and any installed suppression network against the equipment schematic. Design Consideration: Keeping the commutation loop compact can reduce inductive overshoot, but the layout and suppression components must be validated by switching measurements in the actual assembly.
Do not assign diode reverse-recovery current, recovery time or softness factor to SKT240-12E: those are characteristics to assess for a separate diode if the circuit contains one. Its recovery behavior may affect commutation voltage and emissions, but it cannot be established from this thyristor’s voltage and current ratings. Where an MOV or another overvoltage absorber is fitted, compare its connection and condition with the equipment design rather than assuming it protects every switching event. Record the measured peak, gate timing and branch current together so the next inspection can distinguish a changed device response from a changed external circuit.
