TM200DZ-H Circuit Protection and Reliability: Calibrating Reverse Recovery Charge

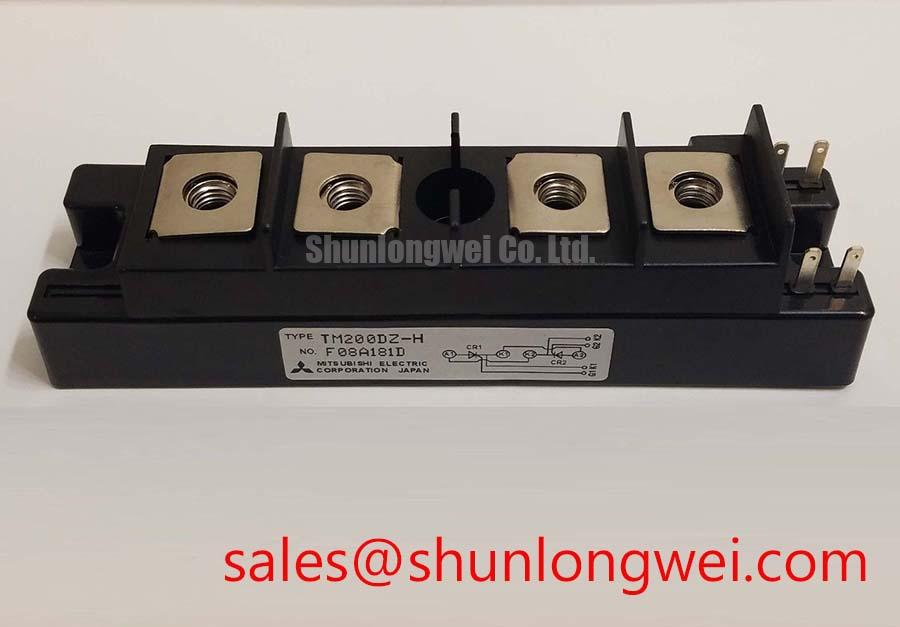

Measure the power terminals with the circuit isolated, inspect the module body for cracks or tracking, and compare the recorded terminal condition with a known good assembly before energizing the SVC branch. The TM200DZ-H is a Mitsubishi Electric thyristor module with an 800.0 V rated voltage, a 200.0 A rated current, and an isolated power module package.
In a grid tied static Var compensator or thyristor switched capacitor stage, reverse recovery behavior belongs to the complete commutation network rather than to the module alone. Engineers should examine the current waveform around thyristor recovery and check the peak reverse recovery current and recovery interval against the original equipment design data. Any increase in switching loss, ringing, or radiated interference should be investigated alongside snubber condition, conductor layout, gate timing, and the health of adjacent protection components.
Fuse coordination should use the semiconductor fuse selection and I2t coordination data specified for the actual circuit. The fuse clearing capability, prospective fault current, repetitive operating current, and thermal conditions all require system level verification. Do not infer a suitable fuse from the 200.0 A rating alone. Terminal connections should be checked for clean contact surfaces, correct conductor placement, and the installation torque specified by the applicable Mitsubishi Electric documentation.
For comparison work within the same equipment family, engineers may review TMA166B-L as a separate reference device. Electrical interchangeability remains dependent on circuit topology, terminal arrangement, ratings, and the original equipment bill of materials.
Field Diagnostics and Commissioning: ITSM Safety Derating Across Repetitive Operation
Capture the line current during capacitor switching and compare each transient with the original thyristor module protection records before allowing repetitive operation. A single sinusoidal half cycle surge rating, identified as ITSM in the applicable device documentation, must not be treated as a continuous current rating or as permission for unlimited repetitive surges.
For the TM200DZ-H, the confirmed product data supplied for this page establishes a 200.0 A rated current and an 800.0 V rated voltage. The actual ITSM, junction temperature limits, thermal resistance, and repetitive surge conditions must be taken from the relevant factory datasheet for the exact circuit version. During commissioning, record current duration, repetition rate, heat sink temperature, and the voltage present before reverse voltage is reapplied.
Temperature recovery matters after a high current event. Check the heat sink contact, airflow path, thermal interface condition, and terminal tightness before repeating the test. A rising case temperature or changing current waveform can indicate a thermal or commutation issue, but it does not identify one single failed component without comparative measurements.
The module may be evaluated in an SVC or thyristor switched capacitor assembly when its voltage, current, isolation, terminal layout, thermal path, and firing circuit match the equipment design. The system integrator should also review the upstream switching arrangement, including a possible complementary rectifier stage such as TM90DZ-2H, without assuming that the two devices form an interchangeable pair.
Preventing Spurious Faults: Gate Trigger Current and Temperature Guidelines for TM200DZ-H
Probe the gate trigger pulse at the module terminals while monitoring the corresponding anode current, then compare pulse timing and amplitude with the known good firing channel. Gate trigger current, gate trigger voltage, holding current, latching behavior, and temperature dependence must be evaluated from the thyristor data for the specific device configuration.
Gate wiring should be short, mechanically secure, and routed to limit coupling from the main current path. This is a Design Consideration rather than a guaranteed TM200DZ-H factory parameter. When a gate pulse is disturbed by ringing or overshoot, the engineer should inspect source impedance, return routing, connector condition, and the physical separation between gate and power conductors.
Multi pulse firing can be considered where the controller and thyristor characteristics support it. The pulse train should be validated against the required gate trigger current and pulse duration, with measurements taken at operating temperature and under the actual line conditions. A weak or intermittent trigger signal may be associated with the firing board, wiring, temperature, or the module itself, so diagnosis should follow the signal path rather than rely on one resistance reading.
The Mitsubishi Electric module should be integrated only after the gate terminal definition and firing polarity have been matched to the original circuit. Engineers examining off-state gate behavior can consult Evolution of Negative Off Bias Gate Drive Circuits as an engineering reference, while keeping the final gate network under system designer control.
Benchtop Waveform Tuning: Coordinating Short Circuit Withstand Limits
With the DC link disabled, verify the fuse path, gate inhibit signal, discharge condition, and oscilloscope probe placement before testing a dead short fault response. The purpose of the test is to compare semiconductor fuse clearing behavior with the thyristor withstand information for the exact TM200DZ-H application.
Fuse I2t coordination requires the prospective fault current, fuse operating time, circuit inductance, source impedance, and initial temperature. The semiconductor fuse data and the module withstand limits must be evaluated together; the module's 200.0 A rated current is not a short circuit withstand value. A fuse that clears successfully in one test arrangement may behave differently when cable length, source capacity, or capacitor energy changes.
Use a controlled current injection or approved equipment test method, then inspect the recorded current decay, voltage overshoot, gate state, and post test terminal condition. Any abnormal waveform should lead to a review of the commutation loop, snubber network, fuse selection, and firing inhibit timing before another test is attempted.
Maintenance Note: Inspect heat sink cleanliness, thermal interface condition, terminal tightness, and enclosure condensation during scheduled maintenance, then record contact temperature trends under comparable operating load.
