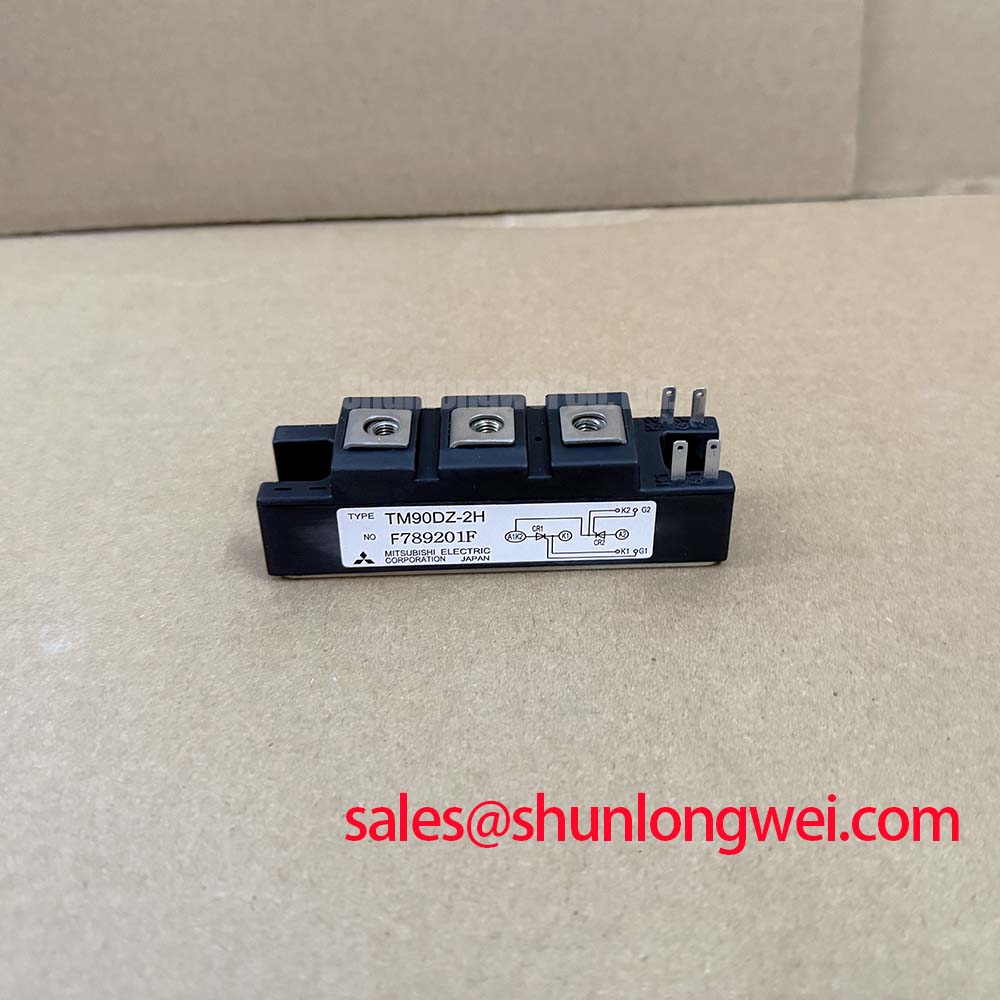

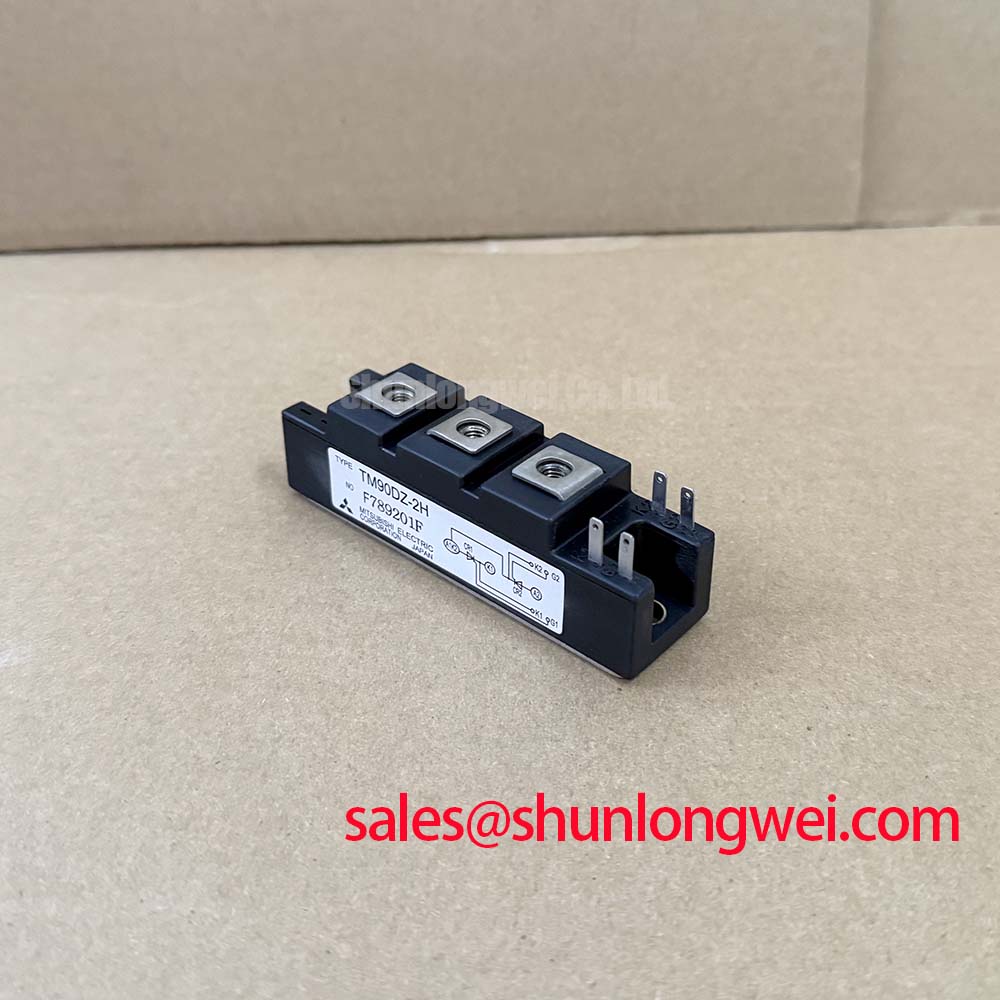

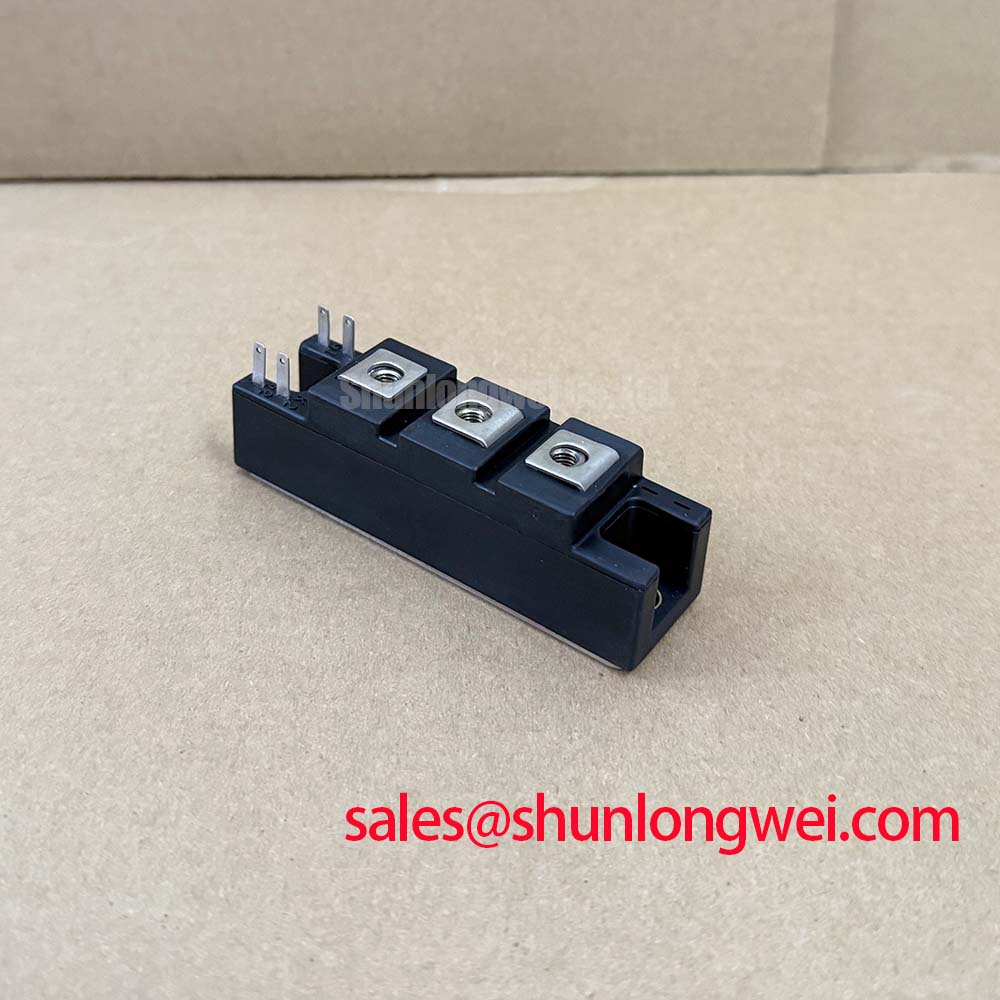

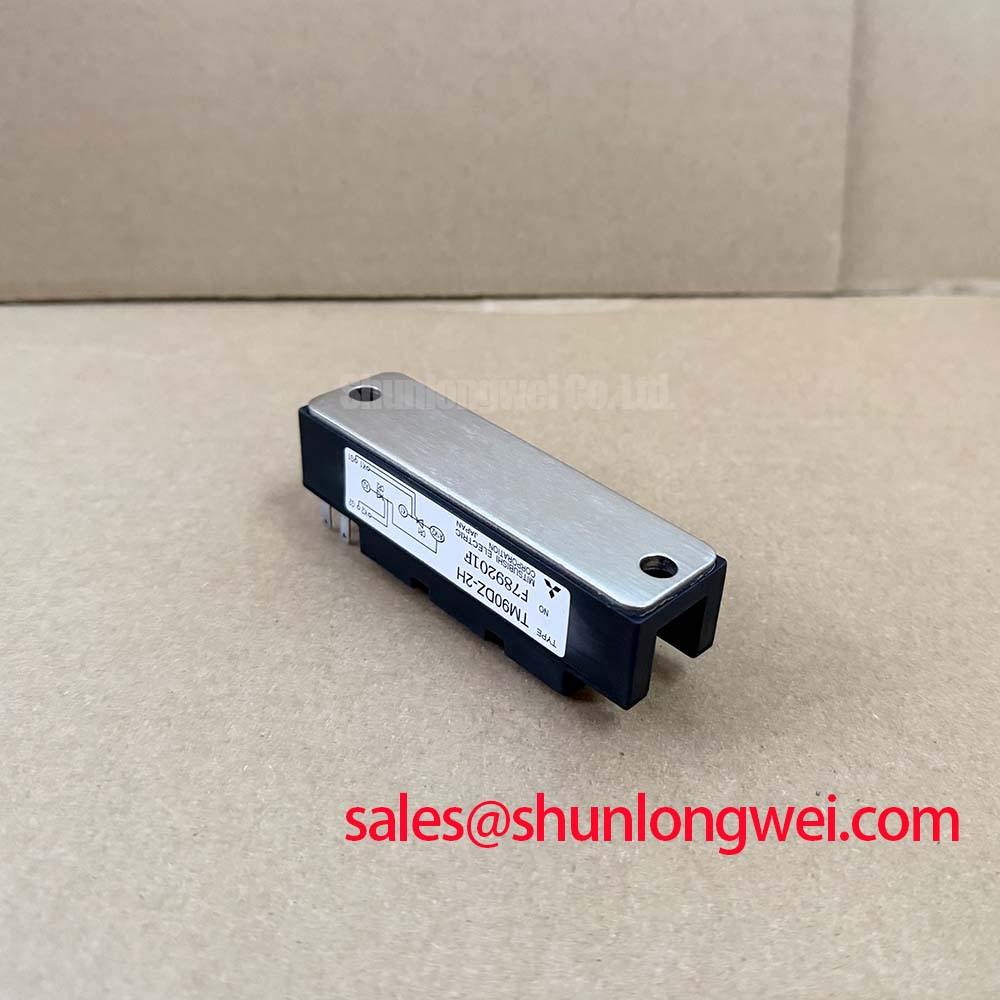

TM90DZ-2H Mitsubishi 800V 90A High-Reliability Diode Module
The TM90DZ-2H, a high-performance power diode module from Mitsubishi Electric, provides a robust solution for industrial rectification where thermal efficiency and electrical isolation are non-negotiable. Featuring a dual-element doubler configuration, this 800V | 90A module is designed to endure continuous operation in harsh electrical environments while maintaining a small footprint. Engineers select this module for its high surge current capability and excellent thermal cycling performance, which significantly lowers the Total Cost of Ownership (TCO) by extending the maintenance interval of the power stage. For industrial power supplies prioritizing thermal longevity, this 800V 90A module is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Technical Parameter | Value / Specification | Engineering Significance |
|---|---|---|
| V_RRM (Repetitive Peak Reverse Voltage) | 800V | Ensures a safe operating margin for 240V and 380V AC lines, protecting against transient spikes. |
| I_F(AV) (Average Forward Current) | 90A | Supports high-density power delivery at 125°C case temperature without excessive voltage drop. |
| I_FSM (Surge Forward Current) | 1800A (60Hz) | Provides a massive safety buffer to absorb inrush currents during motor start-up or capacitive loading. |
| V_ISO (Isolation Voltage) | 2500V AC (1 min) | Enables direct mounting on a shared heatsink, meeting IEC safety standards for electrical isolation. |
| Rth(j-c) (Thermal Resistance) | 0.30 °C/W (Max) | Optimizes heat dissipation to keep junction temperatures within safe limits during peak loads. |
Download the TM90DZ-2H datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In modern industrial automation, engineers often face the challenge of managing thermal density in enclosed control cabinets. The TM90DZ-2H addresses this by utilizing an isolated package that simplifies the cooling path. Consider an industrial battery charging station where high-current rectification is required 24/7. The 90A rating of this module, combined with its 800V peak reverse voltage, allows it to handle the rectification of 3-phase AC inputs with minimal power loss. The primary benefit of its isolated design is the ability to eliminate individual insulators, which often act as thermal bottlenecks in power designs.
The 1800A surge current rating is particularly decisive in motor drive front-ends. When a high-inertia motor starts, the initial inrush can exceed steady-state current by several orders of magnitude. The TM90DZ-2H absorbs this energy without degradation, preventing the catastrophic failure common in lower-rated discrete components. For systems requiring higher current handling, the TM200DZ-H offers a higher current rating while maintaining the same reliable DZ configuration. This scalability ensures that procurement teams can standardize on a specific technology family while meeting varied power requirements.
Technical Deep Dive
Advanced Packaging for Long-Term Reliability
The engineering excellence of the TM90DZ-2H lies in its internal material science. Mitsubishi utilizes a proprietary bonding process that minimizes the coefficient of thermal expansion (CTE) mismatch between the silicon die and the copper baseplate. To understand the impact of Thermal Resistance (Rth), imagine heat moving through a highway; a high Rth is like a traffic jam that causes energy to build up at the source. The 0.30 °C/W rating of this module is like an open lane, allowing heat to escape rapidly and keeping the junction temperature stable even under 90A load cycles.
Furthermore, the 800V V_RRM rating acts as an electrical dam. Just as a taller dam wall protects a city from unexpected floods, the voltage rating of the TM90DZ-2H protects the downstream IGBT stages from line-side transients. This ruggedness is critical for maintaining SCSOA (Short Circuit Safe Operating Area) performance at the system level. By integrating this module, designers can reduce the size of the Snubber Circuit, as the device itself is inherently more tolerant of voltage overshoots. Understanding Why Rth Matters is essential for anyone designing high-power rectifiers where cooling is the primary constraint.
Frequently Asked Questions
Engineering Insights for System Integration
What is the primary benefit of the DZ doubler configuration in the TM90DZ-2H?
The doubler configuration integrates two diodes in series within a single module. This significantly simplifies the construction of a full-bridge rectifier by reducing the number of external interconnections and minimizing parasitic inductance in the power bus.
How does the 1800A surge current rating impact fuse selection?
The high I_FSM allows for more flexible fuse coordination. It ensures that the module can survive typical transient faults without blowing the semiconductor fuse prematurely, enhancing the overall uptime of the Variable Frequency Drive (VFD).
Can I mount the TM90DZ-2H on the same heatsink as an IGBT module?
Yes. Due to its 2500V AC isolation voltage, it can be mounted directly on a grounded heatsink alongside other isolated components like an RM100DZ-H. This improves thermal management efficiency and reduces the overall volume of the power assembly.
What is the recommended gate drive strategy for this diode?
As a passive device, the TM90DZ-2H does not require a Gate Drive. However, attention must be paid to the di/dt during turn-off to manage reverse recovery transients, which can be achieved through proper Snubber Circuit design.
Why is the 0.30 °C/W Rth(j-c) rating considered an industry benchmark?
This low value indicates a superior internal bond between the semiconductor die and the ceramic insulator. It allows the device to operate at a higher current density without exceeding the 150°C maximum junction temperature, which is critical for maintaining reliability in high-ambient environments.
When evaluating semiconductors for high-power rectification, the technical data must serve as the foundation for the design cycle. The TM90DZ-2H offers a proven balance of electrical ruggedness and thermal efficiency, allowing power electronics engineers to meet stringent performance requirements without compromising on safety margins. For further technical analysis, designers are encouraged to explore our guide on Deconstructing Power Module Structures to understand the underlying technology that drives these performance metrics.
