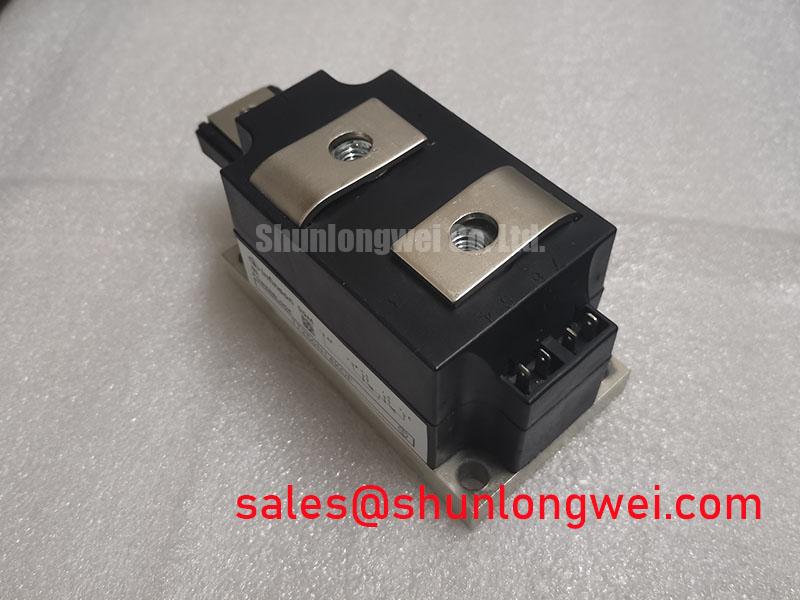

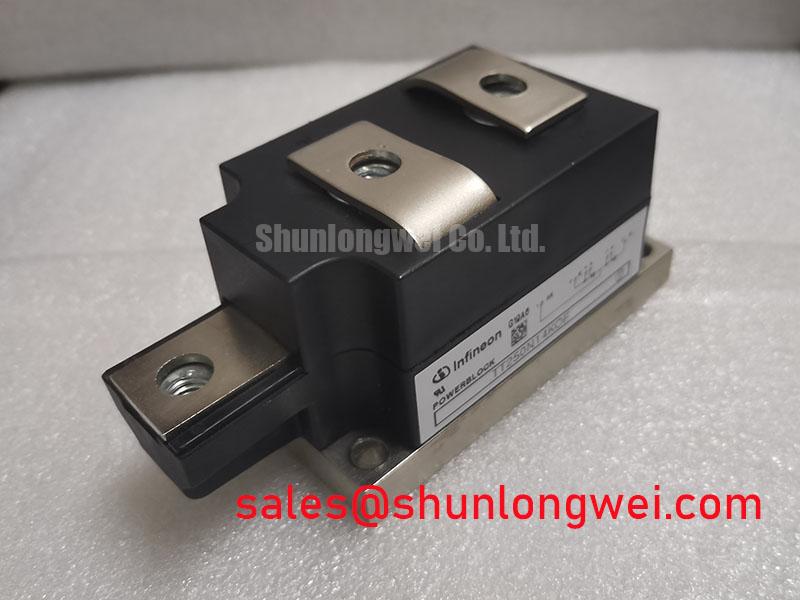

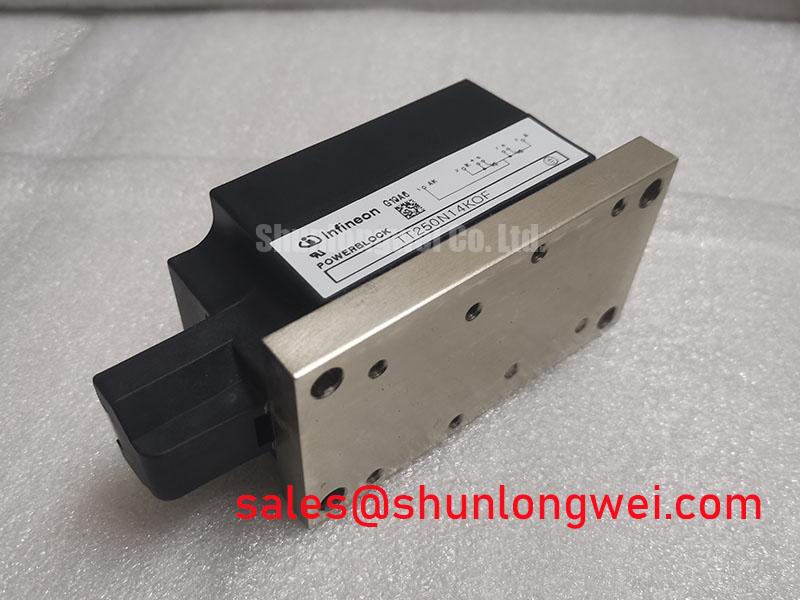

Infineon TT250N14KOF Thyristor/Diode Module | High-Reliability Power Control
The Infineon TT250N14KOF is a high-performance thyristor/diode module engineered for robust and precise power control in demanding industrial environments. Designed with a focus on reliability and efficiency, this 1400V, 250A module provides a cornerstone component for applications ranging from motor soft starters to controlled rectifiers. The TT250N14KOF moves beyond simple switching, offering nuanced phase control that protects equipment, saves energy, and enhances system stability.
Technical Deep-Dive: Built for Industrial Demands
The resilience of the TT250N14KOF stems from its intelligent design and superior materials, tailored to solve common challenges in industrial power conversion.
- Precision Phase-Control Technology: At its core, the module features a series-connected thyristor (SCR) and diode pair. This configuration allows for half-controlled rectification, where the firing angle of the thyristor can be precisely modulated. For the system designer, this translates directly into smooth voltage ramp-ups, minimizing the severe electrical and mechanical stress associated with direct-on-line motor starts. It also enables the creation of variable DC power supplies with exceptional stability.
- Superior Thermal Management and Isolation: The module is constructed with an electrically isolated baseplate, utilizing advanced materials to ensure a low thermal resistance path from the semiconductor die to the heatsink. This efficient heat dissipation is critical for maintaining performance under continuous load and contributes significantly to the module's long operational lifespan and reliability. The principles behind this are fundamental to all high-power modules, including modern IGBT thermal design, ensuring the device operates within its safe temperature limits even in harsh conditions.
Application-Specific Advantages of the TT250N14KOF
This module isn't just a component; it's a problem-solver. Here’s how the TT250N14KOF delivers tangible value across various applications:
- Motor Soft Starters: By gradually increasing the voltage supplied to an AC motor, the module mitigates high inrush currents that can cause voltage sags, trip circuit breakers, and inflict mechanical shock on couplings and gearboxes. This leads to reduced maintenance costs and extended motor life.
- Controlled Rectifiers: For applications requiring a variable DC voltage, such as DC motor drives, electroplating, or large-scale battery charging systems, this module provides a highly reliable and cost-effective control element. Its robustness makes it superior to more complex solutions in environments with high electrical noise.
- AC Power Controllers: In industrial heating or high-power lighting systems, the module offers efficient AC voltage regulation through phase-angle control. This allows for precise temperature or brightness management, optimizing energy consumption compared to rudimentary on/off control methods.
Key Technical Specifications
The following table outlines the critical performance parameters of the TT250N14KOF. For complete details, please refer to the TT250N14KOF Datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1400 V |
| Average On-State Current (IT(AV) @ Th=100°C) | 250 A |
| Surge-on-State Current (ITSM, t=10ms, 50Hz) | 9500 A |
| Isolation Voltage (Visol, 50Hz RMS, 1 min) | 3600 V |
Navigating Your Power Module Selection
Engineers often weigh options between different power semiconductor technologies. The TT250N14KOF thyristor/diode module excels in line-frequency (50/60 Hz) applications where robust, cost-effective voltage control is paramount. Its high surge current capability makes it inherently resilient to grid faults. In contrast, an IGBT module is a high-frequency switch, essential for PWM (Pulse Width Modulation) inverters used in modern AC variable frequency drives (VFDs) and solar inverters. If your application demands high-frequency switching and dynamic torque control, we invite you to Explore More IGBT Modules from our extensive portfolio.
Frequently Asked Questions (FAQ)
- What is the primary advantage of a thyristor/diode module like the TT250N14KOF over a simple diode bridge?A simple diode bridge provides a fixed, uncontrolled DC output. The TT250N14KOF's thyristor allows for controlled rectification, enabling adjustable DC output voltage. This control is essential for applications like variable speed DC drives and soft starters.
- Why use a module with a back-to-back SCR topology or phase-control thyristor instead of an IGBT for AC power control?For line-frequency AC power regulation, thyristors are often more robust, simpler to drive, and more cost-effective. They are designed to handle the rugged conditions of direct grid connection, whereas IGBTs are optimized for high-frequency DC-AC inversion.
For applications demanding proven, line-frequency power regulation, the TT250N14KOF offers an exceptionally reliable solution. To discuss your specific design requirements and system goals, please Contact Us for a Quote.
