TX20D19VM2BAB: An 8.0-inch WVGA TFT-LCD Engineered for Industrial Reliability
A Technical Introduction to the KOE TX20D19VM2BAB Display
Content last revised on October 2, 2025.

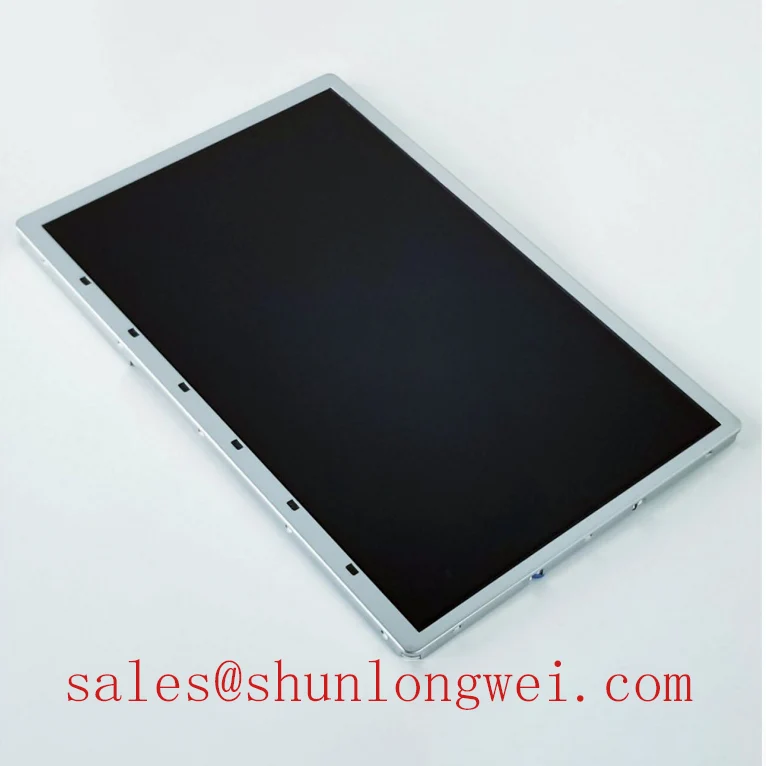

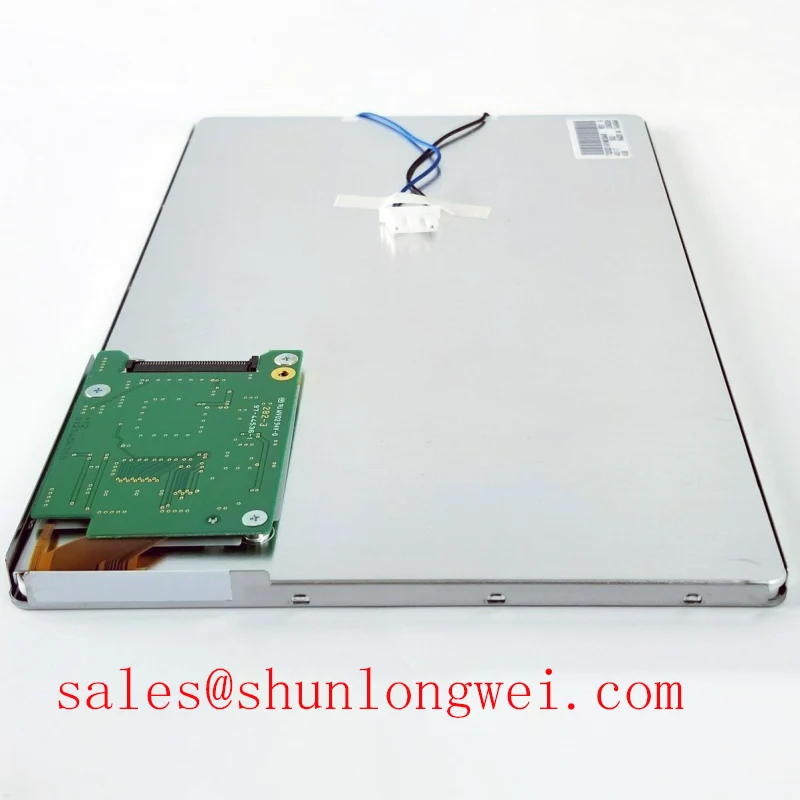

The KOE TX20D19VM2BAB is an 8.0-inch a-Si TFT-LCD module engineered for consistent, long-term performance in environments where commercial-grade displays falter. Delivering a crisp 800x480 WVGA resolution, this display's defining feature is its robust operational range, ensuring dependable visuals from freezing warehouses to sun-warmed control rooms. Key specifications include: 8.0" Diagonal | 800x480 Resolution | -20°C to +70°C Operating Temperature. Its design provides two core engineering benefits: exceptional environmental resilience and sustained visual clarity. For systems requiring unwavering performance across wide temperature fluctuations, the TX20D19VM2BAB provides a proven and reliable human-machine interface (HMI) foundation. What is the primary benefit of its wide operating temperature? It ensures consistent display startup and image stability in non-climate-controlled industrial settings.
Application Scenarios & Value
Delivering System-Level Reliability in Demanding HMI Applications
For industrial control panels and portable diagnostic equipment, the TX20D19VM2BAB is a premier choice. Its ability to operate reliably in temperatures from -20°C to +70°C makes it an ideal fit for applications in unheated factory floors, outdoor kiosks, and in-vehicle systems where temperature extremes are common. Consider an HMI for a food processing facility, which undergoes daily washdowns and operates in both refrigerated and high-heat zones. The wide temperature specification of the TX20D19VM2BAB ensures that the display will not lag, flicker, or fail during these thermal cycles, preventing costly downtime and ensuring operator efficiency. Its 550 cd/m² brightness and anti-glare surface treatment further enhance usability, providing clear readability under the varied and often harsh lighting conditions typical of industrial environments. This focus on operational toughness directly contributes to a lower total cost of ownership compared to displays not purpose-built for such conditions. While this 8.0-inch module is excellent for compact interfaces, for systems requiring greater data visualization or a higher resolution, the related G101EVN01.0 offers a 10.1-inch 1280x800 display platform.
Key Parameter Overview
Core Specifications for Integration and Performance Evaluation
The technical specifications of the TX20D19VM2BAB are tailored for straightforward integration into industrial designs. The display utilizes a standard CMOS 6-bit data interface, simplifying connections to a wide array of single-board computers and embedded controllers. The following table highlights the critical parameters for engineering assessment.
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Screen Size | 8.0 inch | Provides a significant viewing area for detailed GUI elements. |
| Operating Temperature | -20°C to +70°C | Ensures operational stability in harsh indoor/outdoor environments. |
| Storage Temperature | -30°C to +80°C | High resilience against damage during transport and warehousing. |
| Resolution | 800(RGB)×480 [WVGA] | Standard resolution for clear, effective industrial HMIs. |
| Brightness (Luminance) | 550 cd/m² (Typ.) | Strong brightness for readability in well-lit factory or field conditions. |
| Contrast Ratio | 600:1 (Typ.) | Good differentiation between colors and shades for clear graphics. |
| Interface Type | CMOS (1 ch, 6-bit) | Common interface for low-power, direct connection to microcontrollers. |
| Backlight | WLED | Efficient and long-lasting white LED backlight system. |
Download the TX20D19VM2BAB datasheet for detailed specifications and performance curves.
Application Vignette
High-Reliability Solution for a CNC Machine Control Panel
A manufacturer of CNC milling machines faced recurring field failures with their operator control panels. The displays, sourced from the consumer market, were failing prematurely due to the machine shop environment, which is often unheated in winter and poorly ventilated in summer, leading to significant temperature swings. Furthermore, fine mists of cutting fluid would settle on the screen, and the constant vibration from the milling process stressed the display components. The engineering team selected the TX20D19VM2BAB as a direct solution. Its -20°C to +70°C operating range completely eliminated the temperature-related failures. This range can be thought of as the display's "comfort zone"—just as a person works best in a comfortable temperature, this display is designed to perform flawlessly from a cold start on a winter morning to the peak heat of a summer afternoon. The robust mechanical design inherently withstands higher levels of shock and vibration, a critical requirement in this application. By integrating a display designed for the environment, the manufacturer drastically reduced warranty claims and improved their product's reputation for durability.
Frequently Asked Questions (FAQ)
How does the TX20D19VM2BAB's -20°C to +70°C operating temperature impact system design?
This wide operating range often simplifies thermal management design. It can eliminate the need for dedicated heating or cooling components that would be required for displays with a standard 0°C to 50°C range, saving cost, space, and power in the final product.
Is the 800x480 WVGA resolution sufficient for modern industrial interfaces?
Absolutely. For many dedicated control applications, such as process monitoring, equipment control, and data entry, WVGA provides the ideal balance between information density and clarity. It allows for large, easily readable fonts and touch targets without the higher processing overhead and power consumption of HD displays. This makes it an efficient and practical choice for a vast number of TFT-LCD based industrial systems.
What is the significance of the CMOS interface on this display?
The CMOS interface is a parallel digital RGB interface that is straightforward to implement with many microcontrollers and system-on-chips (SoCs). Unlike more complex interfaces like LVDS, it often allows for a direct connection without requiring extra transmitter/receiver chips, reducing BOM cost and design complexity for embedded systems. This is akin to using a simple, direct cable instead of needing a complex adapter box.
Strategic Component Selection
A Commitment to Operational Uptime and Product Longevity
Choosing the KOE TX20D19VM2BAB is a strategic decision for product managers and engineers prioritizing long-term reliability over initial component cost. Its industrial-grade specifications, particularly its thermal resilience, directly address the primary failure points of lesser displays in demanding applications. By designing-in this level of robustness, manufacturers can confidently deploy their products into a wider range of environments, reduce service calls, and build a stronger brand reputation for quality and durability. This display is not merely a component; it is an investment in the operational integrity of the final system. For further reading on display technology, Wikipedia offers an excellent overview of TFT-LCD principles.
