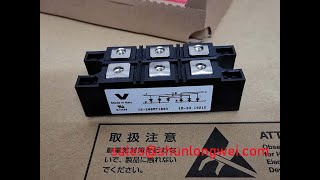

Vishay VS-200MT160K | High-Voltage 1600V IGBT Module for Demanding Industrial Drives
The Vishay VS-200MT160K is a high-performance three-phase IGBT Power Integrated Module (PIM) engineered for robustness and reliability in high-power conversion systems. Designed with a substantial 1600V collector-emitter voltage rating, this module provides an exceptional safety margin and operational stability for industrial applications, particularly those connected to volatile 480V and 600V grids. It consolidates a full three-phase inverter bridge into a single, thermally efficient MTP package, streamlining system design and manufacturing.
Product Highlights at a Glance
- Exceptional Voltage Headroom: A 1600V (Vces) rating delivers superior protection against transient overvoltage events, enhancing system longevity in harsh industrial environments.
- Integrated Three-Phase Topology: Simplifies power stage design by reducing component count, minimizing stray inductance, and optimizing thermal management pathways.
- Robust Current Handling: With a 200A continuous collector current, it is well-suited for high-torque motor drives and high-capacity power supplies.
- Optimized for Industrial Frequencies: Balances conduction and switching losses to deliver high efficiency in applications like Variable Frequency Drives (VFDs) and uninterruptible power supplies.
Technical Deep Dive: The Engineering Advantage
The Significance of a 1600V Rating
While many applications operate on 400V or 480V AC lines (resulting in a DC bus of ~560-680V), a standard 1200V IGBT can have its safety margin eroded by voltage overshoots caused by parasitic inductance during switching. The VS-200MT160K's 1600V rating provides a much larger Safe Operating Area (SOA). This isn't just a number; it translates directly to enhanced system reliability, reduced need for complex snubber circuits, and the confidence to operate reliably in electrically noisy factories or on unstable grids where voltage spikes are common.
Benefits of the Integrated PIM Design
By co-packaging six IGBTs and their corresponding anti-parallel diodes into a single module, the VS-200MT160K fundamentally simplifies the manufacturing process. This design minimizes the loop inductance between switches, which is a critical factor in reducing voltage overshoot and ringing. For engineers, this means a cleaner switching waveform, lower EMI emissions, and a more predictable performance. The centralized thermal path to a single baseplate also ensures more uniform temperature distribution compared to discrete solutions, simplifying heatsink design. To understand the foundational role of these components, explore our guide on IGBT modules as the backbone of power systems.
Key Parameter Overview
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1600 V |
| Continuous Collector Current (Ic) @ Tc=80°C | 200 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) typ. @ Ic=200A | 2.1 V |
| Package Type | MTP (ADD-A-PAK) |
| Maximum Junction Temperature (Tjmax) | 150 °C |
Application Scenarios & Value Proposition
Heavy-Duty Industrial Motor Drives
In applications like industrial conveyors, cranes, and large-scale pumps, reliability is paramount. The VS-200MT160K's robust voltage rating and high current capability make it an ideal core for Variable Frequency Drives (VFDs) powering these systems. The integrated design reduces assembly complexity and potential points of failure, crucial in machinery expected to operate continuously for years.
High-Power UPS Systems
For data centers and critical industrial processes, an Uninterruptible Power Supply (UPS) must be infallible. This module's high voltage tolerance ensures the UPS inverter can withstand severe grid-side disturbances without failing, safeguarding the connected load. Its power density allows for more compact and efficient UPS designs.
Renewable Energy Inverters
In solar or wind power converters, efficiency and durability are key financial drivers. The balanced switching characteristics of the Vishay VS-200MT160K help maximize energy harvest. Its inherent robustness is a significant advantage in remote installations where maintenance can be costly and challenging. For a closer look at how IGBTs drive precision control, read about their role in powering robotic servo drives, a field with similar demands for reliability.
Frequently Asked Questions (FAQ)
Question: What are the primary thermal management considerations for the VS-200MT160K?
Answer: Effective thermal management is crucial for maximizing the life and performance of the VS-200MT160K. The key is to ensure a low thermal resistance path from the module's baseplate to the ambient air. This involves selecting an appropriately sized heatsink (either air- or liquid-cooled), using a high-quality Thermal Interface Material (TIM) applied evenly and thinly, and ensuring proper mounting pressure to eliminate air gaps. Calculating total power loss (conduction + switching) for your specific operating conditions is the first step in sizing your thermal solution correctly.
Question: How does the 1600V rating benefit my 480V system design specifically?
Answer: A 480V AC line can produce a DC bus voltage of around 680V. During hard switching, stray inductance in the busbars can create voltage spikes that easily add 200-400V on top of the bus voltage, pushing the limits of a 1200V IGBT. The 1600V rating of this module provides a much larger design margin (over 900V), which means your system will be far more tolerant to these transients. This can reduce or eliminate the need for costly, space-consuming snubber circuits and leads to a more robust, reliable end product with a longer field life.
