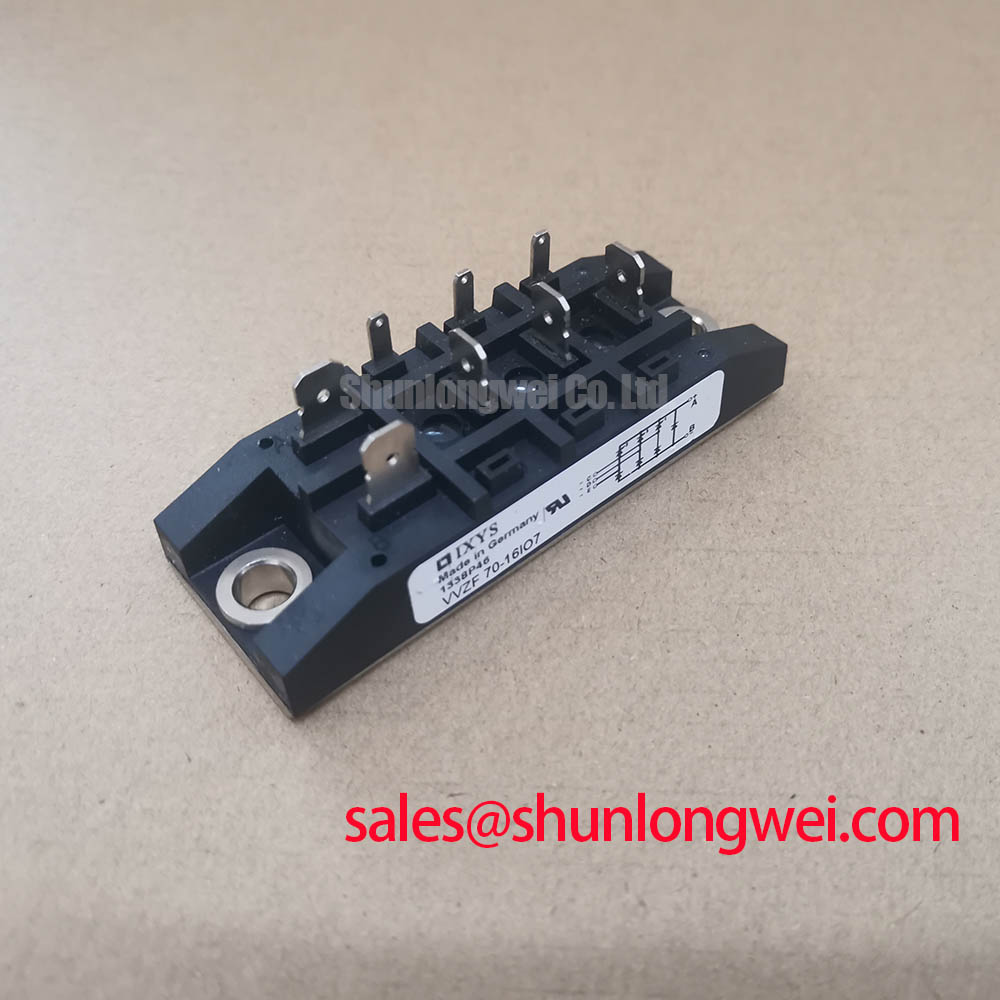

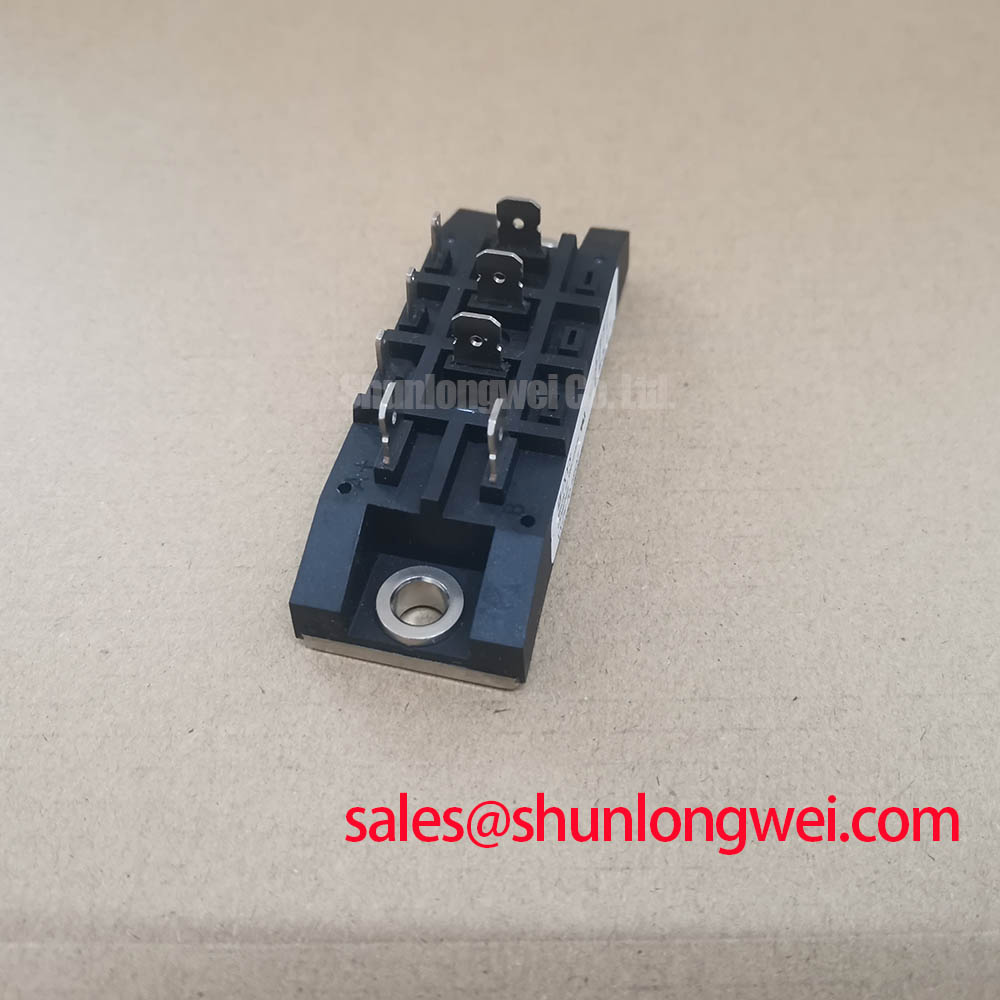

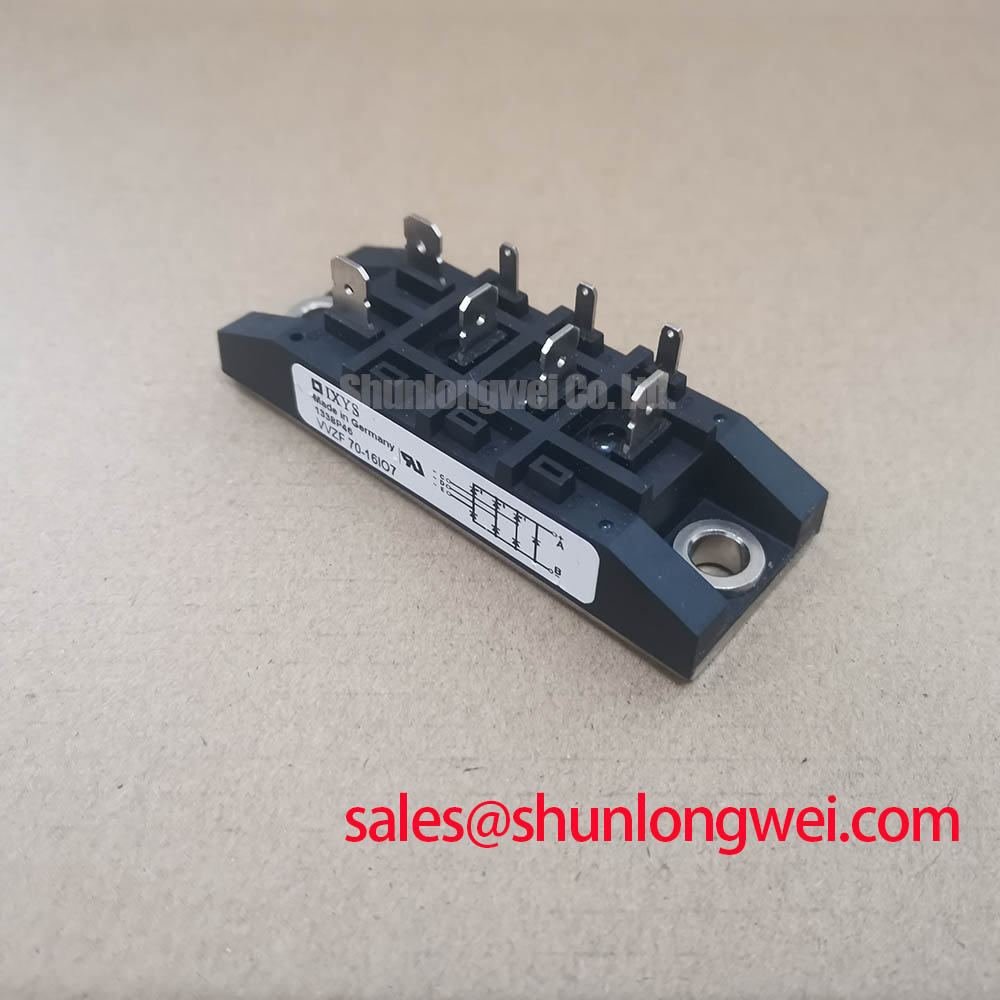

VVZF70-16IO7 | 1600V, 70A Thyristor/Diode Module for Reliable Industrial Phase Control
Engineering an In-Depth Analysis of the VVZF70-16IO7 Module
The VVZF70-16IO7 is a high-reliability Thyristor/Diode module engineered for superior thermal management and long-term stability in demanding industrial phase control applications. With key specifications of 1600V | 70A | Isolated Copper Baseplate, this component delivers two critical engineering benefits: superior thermal transfer and enhanced system reliability. Its design directly addresses the challenge of managing heat in compact power assemblies by providing an efficient, isolated thermal pathway. For industrial AC/DC converters and motor control systems operating on 400V/480V lines, the VVZF70-16IO7's combination of high voltage headroom and robust thermal construction makes it a foundational component for dependable power stages.
Application Scenarios & Value
Delivering Robust Performance in Controlled Rectification and Motor Drive Systems
The primary value of the VVZF70-16IO7 module is realized in applications requiring precise and reliable control of AC power. A high-fidelity engineering scenario is the design of a controlled rectifier for a medium-sized DC motor drive. In such systems, the challenge is to maintain stable operation under varying loads and potential line voltage fluctuations. The module's 1600V blocking voltage provides a substantial safety margin for systems connected to 400V or 480V AC mains, mitigating the risk of failure from transient overvoltages.
Furthermore, its common cathode configuration simplifies the circuit topology for single-quadrant drives and the power stages of industrial soft starters, reducing component count and potential points of failure. The module's robust internal construction, featuring an isolated copper baseplate, ensures efficient heat dissipation during high-current phases, a critical factor for long-term reliability in cyclical industrial operations. For systems requiring higher current handling, such as larger DC motor drives, the related MDD95-12N1B provides a similar voltage rating with a higher current capacity.
Key Parameter Overview
A Functionally Grouped Breakdown for System Design
The specifications of the VVZF70-16IO7 are tailored for demanding industrial power control. The following parameters are essential for design engineers evaluating this module for their power conversion systems.
| Absolute Maximum Ratings | |
|---|---|
| Repetitive Peak Reverse/Off-State Voltage (V_RRM, V_DRM) | 1600 V |
| Average On-State Current, Thyristor (I_T(AV)) @ Tc=85°C | 70 A |
| Average Forward Current, Diode (I_F(AV)) @ Tc=85°C | 70 A |
| Surge Current (I_TSM, I_FSM), 10ms, 50Hz | 1000 A |
| Electrical Characteristics (Typical, at T_J = 25°C) | |
| Threshold Voltage, Thyristor/Diode (V_T0 / V_F0) | 0.85 V |
| Slope Resistance, Thyristor/Diode (r_T / r_F) | 2.5 mΩ |
| Gate Trigger Current (I_GT) | < 150 mA |
| Thermal and Mechanical Specifications | |
| Operating Junction Temperature (T_vj) | -40°C to +125°C |
| Thermal Resistance, Junction-to-Case (R_thJC), per device | 0.45 K/W |
| Isolation Voltage (V_ISOL), 50/60 Hz, RMS | 3000 V~ |
This table presents a selection of key parameters. For comprehensive electrical characteristics, performance curves, and mechanical drawings, please refer to the official documentation.
Download the VVZF70-16IO7 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What are the primary applications for the VVZF70-16IO7's common cathode configuration?
The common cathode topology is particularly advantageous in half-controlled single-phase and three-phase bridge rectifier circuits. This makes it a highly suitable choice for cost-effective DC motor speed controls, the power stages of industrial soft starters, and regulated power supplies where only single-quadrant operation is required.
How does the isolated baseplate of the VVZF70-16IO7 benefit the thermal design process?
The integrated isolation simplifies the mechanical and thermal design significantly. It allows the module to be mounted directly onto a grounded heatsink without the need for additional, thermally resistive insulating pads (e.g., mica or silicone). This reduces assembly complexity, lowers the overall thermal resistance from junction to ambient, and leads to a more reliable and compact thermal solution.
Technical Deep Dive
A Closer Look at the Thermal Pathway for Long-Term Operational Stability

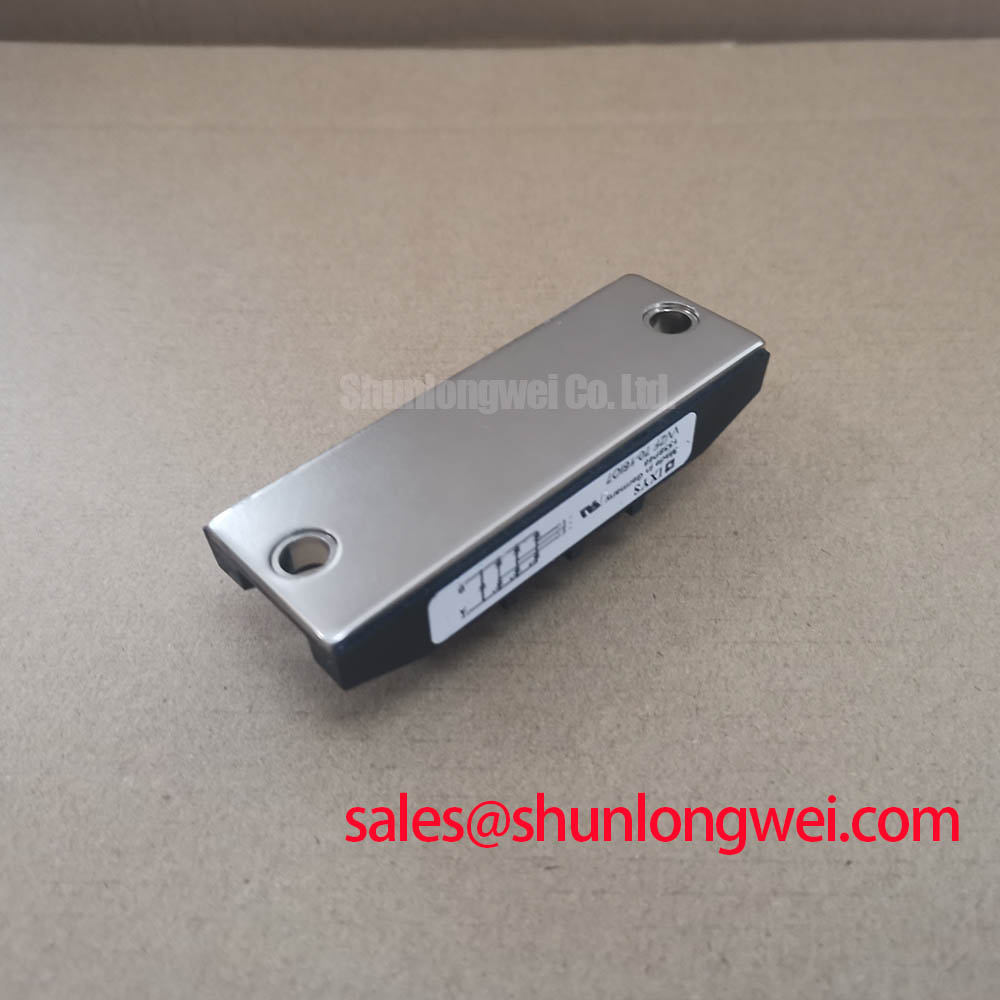

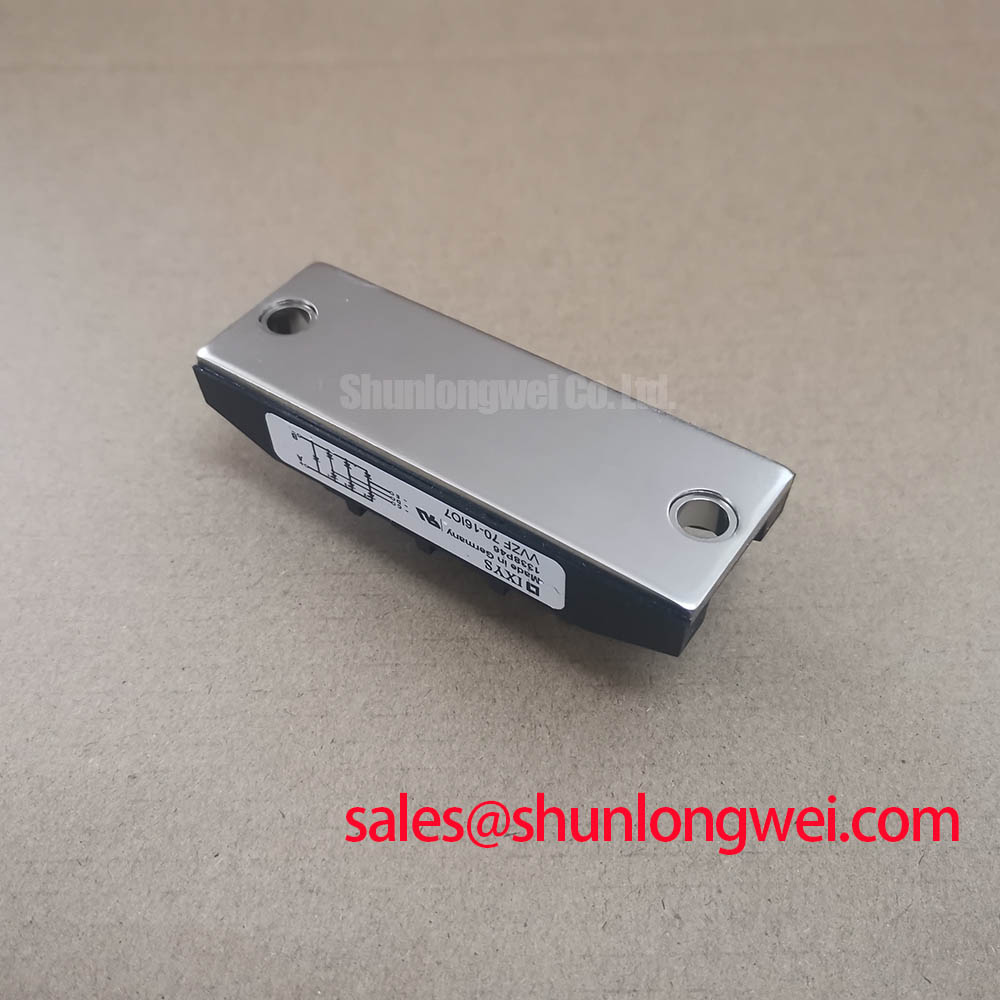

A key differentiator of the VVZF70-16IO7 is its internal construction, which is optimized for thermal performance and long-term reliability. The module utilizes an isolated copper baseplate, often employing a Direct Bonded Copper (DBC) substrate. This structure consists of a ceramic layer, typically Alumina (Al₂O₃) or Aluminum Nitride (AlN), metallized with copper on both sides. The silicon chips (thyristor and diode) are soldered directly to the top copper layer, while the bottom layer serves as the module's baseplate.
Think of the DBC substrate as a multi-lane superhighway for heat, allowing thermal energy to move rapidly away from the silicon chip to the heatsink, preventing the thermal "traffic jams" that lead to overheating and premature failure. This design provides excellent thermal management and high dielectric strength, ensuring robust electrical isolation. This advanced packaging is fundamental to the module achieving a low thermal resistance, which is critical for maintaining the junction temperature within safe limits during operation, thereby extending the component's service life.
Technical Inquiries and Component Sourcing
To evaluate the VVZF70-16IO7 for your upcoming design or to inquire about sourcing for your production line, please contact our technical sales team. We can provide engineering-level support to help you assess how this module's thermal and electrical performance aligns with the specific requirements of your power conversion application.
