What are the typical applications for the EL6648MS?

This display module is ideal for industrial control panels, HMI systems, medical devices, test and measurement equipment, and transportation infrastructure.

What technology does this module use?

The EL6648MS uses self-emissive Electroluminescent (EL) technology, which provides even illumination and sharp graphics without the need for a separate backlight.

What are the key features of the EL6648MS?

Key features include a high-contrast 512 x 256 resolution, a 33,000-hour rated lifespan, a wide 2:1 aspect ratio, and a robust mechanical design suitable for industrial-grade temperatures.

EL6648MS EL Display | Planar 512×256 Industrial Module

Content last revised on January 19, 2026

Introduction / OverviewThe EL6648MS from Planar is an 8.6-inch Electroluminescent (EL) display module, engineered for reliable performance in industrial and embedded systems. Backed by self-emissive EL technology, this module delivers sharp 512×256 monochrome graphics with excellent uniformity and long operational life — ideal for applications where standard backlit LCDs may struggle.

Key Features

High-quality 512 × 256 resolution on an 8.6″ panel
Self-emissive EL technology enables constant, even illumination without a separate backlight
Wide aspect ratio (2:1) gives a panoramic, efficient display form factor
Brightness ~130 cd/m², offering good visibility in varied lighting conditions
Long lifespan, with EL lamp life rated to 33,000 hours (minimum)
Robust mechanical design, with a compact 260 × 145 mm outline and only 18 mm thickness
Monochrome output, ensuring high contrast, low power consumption, and simple drive requirements
Industrial-grade temperature range: 0°C to +55°C in operation, with storage capability from –40°C to +75°C

Typical Applications

The EL6648MS display module is particularly well-suited for:

Industrial control panels and HMI (Human-Machine Interface) systems
Embedded systems requiring a durable and reliable display
Test and measurement equipment
Transportation infrastructure (rail, marine)
Military and defense devices
Medical devices that need long-life, stable displays
Any application where a rugged, long-lasting monochrome display is needed

Advantages

Durability & reliability: The self-emissive EL layer is less susceptible to backlight failure compared to LCD backlights.
Even illumination: Provides uniform brightness across the screen, without the hot spots or gradient typical of some backlit technologies.
Low maintenance: With a long lamp life, the EL module reduces maintenance and replacement costs in long-term deployments.
Wide storage tolerance: Can survive harsh storage conditions due to broad temperature range.

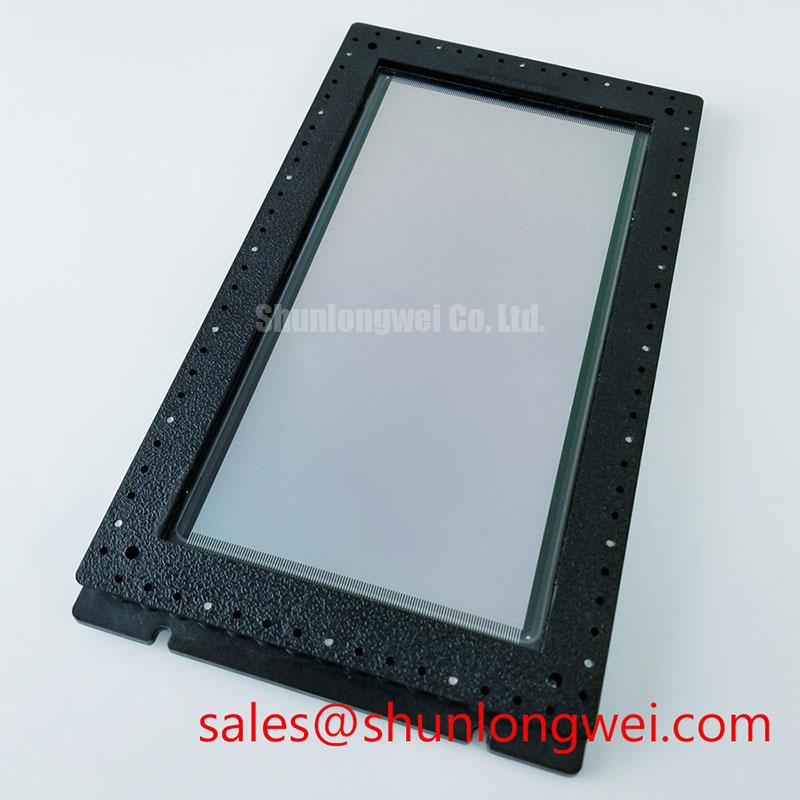

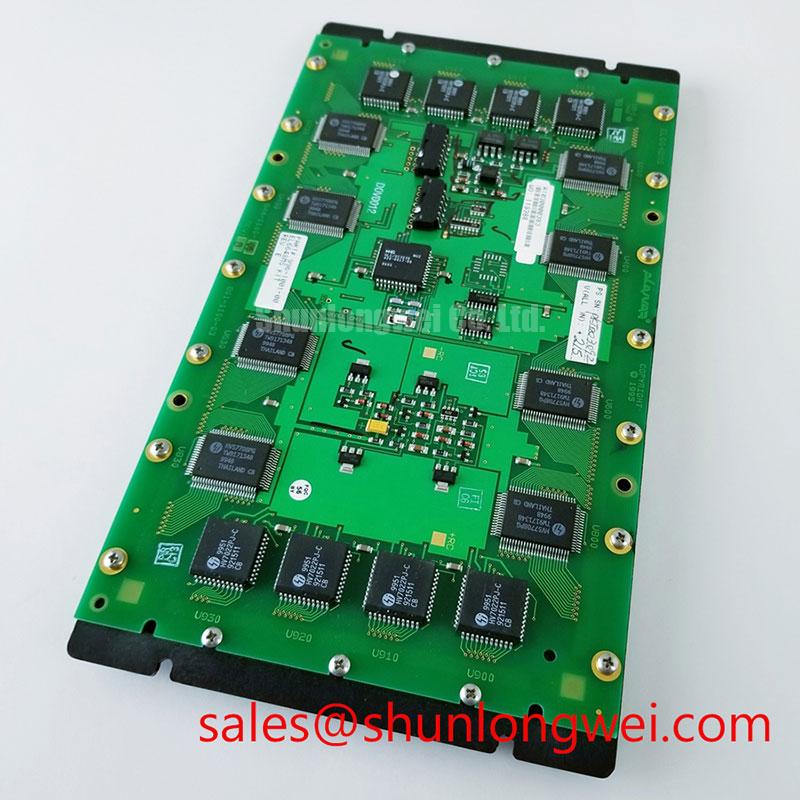

EL6648MS Planar 8.6″ Electroluminescent Display Module
