LVH200G1201 IGBT Module: Low-Loss 1200V Power Switching

Engineered for High-Efficiency Power Conversion

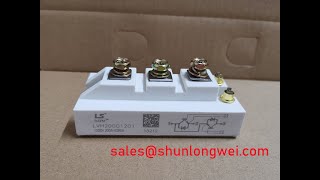

The LSIS LVH200G1201 is a half-bridge IGBT module architected to deliver superior performance in high-frequency power systems. By leveraging advanced Trench Gate and Field-Stop (Trench-FS) IGBT technology, this module provides a superior balance of low on-state voltage and minimal switching energy, directly addressing the core challenge of efficiency in modern inverters. It is designed for engineers seeking to reduce thermal load and increase power density. Key specifications include: 1200V VCES | 200A IC | 1.75V typ. VCE(sat). This design delivers tangible benefits such as reduced system-level power loss and enhanced thermal stability. The Trench-FS structure fundamentally enables lower conduction and switching losses compared to previous IGBT generations, supporting more compact and efficient designs.

Driving Efficiency in High-Frequency Power Conversion

The LVH200G1201 is a strategic component for systems where energy efficiency and thermal management are primary design drivers. Its characteristics make it exceptionally well-suited for a range of demanding applications.

• Industrial Motor Drives: In variable frequency drives (VFDs), the module's low VCE(sat) and reduced switching losses (Eon/Eoff) contribute to significant energy savings and allow for smaller, more cost-effective heatsinks.
• Solar Inverters: The module’s high-speed switching capability is critical for maximizing the efficiency of DC/AC conversion in grid-tied solar power systems, enabling higher energy harvest over the system's lifetime.
• Uninterruptible Power Supplies (UPS): For commercial and data center UPS applications, the LVH200G1201 ensures high operational efficiency, which lowers cooling requirements and reduces the total cost of ownership (TCO).
• Welding Equipment: In high-frequency welding power supplies, the module's robust performance and fast, clean switching support precise energy delivery and reliable operation under demanding load cycles.

For motor drives operating above 10kHz, the LVH200G1201's low total switching energy makes it a superior choice over modules prioritizing only VCE(sat).

Meeting Tomorrow's Efficiency Mandates with Advanced IGBT Tech

The global push towards electrification and stricter energy efficiency standards places immense pressure on power system design. Regulations for industrial equipment and the quest for greater range in electric vehicles demand components that minimize every watt of wasted energy. The LSIS LVH200G1201 directly supports these strategic objectives. Its underlying Trench Gate Field-Stop technology is a key enabler for next-generation power converters that are not only more efficient but also more compact. By facilitating higher switching frequencies, this IGBT module allows designers to use smaller magnetic components, contributing to a reduction in the overall size, weight, and cost of the final system. This aligns with industry trends like industrial automation and distributed energy resources, where power density and efficiency are paramount for competitive advantage.

Inside the LVH200G1201: Trench Gate and Field-Stop Synergy

The performance of the LVH200G1201 is rooted in its advanced silicon design, specifically the combination of Trench Gate and Field-Stop (Trench-FS) structures. Understanding this synergy is key to appreciating the module's value. What is the key benefit of Trench Gate technology? It dramatically lowers VCE(sat) to reduce conduction power loss. Unlike older planar gate designs, the trench structure increases channel density, allowing more current to flow with less resistance when the device is on.

The Field-Stop (FS) layer, in turn, optimizes the device for switching. It allows for a much thinner N-drift region, which significantly reduces the turn-off energy loss (Eoff) – a dominant loss factor at higher frequencies. This combination provides a finely-tuned balance between low on-state voltage drop and rapid switching, a trade-off that is critical in power electronics. For a deeper understanding of how these core principles are detailed in product documentation, consulting a guide on decoding IGBT datasheets can provide valuable context.

Performance Metrics: A Focus on Low-Loss Operation

The following table highlights the key parameters of the LVH200G1201 that are central to its efficiency and thermal performance. These values, derived from the official datasheet, provide the data needed for robust system modeling and design validation. For complete specifications, please download the official datasheet.

The Collector-Emitter Saturation Voltage, or VCE(sat), acts like electrical friction when the IGBT is fully on. The LVH200G1201's low typical value of 1.75V at its rated current means less power is converted into waste heat during conduction, a crucial factor for overall system efficiency. This directly translates to lower heatsink requirements and improved reliability. For designs that must handle higher current levels, the CM300DY-24H provides a 300A alternative for evaluation.

Data-Informed Selection for High-Efficiency Inverters

As a distributor, our role is to empower your design decisions with factual data. The LVH200G1201 is one of many solutions available for 1200V applications. Its primary engineering advantage lies in the balance between conduction and switching losses, enabled by its Trench-FS technology. When evaluating this module, consider how its specific parameters align with your application's unique operational profile. For instance, in a system operating at a lower frequency but with long on-state durations, a module with an even lower VCE(sat) might be a consideration. Conversely, for very high-frequency applications, a module with the absolute lowest Ets (total switching energy) would be prioritized. The LVH200G1201 presents a well-rounded profile, making it a strong candidate for a wide array of mainstream industrial and renewable energy inverters. Analyzing potential points of failure is also a critical part of the design process; further reading on IGBT failure analysis can enhance system robustness.

Designing for Future Power Demands

Selecting a component like the LSIS LVH200G1201 is a forward-looking decision. The trajectory of power electronics is clear: towards higher power density, greater efficiency, and uncompromising reliability. Modules built on advanced platforms like Trench Gate Field-Stop technology are not just fulfilling current requirements; they are providing the foundation for next-generation systems. By integrating such components, engineering teams can develop products that meet increasingly stringent energy standards, offer a lower total cost of ownership, and deliver the performance necessary to compete in a rapidly evolving technological landscape. This positions your designs to stay ahead of the curve in markets from industrial automation to e-mobility and renewable energy.

Frequently Asked Questions (FAQ)

How do the Trench Gate and Field-Stop technologies in the LVH200G1201 contribute to lower overall system losses?
The Trench Gate structure creates a denser current path, significantly reducing the on-state voltage (VCE(sat)) and thus lowering conduction losses. The Field-Stop layer allows for a thinner silicon die, which drastically reduces the charge that needs to be removed during turn-off, thereby minimizing switching losses (Eoff). This dual-pronged approach reduces total energy loss, leading to higher efficiency and less waste heat.

My current IGBT is overheating at 15kHz. How can the switching characteristics of the LVH200G1201 help mitigate this?
Heat generation is a function of both conduction and switching losses. At 15kHz, switching losses become a very significant portion of the total thermal load. The LVH200G1201 is designed with low Eon (turn-on) and Eoff (turn-off) energy values. By replacing a module with higher switching losses, the LVH200G1201 can directly reduce the heat generated per switching cycle, potentially solving the overheating issue without needing to redesign your cooling system.

What is the specific benefit of the AlSiC baseplate mentioned in some datasheets for modules like this?
An Aluminum Silicon Carbide (AlSiC) baseplate offers a coefficient of thermal expansion (CTE) that is much closer to that of the ceramic substrates and silicon chips mounted on it. This excellent CTE match significantly reduces mechanical stress on solder joints during thermal cycling (powering on and off). The result is greatly enhanced reliability and a longer operational lifetime, especially in applications with frequent temperature swings.

What is the importance of the short-circuit withstand time (tsc) rating on an IGBT module?
The short-circuit withstand time is a critical safety and reliability metric. It defines the maximum duration the IGBT can survive a direct short-circuit condition before catastrophic failure. A rating of 10µs, as found in the LVH200G1201, gives the system's protection circuitry a sufficient window to detect the fault and safely shut down the gate drive, preventing module destruction and protecting the rest of the application.
