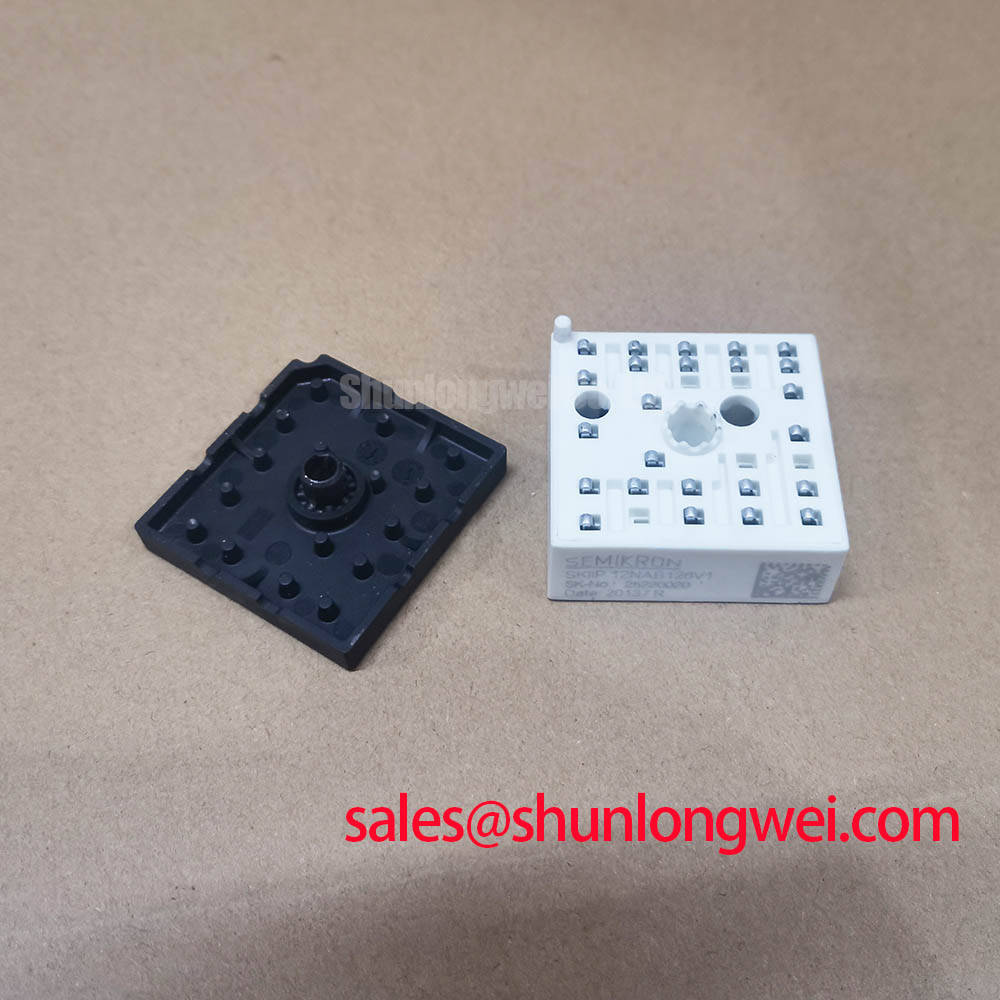

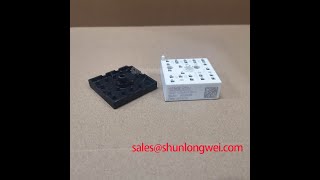

Semikron SKiiP 12NAB126V1 | Integrated Power Module for High-Reliability Motor Drives
The Semikron SKiiP 12NAB126V1 is an intelligent power module (IPM) engineered to deliver exceptional reliability and integration for demanding power conversion applications. As a member of the renowned SKiiP family, this module combines advanced IGBT and diode silicon with a sophisticated gate driver unit in a single, robust package. It is specifically designed for engineers seeking to simplify system design, reduce assembly time, and enhance the operational lifetime of motor drives, UPS systems, and other high-performance inverters.
- Fully Integrated CIB Topology: Features a Converter-Inverter-Brake (CIB) configuration, integrating a three-phase input rectifier, a three-phase output inverter, and a brake chopper. This significantly reduces external component count and simplifies PCB layout.
- Proven SKiiP 3 Technology: Utilizes Semikron's industry-leading solder-free pressure contact technology, which eliminates solder fatigue and ensures superior thermal performance and unparalleled power cycling capability.
- Intelligent Gate Drive & Protection: Comes equipped with an integrated gate driver featuring Hall-effect current sensors and a temperature sensor, providing robust, real-time protection against overcurrent, short-circuit, and over-temperature conditions.
- Optimized for Efficiency: Employs Trench Field-Stop IGBTs and CAL (Controlled Axial Lifetime) freewheeling diodes, which are optimized for low conduction and switching losses, directly contributing to higher system efficiency.
Key Technical Specifications
This table provides a high-level overview of the SKiiP 12NAB126V1's core electrical characteristics. For comprehensive design data, including detailed SOA curves and thermal models, please refer to the product documentation. A datasheet for a similar model in the SKiiP CIB family can be found here: Download SKiiP 13AC126V1 Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Nominal IGBT Current (ICnom) | 100 A |
| Typ. Saturation Voltage (VCE(sat)) | 1.7 V (@ ICnom, Tj=125°C) |
| Topology | CIB (Converter-Inverter-Brake) |
| Isolation Voltage (Visol) | 4000 V |
| Technology | SKiiP 3, Trench IGBT, CAL Diode |
Technical Deep Dive: The SKiiP Advantage
The SKiiP 12NAB126V1 is more than just a collection of components; it's a system-level solution. Its primary value lies in the seamless integration of Semikron's core technologies. The SKiiP® pressure contact technology is a critical differentiator. By eliminating baseplate solder layers, it creates a direct and highly reliable thermal path from the DBC substrate to the heatsink. This design not only improves heat dissipation but also drastically increases resilience to mechanical stress and thermal cycling—a common failure point in conventional soldered IGBT modules.
Furthermore, the integrated driver unit is the module's intelligence center. It's not just a driver; it's a comprehensive monitoring and protection system. The on-board current and temperature sensors provide closed-loop feedback, allowing the controller to make instantaneous adjustments and enabling protective shutdowns before a catastrophic event can occur. This level of integration simplifies the often-complex task of designing reliable gate drive and protection circuits, shortening the development cycle and boosting overall system safety.
Application Scenarios & Value Proposition
The unique features of the Semikron SKiiP 12NAB126V1 translate directly into tangible benefits across several key applications:
- Variable Frequency Drives (VFDs): The all-in-one CIB configuration is ideal for compact Variable Frequency Drives. A single module replaces the need for separate rectifier and inverter stages, saving space and assembly costs. The module's robustness is perfectly suited to handle the dynamic loads and harsh industrial environments where VFDs operate.
- Robotic and CNC Servo Drives: Precision motor control demands fast and accurate current feedback. The integrated Hall-effect sensors in the SKiiP 12NAB126V1 provide the high-quality signals necessary for precise torque control, enabling smoother and more accurate machine movements. For more details on this application, explore our guide on the role of IGBTs in robotic servo drives.
- Uninterruptible Power Supplies (UPS): In critical power applications, reliability is non-negotiable. The module’s advanced protection features and solder-free design provide the long-term dependability required to ensure continuous, clean power.
Engineer's FAQ for the SKiiP 12NAB126V1
How does the integrated driver handle fault conditions?
The intelligent gate driver continuously monitors key parameters. If a short-circuit or overcurrent event is detected by the current sensors, the driver immediately initiates a "soft-off" sequence to safely turn off the IGBTs, preventing destructive voltage spikes. Similarly, if the temperature sensor detects an over-temperature condition, it sends a fault signal to the system controller and can trigger a shutdown. This proactive approach is fundamental to preventing common IGBT failure modes.
What are the key considerations for heatsink mounting?
Given the pressure contact system, achieving proper and uniform mounting pressure is critical for optimal thermal performance. It is essential to use the specified mounting hardware and follow Semikron's torque guidelines precisely. A flat, clean heatsink surface is required, along with an appropriate thermal interface material (TIM) to ensure a low-resistance thermal path. Unlike soldered modules, this system provides a highly repeatable and reliable thermal interface when installed correctly.
