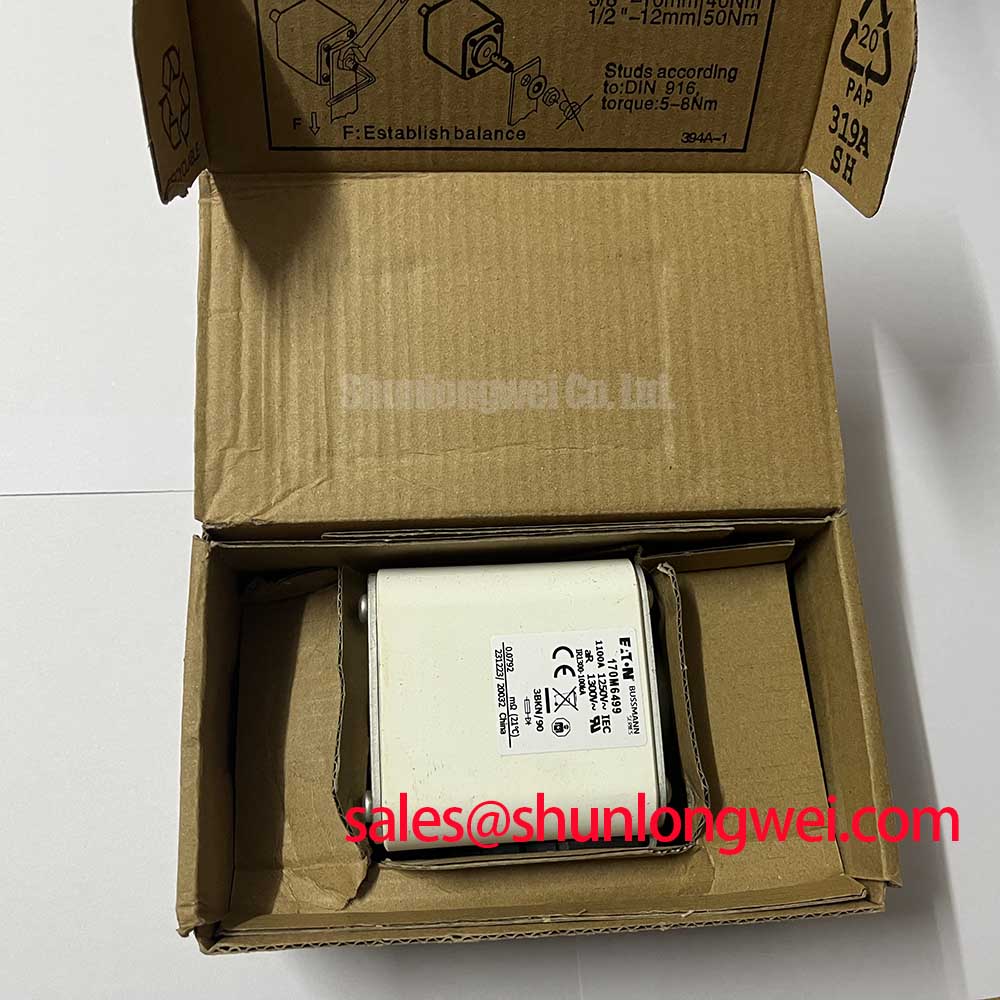

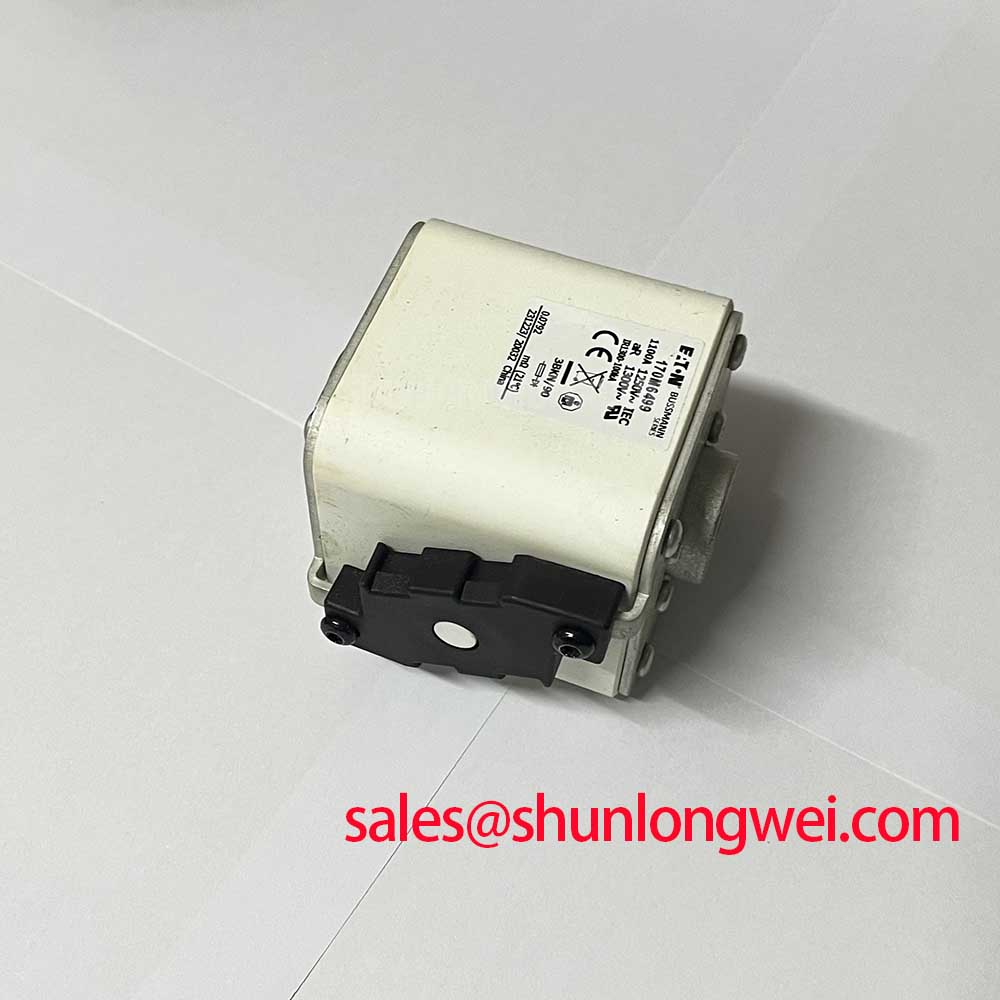

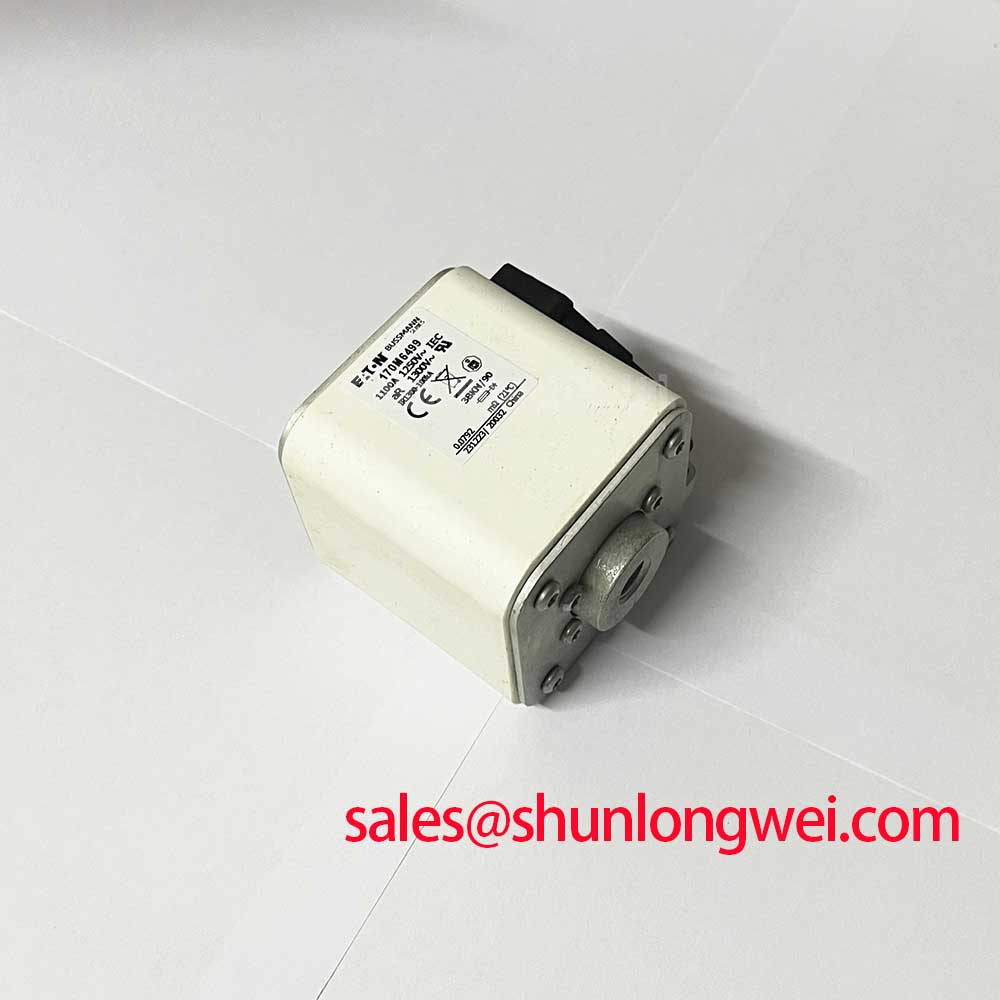

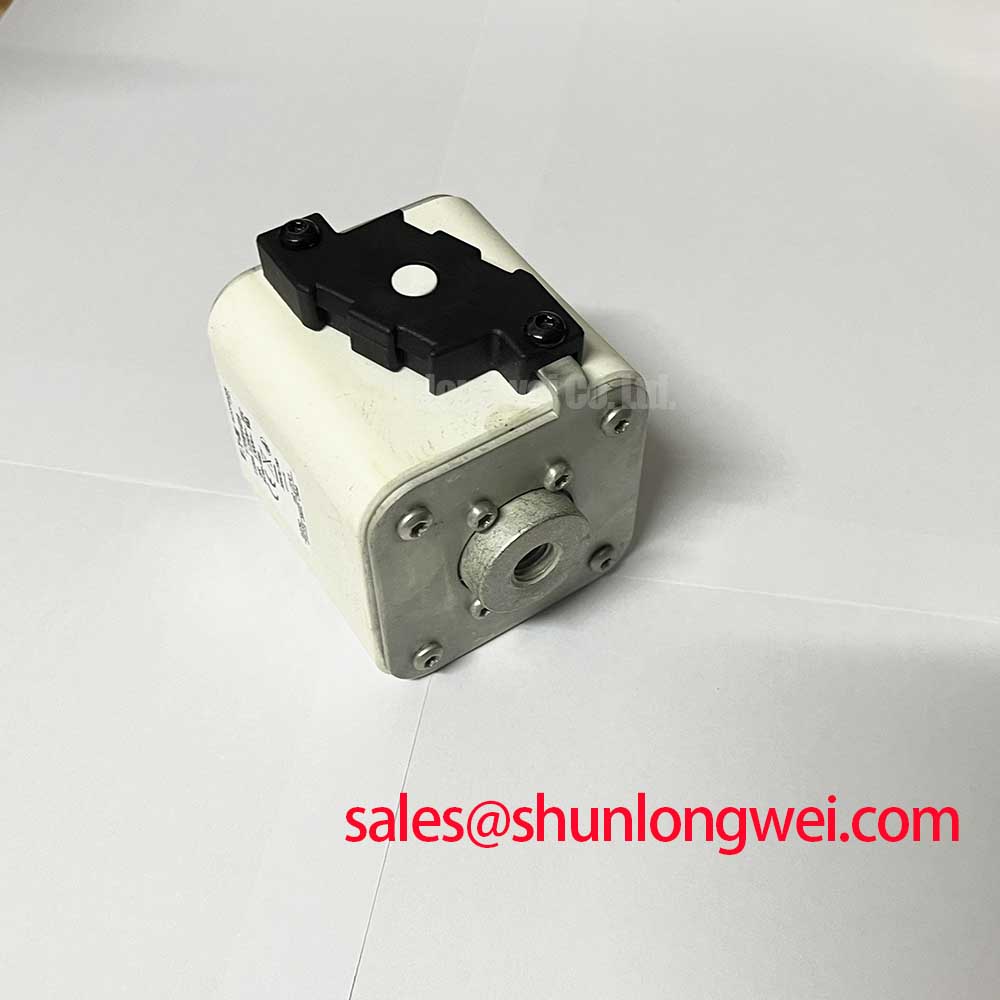

Eaton Bussmann 170M6499 Fuse | Ultra-Fast Semiconductor Protection
The Eaton Bussmann 170M6499 is not just a fuse; it's a critical safeguard engineered for the demanding world of modern power electronics. As a premier high-speed, square body fuse, it provides uncompromising protection for power semiconductors, including IGBT modules, diodes, and thyristors. Designed for global applications, this fuse is the first line of defense in high-power systems where reliability is non-negotiable.
- Brand: Eaton Bussmann
- Model: 170M6499
- Core Function: Ultra-fast short-circuit protection for power semiconductors.
- Key Advantage: Extremely low let-through energy (I²t) and high interrupting rating.
- Typical Applications: Inverters, Variable Frequency Drives (VFDs), DC common bus systems, power converters, and battery energy storage systems (BESS).
Engineered for Semiconductor Survivability
In high-power switching applications, a standard fuse is simply too slow. The Eaton Bussmann 170M6499 is built on a foundation of specialized technology designed to act in microseconds, preserving the integrity of your most valuable components.
Extremely Low I²t for Minimal Thermal Stress
The primary enemy of a semiconductor during a short-circuit event is thermal energy. The 170M6499 is characterized by its extremely low melting integral (I²t), which represents the amount of thermal energy the fuse allows to pass before interrupting the fault. By minimizing this value, the fuse ensures that the sensitive silicon junction of an IGBT or MOSFET remains well within its Safe Operating Area (SOA), preventing catastrophic failure and extending the operational life of the entire power stage.
Optimized Interrupting Rating and Low Arc Voltage
With a high DC interrupting rating, this fuse can safely clear faults even in high-energy DC circuits, such as those found in EV fast chargers and large-scale solar inverters. Equally important is its low arc voltage (Ua). During interruption, a high arc voltage can exceed the voltage rating of the protected semiconductor, causing insulation breakdown. The 170M6499 is engineered to keep this voltage low, protecting the system from secondary damage caused by the protection device itself.
Critical Protection Across High-Power Applications
The unique characteristics of the Eaton Bussmann 170M6499 make it indispensable in a variety of mission-critical systems. It doesn't just prevent failures; it enables higher performance and reliability.
- Motor and Servo Drives: In the event of a shoot-through fault in an inverter bridge, this fuse acts instantly to isolate the fault, protecting the expensive IGBT modules and preventing downtime in industrial automation and robotics.
- Uninterruptible Power Supply (UPS): For data centers and critical facilities, the 170M6499 provides essential short-circuit protection for the DC link and battery banks, safeguarding against cascading failures that could lead to a total loss of power.
- Renewable Energy Inverters: It offers robust protection for the power conversion stages in solar and wind turbine power conversion systems, ensuring long-term reliability and maximizing energy uptime in harsh environmental conditions.
- Welding & Induction Heating: In these high-current, cyclic applications, the fuse's durable construction and reliable performance protect power supplies from damage due to faults caused by workpiece shorts or load mismatches.
Key Technical Parameters
| Parameter | Value |
|---|---|
| Rated Current (AC) | 1000 A |
| Rated Voltage (AC) | 690 V |
| Rated Voltage (DC) | 600 V |
| Interrupting Rating | 200 kA (AC), 50 kA (DC) |
| Class of Operation | aR |
For complete performance curves and application data, please refer to the official 170M6499 Datasheet.
Frequently Asked Questions
- Why can't I use a standard circuit breaker to protect an IGBT?A standard circuit breaker has a reaction time measured in milliseconds and lets through a significant amount of fault energy (I²t). A high-speed fuse like the 170M6499 operates in microseconds with far lower let-through energy, which is essential to protect the fast-acting silicon of an IGBT from being destroyed.
- What does the "aR" class rating signify?The 'aR' class indicates a partial-range breaking capacity fuse designed specifically for short-circuit protection of semiconductors. It is not intended for overload protection, which should be handled by other means within the system design.
Choosing the right protection is an investment in your system's longevity and safety. The Eaton Bussmann 170M6499 provides the specialized, high-speed performance required by today's advanced power conversion equipment. If you are designing a high-reliability system or need to upgrade your circuit protection, contact our technical specialists to discuss how this fuse can safeguard your application.
