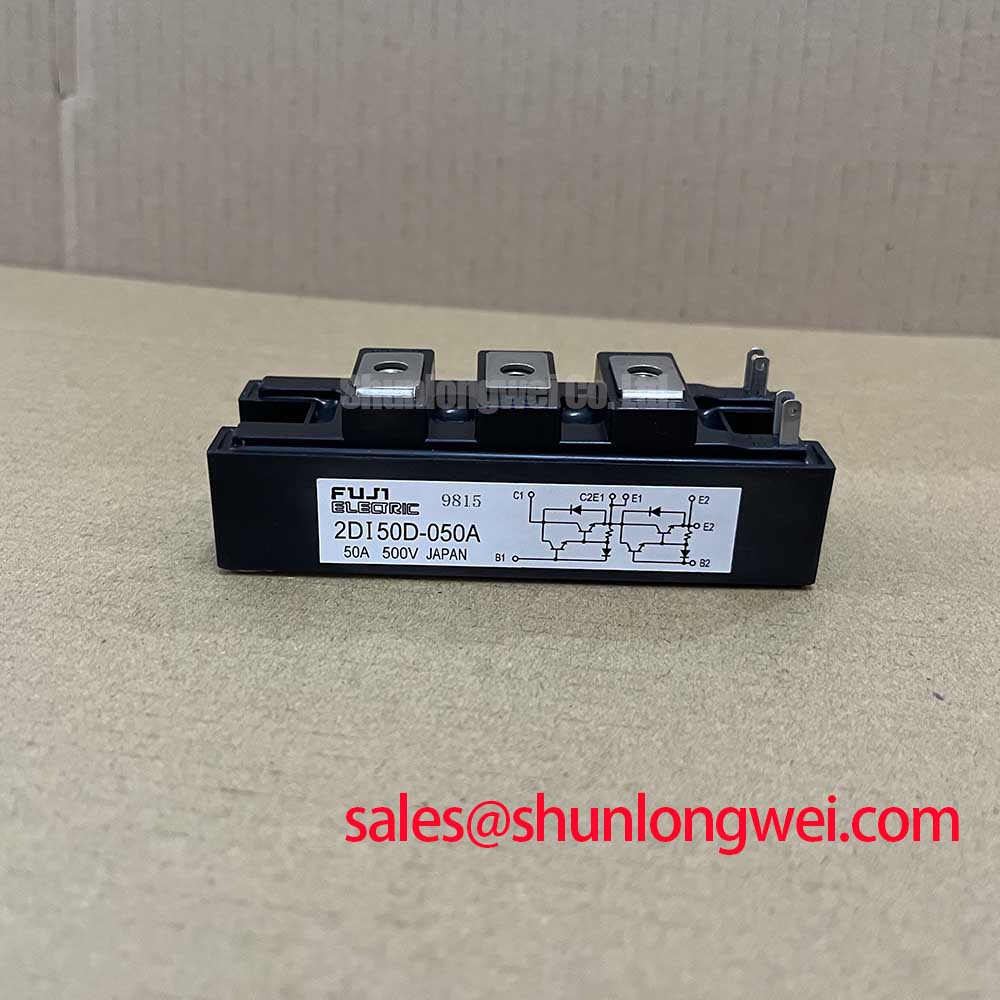

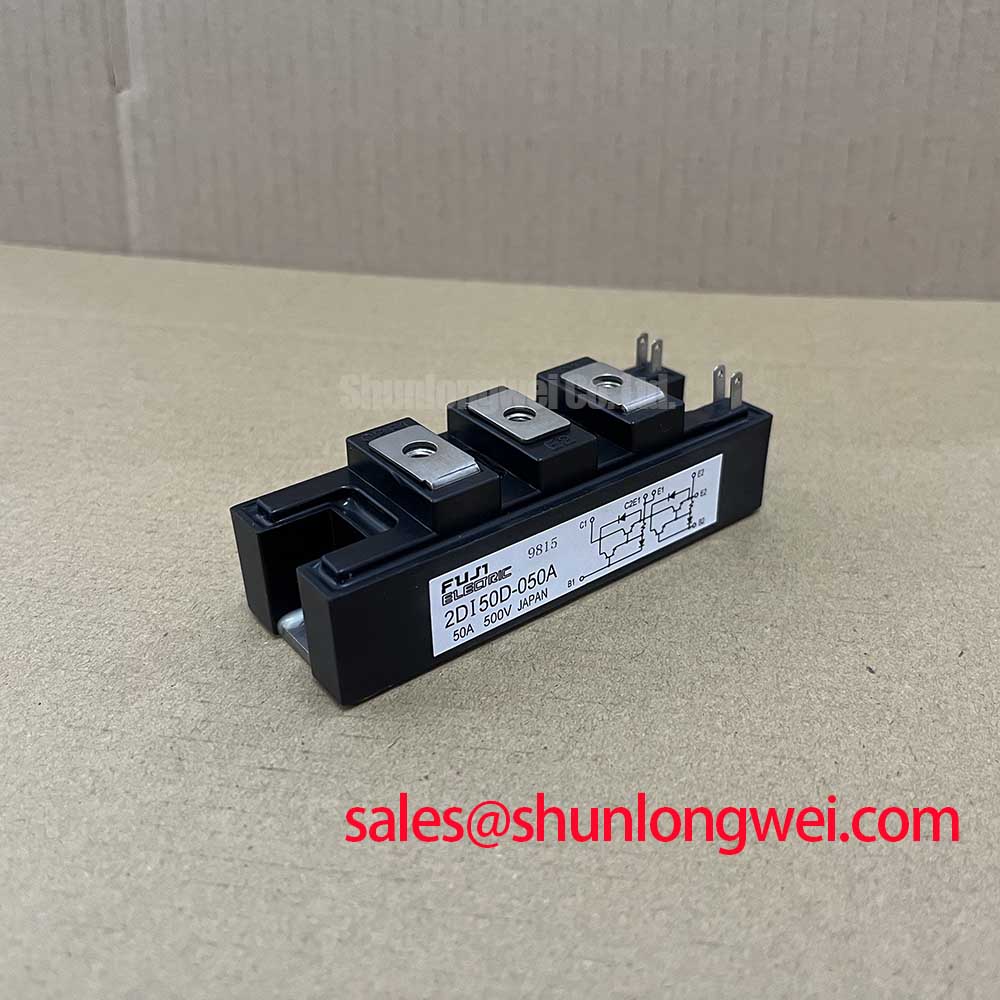

Fuji 2DI50D-050A | Robust Dual IGBT Module for High-Reliability Power Conversion
The Fuji Electric 2DI50D-050A is an established and highly reliable dual IGBT module engineered for efficient and robust power conversion. Housed in a standard, industry-recognized package, this 500V, 50A module serves as a workhorse component for a wide array of low- to medium-power industrial applications. Its design prioritizes durability and thermal stability, making it an exceptional choice for systems where long-term operational integrity, proven performance, and cost-effectiveness are paramount design goals.
Key Specifications at a Glance
For engineers requiring quick-reference data, the core performance characteristics of the 2DI50D-050A are summarized below. For a comprehensive breakdown, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 500 V |
| Continuous Collector Current (IC) | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ IC=50A | 2.7 V (Max) |
| Total Power Dissipation (PC) | 210 W |
| Diode Forward Voltage (VF) @ IF=50A | 2.5 V (Max) |
| Operating Junction Temperature (Tj) | -40 to +150 °C |
Engineering Deep Dive: Reliability and Thermal Design
The enduring relevance of the Fuji 2DI50D-050A lies in two key engineering principles: proven silicon technology and a thermally efficient package design. While not incorporating the very latest chipset generation, the module's IGBTs and free-wheeling diodes (FWDs) are built on a mature, well-characterized process from Fuji Electric. This provides engineers with highly predictable switching behavior and a robust Safe Operating Area (SOA), minimizing unexpected failures in the field. This predictability is invaluable in mission-critical systems.

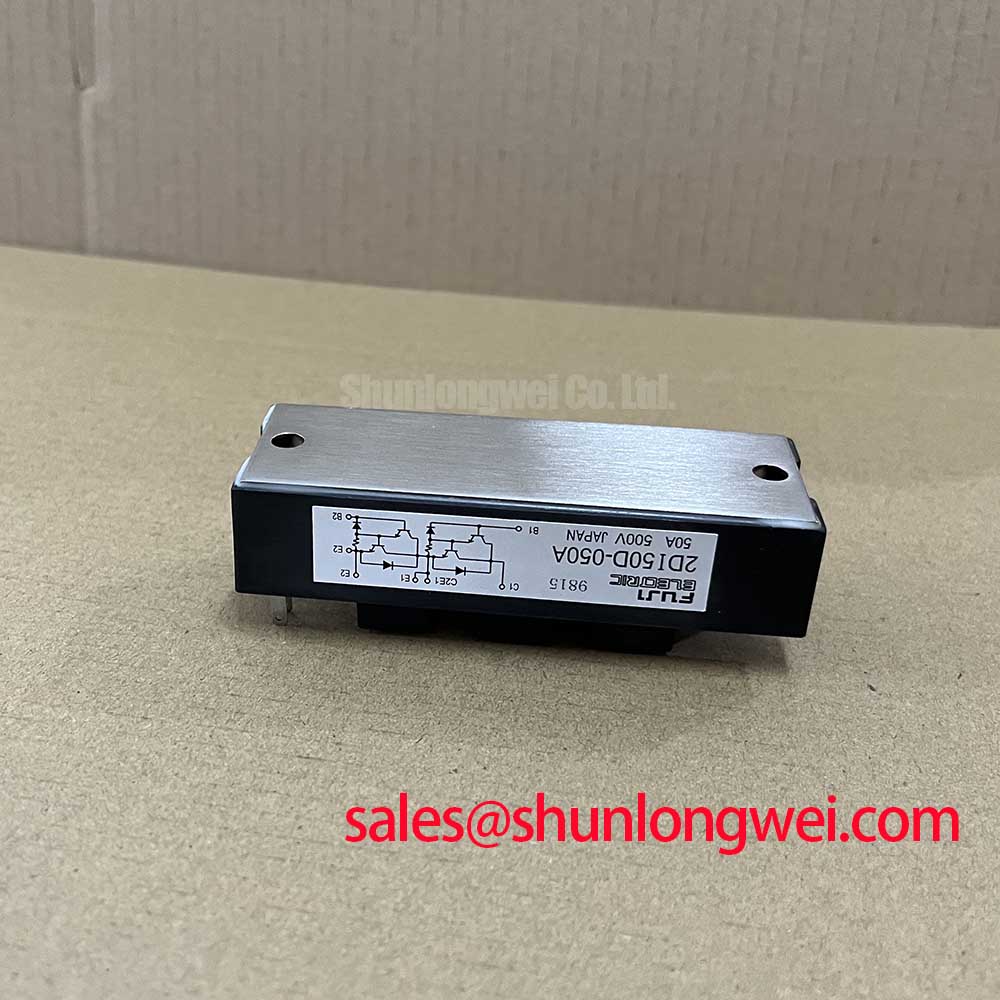

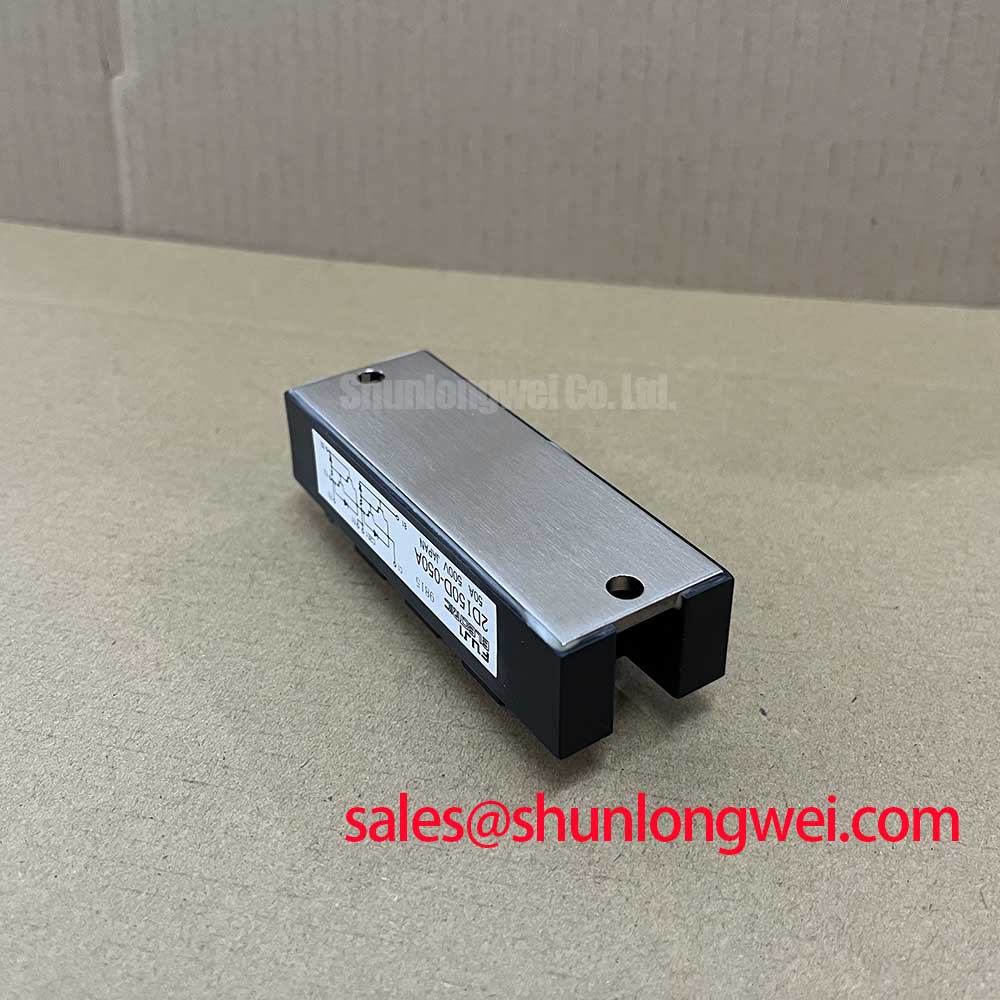

Furthermore, the module’s package features an isolated copper baseplate. This design choice directly addresses a critical aspect of power electronics: thermal performance. The isolation simplifies mechanical assembly by allowing multiple modules to be mounted on a common, non-isolated heatsink, reducing system complexity and cost. The copper baseplate ensures low Thermal Resistance (Rth(j-c)), facilitating efficient heat transfer from the IGBT junction to the heatsink, which is crucial for maintaining reliability under continuous load.
Core Application Focus
The balanced specifications of the 2DI50D-050A make it a versatile solution for several key power conversion tasks. Its value is most evident in the following applications:
- General-Purpose Inverters & Motor Drives: Its 50A rating is perfectly suited for controlling small to medium-sized AC motors. The integrated dual-switch (half-bridge) configuration simplifies the power stage design of a standard three-phase inverter.
- Welding Power Supplies: The module's robust silicon and excellent short-term thermal capacity allow it to withstand the demanding pulsed current loads characteristic of modern welding equipment, ensuring consistent performance and longevity.
- Uninterruptible Power Supplies (UPS): In UPS systems, reliability is non-negotiable. The 2DI50D-050A's proven design and stable thermal characteristics provide the dependable switching core needed to guarantee seamless power delivery during outages.
Frequently Asked Questions for Design Engineers
Our experts often field questions about implementing established IGBT modules like this one. Here are some common inquiries:
- Is the 2DI50D-050A suitable for high-frequency switching applications?
While robust, this module is optimized for lower to medium switching frequencies (typically under 20 kHz). Its VCE(sat) and switching characteristics are balanced for applications where conduction losses are a primary concern. For higher frequencies, designers should carefully analyze the trade-off with switching losses or consider newer-generation modules.
- What is the best practice for the gate drive circuit?
A standard gate drive circuit providing +15V for turn-on and -5V to -10V for turn-off is recommended. The negative gate voltage ensures a strong turn-off, preventing parasitic turn-on, especially in noisy environments common to motor drives and welders.
The Fuji 2DI50D-050A represents a strategic choice for engineers developing or maintaining systems where proven reliability, straightforward implementation, and supply chain stability are the primary drivers. It serves as a reminder that the optimal component is not always the newest, but the one best suited to the application's unique demands. For projects requiring this blend of performance and dependability, the 2DI50D-050A remains a first-class contender. For detailed application support or to discuss your specific design challenges, please contact our technical team.
