Fuji 2MBI300N-060 | Robust 600V/300A Dual IGBT for Demanding Power Conversion

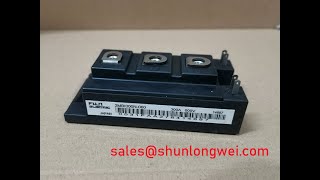

The Fuji Electric 2MBI300N-060 is a workhorse IGBT module engineered for durability and performance in high-stress power systems. As a dual (half-bridge) module rated for 600V and 300A, it provides a proven, high-reliability solution for designers of industrial inverters, drives, and power supplies. This module is built on a foundation of robust NPT technology, prioritizing a wide Safe Operating Area (SOA) and resilience against transient electrical conditions.
Technical Deep-Dive: Engineering for Reliability and Speed
While the market has trended towards ultra-low VCE(sat) technologies, the Fuji 2MBI300N-060 leverages the distinct advantages of its established Non-Punch-Through (NPT) IGBT chip technology. NPT designs are renowned for their inherent ruggedness. They possess a positive temperature coefficient for saturation voltage, which naturally balances current when paralleling modules, simplifying high-power array designs. This characteristic, combined with a robust Short Circuit Safe Operating Area (SCSOA), makes it exceptionally forgiving in harsh industrial environments where line voltage fluctuations and load faults are a reality. For a deeper understanding of the core architecture, explore our guide on the hybrid structure of IGBTs.
The module is optimized for "high-speed" operation, a design choice that represents a classic engineering trade-off. While its VCE(sat) is higher than the latest trench-gate field-stop generations, its switching losses (Eon and Eoff) are minimized. This makes the 2MBI300N-060 an ideal candidate for applications operating at higher frequencies (typically 10-20 kHz), such as high-frequency Welding Power Supply systems and uninterruptible power supplies, where reducing switching-related thermal load is more critical than minimizing conduction losses.
Key Parameter Overview
The following table outlines the critical electrical and thermal characteristics that define the performance of the Fuji 2MBI300N-060. These values are essential for system-level simulation, thermal design, and performance validation.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Continuous Collector Current (IC) at TC=80°C | 300A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typ. at IC=300A | 2.7V |
| Total Power Dissipation (PC) per IGBT | 1040W |
| Short-Circuit Withstand Time (tsc) | 10µs |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) per IGBT | 0.12 °C/W |
For complete specifications and characteristic curves, you can download the official Fuji 2MBI300N-060 datasheet.
Application Scenarios & Value Proposition
The specific characteristics of this IGBT module make it a superior choice in several key applications:
- Industrial Motor Drives: In Variable Frequency Drives (VFDs) and AC servo systems, the module's robust SOA and excellent short-circuit withstand capability provide the necessary protection against motor stalls and phase-to-ground faults, ensuring long-term operational reliability.
- Welding Power Supplies: The high-speed switching performance is critical for modern welding inverters. It allows for precise control of the welding arc, leading to cleaner welds and improved material compatibility, while managing the thermal challenges of high-frequency operation.
- Uninterruptible Power Supplies (UPS): The dual IGBT configuration is perfectly suited for the bi-directional converter stages in online UPS systems. The module's proven reliability ensures the UPS can handle demanding load transfers and battery charging/discharging cycles without failure.
Frequently Asked Questions (FAQ)
What are the optimal gate drive conditions for the 2MBI300N-060?
For optimal performance and to ensure full enhancement while preventing parasitic turn-on, a gate drive voltage of +15V for turn-on and a Negative Gate Voltage between -5V and -15V for turn-off is recommended. A negative bias is crucial in half-bridge configurations to counteract the Miller effect and prevent shoot-through during high dv/dt transitions.
How does the thermal performance of this NPT module impact heatsink selection?
Due to its VCE(sat) of 2.7V, conduction losses can be significant under full load. Effective thermal management is paramount. Engineers must carefully calculate the total power loss (conduction + switching) for their specific operating frequency and duty cycle. The low Rth(j-c) of 0.12 °C/W provides an efficient thermal path to the heatsink, but the heatsink itself must be adequately sized to dissipate the generated heat and maintain the junction temperature below its maximum rating of 150°C. For expert guidance on selecting the right module for your application, contact our technical team.
