Fuji 2MBI300U2B-060 IGBT Module

Fuji 2MBI300U2B-060: 600V Dual IGBT Module Analysis

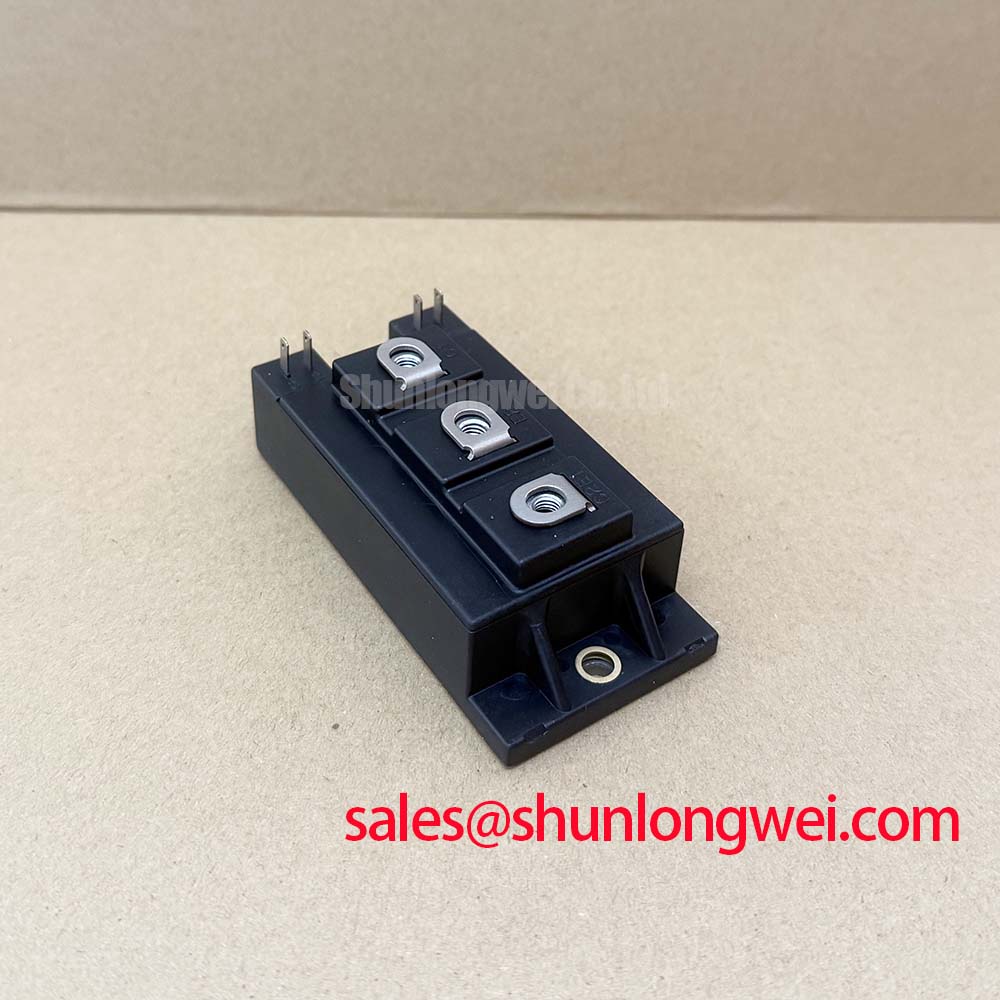

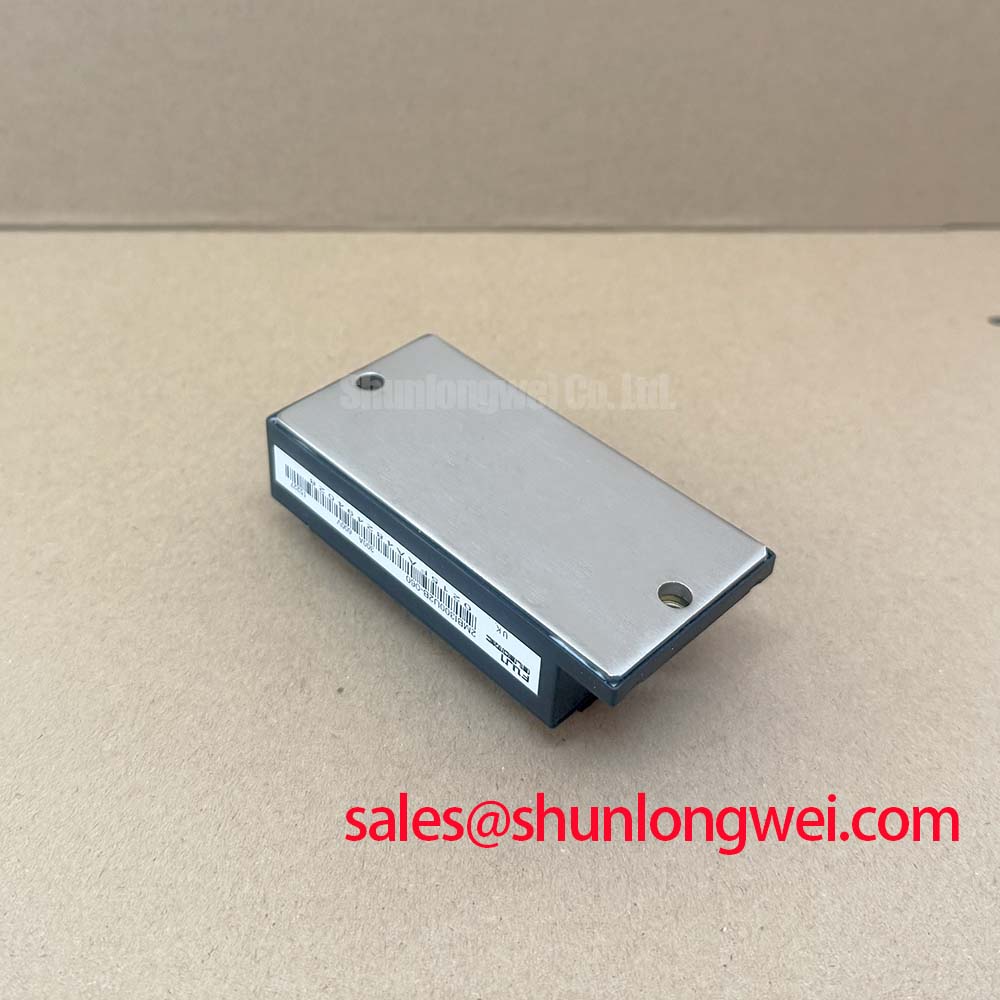

Engineered for high-frequency switching applications, the Fuji Electric 2MBI300U2B-060 IGBT module delivers a superior balance of conduction and switching losses. This 2-in-1 module integrates N-channel IGBTs with fast-recovery free-wheeling diodes (FWDs), providing a compact and efficient power switching solution. Key specifications include: 600V | 300A | VCE(sat) 2.2V max. Its design prioritizes low switching loss and minimal parasitic inductance. For engineers designing motor drives or power converters, this means achieving higher operational efficiency is more straightforward, as the module’s inherent low-loss characteristics reduce the thermal management burden.

The 2MBI300U2B-060 is a dual IGBT module designed for high-power switching applications. It integrates two N-channel IGBTs in a half-bridge configuration, each paired with an optimized free-wheeling diode. This component is particularly suited for systems that demand both high current handling and efficient operation at elevated switching frequencies. Its standard package facilitates straightforward integration into various power electronic designs.

Success in the Field: Deployment Highlights

While specific customer deployments are proprietary, modules with the performance profile of the 2MBI300U2B-060 are frequently specified in mid-power industrial systems. They are often found at the core of variable frequency drives (VFDs) for AC motors up to 75 kW, where the low VCE(sat) directly contributes to improved drive efficiency ratings. In uninterruptible power supplies (UPS), their fast switching capability allows for smaller magnetic components, leading to more compact and cost-effective overall system designs. For high-frequency industrial applications, the module's robust thermal performance is the primary enabler. For induction heating systems requiring precise power control, the 2MBI300U2B-060's low switching loss characteristics are the optimal choice over less efficient alternatives.

Frequently Asked Questions (FAQ)

• What is the primary benefit of the integrated Free-Wheeling Diode (FWD) in the 2MBI300U2B-060?The integrated FWD is specifically selected to match the IGBT's switching characteristics. Its fast and soft recovery behavior minimizes reverse recovery losses and reduces voltage spikes, which is critical for protecting the IGBT and improving overall system reliability and EMI performance.
• How does the VCE(sat) of 2.2V impact thermal design?A lower collector-emitter saturation voltage, VCE(sat), directly reduces the power lost as heat during the IGBT's on-state (conduction loss). With a maximum VCE(sat) of 2.2V at its rated current, the 2MBI300U2B-060 simplifies thermal management, potentially allowing for smaller heatsinks or reduced cooling requirements compared to devices with higher saturation voltages. This is a crucial factor in designing power-dense converters. For further reading, explore this guide on decoding IGBT datasheets.

Application Scenarios Where Efficiency is Key

The technical attributes of the 2MBI300U2B-060 make it a strong candidate for a range of demanding power conversion applications. Its architecture is optimized for performance in systems where minimizing power dissipation is a primary design goal.

• Industrial Motor Drives: In Variable Frequency Drives (VFDs) and Servo Drives, the module's low conduction and switching losses lead to higher overall efficiency. This helps motor control systems meet stringent energy efficiency standards and reduces operating costs over the system's lifetime.
• Uninterruptible Power Supplies (UPS): The fast switching performance enables the design of high-frequency UPS inverters, which allows for the use of smaller and lighter inductors and capacitors, resulting in a higher power density and a more compact system footprint.
• Welding Power Supplies: The module's ability to handle high pulse currents and switch efficiently makes it suitable for modern inverter-based welding equipment, providing precise control over the welding arc and improving energy efficiency.
• High-Frequency Power Converters: For applications such as induction heating and solar power inverters, the balanced switching characteristics ensure minimal energy loss during the rapid on/off transitions, maximizing the power delivered to the load.

Key Parameters Overview

The performance of the 2MBI300U2B-060 is defined by its core electrical and thermal characteristics. The following tables provide a summary based on the official datasheet. For complete details, designers should consult the manufacturer's documentation.

Electrical Characteristics (at Tj = 25°C unless otherwise noted)

Thermal Characteristics

For detailed specifications and operational curves, please refer to the official 2MBI300U2B-060 datasheet.

Strategic Advantages in an Energy-Conscious Market

In today's industrial landscape, efficiency is not just a performance metric; it is a strategic necessity. Regulations governing motor efficiency and overall energy consumption are becoming increasingly strict. Power modules like the 2MBI300U2B-060 provide a direct path for designers to meet and exceed these requirements. The benefit of its low-loss design extends beyond simple energy savings. What is the impact of higher efficiency on system design? It results in lower waste heat, which alleviates thermal management challenges. This can be visualized as a less constricted pipeline for heat to escape; a lower Thermal Resistance value means heat can be extracted more effectively from the semiconductor junction. This, in turn, enhances the long-term reliability of the entire power converter, as components are subjected to less thermal stress. This focus on efficiency and reliability makes it a vital component for future-proof industrial automation and power systems. For those seeking higher current ratings, the related 2MBI400U2B-060 offers a similar architecture with a 400A capacity.

A Concluding Perspective for System Designers

The Fuji Electric 2MBI300U2B-060 is a robust and efficient power switching component designed for modern industrial applications. Its blend of high current capability, low conduction and switching losses, and integrated protection features provides engineers with a reliable building block for developing high-performance power converters. When your design requires a dependable half-bridge stage for motor control, UPS, or welding systems, this module presents a technically sound and well-documented option. To delve deeper into the fundamental technologies, consider exploring resources on the in-depth analysis of IGBT modules.
