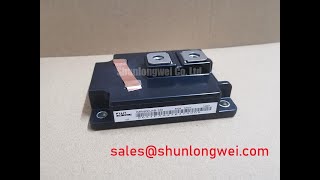

Fuji Electric 1MBI800U4B-120 | The Definitive 800A Workhorse for High-Power Conversion
The Fuji Electric 1MBI800U4B-120 is not just a component; it's a cornerstone for high-power industrial applications. As a single IGBT module from Fuji's established U4-Series, this device is engineered for brute-force reliability and exceptional current handling. It provides system designers with the raw power switching capability needed for the most demanding inverters and power supplies, where performance cannot be compromised.
- Massive Current Handling: With a continuous collector current (Ic) rating of 800A, this module is built to manage substantial power loads, making it ideal for large-scale applications.
- High Voltage Blocking Capability: A collector-emitter voltage (Vces) of 1200V provides the necessary design margin and safety for high-voltage industrial systems.
- Optimized for Low-Frequency Power: Featuring a low saturation voltage (Vce(sat)), this module excels in applications where conduction losses are the primary concern, such as motor drives and UPS systems operating at lower switching frequencies.
- Robust and Reliable Packaging: Housed in a standard high-power package, it is designed for straightforward mounting and effective thermal dissipation.
Technical Deep Dive: Engineering for Power and Endurance
At the 800A level, the engineering focus shifts from pure switching speed to thermal stability and conduction efficiency. The Fuji 1MBI800U4B-120 demonstrates mastery in these critical areas.
The core of its performance lies in the U4-Series silicon, which is specifically optimized for low VCE(sat). In high-current applications, conduction losses (P_cond = Vce(sat) * Ic) are a significant source of heat. By minimizing Vce(sat), this module directly reduces the power wasted as heat, which not only improves overall system efficiency but also lessens the burden on the cooling system. This focus on conduction performance makes it a standout choice for applications characterized by long on-state periods.
Furthermore, managing the heat generated by an 800A device is a critical engineering challenge. The module's construction features a low thermal resistance (Rth(j-c)), ensuring an efficient pathway for heat to travel from the silicon die to the heatsink. This superior thermal management is fundamental to the module's reliability, preventing overheating and extending its operational lifespan under sustained heavy loads.
Key Parameter Overview
Engineers require precise data for design and simulation. The following table highlights the critical performance specifications of the Fuji 1MBI800U4B-120. For a complete list of parameters, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Max. Collector-Emitter Voltage (V_CES) | 1200V |
| Continuous Collector Current (I_C) @ Tc=80°C | 800A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) (Typ. @ Ic=800A) | 2.1V |
| Max. Power Dissipation (P_C) @ Tc=25°C | 4800W |
| Max. Junction Temperature (T_j(max)) | 150°C |
For comprehensive electrical and thermal characteristics, download the 1MBI800U4B-120 datasheet.
Application Scenarios & Value Proposition
The Fuji 1MBI800U4B-120 is purpose-built for applications where high current and robustness are non-negotiable.
- High-Power Motor Drives: For industrial motors in the 250kW to 500kW range, this module provides the necessary current capacity to handle demanding start-up torque and dynamic loads. Its efficiency minimizes heat in the power cabinet, a critical factor in large-scale inverter ACs.
- Utility-Scale Solar & Wind Inverters: In renewable energy systems, converting DC power to grid-ready AC requires components that can handle immense currents reliably. This module serves as a powerful building block in central inverters, ensuring maximum power throughput and grid stability.
- Industrial Welding and Heating: Applications like high-frequency induction heating and industrial welding power supplies demand sustained, high-current operation. The module's robust thermal design and wide Safe Operating Area (SOA) make it a resilient choice for these punishing environments.
Frequently Asked Questions (FAQ)
1. What are the key considerations for the gate drive design for this module?
Given the high current being switched, a robust gate drive is essential. We recommend a drive capable of supplying high peak currents to quickly charge and discharge the gate capacitance. Using a negative gate voltage (e.g., -15V) during the off-state is strongly advised to prevent dv/dt-induced parasitic turn-on, a common risk in high-power bridge topologies. For more guidance, explore these practical tips for robust IGBT gate drive design.
2. Can the 1MBI800U4B-120 be paralleled for higher power output?
Yes, paralleling is a common strategy for scaling power. The Fuji Electric V-Series IGBT technology, which the U4-series is part of, exhibits a positive temperature coefficient for Vce(sat), which aids in thermal balancing between paralleled modules. However, successful paralleling requires meticulous attention to symmetrical PCB layout, matched gate drive paths, and balanced thermal sharing to ensure current is distributed evenly.
For detailed application support or to discuss your project's specific requirements, please contact our technical team.
