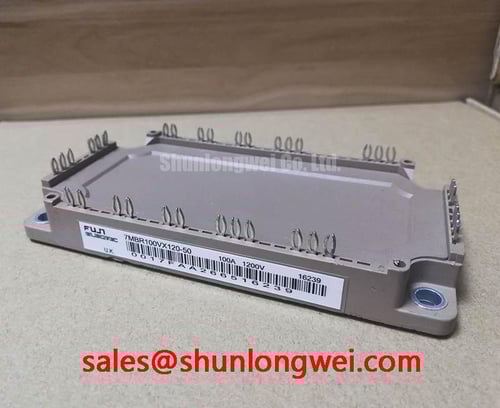

Field Diagnostics & Commissioning: Multi-Module Parallel Current Sharing in 7MBR100VX120-50 Topologies
| Manufacturer | Fuji Electric |
|---|---|
| Model | 7MBR100VX120-50 |
| Product category | PIM Power Module |
| Rated voltage | 1200.0 V Official Datasheet Specification |
| Rated collector current | 100.0 A under the specified conditions |
| Package | Fuji Power Module |
Measure the collector-emitter voltage, gate-emitter voltage, and phase current of each parallel path under the same operating condition before changing the module or gate-driver settings. A difference between modules should be recorded against load current, switching temperature, gate timing, and wiring symmetry rather than assigned to a single failed device.
The 7MBR100VX120-50 has a specified 1200.0 V voltage rating and 100.0 A rated collector current under the specified conditions, with a Fuji Power Module package. These are the principal product-level electrical and mechanical facts available for component selection. They do not, by themselves, define the allowable current for a complete parallel inverter leg. The system designer must evaluate switching frequency, cooling conditions, gate-drive capability, commutation behavior, protection response, and the electrical ratings of every connected part.
As a Design Consideration, parallel IGBT paths can obtain useful steady-state sharing when their conduction characteristics and thermal conditions remain reasonably matched. The positive temperature behavior often associated with IGBT conduction can support static balancing, but dynamic current sharing is strongly affected by gate-loop inductance, driver propagation delay, emitter reference movement, and the commutation layout. Treat the observed waveform as the controlling evidence. Compare each gate-emitter waveform at the module terminals, not only at the driver output connector.
Route parallel gate and return conductors with comparable length, coupling, and impedance. Avoid allowing one module’s power loop to pass close to another module’s gate loop, because common-mode voltage can appear as false gate movement. A negative turn-off bias may be considered where the selected driver and the complete isolation architecture support it, but its voltage, transient behavior, and absolute gate-emitter limits must be taken from the applicable device documentation and verified during switching tests.
For a forklift traction inverter or electric material-handling drive, inspect current sharing during acceleration, regenerative braking, and low-speed high-torque operation. A current imbalance visible only during acceleration can point toward dynamic gate-loop or busbar asymmetry, while an imbalance that follows heatsink temperature may indicate unequal thermal contact or different thermal resistance. These observations guide the next measurement; they are not a substitute for a controlled comparison of the complete phase leg.
When a replacement decision requires a lower-current comparison, the neutral reference 7MBR35VP120-50 can be reviewed as a separate device family. It should not be treated as a drop-in substitute without checking voltage, current, gate characteristics, package geometry, terminal arrangement, thermal interface, and protection coordination.
During commissioning, use an isolated differential probe for the switching node and a suitable current probe for each parallel branch. Verify that the measured collector-emitter peak remains inside the system’s validated voltage margin and that gate-emitter transients remain within the applicable device limits. If the waveforms diverge only when the motor cable is connected, inspect the motor-side network before adjusting gate resistance.

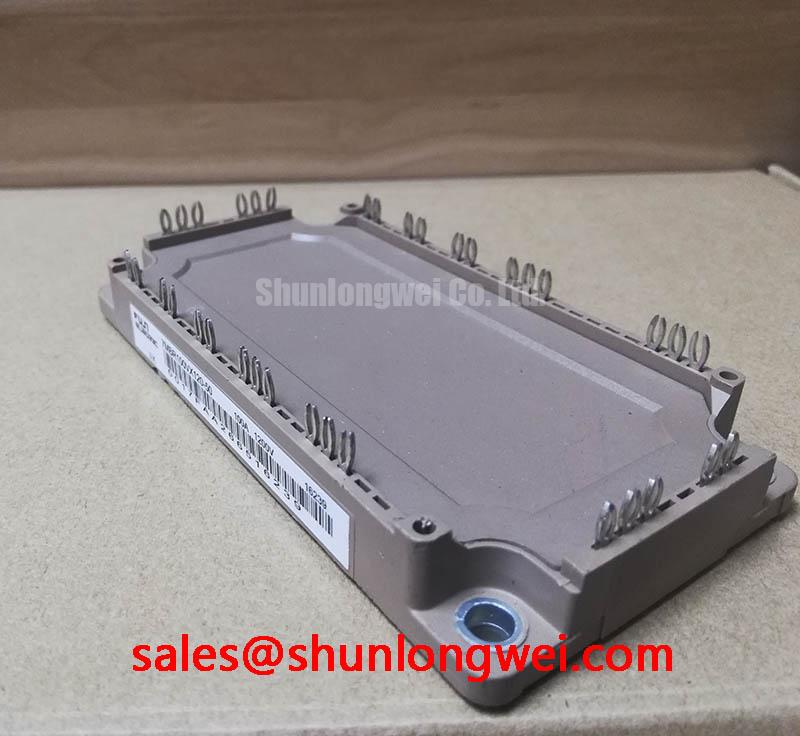

Preventing Spurious Faults: Optimizing Heatsink Contact Pressure for 7MBR100VX120-50
Check the heatsink flatness, thermal interface coverage, mounting sequence, and terminal condition immediately when fault behavior follows a service intervention or temperature rise. A dry interface, trapped air, uneven pressure, or a shifted baseplate can create local thermal stress that appears electrically as unstable current or intermittent protection activation.
The thermal interface material is a system-level installation item, not an official specification for this product page. As a Design Consideration, apply only the interface thickness and material defined by the equipment manufacturer or the approved assembly process, then control coverage and void formation during installation. Do not compensate for a warped heatsink by excessive fastener force. The correct mounting method must follow the relevant Fuji Electric mechanical documentation and the equipment’s approved torque procedure.
Use a sequential tightening pattern so that the module seats evenly against the heatsink. Confirm that washers, insulating pieces, and mounting hardware are in their intended positions, and check that the power terminals are not carrying mechanical stress from rigid busbars. After assembly, inspect the interface and repeat the thermal test at the same load used for the pre-service baseline.
Maintenance Note: Clean the heatsink and verify contact temperature and airflow during scheduled maintenance, especially where dust, restricted ventilation, or condensation can alter thermal performance.
Parasitic busbar inductance should be minimized as a Design Consideration to reduce turn-off overshoot, but a fixed inductance target cannot be assigned to this module without the complete switching loop, DC-link arrangement, current waveform, and measurement method. Keep the commutation loop compact, use a controlled laminated or closely coupled bus structure where appropriate, and place the film capacitor according to the actual high-current loop rather than simply mounting it near the inverter cabinet.
A snubber or film capacitor can reduce transient stress when its impedance and physical position match the switching path. Its value, voltage rating, pulse-current capability, and damping behavior must be selected from measured waveforms and system calculations. Verify the result with a short ground spring or suitable differential measurement arrangement; long probe leads can introduce ringing that is not present at the module terminals.
Gate-loop noise also deserves attention after mechanical work. Check the gate return connection, isolated driver supply behavior, and common-mode displacement while the power stage switches. If a protection input responds without a corresponding abnormal power waveform, compare the driver-side signal with the module-terminal signal and inspect shielding, reference routing, and cable separation. The Wide Bandgap Revolution technical resource provides broader context on fast-switching layout and transient-control challenges, although its discussion should not be read as a product-specific rating for this Fuji Electric module.
7MBR100VX120-50 Circuit Protection & Reliability: Calibrating SCSOA Overcurrent Protection
Capture the gate signal, collector-emitter voltage, and phase current at the instant of an overcurrent event, then compare the protection delay with the switching waveform and the device documentation. Do not infer short-circuit withstand time from the 1200.0 V voltage rating or the 100.0 A current rating; those figures do not define a short-circuit operating-area limit.
Desaturation or collector-emitter monitoring may be used as part of a protection system when its blanking time, threshold, filtering, and response are coordinated with the selected IGBT and driver. Protection timing must be established from the applicable device documentation and verified in the actual system. The protection designer must obtain the applicable short-circuit safe operating information and validate it with the actual gate driver, DC-link voltage, stray inductance, and load.
A two-stage soft turn-off strategy can be considered when an abrupt gate transition would generate excessive inductive overvoltage. The first stage limits the current transition, while the second stage completes turn-off under controlled conditions. The resistor values, timing, gate bias, and fault-state behavior are system-determined. Validate the collector-emitter peak during a controlled short-circuit or protection test using an approved laboratory procedure rather than relying on a calculated value alone.
Coordinate the semiconductor protection with the upstream fuse and DC-link discharge path. A fast fuse’s I²t characteristic must be compared with the complete fault-current path, cable impedance, capacitor energy, and semiconductor short-circuit response. Fuse coordination is not established by the module’s nominal current rating. A fuse that protects the bus under one fault condition may not limit the first current pulse quickly enough for another topology.
For an electric forklift traction controller, separate genuine load overcurrent from a driver or sensing fault by checking the phase-current sensors, isolation supply, desaturation diode path, and gate-emitter reference. A dead short, a motor cable fault, a saturated current transformer, and common-mode ground bounce can produce related protection symptoms. Record the fault sequence and the gate-driver state before resetting the controller.
High-voltage spacing around the main terminals must be designed from the working voltage, transient environment, pollution degree, material group, altitude, and applicable insulation standard. Do not assign a universal creepage or clearance value to this module without those conditions. Keep conductive debris and moisture away from the power terminal region, and verify the enclosure against condensation during cold starts and warehouse-to-outdoor temperature changes.
Fuji Electric’s information on PIM power integrated modules and its wider power semiconductor and IPM module range can help engineers place this product within the manufacturer’s broader module portfolio. Product-specific gate, protection, isolation, and short-circuit values still require the applicable technical documentation for the exact ordering code.
Benchtop Waveform Tuning: Mitigating Stress via Long Motor Lead Reflected Wave Voltage on 7MBR100VX120-50
Probe the inverter output at the module terminals and again at the motor terminals when a long cable, motor replacement, or unexplained overvoltage appears in the test setup. The difference between those locations reveals whether cable propagation and impedance mismatch are contributing to the observed ringing.
Long motor leads can behave as distributed transmission structures at fast switching edges. Reflections may increase the voltage seen at the motor terminals, but the magnitude depends on cable construction, termination, motor impedance, switching edge rate, common-mode path, and measurement bandwidth. A fixed claim that the terminal voltage will reach twice the DC-link voltage is not an official rating or a universal design result for this module.
When evaluating the 7MBR100VX120-50 in a traction inverter, begin with the shortest practical motor connection and a controlled DC-link condition. Add the intended cable length only after confirming clean baseline waveforms. Measure positive and negative overshoot, ringing frequency, repetition rate, and common-mode current. Compare the peaks with the system insulation and semiconductor voltage margins while keeping the probe connection physically short.
An output dv/dt filter, motor choke, ferrite component, or damping network may be evaluated when the cable-induced waveform exceeds the validated system margin. Select the component from measured current, fundamental frequency, switching spectrum, thermal loss, motor insulation requirements, and control-loop response. The filter should be checked for resonance with the motor cable and DC-link network; adding impedance without damping can move the problem to another frequency.
Common-mode ground-bounce noise can disturb gate monitoring, current sensing, and encoder communication. Keep high-current return paths separate from sensitive control references, provide a defined chassis bonding strategy, and verify shield termination at the equipment level. A negative gate-off bias can be considered only after confirming driver isolation, gate-emitter limits, turn-off transient behavior, and the system’s fault-state requirements.
Phase-controlled rectifiers and thyristor front ends require their own evaluation of firing angle, line current distortion, gate trigger current, gate trigger voltage, pulse-train strength, and commutation conditions. Those characteristics should not be attributed to the IGBT module unless the exact product documentation explicitly identifies such functions. Where the front end uses a separate rectifier stage, the 7MBR75U4B120 may be reviewed as a related device for topology analysis, subject to independent ratings and terminal verification.
After applying a cable filter or choke, repeat the acceleration and regenerative-braking tests while monitoring module temperature, motor current, DC-link ripple, and gate-driver fault records. Confirm that the modification has not reduced control bandwidth, increased switching loss, or created a new resonance. The final acceptance decision belongs to the complete traction system, with the module operated inside its verified electrical, thermal, insulation, and protection boundaries.
