AA043MA01: Engineering a 4.3-inch WQVGA Display for Extreme Environmental Reliability
Content last revised on October 9, 2025.

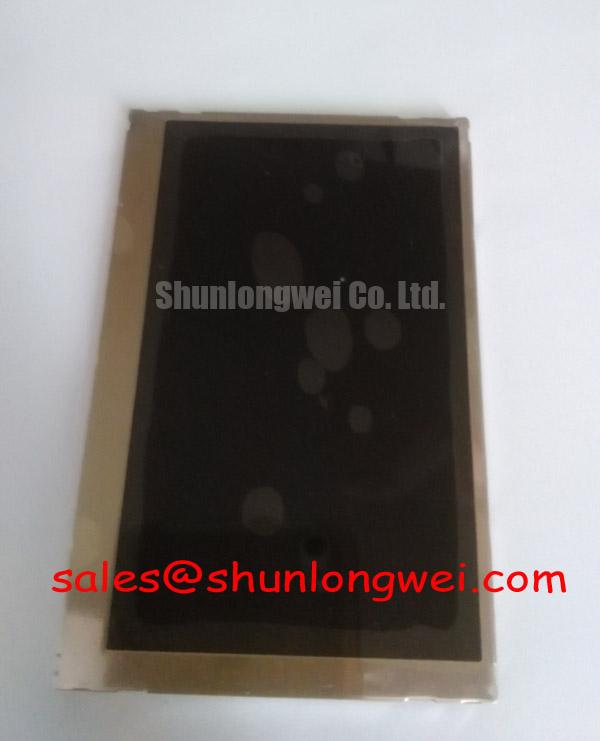

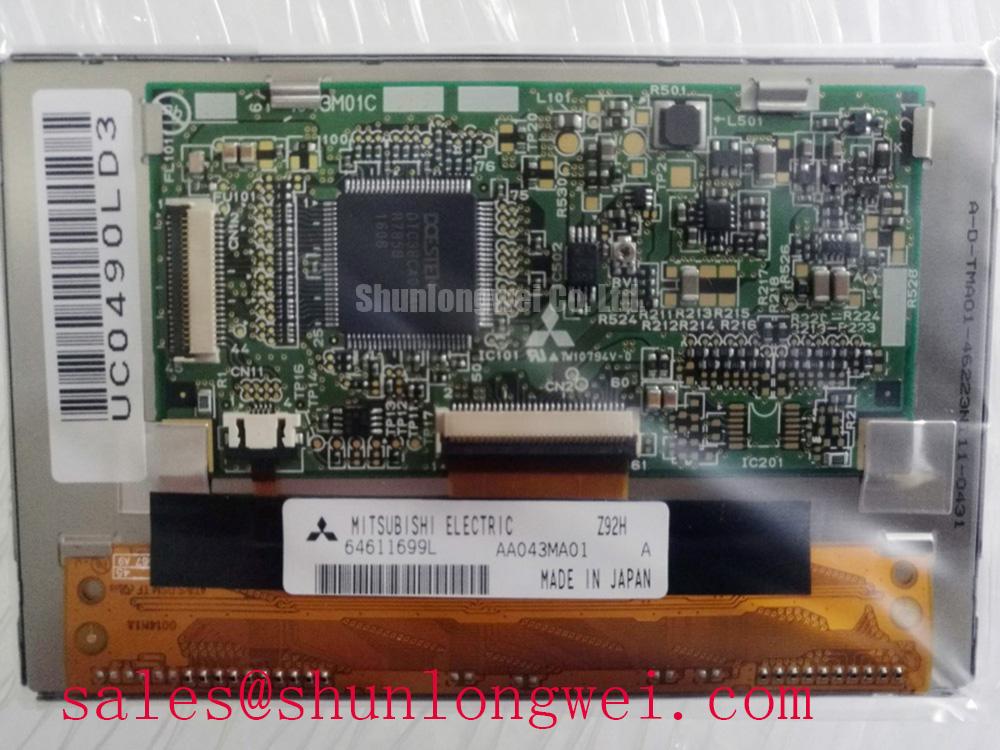

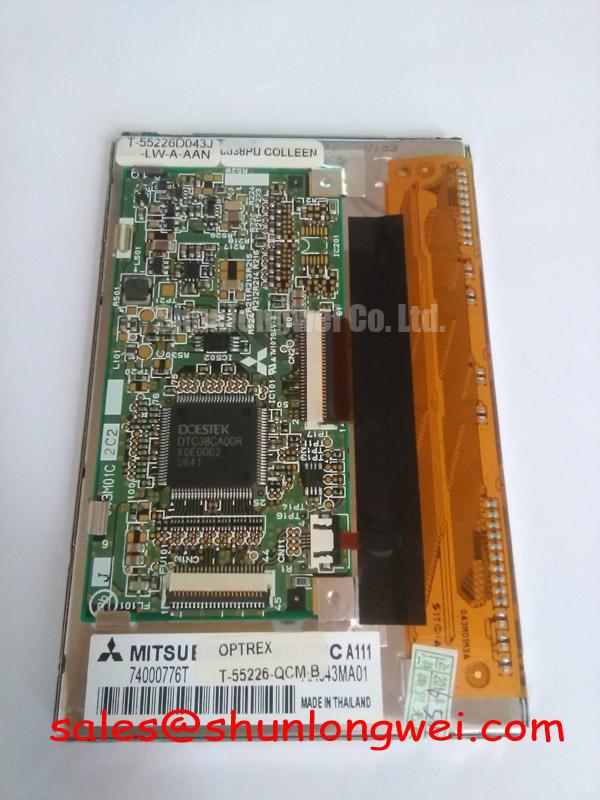

The Mitsubishi AA043MA01 is a 4.3-inch WQVGA display engineered for exceptional performance and reliability in extreme temperatures and high ambient light conditions. This module integrates key features to deliver optical clarity and operational durability where standard displays would falter. With core specifications of 480x272 WQVGA | 700 cd/m² Brightness | -30°C to 80°C Operating Temperature, it provides two critical engineering benefits: excellent sunlight readability and simplified system integration. This display is purpose-built to maintain visual integrity in harsh industrial and outdoor environments where operational uptime is paramount. For compact, rugged HMIs in outdoor or unconditioned industrial settings requiring long-term reliability, the AA043MA01 presents a robust and efficient solution.
Key Parameter Overview
Decoding the Specifications for Environmental Resilience
The technical specifications of the Mitsubishi AA043MA01 are foundational to its performance in demanding applications. The parameters below have been selected to provide engineers and procurement specialists with the data needed to evaluate its integration into robust system designs. What is the primary benefit of its wide operating temperature? It allows for deployment in unconditioned environments without auxiliary heating or cooling systems.
| Feature | Specification |
|---|---|
| Display Characteristics | |
| Screen Size | 4.3" (10.9 cm) diagonal |
| Resolution | 480 (RGB) x 272 (WQVGA) |
| Display Mode | Normally White, Transmissive |
| Pixel Pitch | 0.198 x 0.198 mm |
| Active Area | 95.04 x 53.856 mm |
| Optical Performance | |
| Luminance | 700 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 80°/80°/80°/60° (L/R/U/D, Typical) |
| Color Gamut | 50% (NTSC, Typical) |
| Surface Treatment | Anti-glare |
| Environmental & Reliability Ratings | |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Vibration Resistance | 6.86 m/s² (10 to 55 Hz) |
| Shock Resistance | 294 m/s² |
| Backlight Lifetime | 50,000 hours (Typical, to 50% brightness) |
| Electrical Interface & Mechanical | |
| Interface | CMOS (1 ch, 6-bit) |
| Supply Voltage (Logic) | 3.3V (Typical) |
| Backlight | White LED with integrated driver |
| Outline Dimensions | 105.5 x 67.2 x 7.5 mm |
Download the AA043MA01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Demanding HMI Applications
The AA043MA01 is optimized for applications where environmental conditions are a primary design constraint. Its robust feature set provides tangible value in developing reliable and long-lasting Human Machine Interfaces (HMIs).
A high-fidelity engineering scenario is the design of a control panel for an EV charging station. This unit must operate flawlessly year-round, exposed to winter cold, summer heat, and direct sunlight. The AA043MA01's exceptionally wide operating temperature range of -30°C to 80°C ensures reliable startups and consistent performance without the need for costly and complex internal heating or cooling systems. This is a critical factor in achieving a sealed, low-maintenance enclosure design often rated to IP65 or higher. The 700 cd/m² brightness ensures the user interface remains crisp and legible even under the glare of midday sun, enhancing usability and safety.
The module is ideally suited for:
- Outdoor kiosks and payment terminals
- Marine electronics and navigation systems
- Agricultural vehicle and heavy machinery dashboards
- Industrial automation controls in unconditioned factory environments
- Portable test and measurement equipment
For systems that require similar environmental toughness but a larger display area to present more complex data, the related AA057QD01 offers a 5.7-inch diagonal screen.
Frequently Asked Questions
Engineering Questions on Integration and Longevity
How does the wide -30°C to 80°C operating temperature of the AA043MA01 impact system design and cost?This range significantly simplifies thermal management. It eliminates the need for auxiliary heaters for cold-start performance and reduces reliance on fans or large heatsinks for high-temperature operation. This leads to a lower Bill of Materials (BOM), reduced power consumption, smaller enclosure size, and inherently higher system reliability by removing potential points of failure associated with thermal hardware.
Is the 700 cd/m² brightness sufficient for direct sunlight applications?Yes, a luminance of 700 cd/m² is considered sunlight readable, especially when combined with the panel's 800:1 contrast ratio and anti-glare surface treatment. This level of brightness is engineered to overcome high ambient light, ensuring that information displayed on the screen remains clear and legible to operators outdoors, which is critical for safety and operational efficiency.
What is the benefit of the integrated LED driver mentioned in the AA043MA01 datasheet?The integrated LED driver is a key feature for design simplification. It means the complex circuitry required to provide a stable, constant current to the LED backlight is already built into the display module. This saves engineers from designing, sourcing, and validating a separate driver board, which in turn frees up valuable PCB real estate, reduces component count, and can accelerate the product development timeline.
Technical Deep Dive
Analyzing the Integrated Design for Simplified Integration
A closer examination of the AA043MA01's architecture reveals a focus on reducing the engineering burden for system integrators. The inclusion of an on-board LED driver is a prime example. In a typical TFT-LCD integration, the backlight requires a separate power circuit—often a boost converter—to generate the high voltage and precisely regulated current for the LEDs. By integrating this function, Mitsubishi has removed a significant design task. This is analogous to an engine that includes a perfectly matched, pre-installed transmission; it eliminates a complex pairing process, saving development time and mitigating risks of incompatibility or EMI issues that can arise from a separate driver board. The result is a more compact, reliable, and faster path from design to production for any embedded system.
Industry Insights & Strategic Advantage
Meeting the Demands of Modern Industrial and Outdoor Systems
The AA043MA01 directly addresses the accelerating trend of deploying sophisticated graphical interfaces in environments previously deemed too harsh for electronic displays. As industrial automation and IoT expand, operators require clear data visualization not in a climate-controlled room, but directly on field equipment, from construction machinery to remote monitoring stations. This module's specifications are not merely numbers; they represent a strategic advantage. The 50,000-hour backlight lifetime is a critical metric for calculating Total Cost of Ownership (TCO), as it ensures long service intervals and minimizes costly field replacements. This level of built-in durability, certified through shock and vibration testing, allows product designers to confidently build systems that meet the rigorous uptime and reliability expectations of the industrial sector, backed by a major manufacturer like Mitsubishi Electric.
To further evaluate the AA043MA01 for your design, access the complete datasheet or contact our team for technical data to support your procurement process.
