Mitsubishi AA050MC01 Industrial LCD | Balanced Performance for Demanding HMI Applications

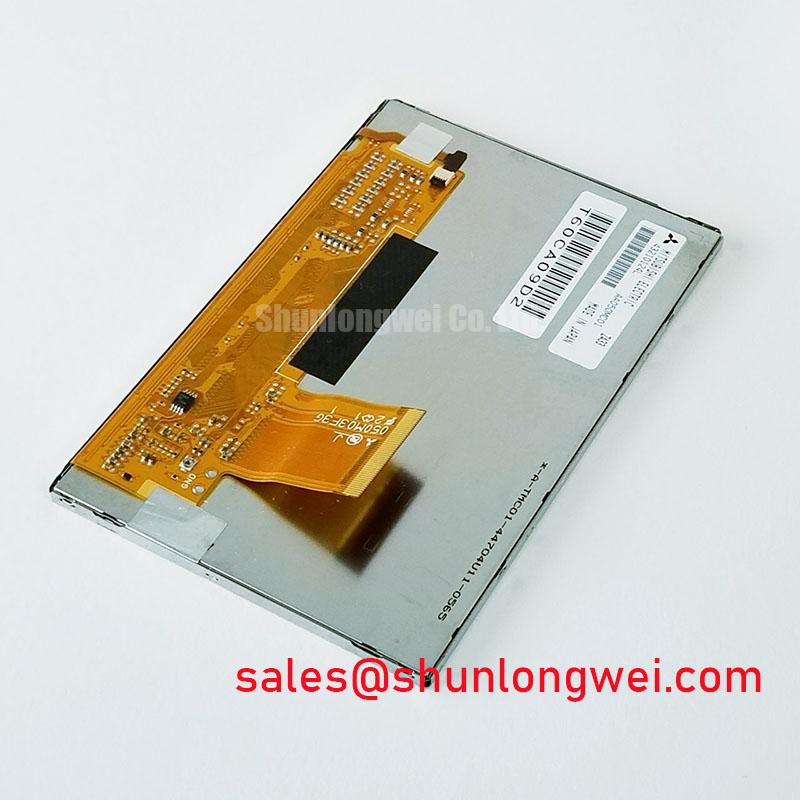

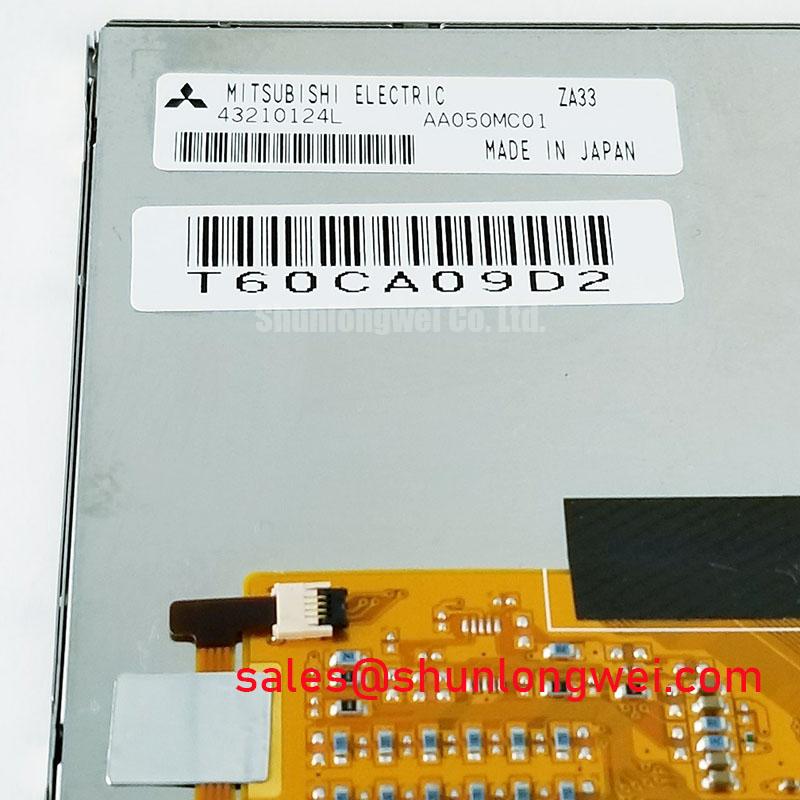

The Mitsubishi AA050MC01 is a 5.0-inch industrial-grade TFT-LCD that sets a benchmark for reliability and visual performance in a compact form factor. Engineered specifically for applications where operational uptime and visual clarity are non-negotiable, this display is not just a component but a foundational element for building robust human-machine interfaces (HMIs), medical devices, and high-performance portable instruments. Its design philosophy centers on delivering a perfect equilibrium of brightness, color accuracy, and industrial endurance.
Technical Deep-Dive: Where Performance Meets Reliability
The true value of the Mitsubishi AA050MC01 lies in its meticulously engineered features, which translate directly into superior system performance and lower total cost of ownership.
- Optimized Visuals for Industrial Settings: Boasting a brightness of 800 cd/m² and a color gamut covering 50% of the NTSC standard, this display delivers vibrant, clear images. This isn't just about aesthetics; for an operator interpreting complex schematics or a medical professional analyzing data, this level of color accuracy and brightness ensures immediate and error-free readability under typical factory or lab lighting conditions, reducing operator fatigue and potential mistakes.
- Engineered for Extreme Environments: A critical pain point in industrial applications is component failure due to environmental stress. The AA050MC01 directly addresses this with an exceptionally wide operating temperature range of -30°C to 80°C. Coupled with a long-life LED backlight rated for 100,000 hours, it guarantees consistent performance from cold storage facilities to high-temperature manufacturing floors, minimizing downtime and maintenance cycles.
Multi-Dimensional Application Value
Simply listing applications doesn't capture a component's worth. Here’s how the Mitsubishi AA050MC01 provides a tangible advantage in specific scenarios:
- Industrial HMI Panels: In factory automation, the WVGA (800x480) resolution provides ample screen real estate for sophisticated graphical user interfaces. The display's resilience to temperature fluctuations and mechanical shock means the control panel remains the most reliable part of the machine.
- Medical Diagnostic Equipment: For non-diagnostic viewing applications like patient monitoring systems or equipment interfaces, the stable performance and precise color representation of the AA050MC01 ensure that data is displayed consistently and clearly, which is critical for healthcare environments.
- Portable Test and Measurement Instruments: Field engineers require devices that are both readable and power-efficient. This display's balanced brightness and standard LVDS interface offer an ideal solution, providing crisp visuals without rapidly draining battery life.
- Marine and Outdoor Kiosks (Sheltered): While not a full sunlight-readable display, its 800-nit brightness is more than sufficient for use in sheltered outdoor areas or on a ship's bridge. The anti-glare surface treatment minimizes reflections, ensuring crucial information is always visible.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi |
| Model Number | AA050MC01 |
| Screen Size | 5.0 inch |
| Resolution | 800(RGB)×480, WVGA |
| Brightness | 800 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Interface Type | LVDS (1 ch, 8-bit), 20 pins |
| Operating Temperature | -30 ~ 80 °C |
| Backlight Lifetime | 100K hours (Typ.) |
For a complete list of specifications, you can access the AA050MC01 Datasheet.
Comparison and Selection Advice
When evaluating the AA050MC01, engineers might also consider displays with higher brightness (e.g., >1200 nits) or those with integrated capacitive touch panels. While a higher brightness model is superior for direct sunlight applications, it comes at the cost of increased power consumption and heat generation. The AA050MC01 excels by providing a highly effective, power-efficient, and cost-optimized solution for the vast majority of indoor and sheltered industrial environments. Its value proposition is its impeccable balance, making it a more practical choice than over-specified, higher-cost alternatives for many projects. For a comprehensive overview of display technologies, explore The Engineer's Ultimate Guide to TFT LCDs.
If your application demands a proven, reliable, and visually competent display that will not fail under pressure, the Mitsubishi AA050MC01 is an outstanding choice. Explore our full range of industrial LCD solutions or contact us to discuss your specific design requirements.
