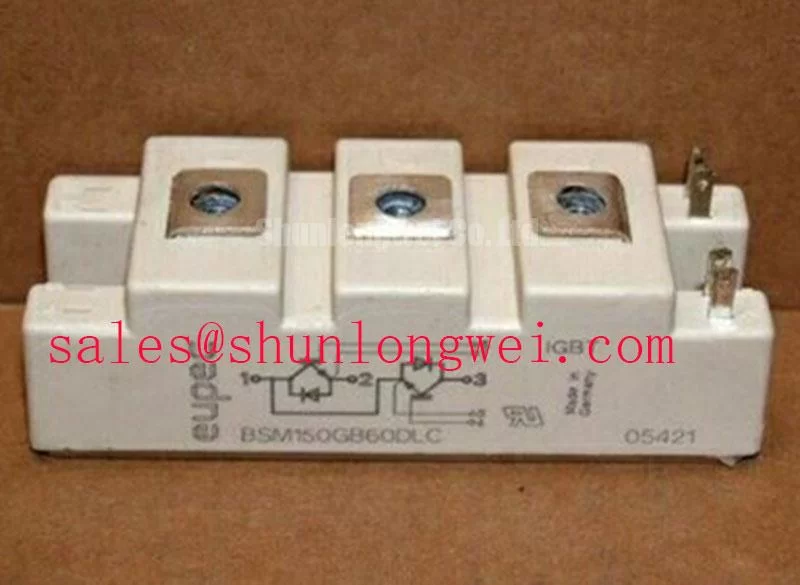

BSM150GB600DLC Infineon 600V 150A High-Speed IGBT Module

Content last revised on February 28, 2026

BSM150GB600DLC High-Speed Switching IGBT Module for Advanced Power Conversion

The BSM150GB600DLC is a high-performance half-bridge IGBT module engineered for applications where switching efficiency and thermal stability are non-negotiable. Featuring a collector-emitter voltage of 600V and a continuous collector current of 150A, this module leverages the proprietary Dynamic Low Loss Circuit (DLC) technology to minimize power dissipation during high-frequency operation. For engineers designing 230V to 400V AC systems that prioritize thermal margin and efficiency, the BSM150GB600DLC is the optimal industry-standard choice. By reducing turn-off energy losses, it directly addresses the cooling challenges prevalent in compact inverter designs. What is the primary benefit of the DLC technology in this module? It significantly reduces switching dissipation, allowing for higher PWM frequencies without exceeding thermal limits.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

Engineers often face significant hurdles when balancing switching speed with electromagnetic interference (EMC) and thermal management in high-density power stages. The BSM150GB600DLC addresses these challenges by offering a tailored balance between VCE(sat) and switching losses. In Variable Frequency Drive (VFD) applications, the low switching energy (Eoff) allows the system to operate at higher switching frequencies, which reduces the size and cost of output filters and inductors. For systems requiring even higher voltage overhead, such as 690V industrial lines, the related BSM150GT120DN2 offers a higher Vces of 1200V, illustrating the specific optimization of the 600V DLC series for lower voltage DC links.

In Uninterruptible Power Supplies (UPS) and Solar Inverter stages, the 150A current handling capacity ensures robust performance under peak load conditions. The BSM150GB600DLC is particularly effective in resonant converter topologies where the high-speed characteristics of the DLC chip reduce the circulating current losses. Designers can further explore the nuances of module integration by consulting our guide on IGBT selection for high-frequency designs. This module's ability to maintain high efficiency under rigorous Short-Circuit Withstand Time constraints ensures that protection circuits have sufficient time to react, preventing catastrophic system failure in industrial environments.

Technical Deep Dive

Decoding the Dynamic Low Loss Circuit for Enhanced Switching Efficiency

The technical core of the BSM150GB600DLC lies in its Dynamic Low Loss (DLC) architecture. Unlike standard IGBTs that focus solely on minimizing conduction losses, the DLC chip is optimized for rapid carrier removal during the turn-off phase. This can be compared to a high-speed sports car with advanced braking systems; while standard modules might have a "long tail" current that generates heat during every switching cycle, the DLC technology acts like a performance brake, truncating the tail current and drastically reducing the switching energy Eoff. This allows the module to switch at frequencies that would typically require much larger heatsinks or forced liquid cooling for standard modules.

Furthermore, the BSM150GB600DLC features an integrated fast-recovery freewheeling diode with a soft-recovery characteristic. This is critical for minimizing voltage spikes across the Stray Inductance of the DC bus, which often leads to IGBT failure if not managed correctly. To understand the impact of these dynamics on long-term reliability, engineers should review our failure analysis and prevention strategies. The mechanical design of the 62mm housing ensures a low Thermal Resistance (Rthjc) of approximately 0.16 K/W, providing a direct thermal path to the heatsink. This low thermal resistance can be thought of as a "wider pipe" for heat, ensuring that the junction temperature (Tvj) remains within safe operating limits even under heavy PWM cycles.

Key Parameter Overview

Specifying for Precision in Thermal and Electrical Design

Download the BSM150GB600DLC datasheet for detailed specifications and performance curves. For more information on the manufacturer's technology, visit the official Infineon website.

FAQ

How does the Rth(j-c) of 0.16 K/W directly impact heatsink selection and overall system power density?
A lower Rth(j-c) allows for a higher dissipation of heat for every degree of temperature rise. In practical terms, this means you can use a smaller heatsink to maintain the same Junction Temperature or increase the current output without changing your existing cooling solution, effectively boosting power density.

Is the BSM150GB600DLC suitable for applications with high stray inductance in the DC bus?
While the DLC technology is optimized for speed, high stray inductance can still lead to overvoltage spikes. It is recommended to use low-inductance busbars and appropriate snubber circuits to stay within the Reverse Bias Safe Operating Area (RBSOA) during turn-off events.

What is the primary design difference between the DLC series and standard high-power modules?
The DLC (Dynamic Low Loss Circuit) series specifically targets the reduction of Switching Loss. While conduction losses (Vcesat) are slightly higher than some low-speed modules, the total losses at switching frequencies above 8-10 kHz are significantly lower, making them superior for high-frequency PWM.

Can I parallel multiple BSM150GB600DLC modules to increase the total current capacity?
Yes, but careful consideration must be given to the Gate Drive design and the symmetry of the power layout. Because the DLC series has a positive temperature coefficient for Vce(sat) at higher currents, they are naturally suited for load sharing in parallel configurations.

In the evolving landscape of industrial automation and renewable energy, the selection of power semiconductors is no longer just about voltage and current ratings; it is about the strategic optimization of thermal performance and switching dynamics. The BSM150GB600DLC remains a cornerstone for engineers who require a reliable, high-speed switching solution that does not compromise on thermal robustness. As the industry moves toward higher power densities and more efficient energy conversion, the technical maturity of the DLC platform continues to provide a dependable foundation for mission-critical power systems.
