Resolving Thermal Bottlenecks in Low-Voltage Traction Drives

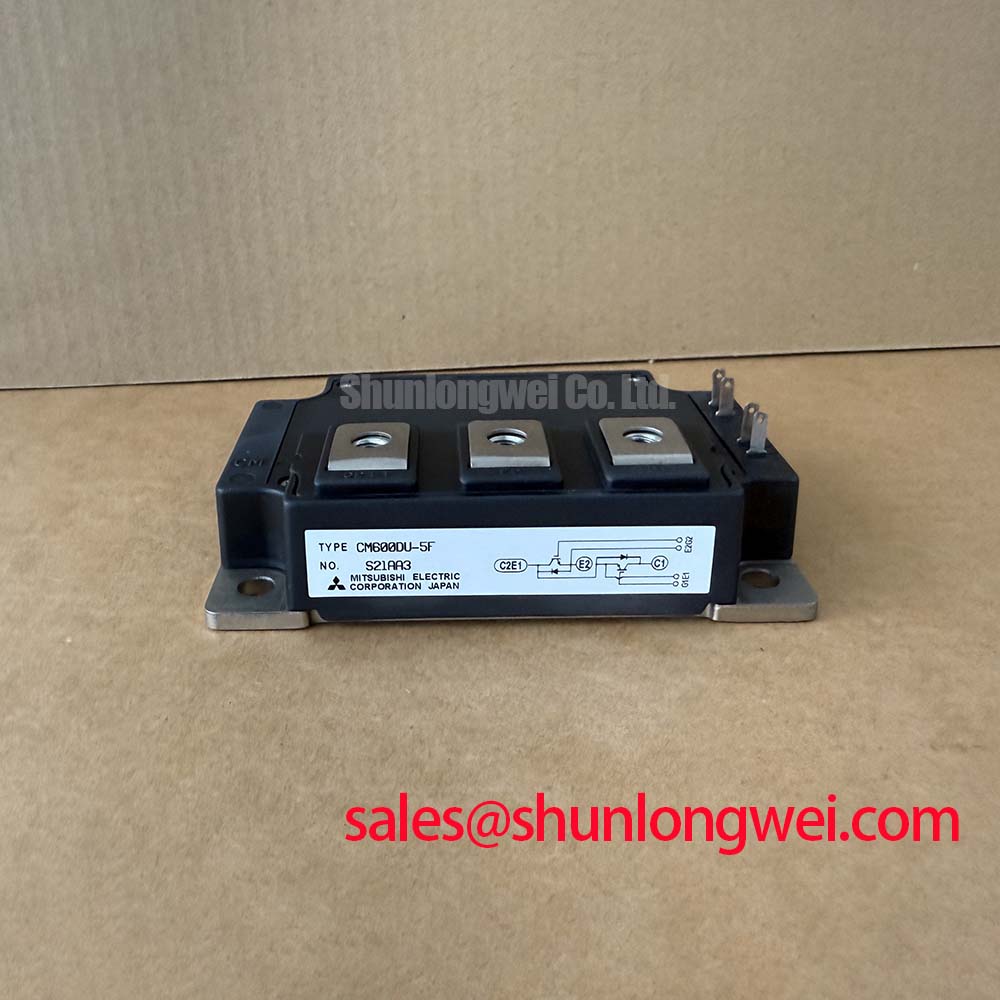

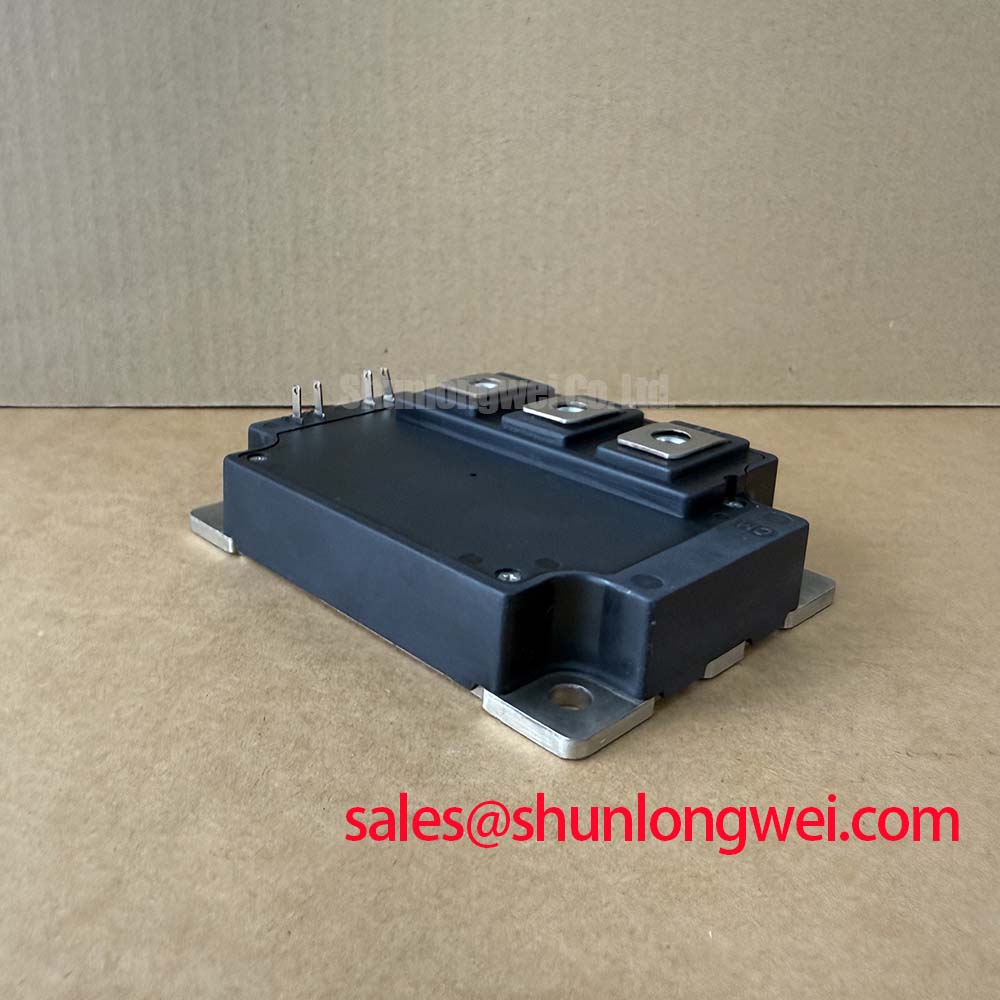

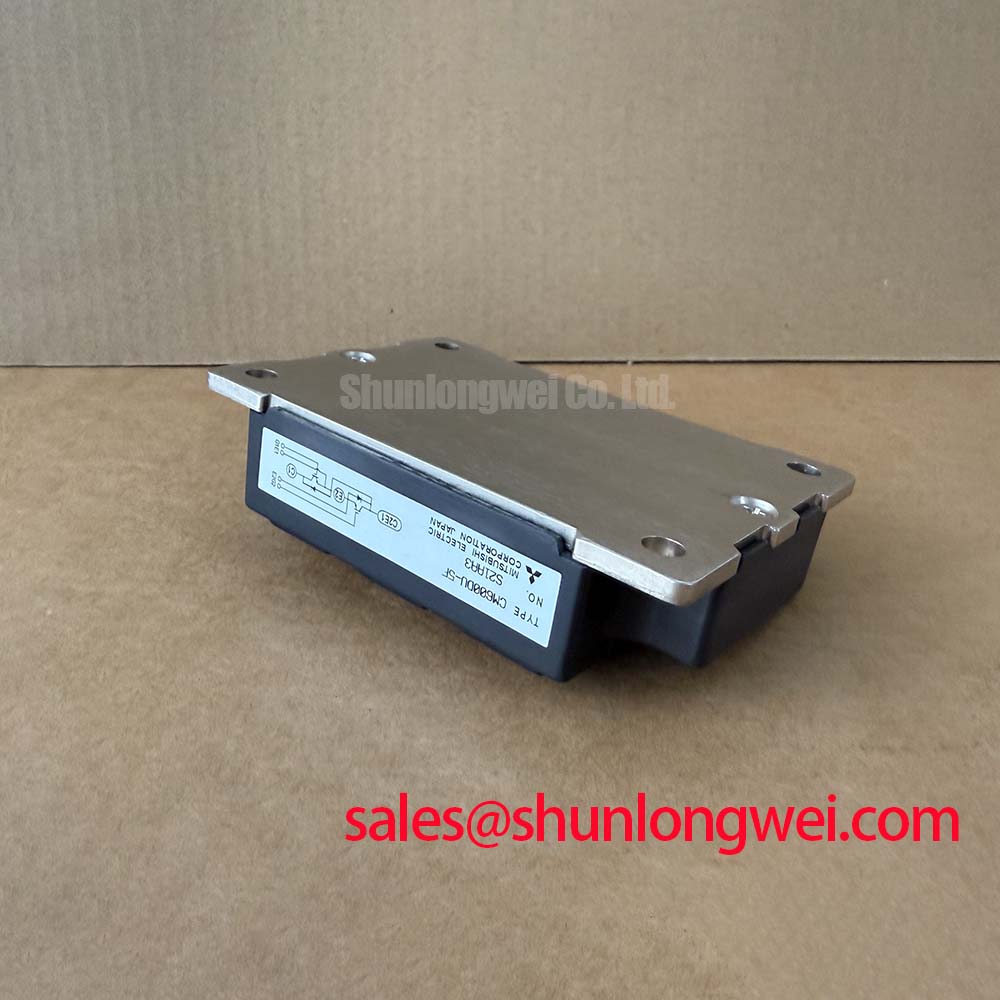

How do you sustain 600A peak loads in 48V/80V battery-powered traction systems without triggering excessive conduction losses or thermal throttling? The Mitsubishi CM600DU-5F directly addresses this challenge. This F-Series dual IGBT module is optimized specifically for low-voltage, high-current environments where minimizing on-state voltage drop is more critical than high-voltage blocking capability. By maximizing low-voltage high-current switching efficiency for battery-powered traction platforms, it offers robust current handling and significantly reduced thermal stress. Is this module suitable for standard 400V industrial grids? No, the 250V VCES limit restricts its usage exclusively to low-voltage DC battery platforms. For battery-powered forklifts requiring sustained 600A current handling on 48V/80V DC buses, this 250V dual module is the optimal choice.
Addressing Field Concerns
Rapid Answers for Equipment Reliability
- What is the primary benefit of the CM600DU-5F in traction inverters? It significantly minimizes conduction losses in low-voltage, high-current battery systems like forklifts.
- Can the 250V-rated CM600DU-5F be utilized in standard 400V AC industrial motor drives? No. Its 250V VCES limit strictly restricts its usage to low-voltage DC platforms.
- How does the dual-element structure influence physical circuit layout? It drastically reduces stray inductance by integrating the half-bridge connections internally.
Key Parameter Overview
Highlighting Metrics for Thermal and Electrical Thresholds
Understanding these parameters is essential when decoding IGBT datasheets to ensure longevity in high-stress traction platforms.
| Parameter | Highlight Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 250V | Strictly optimized for 48V, 72V, and 80V DC battery arrays. |
| Continuous Collector Current (IC) | 600A | Provides massive torque support for heavy material handling. |
| Package Configuration | Dual (Half-Bridge) | Simplifies layout by eliminating external paralleling complexity. |
| Isolation Voltage | 2500 Vrms | Ensures safe electrical separation between the baseplate and active silicon. |
Download the CM600DU-5F datasheet for detailed specifications and performance curves.
Technical Deep Dive
System-Level Benefits in High-Current Switching
The contradiction of low voltage and ultra-high current poses a unique thermal management challenge. Managing 600A at 250V is like controlling a massive river through a wide, shallow canal—conduction resistance must be virtually zero to prevent overflow, which in electrical terms manifests as destructive heat. The Mitsubishi CM600DU-5F achieves this by utilizing a silicon die optimized for low VCE(sat) rather than deep depletion regions required for high voltage. This trade-off drastically lowers the power dissipated during the "ON" state, maximizing the runtime of 48V/80V DC battery platforms.
Furthermore, the physical construction aids in robust power stage design. The dual-element packaging acts like a pre-assembled dual-lane highway, allowing designers to build half-bridges without the stray inductance associated with discrete parallel wiring. By keeping the inductance low, voltage spikes during switching events are minimized, effectively keeping the device well within its Safe Operating Area (SOA) even when driving highly inductive motor loads in Automated Guided Vehicles (AGVs).
Application Scenarios & Value
Performance in the Field: Heavy-Duty Material Handling
Engineers often face the critical challenge of thermal runaway when attempting to pull massive starting torque from a battery management system (BMS) in heavy industrial vehicles. In the context of a 3-ton electric forklift, the traction motor demands extreme peak currents to overcome static inertia. Utilizing the Mitsubishi CM600DU-5F allows the motor controller to deliver a 1200A peak (ICM) surge without exceeding the thermal limits of the inverter heatsink.
Because the module incorporates two IGBT elements in a single housing, forming a complete phase leg, three of these modules can easily construct a high-power three-phase inverter. This integration reduces the mechanical footprint, which is heavily constrained within the chassis of low-voltage traction drives. While this module provides exceptional current density for 48V/80V systems, for 1200V line applications requiring similar high-current capabilities, the related CM600DX-24T offers a higher voltage rating to accommodate industrial grid connections.
From a strategic standpoint, selecting application-specific silicon rather than over-specifying voltage ratings ensures that material handling fleets achieve maximum energy transfer. Deploying the highly targeted CM600DU-5F allows OEMs to extend battery life between charge cycles while maintaining the raw physical torque required in heavy logistics operations.
