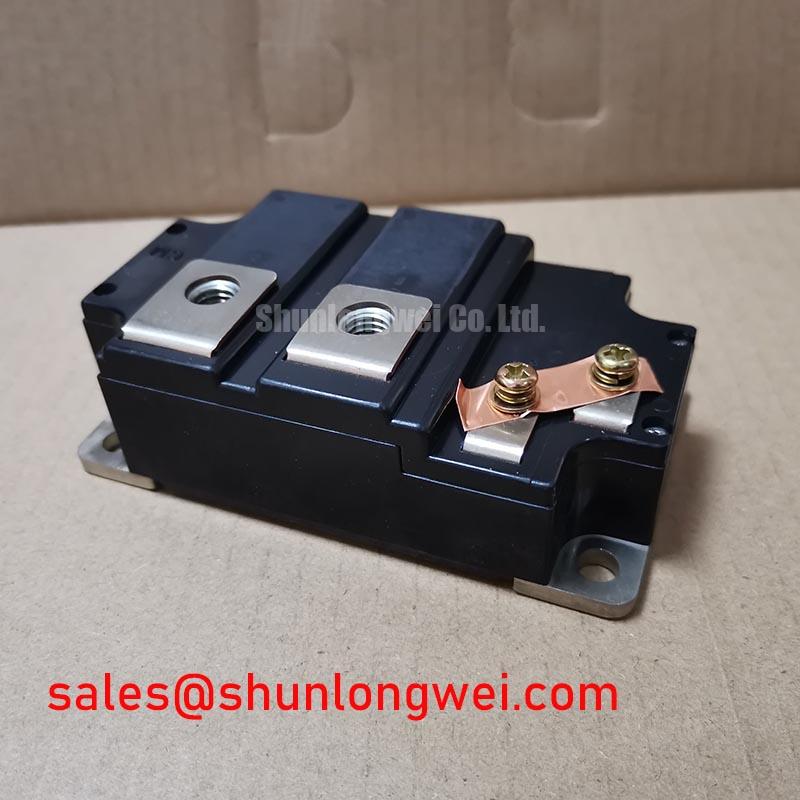

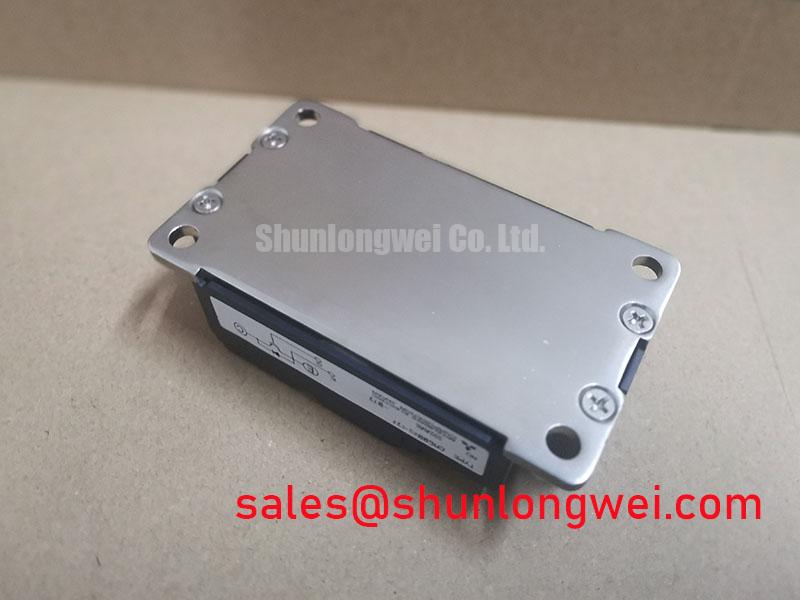

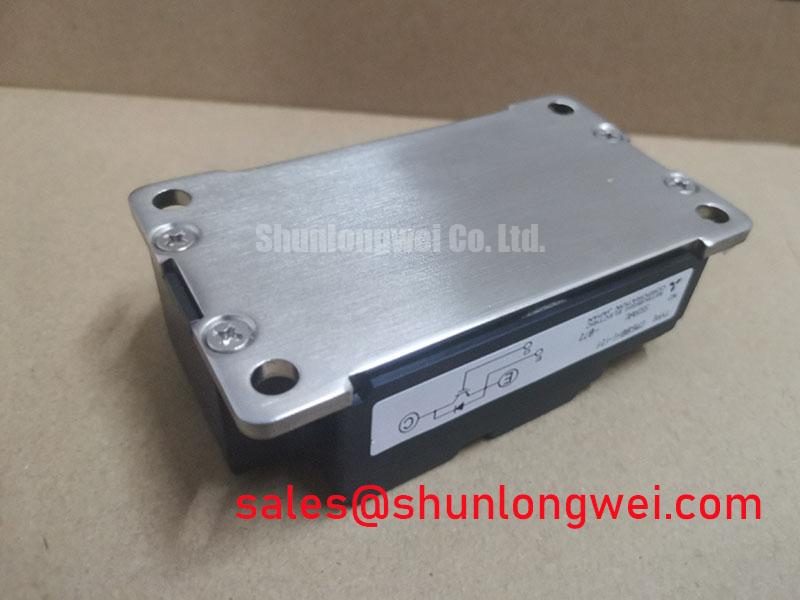

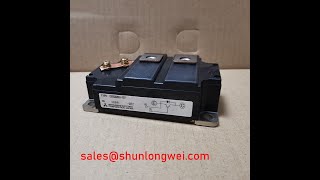

Mitsubishi CM600HU-12F IGBT Module

Powerex CM600HU-12F: 600V/600A IGBT. Engineered for low Vce(sat) and short-circuit ruggedness, delivering maximum efficiency and reliability in demanding high-power applications.

· Categories: IGBT Module
· Manufacturer: Mitsubishi
· Price: US$ 65
· Date Code: 2022+
. Available Qty: 259
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869

Contact us To Buy Now!

CM600HU-12F Specification

Powerex CM600HU-12F | High-Current 600A Single Switch IGBT Module

The **Powerex CM600HU-12F** is a robust single-switch IGBT module engineered for high-power applications where efficiency and reliability are non-negotiable. Rated for 600V and 600A, this component serves as a cornerstone for demanding power conversion systems, including motor drives, uninterruptible power supplies (UPS), and industrial welders. Its design focuses on delivering raw power with exceptional thermal performance, making it a workhorse for engineers building next-generation industrial equipment.

Technical Deep Dive: Where Performance Meets Reliability

The performance of the **Powerex CM600HU-12F** is rooted in its advanced silicon and packaging design. Two features stand out for system designers:

  • Optimized for Low Conduction Loss: A key challenge in high-current applications is managing heat. This module features a very low collector-emitter saturation voltage (Vce(sat)). This directly translates to reduced power dissipation during the ON-state, minimizing wasted energy that would otherwise become heat. For designers, this means the possibility of using smaller, more cost-effective heatsinks and achieving higher overall system efficiency.
  • Exceptional Short-Circuit Ruggedness: Industrial environments are unpredictable. The CM600HU-12F is built to withstand a short-circuit event for 10 microseconds, a critical safety feature that provides a window for protection circuits to react. This robust design prevents catastrophic failures, protecting not just the module but the entire system from damage during fault conditions, a crucial aspect of IGBT short-circuit protection.

Application-Specific Advantages of the CM600HU-12F

This module isn't just a collection of specs; it's a problem-solver for specific industrial challenges:

  • High-Power Motor Drives: In large AC motor drives, the module's high current capability and low losses allow for smooth and efficient control of multi-horsepower motors. Its thermal stability ensures consistent performance even under heavy torque loads, a key requirement for any IGBT in motor drive applications.
  • Industrial Welding and Heating: Welding applications demand high, repetitive current pulses. The **Powerex CM600HU-12F** handles these stresses with ease, while its isolated baseplate simplifies the thermal design of the welding inverter, ensuring long-term reliability.
  • Uninterruptible Power Supplies (UPS): For data centers and critical facilities, the reliability of a UPS inverter is paramount. The module's ruggedness and high power density enable the design of compact and highly dependable UPS systems.
  • DC Chopper Circuits: As a single, high-power switch, it is an ideal choice for DC chopper circuits used in applications like regenerative braking for elevators and trains, efficiently managing and redirecting large amounts of energy.

Key Technical Specifications

Below are the essential parameters that define the capabilities of the CM600HU-12F. For a comprehensive list, please refer to the official datasheet.

ParameterValue
Collector-Emitter Voltage (VCES)600V
Collector Current (IC)600A
Collector-Emitter Saturation Voltage (VCE(sat)) @ IC=600A2.7V (Max)
Total Power Dissipation (PC)2500W
Short Circuit Withstand Time (tsc)10µs
Isolation Voltage (Viso)2500Vrms

For detailed electrical and thermal characteristics, download the CM600HU-12F Datasheet.

Strategic Selection: CM600HU-12F vs. Other Solutions

Choosing the right IGBT is critical for performance and cost. Here’s how the **Powerex CM600HU-12F** compares:

  • Versus Paralleling Lower-Current Modules: While paralleling smaller IGBTs might seem cost-effective, it introduces significant design complexity in ensuring symmetrical current sharing and thermal balancing. The CM600HU-12F offers a simplified, more reliable single-component solution that minimizes stray inductance and simplifies PCB layout.
  • Versus a 1200V Module (e.g., CM600HU-24F): For applications with a DC bus voltage comfortably below 400V, the 600V CM600HU-12F is the superior choice. It typically exhibits a lower Vce(sat) than its 1200V counterpart, leading to higher efficiency where the extra voltage rating is unnecessary overhead. Proper heatsink selection becomes easier due to lower thermal load.

For demanding applications requiring a simple, high-current switching solution, the **Powerex CM600HU-12F** offers a compelling blend of efficiency and ruggedness. To discuss your specific design challenges or to explore our full range of power modules, contact our technical specialists today. You can also Explore More IGBT Modules in our portfolio.
