Comprehensive Evaluation: SKiiP 26AC12T4V1 vs 5SNA1200G450300 IGBT Modules in High-Power Applications

What These IGBT Modules Are and Their Industry Significance

Power conversion systems rely fundamentally on the efficient, rapid, and repeatable switching of electrical current. Within modern power electronics, the Insulated-Gate Bipolar Transistor (IGBT) module serves as the primary solid-state engine for medium-to-high-voltage and high-current electrical conversion. Rather than functioning as discrete, low-current silicon chips, industrial IGBT modules integrate multiple semiconductor dies, antiparallel freewheeling diodes, ceramic isolation substrates, and high-integrity terminal connections into a single, thermally manageable package. These assemblies solve the dual challenge of handling immense electrical power while shielding sensitive digital microcontrollers and gate drivers from lethal system voltages.

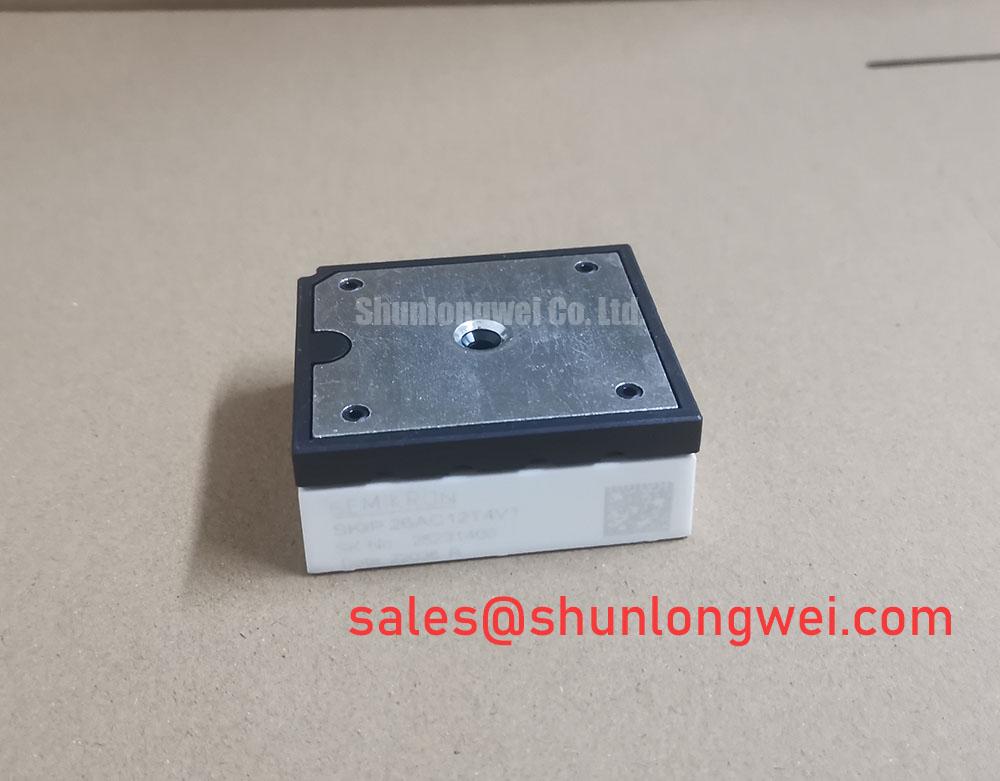

Within this semiconductor landscape, the Semikron SKiiP 26AC12T4V1 and the ABB 5SNA1200G450300 represent two distinct engineering philosophies tailored for drastically different operational scales. The Semikron SKiiP 26AC12T4V1 belongs to the MiniSKiiP family, designed primarily as a three-phase inverter bridge (six-pack topology) rated for 1200 V and nominal currents around 35 A to 50 A. Its defining industrial significance lies in its solder-free, pressure-contact assembly. By utilizing spring-loaded electrical contacts and eliminating both the traditional copper baseplate and soldered internal leads, it removes primary failure modes associated with solder fatigue and thermal-cycling delamination. This makes it a standard building block in decentralized automation, industrial motor drives, and commercial HVAC systems operating on standard three-phase mains supplies (380 V to 480 V AC).

In contrast, the ABB 5SNA1200G450300 occupies the upper tier of heavy industrial and transportation infrastructure. Built in an industry-standard HiPak housing, this component is a single-switch high-power module rated at an extraordinary 4500 V and 1200 A. It does not integrate a full three-phase bridge into a compact plastic shell; instead, it is engineered to survive severe continuous stresses in multi-megawatt traction converters for high-speed electric trains, medium-voltage industrial drives (MVD), and Flexible AC Transmission Systems (FACTS) on electrical grids. Devices in this category rely on aluminum silicon carbide (AlSiC) baseplates and aluminum nitride (AlN) isolation ceramics to withstand thermal shocks and maintain dielectric insulation exceeding 6 kV.

Engineers often compare these components to understand the technical continuum of power module packaging. While low-to-medium power installations benefit from integrated modular stages like the SKD75GAL123D or the SKiiP series to save cabinet volume and reduce assembly overhead, utility-scale and railway platforms demand the extreme electrical clearance, modular scalability, and rugged physical isolation embodied by the 5SNA1200G450300. Understanding the design trade-offs between these two form factors provides clarity when selecting semiconductors for both localized automation and high-voltage grid infrastructure.

Working Principle and Physical Structure

At the silicon level, an IGBT blends the effortless voltage-controlled input characteristics of a metal-oxide-semiconductor field-effect transistor (MOSFET) with the high-current, low-saturation-voltage conduction characteristics of a bipolar junction transistor (BJT). The device operates through three main terminals: the Gate (G), the Collector (C), and the Emitter (E). When a positive gate-to-emitter voltage (V_GE) exceeding the threshold voltage (V_GE(th), typically between +5.0 V and +6.5 V) is applied, an inversion channel forms beneath the gate oxide layer, exactly like in an n-channel MOSFET.

This inversion channel permits electrons to flow from the n-doped emitter region into the thick, lightly doped n-drift region. The arrival of these electrons forward-biases the p-collector/n-drift junction at the backside of the wafer, triggering the injection of positive charge carriers (holes) from the p-substrate into the n-drift region. This phenomenon, known as conductivity modulation, floods the high-resistance drift layer with an electron-hole plasma. As a consequence, the effective on-state resistance drops dramatically compared to a standard high-voltage unipolar MOSFET. This allows the IGBT to carry large forward currents (I_C) with a remarkably small collector-emitter on-state saturation voltage (V_CE(sat)), keeping conduction losses manageable.

To turn the device off, the gate-to-emitter voltage is reduced to zero or driven into a negative bias (frequently -5 V to -15 V to ensure noise immunity). This collapses the MOS inversion channel, terminating the supply of electrons into the drift region. However, the stored holes in the drift layer cannot vanish instantaneously; they must either cross the junction or recombine naturally over time. This lingering recombination phase creates what application engineers call “tail current.” Tail current delays complete turn-off and generates turn-off switching energy losses (E_off). Both Semikron and ABB employ tailored die structures to minimize this tail current:

• Semikron SKiiP 26AC12T4V1: Employs Trench-gate field-stop (IGBT4) silicon combined with CAL (Controlled Axial Lifetime) freewheeling diodes. The vertical trench gates eliminate parasitic junction field-effect transistor (JFET) resistance between cells, while the thin wafer field-stop buffer layer accelerates minority-carrier sweep-out during turn-off, keeping switching losses low even at elevated switching frequencies (8 kHz to 16 kHz).
• ABB 5SNA1200G450300: Utilizes Soft Punch-Through (SPT+) planar/enhanced-carrier technology. Because this die must withstand 4500 V across its n-drift layer, the drift region is significantly thicker than that of a 1200 V die. ABB optimizes the carrier profile near the emitter side to replicate trench-like low on-state losses while using broad planar cells that deliver an exceptionally wide Safe Operating Area (SOA) and robust short-circuit ride-through times (t_sc ≥ 10 µs) under harsh railway conditions.

The physical architectures enclosing these dies are equally differentiated. The SKiiP 26AC12T4V1 eliminates the traditional solid copper baseplate entirely. Instead, a Direct Copper Bonded (DCB) ceramic substrate holding the dies is pressed directly against the customer heatsink via an integrated pressure plate and mounting screws. Spring contacts extend upward from the DCB to establish electrical connections with the printed circuit board (PCB), eliminating soldered copper terminals and wire-lead solder joints. Conversely, the 5SNA1200G450300 uses an ultra-heavy-duty package: an AlSiC metal baseplate soldered to multiple AlN ceramic substrates, enclosed in a high-creepage silicone-gel-filled housing with massive M8/M4 threaded copper busbar terminals designed to handle kiloampere surges and survive thousands of aggressive thermal cycles.

Engineers exploring classic discrete assemblies or historical industrial modules can review foundational principles via Insulated-Gate Bipolar Transistor (IGBT) fundamentals to see how packaging has evolved from older dual-in-line formats to these high-reliability spring and HiPak configurations.

Key Features, Advantages, and Technology Comparison

Evaluating the SKiiP 26AC12T4V1 against the 5SNA1200G450300 highlights how semiconductor packaging, thermal management, and electrical ratings adapt to distinct tiers of power delivery. The SKiiP module is optimized for compactness, automated assembly, and moderate power levels, whereas the HiPak module is designed for raw dielectric strength, current capacity, and continuous structural endurance.

The primary advantage of the SKiiP 26AC12T4V1 is its high level of integration. By fitting six IGBT switches and six CAL diodes into a single housing alongside a built-in temperature sensor (NTC thermistor), system builders can construct a complete inverter stage on a single PCB without manual wire routing or busbar bending. Because it lacks a metal baseplate, it avoids the solder layer between substrate and baseplate, which is traditionally the first mechanical layer to degrade under repetitive industrial thermal cycles.

Conversely, the 5SNA1200G450300 delivers uncompromising power density at voltages where standard industrial modules would experience dielectric breakdown. The AlSiC baseplate provides a coefficient of thermal expansion (CTE) that closely matches the internal aluminum nitride (AlN) ceramic substrate (roughly 7 ppm/K to 4.5 ppm/K). This mechanical harmony suppresses thermal fatigue at the solder interfaces during the severe thermal swings common in electric locomotives ascending steep grades. Designers needing medium-range industrial switching blocks often contrast such components with industry standards like the DP15H1200TO101982 or robust high-current switches like the QM300HA-H to match current density with enclosure constraints.

Real-World Applications and Operating Precautions

Deploying these two semiconductor modules in real-world environments demands adherence to strict mechanical, thermal, and electrical practices. While their functional domains do not overlap directly in end-equipment, both require meticulous attention to thermal resistance pathways, parasitic inductance, and gate-drive protection.

Primary Application Sectors

• SKiiP 26AC12T4V1: Small-to-medium variable frequency drives (VFDs) for pump and fan control, industrial conveyor motor inverters, packaging machinery, commercial elevator drives, and auxiliary power supplies in light industrial plants.
• ABB 5SNA1200G450300: Main traction propulsion converters for 3 kV DC or 25 kV AC electric locomotives, medium-voltage industrial drives (such as massive slurry pumps, mine winders, and steel rolling mills), high-voltage static VAR compensators (SVCs), and offshore wind turbine central grid inverters.

Thermal Management and Heatsink Mounting Precautions

Thermal failure remains the most frequent root cause of IGBT destruction. For the baseplateless SKiiP 26AC12T4V1, heatsink surface preparation is vital. The heatsink surface flatness must remain under 20 µm across a 100 mm span, with a surface roughness (R_z) of 6.3 µm or less. Thermal grease must be applied via screen printing or a precision roller at a tightly controlled thickness of 20 µm to 30 µm. Excessive thermal paste creates a thermal blanket, elevating junction temperatures. The integrated pressure plate requires a calibrated tightening torque (typically 2.0 N·m to 2.5 N·m) applied uniformly to avoid cracking the internal ceramic substrate.

For the ABB 5SNA1200G450300, thermal dissipation reaches several kilowatts per switch. The massive baseplate demands a flat, rigid heatsink (flatness deviation under 30 µm per 100 mm). Thermal paste thickness must remain between 50 µm and 100 µm. Mounting bolts (M6/M8) must be torqued in a crisscross sequence in two stages: first to an initial settling torque of 2 N·m, followed by the final factory-specified torque (typically 9 N·m to 12 N·m for M8 baseplate fixings). Busbar connections must also be properly torqued (8 N·m to 10 N·m for main terminal screws) to avoid localized contact heating under continuous 1200 A loads.

Electrical and Gate-Driver Protection

Both modules contain MOS gate structures that are sensitive to electrostatic discharge (ESD) and transient voltage spikes. Technicians must always wear grounded anti-static wristbands and handle modules only by their outer plastic housings. The gate oxide layers can rupture permanently if the gate-emitter voltage exceeds ±20 V.

Gate-drive circuitry requires dedicated desaturation (DESAT) short-circuit detection. When an output short-circuit occurs, the collector-emitter voltage rises while the device is fully gated. The DESAT circuit must detect this rise within 2 µs to 5 µs and initiate a “soft turn-off.” Abruptly cutting off thousands of amperes generates high inductive voltage overshoots (ΔV = L_σ · di/dt) across the stray busbar inductance (L_σ), which can exceed the module’s breakdown rating (1200 V or 4500 V) and destroy the silicon instantly. Designers frequently integrate active Miller clamps and transient voltage suppressors (TVS) directly adjacent to the gate and emitter terminals, consulting application notes from industry leaders like industrial power semiconductor solutions to maintain safe gate-loop margins.

Engineering Selection Guidelines and Field Diagnostics

Selecting the right power semiconductor requires balancing electrical ratings, thermal limits, and physical serviceability. A module should never be specified purely on its nominal nameplate ratings; operating headroom must be allocated for supply fluctuations, switching surges, and thermal variations.

Voltage and Current Sizing Rules

To ensure long-term reliability against cosmic ray-induced failure (measured as Failure-In-Time or FIT rates) and inductive switching spikes, engineers apply strict voltage derating factors:

• Continuous DC Link Voltage: For a 1200 V device like the SKiiP 26AC12T4V1, the continuous DC bus voltage (V_DC) should generally not exceed 800 V to 850 V. This matches the standard rectified DC bus of a 400 V/480 V three-phase system (roughly 560 V to 680 V DC under normal conditions). For a 4500 V device like the 5SNA1200G450300, the maximum continuous DC rail voltage is typically kept below 2800 V to 3000 V to limit cosmic radiation degradation over a 30-year operational life.
• Current Safety Margin: The continuous rated current I_C is measured at specific heatsink or case temperatures (e.g., 25 °C, 80 °C, or 100 °C). For real-world motor drives, engineers calculate the total root-mean-square (RMS) current including 150% temporary overload cycles lasting up to 60 seconds. The junction temperature (T_j) must never exceed the absolute maximum limit (typically 150 °C or 175 °C for Trench 4, and 125 °C or 150 °C for high-voltage HiPak units) under the worst-case ambient temperature and thermal resistance scenario:

  T_j = T_ambient + P_{total_loss} · (R_th(j-c) + R_th(c-s) + R_th(s-a))

Field Diagnostics and Multimeter Troubleshooting

When an inverter fault trips an alarm on an automation line or locomotive drive cabinet, technicians can perform quick, non-destructive initial diagnostics using a standard digital multimeter (DMM) set to Diode Test Mode and Resistance (Ω) Mode. Before testing, verify that the main DC bus capacitors are completely discharged using a calibrated high-voltage probe.

If the static multimeter measurements show normal diode drops and pristine gate isolation, but the inverter still faults under operational loads, the module may be experiencing dynamic breakdown. In this scenario, high operating voltages or thermal expansion can trigger gate-emitter leakage, partial discharge, or localized latch-up that is undetectable with low-voltage multimeter tests. Bench evaluation with a curve tracer or a specialized high-voltage insulation tester (Megohmmeter) set to the rated blocking voltage is then necessary to verify collector-emitter leakage current (I_CES) within the microampere range before reinstalling the module or returning the equipment to active service.
