LQ104V1DG61 vs LQ10DH11: In-Depth Comparison of 10.4-Inch Sharp TFT-LCD Displays

What These Industrial Displays Are and Their Field Significance

In the landscape of industrial automation, human-machine interfaces (HMIs), computer numerical control (CNC) machining centers, and legacy diagnostic instrumentation, 10.4-inch liquid crystal displays have served as a critical operational standard for decades. Among the various manufacturers of flat-panel displays, Sharp Corporation established key design benchmarks with its industrial display portfolio. Two prominent models frequently encountered in retrofitting, maintenance, and system restoration are the Sharp LQ104V1DG61 and the Sharp LQ10DH11.

Both models belong to the family of 10.4-inch color transmissive Liquid Crystal Display Technology, delivering Video Graphics Array (VGA) resolution (640 × 480 pixels). Despite sharing an identical nominal diagonal screen size and native resolution, these two panels were developed across distinct engineering generations and fulfill different system architecture roles. The LQ10DH11 represents an earlier generation of color active-matrix displays often found in early 1990s to early 2000s medical monitors, legacy process automation terminals, and specialized robotic controllers. Conversely, the LQ104V1DG61 represents a mature, widely standardized industrial platform engineered for improved optical contrast, wider viewing angles, reduced electromagnetic emissions, and simplified electrical interfacing.

For systems engineers and field service technicians, understanding the exact differences between these two displays is crucial. When an aging panel fails in an operational CNC console or factory automation cell, directly swapping an LQ10DH11 with an LQ104V1DG61—or vice versa—is rarely a plug-and-play operation. Significant variances exist across logic interface pinouts, operating voltage tolerances, pixel clock timing windows, connector form factors, and backlight power requirements. Similar architectural considerations occur when evaluating alternative industrial panels from other manufacturers, such as the NEC NL6448BC26-27, specialized electroluminescent units like the EL552-256-Q1, or modern industrial displays such as the Hitachi TX20D208VM0BAA. Proper component identification and electrical verification prevent catastrophic interface damage and restore mission-critical equipment to factory reliability.

Working Principles, Internal Architecture, and Optical Structures

To evaluate the electrical and physical behavior of the LQ104V1DG61 and LQ10DH11, field engineers must understand the internal architecture of a modern Thin-Film Transistor Liquid-Crystal Display (TFT LCD). At its core, an active-matrix display functions as a complex array of voltage-controlled optical shutters arranged in a matrix of rows and columns.

The panel architecture consists of several layered functional stages:

• Backlight Subsystem: Both the LQ104V1DG61 and LQ10DH11 utilize cold cathode fluorescent lamp (CCFL) assemblies integrated along the edge of the display chassis. Light emitted by the CCFL tubes enters an acrylic light guide plate (LGP), where microscopic extraction patterns distribute the light evenly across the display area. Diffuser sheets and brightness enhancement films (prismatic BEF layers) collimate this light toward the rear polarizer.
• Rear and Front Polarizing Filters: The rear polarizer establishes a uniform linear polarization angle for the backlight. The front polarizer is oriented perpendicular (crossed) or parallel depending on the liquid crystal operating mode. In these normally white Twisted Nematic (TN) panels, unenergized pixels allow polarized light to pass through unaltered, yielding a white screen state.
• Active-Matrix Glass Substrate: Deposited on the rear glass substrate is an array of amorphous silicon (a-Si) thin-film transistors. Each pixel is split into three sub-pixels (Red, Green, Blue). An integrated timing controller (TCON) receives external digital RGB video streams, decoding horizontal and vertical synchronization signals to drive row (gate) lines and column (source) lines.
• Liquid Crystal Cell and Color Filter: When a gate line pulses high, the TFT switches conduct, transferring the analog voltage from the source driver into the liquid crystal storage capacitor (C_S) and liquid crystal capacitance (C_LC). The resulting electrostatic field between the pixel electrode and the common electrode (V_com) rotates the nematic liquid crystal molecules, modulating the angle of polarized light. Finally, micro-cavity color filters impart the correct chromatic spectrum to each light beam before it exits the front polarizer.

While both panels utilize a-Si TN technology, the LQ104V1DG61 integrates an optimized color filter matrix and improved liquid crystal alignment layer formulations. This mechanical and chemical enhancement provides superior color saturation, reduced color shifting at off-axis angles, and a significantly higher optical contrast ratio compared to the earlier LQ10DH11 architecture.

Architectural Comparison, Electrical Specifications, and Interface Differences

Although both displays share a 10.4-inch form factor with a 4:3 aspect ratio and 640 × 480 native resolution, their electrical and physical implementations differ significantly. The table below details the operational, optical, and electrical characteristics of the Sharp LQ104V1DG61 alongside the Sharp LQ10DH11.

The interface differences present the primary technical hurdle during field servicing. The LQ104V1DG61 standardizes on an industry-standard 31-pin Hirose DF9-31P-1V connector layout. This connector carries 18 bits of digital color data (R0–R5, G0–G5, B0–B5), pixel clock (CLK), horizontal sync (Hsync), vertical sync (Vsync), and data enable (ENAB). The LQ104V1DG61 controller provides wide timing margins and accepts both 3.3V and 5.0V logic thresholds on its data bus.

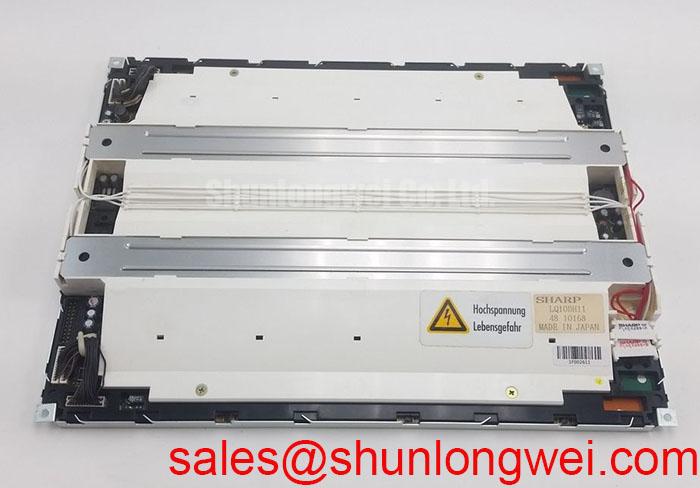

In contrast, the older LQ10DH11 operates strictly on a 5.0V logic rail and features a legacy pin configuration where power pins, ground returns, and control lines occupy different physical pin locations. Feeding a 5.0V signal bus directly into an unbuffered display expecting 3.3V levels, or misaligning the power ground planes, can immediately destroy the integrated column drivers on the glass.

Real-World Integration, Power Sequencing, and Backlight Retrofitting

When engineering replacement display assemblies or servicing factory equipment, technicians must address three critical integration domains: logic power rail sequencing, backlight inverter driving, and electromagnetic signal integrity.

1. Power-On and Power-Off Rail Sequencing

Active-matrix driver ICs are susceptible to latch-up conditions if digital input signals arrive before the internal logic bias supplies stabilize. On both the LQ104V1DG61 and LQ10DH11, strict timing requirements govern the application of power:

• V_DD Rise Time (t₁): 0.5 ms < t₁ < 10 ms. The logic rail must rise smoothly without ringing or monotonic plateaus.
• Data Signal Enable Delay (t₂): 0 ms < t₂ < 50 ms. Digital RGB data and clock signals must only transition after V_DD reaches 90% of its nominal operating voltage.
• Backlight Activation Delay (t₃): t₃ ≥ 200 ms. The high-voltage inverter driving the CCFL tubes (or constant-current LED driver) must remain inhibited until the liquid crystal matrix has fully aligned and valid video frames are cycling through the TCON. Violating this sequence causes bright flashes, partial screen corruption, or destructive latch-up within the gate-driver ICs.

2. High-Voltage CCFL Inverters vs. Modern Solid-State LED Retrofits

The native backlight configuration for both displays employs dual CCFL tubes. Operating CCFL lamps requires a resonant Royer or push-pull inverter capable of generating high starting voltages:

• Strike Voltage (V_strike): ≥ 1,200 V_rms (at 0°C) to ionize the mercury-argon vapor inside the miniature glass tube.
• Operating Tube Voltage (V_L): 450 V_rms to 600 V_rms nominal.
• Operating Lamp Current (I_L): 5.0 mA_rms to 6.0 mA_rms per lamp at an operating frequency (f_BL) of 40 kHz to 60 kHz.

Because aging CCFL tubes suffer from electrode sputtering, mercury depletion, and phosphor decay—often exhibiting pinkish discoloration and high-voltage transformer arcing—many maintenance facilities replace the CCFL lamps with solid-state LED light bars during overhaul. When retrofitting an LQ104V1DG61 or LQ10DH11 chassis with an LED backlight conversion kit, the high-voltage inverter must be disconnected completely. A dedicated constant-current driver board powered from the host system’s 12V or 24V DC bus should be installed, with its pulse-width modulation (PWM) dimming input tied to the host brightness controller.

3. Signal Integrity and Shielding

The parallel TTL interface utilizes high-speed digital transitions across 18 data lines and a clock line operating at 25.175 MHz. Fast edge rates (t_rise < 3 ns) on parallel buses can induce substantial electromagnetic interference (EMI) and line crosstalk if cabling exceeds 20 cm in length. When building custom interconnect harnesses, engineers should route ground return lines adjacent to high-speed data lines, maintain a characteristic single-ended trace impedance of 50 Ω ± 10%, and install series damping resistors (22 Ω to 33 Ω) at the host graphics controller outputs to eliminate signal undershoot and ringing.

Engineering Selection Guidelines and Field Diagnostics

When maintaining industrial machinery equipped with legacy Sharp 10.4-inch displays, field technicians require a clear diagnostic procedure to isolate display failures, confirm interface compatibility, and select appropriate replacement units.

Selection and Compatibility Decision Matrix

1. Direct Form-Fit-Function Replacement: If replacing an existing LQ104V1DG61, always select the exact model or a verified industrial derivative with an identical Hirose DF9-31P-1V 31-pin connector layout and identical power rail sequencing.
2. Upgrading from LQ10DH11 to LQ104V1DG61: When retrofitting an LQ10DH11 enclosure with an LQ104V1DG61, do not plug the interface harness directly into the new panel. Verify the host controller voltage (ensure 3.3V or 5.0V compatibility), construct an intermediate pinout adapter board to reroute misaligned power and ground lines, and verify that the host graphics card outputs standard continuous clock signals compatible with DE or sync-only modes.
3. Mechanical Mount Verification: Inspect the mounting flange tabs. While the active display viewing window is identical (211.2 mm × 158.4 mm), chassis mounting hole offsets and grounding clip locations vary between older D-series and newer V-series Sharp frames. Ensure that metal chassis contact tabs are securely bonded to machine chassis ground to dissipate electrostatic charges (ESD).

Field Diagnostic and Troubleshooting Guide

Use the following diagnostic matrix when troubleshooting malfunctioning 10.4-inch display assemblies in industrial environments:

Summary and Best Practices

Mastering the engineering nuances between the Sharp LQ104V1DG61 and LQ10DH11 ensures that industrial control systems, medical analyzers, and CNC terminals remain operational without unexpected downtime. By verifying logic power rail tolerances (3.3V vs. 5.0V), respecting strict power-on sequencing timing to avoid latch-up, ensuring signal integrity across high-speed parallel TTL lines, and modernizing aged CCFL backlights with solid-state LED systems, technicians and design engineers can successfully maintain and upgrade industrial displays across their operating life cycles.
