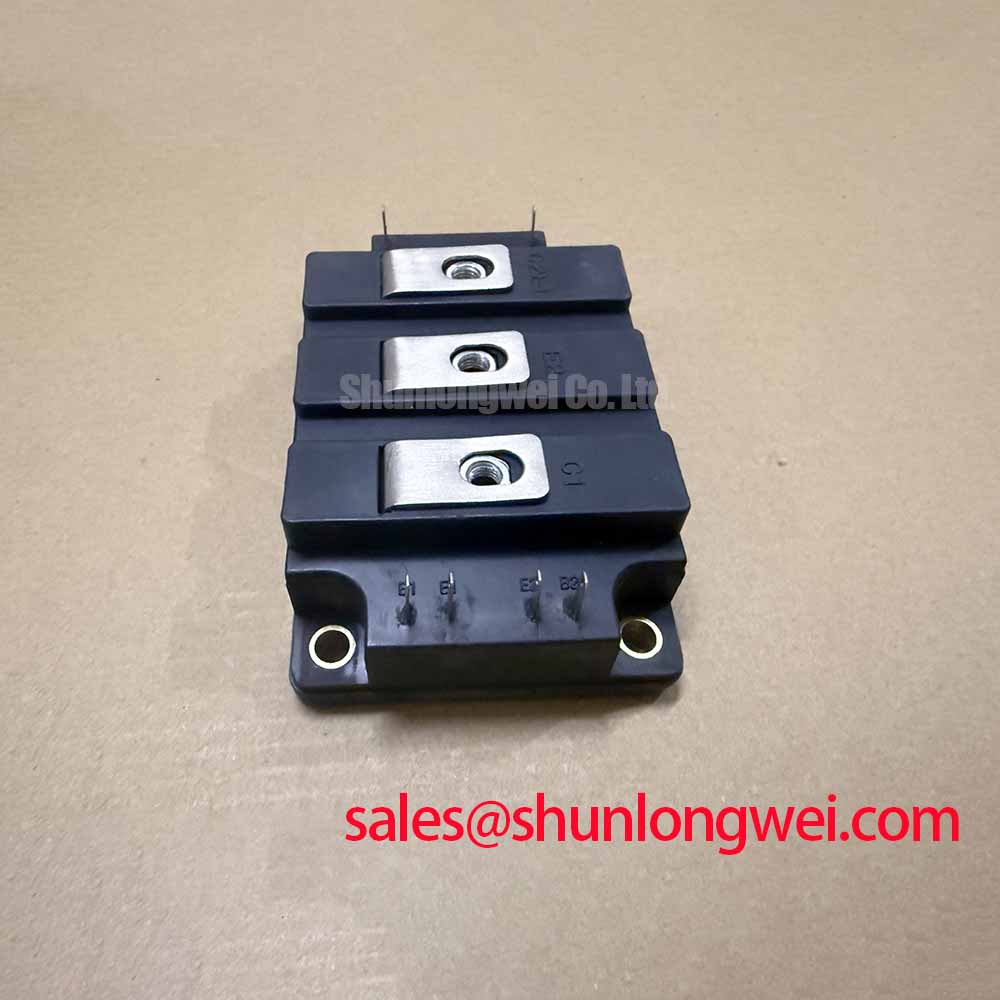

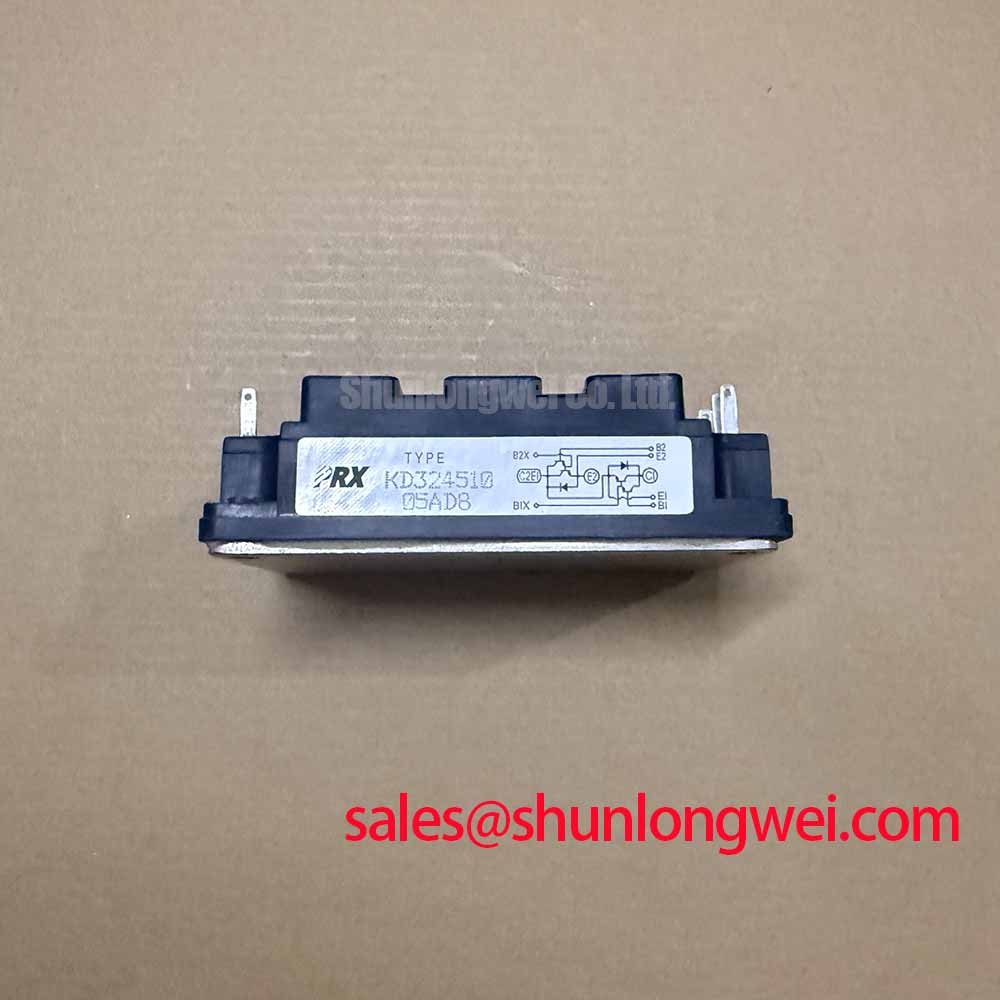

DK324510 | Robust 1200V/45A IGBT Module for High-Reliability Power Conversion
The DK324510 is an engineered solution for power electronics designers demanding a balance of high efficiency, robust thermal performance, and long-term reliability. This 1200V, 45A IGBT module is specifically architected for high-power applications where operational stability and low energy loss are not just goals, but fundamental requirements for system success.
Product Highlights at a Glance
- Voltage and Current Rating: A solid 1200V blocking voltage and 45A continuous collector current provide substantial design margin for demanding industrial applications.
- Advanced Chip Technology: Utilizes state-of-the-art Trench Field-Stop IGBT technology to achieve a superior trade-off between conduction losses and switching losses.
- Integrated FWD: Includes a soft and fast-recovery freewheeling diode (FWD) co-packaged for optimal performance, reducing voltage overshoot and EMI.
- Isolated Copper Baseplate: Ensures excellent thermal transfer to the heatsink, simplifying thermal management and enhancing power cycling capability.
Technical Deep Dive: The Engineering Advantage
At the core of the DK324510's performance lies its advanced Trench Field-Stop (TFS) IGBT silicon. Unlike older planar technologies, the trench gate structure allows for higher channel density, leading to a significantly lower collector-emitter saturation voltage (VCE(sat)). For the design engineer, this directly translates into lower conduction losses, meaning less heat generated during the on-state. The "Field-Stop" layer further optimizes the device by enabling a thinner N-drift region, which not only reduces VCE(sat) but also dramatically cuts down the turn-off switching energy (Eoff). This combination is critical for achieving high efficiency in modern, high-frequency power converters.
Application Focus: Where the DK324510 Excels
The robust characteristics of the DK324510 make it an ideal workhorse for a range of demanding power conversion tasks. Its performance is particularly noteworthy in the following areas:
- Variable Frequency Drives (VFDs): In motor control, the module's low conduction losses reduce heat dissipation in the inverter, allowing for more compact VFD designs or operation at higher ambient temperatures. The integrated fast-recovery diode minimizes losses during the freewheeling phase, improving overall drive efficiency, a key factor in industrial automation. For more context on the selection of power semiconductors, see our ultimate guide to power semiconductor selection.
- Solar Inverters: The high 1200V blocking voltage is perfectly suited for the high DC bus voltages found in modern string solar inverters. The module's high efficiency ensures that maximum energy harvested from the PV panels is converted and delivered to the grid, directly impacting the system's return on investment.
- Uninterruptible Power Supplies (UPS): Reliability is paramount in UPS systems. The DK324510's robust thermal design and proven Trench Field-Stop technology provide the long-term operational stability required to protect critical loads. Its efficient switching reduces the thermal stress on all components, enhancing the lifetime of the entire UPS unit.
Key Parameter Overview
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic) @ Tc=80°C | 45 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) Typ. @ Ic=45A | 2.1 V |
| Total Switching Energy (Ets) Typ. @ Ic=45A | 4.5 mJ |
| Maximum Junction Temperature (Tjmax) | 150 °C |
| Isolation Voltage (Viso) | 2500 V (RMS, f=50Hz) |
Frequently Asked Engineering Questions (FAQ)
1. What are the recommended gate drive conditions for the DK324510?
For optimal performance, a gate voltage of +15V for turn-on and a negative voltage between -8V and -15V for turn-off is recommended. A negative gate bias provides a strong defense against parasitic turn-on induced by dV/dt, enhancing noise immunity, especially in bridge configurations. Ensure your gate driver can supply sufficient peak current to charge and discharge the gate capacitance efficiently to minimize switching losses. Explore our guide on practical tips for robust gate drive design for more details.
2. How does the isolated baseplate benefit my design?
The integrated DCB (Direct Copper Bonded) substrate provides excellent electrical isolation while maintaining a very low thermal resistance path from the semiconductor chips to the heatsink. This simplifies your mechanical assembly, as it eliminates the need for separate, often less effective, insulating materials. The result is a more reliable thermal system, lower operating junction temperatures, and a longer service life for the IGBT module.
Strategic Advantage in a Demanding Market
In an industrial landscape that continually pushes for higher power density and stricter efficiency standards, component selection is a strategic decision. The DK324510 is not just a component; it is a design enabler. By integrating high-performance silicon with a thermally efficient package, this IGBT module allows engineers to develop more compact, more efficient, and more reliable power systems. Choosing the DK324510 provides a competitive edge, delivering the performance needed for next-generation Variable Frequency Drive (VFD), solar, and UPS applications. For detailed application support or to discuss your specific design challenges, please contact our technical team.
